Comprehensive Product Summary – RFB‑M3‑150 Magnetic WLAN Antenna Base with 1.5 m Cable (N‑Female to SMA‑Male RS)

---

### 1. Product Overview

Product Name: Magnetic WLAN Antenna Base with 1.5 m Cable
Model Number: RFB‑M3‑150
Article Number: RFB‑M3‑150
Series: RF Antenna Base (Magnetic) Series
Manufacturer: ORing Industrial Networking Corp.
Product Category: RF / WLAN Accessories – Antenna Mounting and Connectivity Solutions
Website: [www.oring-networking.com](http://www.oring-networking.com)

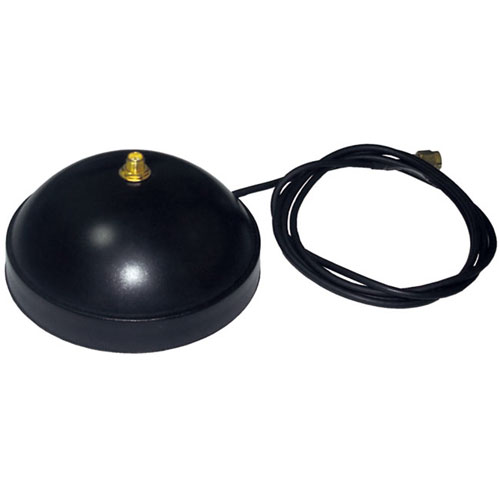

The RFB‑M3‑150 is a magnetic RF antenna base designed for WLAN and general RF communication systems. It provides a stable, magnetically mounted platform for external antennas and includes a pre‑attached 1.5 m low‑loss coaxial cable terminated with an N‑female connector on the base side and an SMA‑male RS connector on the equipment side. This product is part of ORing’s comprehensive line of ruggedized networking accessories engineered for industrial and outdoor wireless applications.

---

### 2. Key Features

- Magnetic Mounting Base:
Strong magnetic base allows secure attachment to metallic surfaces such as cabinets, vehicles, or enclosures, enabling flexible antenna positioning without drilling or permanent fixtures.

- Integrated 1.5 m RF Cable:
Pre‑assembled low‑loss coaxial cable ensures minimal signal attenuation between the antenna and connected device. The 1.5 m length provides optimal balance between flexibility and performance.

- Connector Configuration:
Equipped with an N‑female connector on the antenna side and an SMA‑male RS connector on the device side, ensuring compatibility with a wide range of WLAN antennas and RF equipment.

- High‑Frequency Compatibility:
Designed for WLAN frequency bands (2.4 GHz and 5 GHz), supporting IEEE 802.11a/b/g/n/ac/ax systems and other RF communication standards within similar frequency ranges.

- Rugged Industrial Design:
Built for durability in demanding environments, suitable for both indoor and outdoor use when paired with weather‑resistant antennas.

- Plug‑and‑Play Integration:
No additional assembly required; the base, cable, and connectors are pre‑terminated and tested for immediate deployment.

- Corrosion‑Resistant Materials:
The magnetic base and connectors are constructed from corrosion‑resistant metal alloys with protective coatings to ensure long‑term reliability.

- Compact and Lightweight:
Designed for easy handling and installation in space‑constrained or mobile applications.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Model | RFB‑M3‑150 |
| Product Type | Magnetic WLAN RF Antenna Base |
| Cable Length | 1.5 m |
| Connector Type (Antenna Side) | N‑Female |
| Connector Type (Device Side) | SMA‑Male RS |
| Cable Type | Low‑loss coaxial RF cable |
| Mounting Type | Magnetic base mount |
| Frequency Range | 0 – 6 GHz (typical for WLAN and RF applications) |
| Impedance | 50 Ω nominal |
| VSWR | ≤ 1.5 : 1 (typical, depending on antenna and cable) |
| Insertion Loss | < 0.3 dB/m at 2.4 GHz (typical) |
| Magnet Diameter | Approx. 50 – 60 mm (typical for ORing magnetic bases) |
| Base Height | Approx. 25 – 30 mm |
| Weight | Approx. 150 – 200 g |
| Material (Base) | Nickel‑plated steel with protective coating |
| Material (Cable Jacket) | UV‑resistant PVC or PE |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +85 °C |
| Color | Black (base and cable) |
| Environmental Protection | Suitable for indoor/outdoor use when paired with weatherproof antennas |

---

### 4. Functionality

The RFB‑M3‑150 serves as an intermediary mounting and connection solution between a WLAN antenna and a wireless device such as an access point, router, or industrial wireless gateway. The magnetic base allows the antenna to be positioned on any ferromagnetic surface, providing flexibility in antenna placement to optimize signal strength and coverage.

How It Works:
1. The magnetic base is placed on a metallic surface, securing the antenna in position.
2. The antenna (with N‑male connector) is attached to the N‑female connector on the base.
3. The integrated 1.5 m coaxial cable routes the RF signal to the connected device via the SMA‑male RS connector.
4. The assembly provides a stable, low‑loss RF path between the antenna and the device.

Typical Use Cases:
- WLAN access points and client devices requiring external antennas.
- Industrial wireless routers and gateways in control cabinets or vehicles.
- Mobile or temporary wireless installations (e.g., field testing, surveillance).
- Outdoor wireless bridges or point‑to‑point links.
- IoT and M2M communication systems requiring flexible antenna positioning.

Compatibility:
- Compatible with ORing’s RFA‑P (panel type) and RFA‑O (omni‑directional) WLAN antennas.
- Works with standard N‑male and SMA‑female RF connectors.
- Suitable for integration with ORing’s RFC‑series low‑loss RF cables and RFP‑series surge protectors.

---

### 5. Components & Accessories

Included Components:
- 1 × Magnetic antenna base with integrated 1.5 m coaxial cable.
- 1 × N‑female connector (antenna interface).
- 1 × SMA‑male RS connector (device interface).
- Pre‑assembled and factory‑tested for impedance and continuity.

Optional Accessories (from ORing product line):
- WLAN RF Antennas:
- *RFA‑P12‑WG* (2.4 GHz, 12 dBi, N‑female)
- *RFA‑P14‑WA* (5.8 GHz, 14 dBi, N‑female)
- *RFA‑O7‑NM‑WG* (2.4 GHz, 7 dBi, N‑male)
- *RFA‑O10‑NM‑WA* (5.8 GHz, 10 dBi, N‑male)

- RF Cables:
- *RFC‑NM‑SMR‑150* (1.5 m, N‑male to SMA‑male RS)
- *RFC‑NM‑SMR‑1000* (10 m, N‑male to SMA‑male RS)
- *RFC‑NF‑NM‑1000* (10 m, N‑female to N‑male)

- RF Surge Protectors:

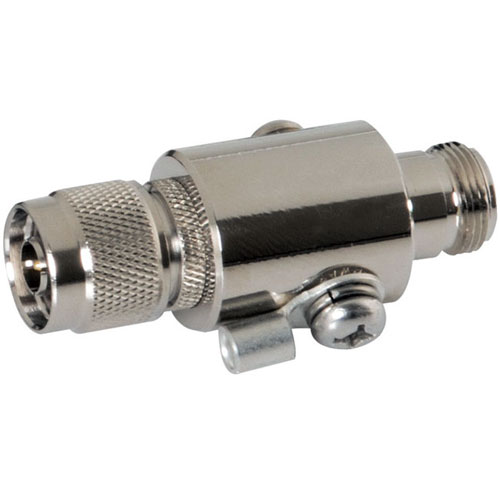

- *RFP‑NF‑NM‑WG* (2.4 GHz, N‑female to N‑male)
- *RFP‑NF‑NM‑WA* (5.8 GHz, N‑female to N‑male)

These accessories allow users to extend cable runs, protect equipment from lightning surges, and adapt antenna configurations for specific deployment scenarios.

---

### 6. Installation & Setup

Requirements:
- Metallic surface for magnetic mounting (steel or iron recommended).
- Compatible antenna with N‑male connector.
- WLAN or RF device with SMA‑female RS port.

Installation Steps:
1. Select Mounting Location:
Choose a flat, clean metallic surface with good exposure to the desired signal direction. Avoid obstructions or enclosed areas that may attenuate RF signals.

2. Attach Magnetic Base:
Place the magnetic base firmly on the surface. The strong magnet ensures stable adhesion even in mobile or outdoor environments.

3. Connect Antenna:
Screw the antenna’s N‑male connector onto the N‑female connector on the base. Tighten securely by hand to ensure proper RF contact.

4. Route Cable:
Run the 1.5 m coaxial cable to the device, avoiding sharp bends or pinch points. Maintain a minimum bend radius of 5 × cable diameter.

5. Connect to Device:
Attach the SMA‑male RS connector to the device’s SMA‑female port. Ensure a snug connection to minimize signal loss.

6. Verify Operation:
Power on the device and check signal strength or link quality. Adjust antenna placement if necessary for optimal performance.

Mounting Options:
- Magnetic base (default).
- Optional adhesive or bracket mounting (user‑supplied) for non‑metallic surfaces.

Configuration:
- No software configuration required.
- RF performance depends on antenna type, cable routing, and environmental conditions.

---

### 7. Performance & Capabilities

Electrical Performance:
- Frequency Range: 0 – 6 GHz, supporting 2.4 GHz and 5 GHz WLAN bands.
- Impedance: 50 Ω, standard for RF communication systems.
- Signal Loss: < 0.5 dB total (typical for 1.5 m low‑loss cable).
- Return Loss: > 15 dB typical.
- Power Handling: Up to 50 W continuous (depending on cable type and frequency).

Mechanical Performance:
- Magnetic Holding Force: ≥ 10 kgf (typical).
- Cable Flexibility: Rated for > 1000 bending cycles.
- Connector Durability: > 500 mating cycles.

Environmental Performance:
- Operating Temperature: −40 °C to +85 °C.
- Humidity: 0 – 95 % RH (non‑condensing).
- Corrosion Resistance: Nickel‑plated surfaces resist oxidation and rust.
- UV Resistance: Cable jacket suitable for outdoor exposure.

Limitations:
- Magnetic base requires ferromagnetic surface; not suitable for aluminum or plastic enclosures without adapters.
- Cable length limited to 1.5 m; for longer runs, use ORing RFC‑series extension cables.
- Not fully waterproof; for outdoor use, ensure antenna and connectors are weather‑sealed.

---

### 8. Standards & Compliance

The RFB‑M3‑150 and associated components are designed and manufactured in accordance with international RF and industrial accessory standards.

Compliance and Standards:
- Impedance Standard: 50 Ω RF system standard (IEC 60169‑15 for SMA, IEC 60169‑16 for N‑type).
- RoHS Compliance: Fully compliant with EU Directive 2011/65/EU (RoHS 2) and subsequent amendments.
- REACH Compliance: Conforms to Regulation (EC) No 1907/2006 for chemical safety.
- WLAN Compatibility: IEEE 802.11a/b/g/n/ac/ax frequency bands.
- Environmental Standards: Designed for industrial temperature range (−40 °C to +85 °C).
- Quality Assurance: Manufactured under ISO 9001:2015 certified processes.

Safety and Reliability:
- All connectors and cables are factory‑tested for continuity, impedance matching, and mechanical integrity.
- Magnetic base tested for vibration and shock resistance per industrial accessory standards.

---

### 9. Additional Information

Warranty:
- Standard 1‑year limited warranty from ORing Industrial Networking Corp. covering manufacturing defects and workmanship.
- Extended warranty options may be available through authorized distributors.

Technical Support:
- Comprehensive technical documentation and installation guides available at [www.oring-networking.com](http://www.oring-networking.com).
- Email and phone support provided by ORing’s global service network.

Maintenance:
- Periodically inspect connectors for corrosion or debris.
- Clean magnetic base surface to maintain adhesion strength.
- Avoid excessive bending or twisting of the coaxial cable.
- Replace cable assembly if visible damage or performance degradation occurs.

Product Updates:
- ORing periodically updates accessory models to improve performance and environmental resistance.
- The RFB‑M3‑150 is part of a modular ecosystem compatible with newer ORing WLAN antennas and RF protection devices.

Related Models in the Series:
- RFB‑M2‑150: N‑female magnetic base, 1.5 m cable, SMA‑male RS connector.
- RFB‑M2‑1000: N‑female magnetic base, 10 m cable, SMA‑male RS connector.
- RFB‑M1‑150: SMA‑female RS magnetic base, 1.5 m cable, SMA‑male RS connector.
- RFB‑M1‑1000: SMA‑female RS magnetic base, 10 m cable, SMA‑male RS connector.

These variants provide different connector configurations and cable lengths to suit diverse installation requirements.

---

### Summary

The RFB‑M3‑150 Magnetic WLAN Antenna Base is a robust, ready‑to‑use RF accessory engineered for professional and industrial wireless networking applications. Its magnetic base enables flexible, non‑permanent installation, while the integrated 1.5 m low‑loss coaxial cable ensures reliable signal transmission between antennas and WLAN devices. With its N‑female to SMA‑male RS connector configuration, the RFB‑M3‑150 supports a wide range of antennas and equipment, making it ideal for both fixed and mobile wireless deployments.

Designed under ORing’s “Rugged Excellence” philosophy, this product combines mechanical durability, electrical performance, and installation convenience. It is fully compliant with international RF standards and environmental directives, ensuring long‑term reliability in industrial, commercial, and outdoor environments.

---

Manufacturer Contact:
ORing Industrial Networking Corp.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Category: Accessories → RF Antenna Base (Magnetic)
Model: RFB‑M3‑150
Description: *Magnetic WLAN RF Antenna Base, 1.5 m Cable, N‑Female to SMA‑Male RS Connector*

Designed for Rugged Excellence.
