PA-280W-ET2
LOOKING FOR THE RIGHT
INDUSTRIAL SOLUTION?
Discover embedded, communication and automation solutions tailored to your application.

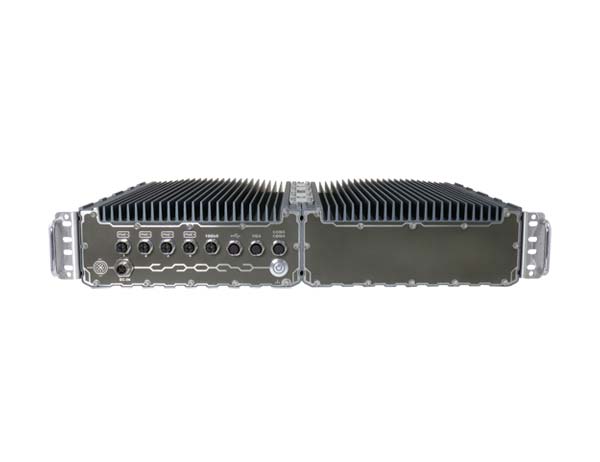

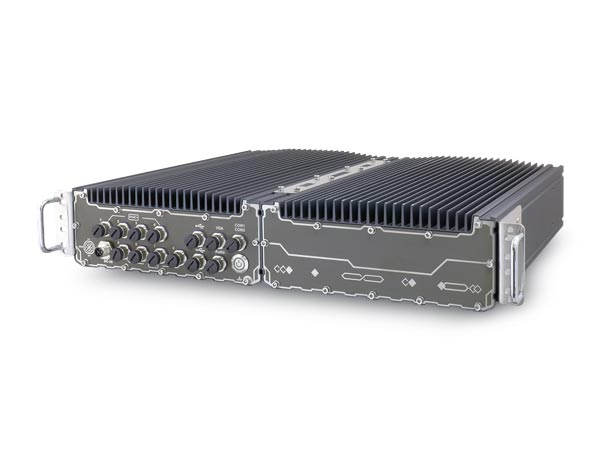

IP67 fanless GPU computer with NVIDIA RTX 2000 Ada, four Gigabit PoE+ ports and one 10GbE port. Supports Intel Xeon E or 9th/8th Gen Core processors, up to 64 GB DDR4, NVMe and SATA storage, rugged M12 connectivity, 8–48 VDC input, ignition control and 2U rack or wall mounting.
- GPU NVIDIA RTX 2000 Ada
- Gigabit PoE+ Ports 4 ports
- 10 Gigabit Ethernet Ports 1 port
- 10GbE Controller Intel X550AT
- Ingress Protection IP67
- Maximum System Memory 64 GB
- DC Input Range 8–48 VDC
- Dimensions 440 x 310 x 90.5 mm
- Form Factor Fanless 2U 19-inch rack/wall-mount computer
- Connector M12 X-coded PoE+/10GbE; M12 A-coded VGA/USB/COM; M12 S-coded DC input
- Dimensions 440 x 310 x 90.5 mm
- Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
- Resolution VGA up to 1920 x 1200
- Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
- Key Features IP67 waterproof and dustproof;NVIDIA RTX 2000 Ada;4x Gigabit PoE+;1x 10GbE;fanless operation;8–48 VDC input;MIL-STD-810G;M12 connectors
- Accessories PA-280W-ET2, Cblkit-M12
-
semil-1724gc-10g-ada-catalog-3f82b598ba3e.pdf PDF Catalog
- PA-280W-ET2 - 280W AC/DC power adapter 24V/11.67A 16AWG
- Cblkit-M12 - Optional accessory for compatible products
