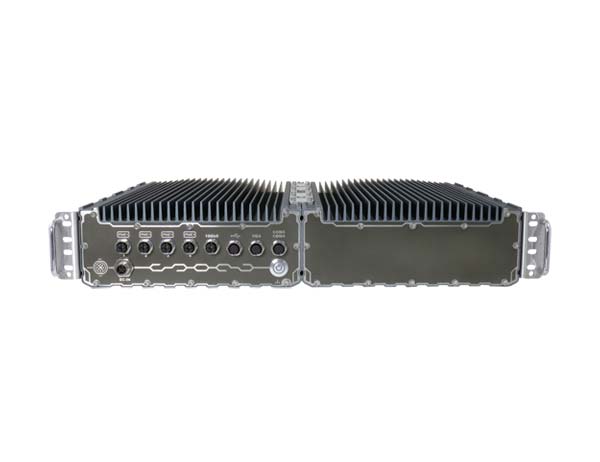

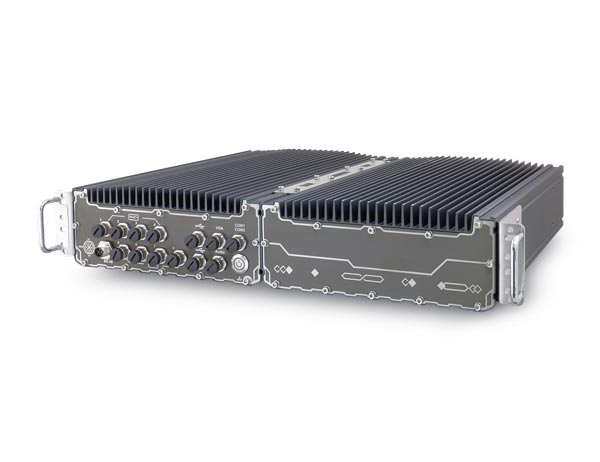

IP67 fanless edge AI computer with RTX 2000 Ada and four M12 PoE+ ports.
IP67 fanless edge AI computer with RTX 2000 Ada and four M12 PoE+ ports. IP67 fanless edge AI computer with RTX 2000 Ada and four M12 PoE+ ports.

SEMIL-1724GC-ADA

IP67 fanless edge AI computer with RTX 2000 Ada and four M12 PoE+ ports.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer
  • The SEMIL-1724GC-ADA is a fanless, IP67-protected GPU computer for edge AI applications in demanding environments. It combines an NVIDIA RTX 2000 Ada with support for Intel Xeon E or 9th/8th Gen Core processors. Four Gigabit PoE+ ports plus VGA, USB and serial interfaces use rugged M12 connectors. The 2U 19-inch system supports up to 64 GB DDR4 memory, NVMe and SATA storage, an 8 to 48 VDC input with ignition control, and both rack and wall mounting. Its sealed construction is designed for shock, vibration, dust and water exposure.
IP67 waterproof and dustproof fanless GPU computer with NVIDIA RTX 2000 Ada, Intel Xeon E or 9th/8th Gen Core CPU support, four Gigabit PoE+ ports, M12 connectivity, up to 64 GB DDR4 memory, NVMe and SATA storage, 8–48 VDC input, ignition control and rack or wall mounting.
  • GPU NVIDIA RTX 2000 Ada
  • Gigabit PoE+ Ports 4 ports
  • Ingress Protection IP67
  • Supported Processor Families Intel Xeon E; 9th/8th Gen Intel Core i7/i5/i3
  • Maximum System Memory 64 GB
  • DC Input Range 8–48 VDC
  • Dimensions 440 x 310 x 90.5 mm
  • Form Factor Fanless 2U 19-inch rack/wall-mount computer
  • Connector M12 X-coded Ethernet; M12 A-coded VGA/USB/COM; M12 S-coded DC input
  • Dimensions 440 x 310 x 90.5 mm
  • Maximum Operating Temperature 70 with 35 W CPU °C
  • Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
  • Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
  • Resolution VGA up to 1920 x 1200
  • Key Features IP67 waterproof and dustproof;NVIDIA RTX 2000 Ada;4x Gigabit PoE+;fanless operation;8–48 VDC input;ignition control;MIL-STD-810G;EN 50155 EMC;M12 connectors
  • Accessories PA-280W-ET2, Cblkit-M12
