- **Comprehensive Device Management:** Provides full configuration and monitoring capabilities for all Nudam series modules, including analog input/output, digital input/output, counter, and communication modules. - **Automatic Device Detection:** Scans and identifies connected Nudam modules on RS-485 or Ethernet networks, displaying module type, address, firmware version, and operational status. - **Parameter Configuration Interface:** Allows users to set module parameters such as baud rate, data format, sampling rate, input range, and channel configuration through an intuitive graphical interface. - **Real-Time Monitoring:** Displays live data from connected modules, enabling users to observe analog and digital signal changes in real time for diagnostics and verification. - **Firmware Management:** Supports firmware version checking and updates for Nudam modules, ensuring compatibility and access to the latest performance enhancements. - **Network Configuration Tools:** Includes utilities for assigning communication addresses, setting up RS-485 network topology, and configuring Ethernet-based Nudam devices. - **Data Logging and Export:** Offers basic data logging capabilities for test and calibration purposes, with export options to CSV or text formats for further analysis. - **User-Friendly Interface:** Designed with a clear, menu-driven GUI that simplifies complex configuration tasks, reducing setup time and minimizing user error. - **Compatibility with Multiple Operating Systems:** Typically supports Windows-based environments (Windows 7/8/10/11), with driver and library support for integration into custom applications. - **Diagnostic and Test Functions:** Provides built-in diagnostic tools for communication testing, module response verification, and error detection.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Single‑Channel Analog Output:** One differential analog output channel configurable for voltage or current output. - **High Resolution:** 12‑bit digital‑to‑analog conversion for fine output granularity. - **Multiple Output Ranges:** - Voltage: 0 – 10 V (unipolar) - Current: 0 – 20 mA or 4 – 20 mA - **High Isolation:** 5000 Vrms optical isolation between communication and analog sections for electrical safety. - **Programmable Slew Rate:** - Voltage: 0.0625 – 64 V/s - Current: 0.125 – 128 mA/s - **High Sampling Rate:** Up to 100 samples/s for dynamic control applications. - **Watchdog Protection:** - Internal watchdog (150 ms) for module self‑recovery. - Host‑programmable watchdog (100 ms – 25.5 s) for system safety. - **Power‑On Safe Value:** User‑configurable default output value on startup or communication loss. - **RS‑485 Communication:** Two‑wire, half‑duplex interface supporting up to 115.2 kbps and 256 addressable modules. - **Compact Industrial Design:** DIN‑rail or panel‑mountable ABS enclosure with screw‑terminal connectors. - **Software Configurable:** Fully programmable via ASCII command set or NuDAM Administration Utility. - **Readback Function:** Internal ADC allows verification of actual analog output for closed‑loop monitoring. - **Noise Immunity:** Internal shielding and coated PCB for EMI/RFI resistance. - **Wide Power Range:** Operates from unregulated +10 V – +30 V DC.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Four Bipolar Analog Output Channels:** Each channel provides a programmable ±10 V output range with 12‑bit resolution. - **Integrated Digital Inputs:** Seven TTL‑level digital input channels for monitoring or triggering external events. - **High Isolation:** 5000 Vrms optical isolation between communication, power, and I/O circuitry ensures electrical safety and noise immunity. - **RS‑485 Communication Interface:** Two‑wire, half‑duplex serial interface supporting up to 115.2 kbps for multi‑drop networking of up to 256 modules. - **Programmable Watchdog Timers:** - **Host Watchdog:** Detects host communication failure and forces outputs to a predefined safe state. - **Internal Watchdog:** Monitors internal microprocessor operation and resets the module in case of malfunction. - **High Accuracy and Stability:** ±0.02 % of full‑scale range (FSR) accuracy with low gain drift (10 ppm FSR/°C). - **Compact Industrial Design:** DIN‑rail or panel‑mountable ABS enclosure with screw‑terminal connectors for secure wiring. - **Software Configurable:** All parameters (output range, baud rate, watchdog, safe values) are programmable via ASCII command set. - **Safety and Reliability:** Power‑on safe values, watchdog reset, and galvanic isolation protect both the module and connected equipment.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **15 Digital Input Channels:** Provides fifteen independent digital input lines for monitoring discrete signals such as switches, sensors, or relay contacts. - **CAN-Bus Communication Interface:** Fully compliant with the CAN 2.0A/B standard, enabling seamless integration into existing CAN networks. - **Optical Isolation:** Each input channel is optically isolated from the system logic, providing protection against voltage spikes, ground loops, and electrical noise. - **Wide Input Range:** Supports a broad input voltage range suitable for industrial signal levels, typically 0–30 VDC, allowing compatibility with a variety of field devices. - **High Noise Immunity:** Designed for stable operation in harsh industrial environments with strong electromagnetic interference (EMI). - **Compact and Rugged Design:** Housed in a durable enclosure suitable for DIN-rail or panel mounting, ensuring easy installation and long-term reliability. - **LED Status Indicators:** Each input channel includes an LED indicator for real-time status monitoring, simplifying diagnostics and maintenance. - **Distributed Architecture:** Enables modular expansion of I/O capacity across a CAN network, reducing wiring complexity and improving system scalability. - **Configurable Node ID and Baud Rate:** Supports flexible configuration of CAN node address and communication speed to match network requirements. - **Low Power Consumption:** Optimized for energy-efficient operation, suitable for continuous 24/7 industrial use. - **Software Support:** Compatible with ADLINK’s NuDAM configuration utilities and standard CANopen or proprietary CAN protocols for easy integration with PLCs, SCADA systems, and PC-based controllers.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **Dual Counter/Frequency Input Channels:** Two isolated input channels capable of counting pulses or measuring frequency signals independently. - **CAN-Bus Interface:** Fully compliant with the **CAN 2.0A/B** standard, supporting high-speed communication up to **1 Mbps**. - **High Accuracy and Resolution:** Designed for precise event counting and frequency measurement with high input resolution and fast response times. - **Wide Input Range:** Supports TTL, open collector, or contact-type input signals, making it compatible with a variety of sensors and transducers. - **Programmable Functionality:** Each channel can be configured for counter or frequency input mode, with adjustable debounce filters and counting direction. - **Industrial-Grade Design:** Rugged enclosure suitable for harsh industrial environments, with wide operating temperature and high noise immunity. - **Distributed Architecture:** Enables remote data acquisition and control over CAN-Bus networks, reducing wiring complexity and improving scalability. - **LED Indicators:** Status LEDs for power, communication, and channel activity monitoring. - **Flexible Mounting Options:** DIN-rail or panel mounting for easy integration into control cabinets or distributed I/O panels. - **Software Configurable:** Supports configuration and monitoring via Adlink’s NuDAM utility software or third-party CANopen-compatible tools.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **Three Independent RTD Input Channels:** Supports simultaneous measurement from up to three RTD sensors, enabling multi-point temperature monitoring. - **CAN-Bus Communication Interface:** Fully compliant with the CAN 2.0A/B standard, allowing integration into existing CAN-based control systems. - **High Accuracy and Stability:** Designed for precise temperature measurement with low drift and high linearity across a wide temperature range. - **Wide RTD Compatibility:** Supports standard RTD types such as Pt100, Pt200, Pt500, and Pt1000, with configurable wiring options (2-, 3-, or 4-wire connections). - **Industrial-Grade Design:** Rugged enclosure and wide operating temperature range suitable for harsh industrial environments. - **Isolation Protection:** Channel-to-channel and channel-to-system isolation to prevent ground loops and electrical interference. - **Configurable Sampling Rate:** Adjustable data acquisition rate to balance between response time and measurement resolution. - **Plug-and-Play Integration:** Compatible with ADLINK’s NuDAM configuration tools and CANopen protocol for easy setup and network management. - **LED Indicators:** Status LEDs for power, communication, and channel activity monitoring. - **DIN-Rail Mountable:** Compact form factor with DIN-rail mounting for easy installation in control cabinets.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **CAN-Bus Communication Interface:** Fully compliant with the CAN 2.0A/B standard, enabling reliable, high-speed communication in distributed control networks. - **4 Analog Output Channels:** Each channel supports programmable voltage or current output ranges, allowing flexible signal generation for actuators, control valves, and other analog-driven devices. - **8 Digital Input Channels:** Optically isolated digital inputs for monitoring switches, sensors, and discrete signals in industrial environments. - **High Accuracy and Stability:** Precision digital-to-analog conversion ensures stable and accurate analog output signals, suitable for demanding control applications. - **Rugged Industrial Design:** Designed for harsh environments with wide operating temperature range, high noise immunity, and robust electrical isolation. - **Modular and Scalable:** Easily integrated into existing CAN-based control systems, allowing expansion of I/O capacity without major system redesign. - **Configurable Parameters:** Output ranges, update rates, and communication parameters can be configured via software tools or CAN commands. - **DIN-Rail or Wall Mountable:** Compact form factor supports flexible installation in control cabinets or distributed field locations. - **LED Indicators:** Status LEDs for power, communication, and channel activity simplify diagnostics and maintenance. - **Low Power Consumption:** Optimized for energy-efficient operation in continuous industrial use.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **8 Analog Input Channels:** Supports simultaneous measurement of up to eight analog signals, allowing multi-point data acquisition from sensors and transducers. - **CAN-Bus Communication Interface:** Fully compliant with the CAN 2.0A/B standard, enabling high-speed, noise-immune data transmission over industrial networks. - **High Resolution and Accuracy:** Provides 16-bit analog-to-digital conversion for precise signal measurement and minimal quantization error. - **Wide Input Range:** Configurable input ranges for voltage and current signals, typically ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV, or 0–20 mA, depending on configuration. - **Isolation Protection:** Channel-to-channel and channel-to-system isolation ensures signal integrity and protects against ground loops and electrical interference. - **Rugged Industrial Design:** Built for reliable operation in harsh environments, with extended temperature tolerance and robust housing. - **Flexible Mounting Options:** DIN-rail or wall-mount installation for easy integration into control panels or distributed I/O enclosures. - **Programmable Sampling Rate:** Adjustable sampling frequency to balance between speed and accuracy for different application needs. - **LED Indicators:** Status LEDs for power, communication, and channel activity monitoring. - **Compatibility:** Seamless integration with ADLINK’s NuDAM series and other CANopen-compatible devices. - **Software Support:** Configurable via ADLINK utility software or third-party CANopen configuration tools.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **8 Relay Output Channels:** Each channel provides an independent relay output for switching digital loads such as solenoids, contactors, alarms, and indicator lamps. - **CAN-Bus Interface:** Fully compliant with **CAN 2.0B** and **CANopen** communication standards, enabling integration into existing CAN-based control networks. - **High Isolation:** Optical and galvanic isolation between channels and communication lines ensures signal integrity and protection against electrical noise and surges. - **Industrial Reliability:** Designed for continuous operation in industrial environments with wide operating temperature ranges and robust housing. - **Modular Distributed Architecture:** Enables flexible system expansion and distributed control without centralized wiring complexity. - **Status Indication:** Each relay channel includes LED indicators for real-time output status monitoring. - **Configurable Node ID and Baud Rate:** DIP switch or software configuration allows easy network setup and addressing. - **Fail-Safe Operation:** Built-in watchdog timer and power-on default states ensure safe operation during communication loss or power interruptions. - **DIN-Rail Mountable:** Compact form factor with DIN-rail mounting for easy installation in control cabinets. - **Low Power Consumption:** Optimized for energy efficiency in distributed systems.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

- **8 Independent Thermocouple Input Channels:** Supports simultaneous measurement from up to eight thermocouple sensors, enabling multi-point temperature monitoring. - **CAN-Bus Communication Interface:** Fully compliant with the CAN 2.0A/B standard, allowing distributed data acquisition and control over a robust, noise-immune network. - **Wide Thermocouple Compatibility:** Supports standard thermocouple types (J, K, T, E, R, S, B, N) for flexible integration across various industrial temperature measurement applications. - **High Accuracy and Resolution:** Provides precise temperature readings with high-resolution A/D conversion and built-in cold-junction compensation (CJC) for improved measurement stability. - **Industrial-Grade Design:** Rugged, DIN-rail or wall-mountable enclosure suitable for harsh environments, with wide operating temperature range and high electromagnetic immunity. - **Isolation Protection:** Channel-to-system isolation ensures signal integrity and protects against ground loops and electrical interference. - **Configurable Sampling and Filtering:** Adjustable sampling rates and digital filtering options to optimize performance for different signal conditions. - **Easy Integration:** Compatible with ADLINK’s NuDAM configuration software and standard CANopen or proprietary CAN protocols for seamless integration into existing systems. - **LED Indicators:** Status LEDs for power, communication, and channel activity simplify diagnostics and system monitoring. - **Compact and Modular Form Factor:** Enables distributed installation close to sensors, reducing wiring complexity and signal degradation.

Manufacturer: Adlink Technology Inc.

Category: CAN Bus

The **NuDAM‑6012** is a **multi‑function, high‑gain analog input module** designed for industrial data acquisition and remote monitoring applications. It provides a **single differential analog input channel** with programmable voltage ranges and integrated digital I/O for alarm and control functions. The module communicates via a **two‑wire RS‑485 interface**, supporting multi‑drop networking and long‑distance communication. **Primary Features:** - **1 differential analog input channel** with programmable voltage range. - **High‑gain measurement capability** for low‑level signals (±150 mV to ±10 V). - **16‑bit resolution** analog‑to‑digital conversion for precise measurement. - **RS‑485 communication interface** (2‑wire, half‑duplex) with baud rates up to 115.2 kbps. - **5000 Vrms isolation** between analog and communication circuits (2500 Vrms for ND‑6012/D). - **2 open‑collector digital outputs** (50 mA sink current each) for alarms or control. - **1 digital input channel** configurable as a general input or event counter (up to 50 Hz). - **Programmable high/low alarm thresholds** with latch or momentary modes. - **Host and internal watchdog timers** for system reliability and fail‑safe operation. - **LED display (5½‑digit)** on the “D” version for real‑time value indication. - **Software‑configurable parameters** including address, baud rate, input range, and data format. - **Compact, DIN‑rail mountable design** for distributed I/O networks. - **Power supply range:** +10 V DC to +30 V DC.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **High‑Precision Analog Input:** One differential analog input channel with programmable voltage ranges of ±10 V, ±5 V, ±1 V, ±500 mV, or ±150 mV, and current measurement capability of ±20 mA (via external 125 Ω resistor). - **High Resolution and Accuracy:** 16‑bit A/D conversion with ±0.05 % accuracy ensures precise signal acquisition across all ranges. - **Integrated LED Display:** A 5½‑digit LED display provides immediate visual feedback of measured values, simplifying on‑site monitoring and calibration. - **Digital I/O and Alarm Functions:** Two open‑collector digital outputs (50 mA sink current) can serve as alarm outputs or general‑purpose control lines. One digital input channel supports TTL‑level signals or can operate as an event counter up to 50 Hz. - **Programmable Watchdog Timers:** Includes both an internal 150 ms watchdog for device self‑protection and a host‑programmable watchdog (100 ms–25.5 s) for system‑level fault recovery. - **RS‑485 Networking:** Two‑wire RS‑485 interface supporting baud rates from 1,200 bps to 115.2 kbps (firmware A4.00 or later). Enables multi‑drop networking of up to 255 modules over long distances. - **Electrical Isolation:** 2,500 Vrms isolation between analog and system circuits protects against ground loops and electrical noise. - **Compact, Industrial Design:** Operates from a wide 10–30 V DC supply, consuming only 2.0 W. Designed for DIN‑rail or panel mounting in harsh industrial environments. - **Software Configurable:** All parameters—address, baud rate, input range, data format, and alarm thresholds—are programmable via ASCII‑based command set. - **Ease of Integration:** Compatible with ADLINK’s NuDAM Administration Utility and other RS‑485/Modbus‑compatible supervisory systems.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **High‑Gain Analog Input:** One differential analog input channel with programmable gain and voltage range from ±15 mV to ±2.5 V. - **Thermocouple Compatibility:** Direct thermocouple connection with built‑in Cold Junction Compensation (CJC) for accurate temperature measurement. - **Multi‑Range Input:** Supports voltage, current, and thermocouple input types with programmable ranges. - **High Isolation:** 5000 Vrms isolation for analog‑to‑digital channel (2500 Vrms for ND‑6011/D version). - **Digital I/O Integration:** Two open‑collector digital outputs (DO) and one digital input (DI) that can function as an event counter. - **Programmable Alarms:** High/low alarm thresholds with digital output signaling for external alarm devices. - **Watchdog Protection:** Dual watchdog system—internal (150 ms) and host‑programmable (100 ms to 25.5 s)—for system reliability. - **RS‑485 Communication:** Two‑wire serial interface supporting baud rates from 1200 bps to 115.2 kbps. - **Software Calibration:** Fully programmable offset and span calibration without manual adjustment. - **LED Display (D Version):** 5½‑digit LED display for real‑time analog value visualization. - **Ease of Integration:** Compact, software‑configurable, and compatible with NuDAM Administration utilities for setup and monitoring.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **8255 Mode 0 Emulation:** Fully compatible with the standard 8255 PPI chip, providing ports A, B, C‑upper, and C‑lower for flexible bit‑level control. - **28 Digital Channels:** 24 programmable I/O lines plus 4 dedicated digital inputs. - **High‑Voltage Isolation:** 5 kVrms optical isolation between field I/O and communication circuitry for operator and equipment protection. - **TTL‑Compatible Logic:** All I/O lines conform to TTL voltage levels for direct interface with logic devices or opto‑isolated I/O racks (OPTO‑22 compatible). - **Buffered Outputs:** Line drivers provide higher current‑drive capability and improved noise immunity. - **Status Read‑Back:** Each output bit can be read back for verification. - **Direct Bit Set/Reset:** Individual bit manipulation without affecting other bits. - **Watchdog Protection:** - Hardware watchdog (150 ms) for internal fault recovery. - Host‑programmable watchdog (100 ms – 25.5 s) with user‑defined safe output states. - **Resettable Power Fuse:** On‑board protection against external short circuits on field‑power lines. - **RS‑485 Networking:** Two‑wire, half‑duplex communication supporting up to 128 modules per segment (256 with repeater). - **ASCII Command Protocol:** Simple printable‑character command/response set for easy integration with any host language. - **Industrial‑Grade Construction:** ABS enclosure with conformal‑coated PCB for resistance to humidity, salt spray, and chemicals. - **DIN‑Rail or Panel Mounting:** Compact form factor suitable for control cabinets and distributed I/O panels.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

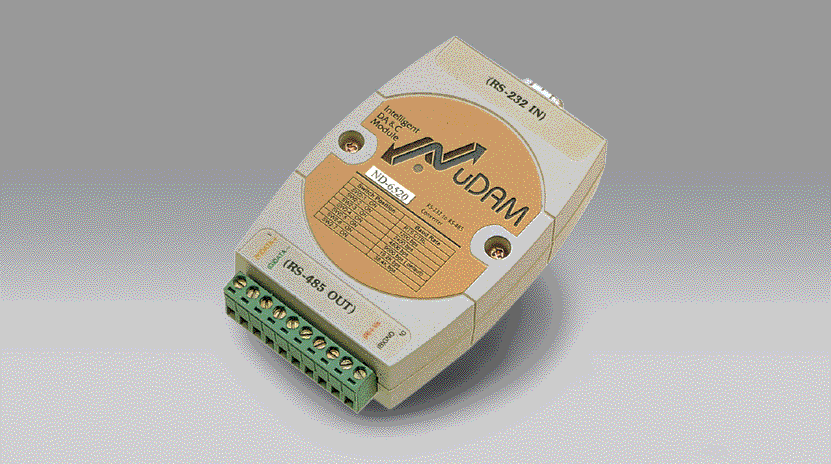

- **Bidirectional Serial Conversion:** Converts RS‑232 signals to RS‑422 (4‑wire full‑duplex) or RS‑485 (2‑wire half‑duplex) differential communication. - **High‑Speed Data Transmission:** Supports baud rates from **1200 to 115,200 bps**, matching the input RS‑232 speed. - **Automatic Direction Flow Control:** Eliminates the need for software‑controlled data‑direction signals when operating in RS‑485 mode. - **High Isolation Voltage:** Provides **2500 Vrms isolation** between the host RS‑232 interface and the RS‑422/RS‑485 network, protecting equipment from ground loops and electrical surges. - **Extended Network Capacity:** Supports up to **128 modules** on a single RS‑485 bus segment and up to **256 addressable modules** when used with ND‑6510 repeaters. - **Long‑Distance Communication:** RS‑485 network distance up to **4000 ft (1200 m)** without repeaters. - **Industrial‑Grade Design:** Rugged ABS enclosure with internal EMI shielding and conformal coating for resistance to humidity, salt spray, and chemical exposure. - **Low Power Consumption:** Typical power usage **0.912 W** from a **+10 V – +30 V DC** supply. - **Plug‑and‑Play Compatibility:** Standard **DB‑9 female RS‑232 connector** and **plug‑in screw terminal block** for RS‑422/RS‑485 wiring. - **Simple Configuration:** Hardware DIP‑switch setup for baud rate and data format; no software configuration required. - **Network Integration:** Serves as the host interface for NuDAM analog, digital, and counter modules in distributed data acquisition systems.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **USB 1.1 Compliant:** Fully conforms to USB Specification 1.1 for universal connectivity with PCs, IPCs, and embedded systems. - **Plug‑and‑Play Installation:** Automatic device recognition and driver installation under Windows 98/2000/XP/Vista/Linux. - **Self‑Powered via USB:** Draws power directly from the USB bus; no external supply required. - **Multi‑Protocol Support:** Hardware DIP‑switch selectable operation for RS‑232, RS‑422, or RS‑485. - **RS‑232 Mode:** Supports TXD, RXD, RTS, CTS, and FGND signals with full hardware handshaking. - **RS‑422 Mode:** Full‑duplex four‑wire differential communication (TX+, TX–, RX+, RX–). - **RS‑485 Mode:** Half‑duplex two‑wire differential communication (DATA+, DATA–) with automatic direction flow control. - **High Isolation:** 2500 Vrms galvanic isolation between USB and serial interfaces for protection against ground loops and surges. - **Surge Protection:** Built‑in transient suppression on all RS‑232/422/485 signal lines. - **High Transfer Rate:** Supports baud rates from 1200 bps up to 115.2 kbps. - **Multi‑Drop Capability:** Supports up to 128 RS‑485 devices on a single bus segment. - **Status Indication:** LED indicator for power and data transfer status. - **Industrial Design:** ABS enclosure with captive mounting hardware for panel or DIN‑rail installation. - **Low Power Consumption:** Typical power draw of 0.6 – 0.8 W from USB bus. - **Operating Temperature:** –10 °C to +70 °C for industrial environments. - **CE Class A Compliance:** Meets EMC requirements for industrial equipment.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **16‑Channel Digital Input:** Supports both dry‑contact and wet‑contact input modes for flexible signal interfacing. - **RS‑485 Communication Interface:** Two‑wire, half‑duplex differential transmission for long‑distance, noise‑immune communication. - **Multi‑Drop Networking:** Up to 128 modules per RS‑485 segment, expandable to 256 with repeaters. - **Programmable Host Watchdog Timer:** Ensures safe operation by switching outputs to a predefined safe state if host communication fails. - **Internal Watchdog Timer:** Automatically resets the module in case of internal malfunction. - **Low Power Consumption:** Typical power usage of 0.408 W for energy‑efficient operation. - **Simple ASCII Command Protocol:** Uses human‑readable ASCII commands for configuration and data exchange. - **Industrial‑Grade Design:** Rugged ABS enclosure with PCB coating for resistance to humidity, dust, and chemical exposure. - **DIN‑Rail or Panel Mounting:** Compact form factor suitable for control cabinets and distributed I/O panels. - **Long‑Distance Communication:** RS‑485 bus supports up to 1,200 m (4,000 ft) between nodes. - **Noise Immunity and Isolation:** Differential signaling and internal protection circuits minimize EMI and ground‑loop interference. - **Flexible Input Wiring:** Supports contact closure, transistor, or TTL‑level signal sources. - **Software Compatibility:** Fully supported by ADLINK’s NuDAM Administration Utility for configuration, monitoring, and diagnostics.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **RS‑485 Communication Interface:** Two‑wire, half‑duplex differential communication supporting multi‑drop networking up to 256 addressable modules. - **Digital I/O Configuration:** – 7 digital input channels (TTL compatible) – 8 open‑collector digital output channels - **Input Characteristics:** TTL‑level compatible inputs with internal 10 kΩ pull‑up resistors and 0.5 mA maximum input current. Capable of detecting both active logic signals and passive switch closures. - **Output Characteristics:** Open‑collector transistor outputs capable of sinking up to 50 mA per channel (300 mW maximum dissipation per channel). Suitable for driving relays, LEDs, or solid‑state relays. - **Watchdog Protection:** – Internal 150 ms hardware watchdog for self‑recovery in case of module malfunction. – Host‑programmable watchdog timer (100 ms – 25.5 s) to ensure safe output states if host communication fails. - **Industrial‑Grade Design:** Compact, rugged ABS enclosure with screw‑terminal connectors for reliable field wiring. Designed for DIN‑rail or panel mounting. - **Ease of Integration:** ASCII‑based command/response protocol for simple control via any RS‑485 master or PC host. Compatible with ADLINK’s NuDAM Administration Utility. - **Low Power Consumption:** Typical power usage of 0.336 W from a +10 V – +30 V DC supply. - **Software Configurable:** Address, baud rate, and checksum settings configurable via software commands or hardware default pin.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **15 Isolated Digital Input Channels:** Each channel is optically isolated to protect against high‑voltage transients and ground loops. - **Common Power Input Design:** All channels share a common external +24 V supply, simplifying wiring in industrial environments. - **High Isolation Voltage:** 5000 Vrms isolation between field inputs and logic circuitry ensures robust protection against electrical noise and surges. - **RS‑485 Communication Interface:** Two‑wire, half‑duplex differential signaling for long‑distance, multi‑drop networking. - **Wide Communication Speed Range:** Supports baud rates from 1200 bps up to 115.2 kbps. - **Programmable Host Watchdog Timer:** Automatically sets outputs to a safe state if host communication fails. - **Internal Hardware Watchdog:** Monitors module operation and resets the device in case of internal malfunction. - **Compact Industrial Design:** DIN‑rail or panel‑mountable ABS enclosure with screw‑terminal connectors for easy installation. - **Noise Immunity and EMI Protection:** Internal shielding and coated PCB for operation in harsh industrial environments. - **Simple ASCII Command Protocol:** Compatible with all NuDAM modules; easy integration with PCs, PLCs, and SCADA systems. - **Long‑Distance Networking:** Up to 4000 ft (1200 m) communication distance per segment; up to 128 modules per RS‑485 bus. - **Low Power Consumption:** Typical consumption of 0.216 W.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **15‑bit digital open‑collector outputs** with common ground configuration. - **High isolation voltage:** 3,750 VRMS (typical 5,000 VRMS isolation protection between I/O and communication circuits). - **Maximum load current:** 300 mA per channel (hardware revision A2). - **RS‑485 two‑wire communication interface** supporting up to 115.2 kbps. - **Programmable host watchdog timer** for host failure protection. - **Internal hardware watchdog** for device self‑recovery. - **Open‑collector transistor outputs** suitable for driving relays, lamps, solenoids, or other logic‑level loads. - **Common ground output design** simplifies wiring for multiple loads sharing a single return path. - **Compact, DIN‑rail or panel‑mountable ABS enclosure** with screw‑terminal connectors. - **Easy configuration via ASCII command set** using NuDAM Administration Utility. - **Wide power input range:** +10 V DC to +30 V DC (unregulated). - **Low power consumption:** 1.32 W typical. - **Industrial‑grade design** with EMI shielding and conformal coating for harsh environments.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Eight Isolated Digital Inputs:** Six differential channels and two single‑ended channels with common ground. - **High Isolation Voltage:** 5 kVrms optical isolation between field inputs and communication circuitry for protection against high‑voltage transients and ground loops. - **RS‑485 Communication Interface:** Two‑wire, half‑duplex differential bus supporting up to 115.2 kbps and 4000 ft (1200 m) transmission distance. - **Industrial‑Grade Design:** Compact ABS enclosure with screw‑terminal connectors for secure wiring and DIN‑rail or panel mounting. - **Programmable Watchdog Timers:** - Internal 150 ms hardware watchdog for self‑recovery. - Host‑programmable watchdog (100 ms – 25.5 s) to ensure safe output states if host communication fails. - **Wide Power Supply Range:** Operates from +10 V DC to +30 V DC unregulated. - **Low Power Consumption:** Typical 0.264 W. - **Noise Immunity:** Opto‑isolation and internal filtering provide high resistance to EMI/RFI interference. - **Simple ASCII Command Protocol:** Uses printable ASCII commands for configuration and data acquisition, compatible with most programming languages. - **Network Scalability:** Up to 128 modules per RS‑485 segment and 256 addressable modules per network using repeaters. - **Fail‑Safe Operation:** Automatic reset and safe‑value output on power failure or communication loss. - **Easy Integration:** Compatible with NuDAM Administration Utility and standard RS‑485 converters (ND‑6520, ND‑6530, ND‑6531).

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **RS‑422/RS‑485 Signal Repeater:** Functions as a bidirectional repeater for differential serial communication lines, regenerating and retransmitting signals to extend network length or increase node count. - **Automatic Direction Control:** Built‑in communication direction control circuitry automatically manages data flow without requiring external control signals. - **High‑Speed Transmission:** Supports baud rates from **1,200 to 115,200 bps**, maintaining reliable data integrity across extended distances. - **Network Expansion Capability:** Each RS‑485 segment supports up to **128 NuDAM modules**; with repeaters, the network can scale to **256 addressable modules**. - **Extended Communication Distance:** Each segment can reach up to **4,000 feet (1,200 meters)**; repeaters can be cascaded to cover longer distances. - **Surge Protection and Isolation:** Incorporates transient voltage suppressors (TVS) and positive temperature coefficient (PTC) protection for robust operation in industrial environments. - **Low Power Consumption:** Operates efficiently with a typical power consumption of **1.104 W**. - **Simple Setup and Installation:** Hardware‑based configuration via internal DIP switches; no software setup required. - **Industrial‑Grade Design:** Compact ABS enclosure with screw‑terminal connectors for secure wiring and easy DIN‑rail or panel mounting.

Manufacturer: Adlink Technology Inc.

Category: RS485 DIN Rail IO Modules

- **Deep Learning Acceleration:** Powered by the NVIDIA® Jetson™ TX2 or TX2i module, featuring a Pascal™ GPU with 256 CUDA cores for efficient AI inference at the edge. - **High‑Performance Memory and Storage:** 8 GB 128‑bit LPDDR4 memory and 32 GB eMMC 5.1 onboard storage, with additional mSATA and SDIO expansion options. - **Compact Fanless Design:** Dimensions of 148 (W) × 104.8 (D) × 52.1 (H) mm enable deployment in space‑constrained environments. - **Wide Operating Temperature Range:** Reliable operation from –20 °C to 70 °C for industrial and outdoor use. - **Comprehensive I/O Connectivity:** Dual GbE ports, three USB 3.0 ports, one USB 2.0 OTG, HDMI 2.0 with lock, COM port, CAN 2.0B bus, audio jack, and four‑channel DIO. - **Wireless Communication Support:** Integrated Wi‑Fi 802.11ac and Bluetooth 4.1, plus mPCIe and USIM slots for 3G/4G LTE or LoRa modules. - **Flexible Mounting Options:** Supports VESA, wall, and optional DIN‑rail mounting for versatile installation. - **Industrial‑Grade Reliability:** IP40 protection, vibration and shock resistance, and compliance with CE/FCC Class B and IEC/UL safety standards. - **Linux for Tegra (L4T) Support:** Pre‑installed NVIDIA L4T OS optimized for Jetson TX2, with ADLINK customization for edge AI workloads.

Manufacturer: Adlink Technology Inc.

Category: Inference & Deep Learning

- **Embedded NVIDIA® Jetson™ TX2 Platform:** Each NEON-i1000 camera integrates the Jetson TX2 module, featuring a 256-core NVIDIA Pascal™ GPU, 8 GB LPDDR4 memory, and 59.7 GB/s memory bandwidth. This enables high-performance AI inference and image processing without requiring an external host PC. - **Multiple Sensor Options:** The series supports **four distinct color image sensors**, offering resolutions from **1.2 megapixels to 5 megapixels**, with both **global** and **rolling shutter** options to accommodate various imaging requirements. - **Comprehensive I/O Integration:** Includes **4x digital inputs** (one configurable as a sensor trigger), **4x digital outputs** (one configurable as a strobe output), **1x UART (TXD, RXD, GND)**, **1x Gigabit Ethernet port**, and **1x Type-C port** supporting both display output and USB connectivity. - **Flexible Storage and Expansion:** Equipped with a **Micro SD slot** for external storage expansion, supporting data logging, model deployment, and image archiving. - **Lens Compatibility:** Supports **C-mount lenses**, providing flexibility for different focal lengths and optical configurations. - **Compact Industrial Design:** The ruggedized housing (123.4 × 77.57 × 72.2 mm) is optimized for industrial environments, ensuring durability and ease of installation in constrained spaces. - **Software Ecosystem:** Fully compatible with **Ubuntu 18.04** and **NVIDIA JetPack 4.2.1**, enabling developers to leverage CUDA, cuDNN, and TensorRT for AI model deployment and optimization. - **Edge AI Capability:** Designed for **deep learning inference at the edge**, reducing latency and network dependency by processing data locally.

Manufacturer: Adlink Technology Inc.

Category: Smart AI Cams

- **Integrated NVIDIA® Jetson TX2 Platform:** Combines GPU, CPU, and memory in a compact module for high-performance edge computing. - **256-Core Pascal GPU:** Provides exceptional parallel processing power for deep learning inference, image recognition, and AI-based vision algorithms. - **ARMv8 (64-bit) Multi-Processor CPU Complex:** Features a dual-core NVIDIA Denver 2 and quad-core ARM Cortex-A57 CPU cluster operating at 2.0 GHz, enabling heterogeneous multiprocessing for efficient workload distribution. - **Industrial I/O Integration:** Includes 32-channel isolated digital input/output (DI/O) for direct connection to sensors, actuators, and industrial control systems. - **Frame Grabber Support:** Compatible with ADLINK GigE Vision and USB3 Vision frame grabbers, as well as other PCIe-based capture cards, allowing flexible camera integration. - **Compact, All-in-One Design:** Combines compute, I/O, and connectivity in a single enclosure, reducing system complexity and footprint. - **Deep Learning Deployment:** Supports deployment of neural network models optimized using NVIDIA® DIGITS or TensorRT, enabling rapid implementation of AI-based inspection and classification solutions. - **Comprehensive Connectivity:** Provides HDMI display output, Gigabit Ethernet, dual COM ports, and dual USB 3.0 ports for peripheral and network integration. - **Software Ecosystem:** Supports Ubuntu Linux OS, OpenGL, and CUDA for GPU-accelerated computing and AI development. - **Industrial Reliability:** Designed for continuous operation in manufacturing environments with an operating temperature range of 0°C to 45°C.

Manufacturer: Adlink Technology Inc.

Category: Inference & Deep Learning
