- **High-Speed Sampling:** 40 MS/s per channel simultaneous sampling across four channels. - **High Resolution:** 16-bit ADC resolution (1 part in 65,536). - **Large Onboard Memory:** 512 MB SDRAM shared across channels for long-duration waveform recording. - **Programmable Input Range:** ±1 V or ±5 V, software selectable. - **Selectable Input Impedance:** Software-selectable 50 Ω or 1 MΩ input impedance. - **Wide Bandwidth:** Typical -3 dB bandwidth of 20 MHz at 50 Ω input impedance. - **Flexible Triggering:** Supports software, external digital, analog, PXI STAR, and PXI Trigger Bus triggers. - **Multiple Trigger Modes:** Post-trigger, pre-trigger, middle-trigger, delay-trigger, and re-trigger acquisition. - **Multi-Module Synchronization:** PXI Trigger Bus and SSI interface for synchronized operation across multiple modules. - **Auto Calibration:** Built-in precision 5 V reference with ±3 ppm/°C drift for software-controlled self-calibration. - **Scatter-Gather DMA:** Efficient data transfer to host memory without CPU overhead. - **PXI 3U Eurocard Form Factor:** Compact 160 mm × 100 mm module for PXI chassis integration. - **Plug-and-Play Configuration:** Fully compliant with PXI specifications for automatic resource allocation.

Manufacturer: Adlink Technology Inc.

Category: A/D High Speed PXI/PXIe

- **PXI Bus Interface:** PXI specification Rev. 2.0 compliant, 33 MHz, 32-bit data bus. - **High-Speed Pulse Output:** Up to 6.55 MHz pulse train generation for stepper or servo motor control. - **Multi-Axis Control:** Supports 4 independent axes with simultaneous start/stop and interpolation. - **Interpolation Modes:** - 2–4 axes linear interpolation - Any 2 of 4 axes circular interpolation - Continuous interpolation for contour following - **Dynamic Motion Control:** Real-time position and speed override (“on-the-fly” adjustment). - **Velocity Profiles:** Programmable trapezoidal and S-curve acceleration/deceleration profiles. - **Encoder Feedback:** 28-bit up/down counter for incremental encoders, 6.55 MHz input rate. - **Home Return:** 13 programmable home return modes with auto-search capability. - **Triggering & Latching:** - Hardware position compare and trigger with auto-loading FIFO - High-speed position latch inputs for precise event capture - **Backlash Compensation:** Hardware-based backlash and vibration suppression. - **Isolation:** 2500 V RMS optical isolation on all digital I/O channels. - **Software Support:** - Windows® 8/7/XP, Linux - APIs for VB, VC++, Delphi, VB.NET - MotionCreatorPro configuration and debugging software - **Scalability:** Supports up to 12 PXI-8164 cards per system (48 axes total). - **Safety & Diagnostics:** Software limit functions, programmable interrupts, and error detection.

Manufacturer: Adlink Technology Inc.

Category: Motion Control / EtherCAT PXI/PXIe/cPCI

- **PXI Express Hardware Compliance:** Fully compliant with PXI‑5 PXI Express Hardware Specification Rev. 1.0 and CompactPCI Express standards. - **18‑Slot Architecture:** - 1 × System Slot - 1 × System Timing Slot - 10 × Hybrid Peripheral Slots (PXI Express, PXI, CompactPCI, CompactPCI Express compatible) - 6 × PXI Express Peripheral Slots - **Configurable PCIe Switch Fabric:** Supports two‑link (x8) or four‑link (x4) configurations, enabling flexible bandwidth allocation. - **High Bandwidth:** Up to 8 GB/s system bandwidth and up to 4 GB/s per dedicated peripheral slot using PCIe Gen2 signaling. - **Intelligent Chassis Management:** - Automatic fan speed control - Real‑time monitoring of temperature, voltage, and fan status - Remote power on/off and monitoring via RS‑232 or SMBus - **Superior Cooling System:** Three 185.9 CFM fans with filtered airflow, providing 38.2 W per‑slot cooling capacity. - **Clock Synchronization:** Dual BNC connectors for 10 MHz reference clock input/output; supports external synchronization. - **Robust Power Supply:** Industrial‑grade AC power supply delivering up to 1120 W total usable power (240 VAC input). - **Extended Operating Range:** 0 °C to 55 °C operating temperature, 10 %–90 % relative humidity (non‑condensing). - **Mechanical Design:** Compact 3U form factor with rack‑mount capability and optimized airflow for rack installations. - **Status Indicators:** Front‑panel LEDs for power, fan, and temperature status.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

- **All‑Hybrid Slot Design:** All five peripheral slots are hybrid, supporting PXI Express, CompactPCI Express, PXI, and CompactPCI modules for maximum flexibility. - **High System Bandwidth:** Four‑link PXI Express backplane architecture provides up to **8 GB/s system bandwidth** and **2 GB/s per‑slot bandwidth** (PCIe Gen2 ×4). - **Compact 3U Half‑Rack Form Factor:** Space‑efficient chassis (220.8 × 319.6 × 177.8 mm) suitable for benchtop or rack‑mount use; optional handle and rubber foot kit for vertical orientation. - **Intelligent Chassis Management:** Integrated **ChassisWatch™** utility monitors fan speed, internal temperature, and DC voltage rails with automatic fan speed control. - **High Cooling Capacity:** Dual 100.2 CFM fans provide up to **38 W per‑slot cooling**; modular fan assembly allows easy replacement and reduced maintenance. - **Industrial‑Grade Power Supply:** 320 W AC power supply (100–240 VAC, 47–63 Hz) with automatic voltage selection and full‑load operation up to 50 °C. - **Robust Environmental Design:** Operates from 0 °C to 50 °C, withstands 30 G shock, and meets vibration standards for industrial and mobile test setups. - **Comprehensive Monitoring Utility:** Remote monitoring via SMBus interface and ADLINK’s PXI Platform Services software for real‑time chassis status and alarm thresholds. - **Compliance and Safety:** Meets EN 61326‑1, EN 61010‑1, and FCC Class A standards; RoHS and WEEE compliant.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

- **PXI Express Hardware Compliance:** Fully compliant with PXI‑5 PXI Express Hardware Specification Rev. 1.0 and CompactPCI Express standards. - **Slot Configuration:** - 1 × System Slot - 1 × System Timing Slot - 7 × Hybrid Peripheral Slots (PXI Express / PXI / cPCI / cPCIe compatible) - **High Bandwidth Architecture:** - Four‑link PXI Express backplane - Up to 7 GB/s system bandwidth - Up to 2 GB/s per‑slot bandwidth - **All‑Hybrid Slot Design:** Every peripheral slot supports hybrid PXI‑5 modules, maximizing flexibility for mixed PXI and PXIe configurations. - **Intelligent Chassis Management:** - Automatic fan speed control - Real‑time monitoring of temperature, voltage, and fan speed - Remote power on/off control via SMBus or D‑SUB9 inhibit connector - **Advanced Cooling System:** Two 185.9 CFM rear fans provide 30 W per‑slot cooling capacity, maintaining stable operation up to 55 °C. - **Clock Synchronization:** Dual BNC connectors for 10 MHz reference clock input/output; supports external synchronization and phase‑locked operation. - **Power Supply:** Industrial‑grade 400 W AC power supply (100–240 VAC, 47–63 Hz) with ±3 % voltage regulation. - **Environmental Robustness:** Operates from 0 °C to 55 °C, with 30 G shock tolerance and 0.3 Grms vibration resistance. - **Status Indicators:** Front‑panel LEDs for power, fan, and temperature status. - **Optional Portability:** Compatible with PMK‑1524 15‑inch LCD/keyboard kit and trolley case for mobile test setups.

Manufacturer: Adlink Technology Inc.

Category: PXIe PXI Chassis

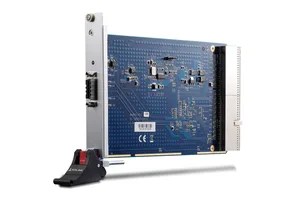

- **PCI Express® to PXI™ Bridge:** Provides seamless control of PXI™ modules from a host PC via a PCI Express® x1 interface. - **High-Speed Data Transfer:** Supports signaling rates up to 2.5 Gbps per direction, ensuring low-latency communication between host and PXI™ chassis. - **Transparent Operation:** No additional drivers or software required; the system is recognized natively by the host BIOS. - **Extended Distance Capability:** Supports cable lengths of 1 m, 3 m, and 7 m using shielded twisted-pair copper cables. - **Full PCI Compatibility:** Compliant with both 5 V and 3.3 V PCI buses, supporting 32-bit/33 MHz operation. - **Signal Integrity Optimization:** Adjustable equalization, amplification, and de-emphasis circuits maintain signal quality over long distances. - **Spread Spectrum Clock Control:** Reduces electromagnetic interference (EMI) through clock modulation. - **Robust Design:** Suitable for industrial, military, and aerospace environments requiring remote or distributed test and measurement systems. - **Hardware Transparency:** Devices in the PXI™ chassis behave as if installed locally in the host system.

Manufacturer: Adlink Technology Inc.

Category: Bus Extensions

- **PXI / CompactPCI 3U Form Factor:** Designed for 3U PXI and CompactPCI chassis, ensuring compatibility with standard modular instrumentation systems. - **16 Independent Relay Channels:** Provides 16 individually controlled relay outputs for flexible signal switching and control applications. - **Hot-Swappable Design:** Fully compliant with **PICMG 2.1 R1.0** hot-swap specifications, allowing insertion and removal without powering down the chassis. - **High Switching Capacity:** Each relay supports up to **60 W**, **220 VDC**, or **2 A** maximum load, suitable for both low- and medium-power switching tasks. - **Plug-and-Play Operation:** Automatically recognized by PXI systems for simplified configuration and integration. - **D-Type Connector Interface:** Standard D-type connector for secure and reliable external wiring and signal interfacing. - **Compact Dimensions:** Standard **100 mm × 160 mm** PCB size, optimized for PXI 3U slot installation. - **Industrial-Grade Reliability:** Built for continuous operation in demanding test environments, ensuring long relay life and stable performance. - **Software Integration:** Compatible with PXI system software environments and drivers for easy control and automation.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compatible with PXI and CompactPCI chassis, offering standardized mechanical and electrical interfaces. - **16-Channel Relay Matrix:** Configured as a **4×4×1 matrix**, allowing flexible routing between multiple input and output channels. - **High Switching Capacity:** Supports up to **60 W**, **220 VDC**, and **2 A** maximum switching load, suitable for both signal-level and moderate power applications. - **Hot-Swappable Compliance:** Conforms to **PICMG 2.1 R1.0**, enabling insertion and removal without powering down the chassis. - **Plug-and-Play Operation:** Automatically recognized by PXI controllers for simplified system integration and configuration. - **Compact 3U Size:** Occupies minimal rack space (100 mm × 160 mm), ideal for dense test setups. - **D-Type Connector Interface:** Provides robust and standardized connectivity for external wiring and signal routing. - **High Reliability Relays:** Designed for long operational life and consistent switching performance. - **PXI System Synchronization:** Compatible with PXI trigger and timing resources for coordinated test sequences. - **Versatile Application Range:** Suitable for signal routing, device under test (DUT) connection, and automated test equipment (ATE) switching matrices.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI and CompactPCI Compliance:** Fully compliant with PXI Specification Rev. 2.2 and CompactPCI (PICMG 2.0 R3.0) standards, ensuring interoperability with PXI-based test and measurement systems. - **Hot-Swap Support:** Conforms to PICMG 2.1 R2.0 CompactPCI Hot Swap specifications, allowing module replacement without system shutdown. - **16 Independent SPDT Relays:** Each channel provides one Form C (SPDT) contact configuration, enabling flexible switching between normally open (NO) and normally closed (NC) states. - **High Switching Capacity:** Supports up to 3 A switching and carrying current, with maximum ratings of 220 VDC or 250 VAC and 60 W / 50 VA power handling. - **Fast Operation:** Relay operate and release times are ≤5 ms, with bounce time ≤3 ms, supporting up to 125 operations per second. - **Onboard 1K-Sample Scan List:** Enables deterministic scanning and automated relay pattern sequencing with programmable delay and trigger control. - **PXI Trigger and Synchronization:** Supports PXI trigger bus and star trigger for multi-module synchronization without external wiring. - **Safety and Reliability Features:** Includes programmable emergency shutdown, watchdog timer (1 ms–420 s), and relay safety status configuration for fail-safe operation. - **Auxiliary Digital I/O:** Eight 3.3 V/TTL (5 V tolerant) digital I/O lines for general-purpose control and handshaking with external instruments. - **Software Programmability:** Fully software-controlled operation with ADLINK’s ADL-SWITCH driver and API support for Windows platforms. - **Operating System and Software Support:** Compatible with Windows 2000/XP/Vista/2003; supports VB, VC++, BCB, Delphi, and DAQBench environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and cPCI 3U mechanical and electrical specifications, allowing seamless integration into standard PXI chassis. - **16 Independent Power Relays:** Each channel provides a Form C (SPDT) relay configuration, enabling flexible switching between normally open (NO), normally closed (NC), and common (COM) contacts. - **High Current Capacity:** Each relay supports up to **5A** at **250 VAC** or **30 VDC**, with a maximum switching capacity of **1250 VA / 150 W**. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0** hot-swap specifications, allowing safe insertion and removal without powering down the PXI chassis. - **Plug-and-Play Operation:** Automatic detection and configuration within PXI systems, simplifying setup and reducing integration time. - **Compact 3U Size:** Standard **100 mm x 160 mm** Eurocard dimensions for efficient use of chassis space. - **High Reliability:** Industrial-grade relays ensure long operational life and consistent performance under demanding conditions. - **Flexible Control:** Software-controllable relay activation for automated test sequences and programmable switching operations. - **Isolation and Safety:** Each relay channel is electrically isolated, minimizing crosstalk and ensuring safe operation in mixed-signal environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **16 Independent Power Relay Channels:** Each channel operates independently, providing flexible switching configurations for complex test setups. - **High Current Capacity:** Rated at **8A per channel**, supporting both AC and DC loads. - **Form C (SPDT) Relay Configuration:** Each relay provides a common, normally open (NO), and normally closed (NC) contact, allowing versatile switching between circuits. - **High Power Handling:** Maximum switching capacity of **1250 VA (AC)** or **150 W (DC)**, suitable for medium to high power applications. - **Voltage Ratings:** Supports up to **250 VAC** or **30 VDC** switching voltage. - **PXI / CompactPCI 3U Form Factor:** Standard 3U (100 mm x 160 mm) board size ensures compatibility with PXI and cPCI chassis. - **Hot-Swappable Design:** Fully compliant with **PICMG 2.1 R1.0** hot-swap specification, allowing insertion or removal without powering down the chassis. - **Plug and Play Operation:** Automatic resource detection and configuration through PXI system software. - **Industrial-Grade Reliability:** Designed for long operational life and consistent performance in demanding environments. - **Seamless Integration:** Compatible with ADLINK PXI controllers and third-party PXI systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **16-Channel Scan/Multiplexer Configuration:** Provides 16 independent Form A relay channels for flexible signal routing and multiplexing operations. - **Form A Relays:** Utilizes Form A (normally open, single-pole single-throw) electromechanical relays for reliable switching of analog and digital signals. - **High Bandwidth Performance:** Offers a **10 MHz (-3 dB) bandwidth**, enabling accurate signal transmission for a wide range of analog and mixed-signal applications. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0 Hot Swap** specification, allowing safe insertion and removal of the module without powering down the PXI chassis. - **Plug and Play Operation:** Supports automatic detection and configuration within PXI systems, simplifying integration and reducing setup time. - **High Power Handling:** Rated for **30 W**, **125 VAC**, **30 VDC**, and **0.5 A** maximum switching capacity per channel, suitable for moderate power signal routing. - **Compact and Robust Construction:** Built on a **100 mm x 160 mm** PCB with a **160-pin 2 mm connector**, ensuring secure electrical connections and mechanical stability. - **PXI Trigger and Synchronization Support:** Compatible with PXI trigger bus and timing features for synchronized operation with other PXI modules. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding test environments with long relay life and stable performance.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **PXI and CompactPCI Compliance:** - PXI Specification Rev. 2.2 compliant - CompactPCI (PICMG 2.0 R3.0) and Hot Swap (PICMG 2.1 R2.0) compliant - **Relay Configuration:** - 24-channel DPDT (2 Form C) non-latching relays - Configurable as 48×1 (1-wire), 24×1 (2-wire), or 12×1 (4-wire) multiplexer - Software-selectable configuration without hardware jumpers - **Switching Performance:** - 2 A switching and carrying current - 220 V DC / 125 V AC maximum switching voltage - 60 W maximum switching power - **Deterministic Scanning:** - Onboard 1 k-sample scan list memory for auto-scan operation - Supports direct-update and auto-scan modes - Programmable scan delay and trigger synchronization - **Synchronization and Triggering:** - PXI trigger bus and star trigger support - Programmable handshaking signals (TRG_IN, S_ADV) - Multiple module synchronization without external wiring - **Safety and Reliability:** - Programmable emergency shutdown function - 32-bit watchdog timer (1 ms to 420 s) - Relay safety status programmable via software - **Software and OS Support:** - Supported OS: Windows 2000, XP, Vista, 2003 - Driver: ADL-SWITCH for Windows - Recommended software: VB, VC++, BCB, Delphi, DAQBench - **Hot-Swap Capability:** - Fully compliant with CompactPCI Hot Swap specifications - Supports Microsoft Embedded XP native hot-swap - **Auxiliary Digital I/O:** - Three 3.3 V/TTL (5 V tolerant) digital I/O lines - Programmable as input/output/tri-state

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **32 Independent Relay Channels:** Provides 32 individually controlled relay outputs for versatile signal switching and control applications. - **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **PICMG 2.1 R1.0 Hot-Swappable Compliance:** Supports hot-swap functionality, allowing insertion and removal without powering down the PXI chassis, minimizing system downtime. - **High Switching Capacity:** Each relay channel supports up to **60 W**, **220 VDC**, or **2 A**, enabling control of moderate power loads and signal lines. - **Plug-and-Play Operation:** Automatically recognized by PXI systems for simplified configuration and integration. - **D-Type Connector Interface:** Equipped with a standard D-type connector for secure and reliable external wiring connections. - **Compact Dimensions:** Standard 3U PXI board size of **100 mm x 160 mm**, optimized for dense system integration. - **Industrial-Grade Reliability:** Designed for long operational life and consistent performance in demanding test environments. - **Flexible Application Support:** Suitable for signal routing, load switching, device simulation, and automated test equipment (ATE) systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **32-Relay Matrix Configuration:** Provides a flexible **16-channel relay matrix** that can be configured as **8×4×1** or **4×4×2** (rows × columns × banks), allowing multiple switching topologies for different test setups. - **High Switching Capacity:** Supports a **maximum switching power of 60 W**, **maximum switching voltage of 220 VDC**, and **maximum switching current of 2 A**, suitable for both low-level signal routing and moderate power switching. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0**, enabling safe insertion and removal from a powered PXI chassis without system shutdown. - **Plug and Play Operation:** Automatically recognized by PXI systems for simplified configuration and reduced setup time. - **D-Type Connector Interface:** Equipped with a **D-type connector** for secure and standardized signal connections. - **Compact Dimensions:** Standard **3U PXI card size (100 × 160 mm)** for efficient use of chassis space. - **High Reliability Relays:** Utilizes durable electromechanical relays optimized for long operational life and consistent switching performance. - **Flexible Matrix Topology:** Supports multiple matrix configurations to accommodate different test signal routing requirements. - **PXI System Integration:** Seamlessly integrates with PXI controllers, signal conditioning modules, and measurement instruments for automated test systems.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI and CompactPCI Compliance:** Conforms to PXI Specification Rev. 2.2 and CompactPCI PICMG 2.0 R3.0 standards, ensuring interoperability with PXI-based test systems. - **Hot-Swap Capability:** Fully compliant with PICMG 2.1 R2.0 CompactPCI Hot Swap specifications, allowing module replacement without system shutdown. - **Flexible Matrix Configuration:** Default configuration is a 4-group 2x4 2-wire matrix. With the TB-6231-01 terminal board, users can reconfigure to one of several matrix topologies: - 1 × 4x8 - 2 × 4x4 - 1 × 2x16 - 2 × 2x8 - 4 × 2x4 - **Relay Characteristics:** - 32 DPDT (2 Form C) non-latching relays - 2 A switching and carrying current - 220 V DC / 125 V AC maximum switching voltage - 60 W maximum switching power - 100 mΩ maximum contact resistance - 4 ms maximum operate and release time - **Safety and Reliability:** - Programmable emergency shutdown function - 32-bit watchdog timer (1 ms to 420 s range) - Hardware safety status monitoring - **Synchronization and Triggering:** - PXI trigger bus and star trigger support - Programmable handshaking signals for external instrument synchronization - Onboard 1 k-sample scan list for deterministic scanning - **Auxiliary Digital I/O:** - 8 channels of 3.3 V/TTL digital I/O (5 V tolerant) - Dual-function pins for trigger and shutdown control - **Software and Driver Support:** - ADL-SWITCH driver for Windows 98/ME/NT/2000/XP/Vista/2003 - Compatible with VB, VC++, BCB, Delphi, and DAQBench - **Safety-Critical Design:** Designed for industrial and laboratory automation systems requiring deterministic control and fail-safe operation.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **32-Channel Scan/Multiplexer Configuration:** Provides 32 independent Form A relay channels for flexible signal routing and multiplexing operations. - **Form A Relay Type:** Utilizes single-pole, single-throw (SPST) normally open relays, ensuring reliable mechanical switching and long operational life. - **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, enabling integration into standard PXI chassis. - **High Bandwidth Performance:** Offers a **10 MHz (-3 dB) bandwidth**, supporting a wide range of analog and digital signal types without significant signal degradation. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0** hot-swap specifications, allowing insertion and removal without powering down the PXI chassis. - **Plug and Play Operation:** Supports automatic detection and configuration within PXI systems, simplifying setup and reducing integration time. - **High Power Handling:** Rated for **30 W**, **125 VAC**, or **30 VDC** at **0.5 A**, suitable for moderate power signal switching applications. - **Compact and Durable Construction:** Built on a **100 mm x 160 mm** PCB with a **160-pin 2 mm connector**, ensuring robust connectivity and mechanical stability. - **PXI System Compatibility:** Designed for seamless operation with ADLINK and third-party PXI controllers, chassis, and software environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **4×1 RF Multiplexer Configuration:** Four input channels multiplexed to a single output, enabling efficient signal routing and selection in RF test setups. - **High-Frequency Performance:** Supports up to **1.5 GHz (-3 dB bandwidth)**, suitable for broadband RF applications, communication testing, and high-speed signal switching. - **75 Ω Characteristic Impedance:** Optimized for video, broadcast, and communication systems that require 75 Ω signal paths, ensuring minimal reflection and signal loss. - **Programmable Delay Function:** Allows precise timing control and synchronization between channels, enhancing test accuracy and repeatability. - **Hot-Swappable (PICMG 2.1 R1.0 Compliant):** Enables safe insertion and removal of the module without powering down the PXI chassis, minimizing system downtime. - **Plug and Play Operation:** Automatically recognized by PXI system software, simplifying configuration and reducing setup time. - **SMB Connectors:** Compact, high-quality RF connectors providing secure and low-loss connections for high-frequency signals. - **Compact Dimensions:** Standard **100 mm × 160 mm** Eurocard size, fitting seamlessly into PXI 3U slots. - **Robust Design:** Built for industrial and laboratory environments, ensuring long-term reliability and consistent performance.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **4×1 RF Multiplexer Configuration:** The PXI-7661 provides four input channels that can be switched to a single output path, enabling flexible signal routing for multi-channel test setups. - **High-Frequency Performance:** Offers a **3 GHz (-3 dB) bandwidth**, supporting high-frequency RF and video signal applications with minimal insertion loss and excellent signal integrity. - **75 Ω Impedance:** Optimized for systems requiring 75 Ω impedance matching, such as broadcast, video, and telecommunications environments. - **PXI/cPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring seamless integration into modular test systems. - **Programmable Delay:** Provides programmable switching delay control for precise timing alignment and synchronization in automated test sequences. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0**, allowing insertion or removal of the module without shutting down the PXI chassis. - **Plug-and-Play Operation:** Automatically recognized by PXI system controllers, simplifying configuration and reducing setup time. - **SMB Connectors:** Equipped with high-quality SMB connectors for reliable RF signal connections and minimal reflection. - **Compact Dimensions:** Standard 3U PXI size (100 mm × 160 mm), suitable for dense system integration. - **High Reliability:** Designed for long-term operation in demanding test environments, with robust mechanical construction and stable electrical performance.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI/cPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, enabling seamless integration into standard PXI chassis. - **4×1 Multiplexer Configuration:** Provides four input channels selectable to a single output, allowing flexible signal routing and switching in automated test setups. - **Broadband Performance:** Offers a **1.3 GHz (-3 dB)** bandwidth, supporting high-frequency signal switching with minimal insertion loss and excellent signal integrity. - **50 Ω Impedance Matching:** Optimized for RF and high-speed analog applications requiring consistent impedance control to minimize reflections and signal degradation. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0** hot-swap specifications, allowing safe insertion and removal without powering down the PXI chassis. - **Plug-and-Play Operation:** Automatically recognized by PXI system controllers, simplifying configuration and reducing setup time. - **Connector Options:** Available with **SMA** or **SMB** connectors to accommodate different signal interface requirements. - **Compact Dimensions:** Standard **100 mm × 160 mm** Eurocard size, compatible with 3U PXI slots. - **High Reliability:** Designed for long operational life in demanding test environments, with robust mechanical construction and high-quality RF relays.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Designed for integration into standard PXI or CompactPCI chassis, ensuring compatibility with modular test and measurement systems. - **4×1 Multiplexer Configuration:** Provides four input channels that can be switched to a single output, enabling flexible signal routing and selection in automated test setups. - **High-Frequency Performance:** Offers a –3 dB bandwidth of up to 3 GHz, supporting RF and microwave signal applications. - **50 Ω Impedance:** Optimized for RF signal integrity and minimal reflection losses, ensuring accurate high-frequency measurements. - **Hot-Swappable Compliance:** Fully compliant with PICMG 2.1 R1.0 hot-swap standards, allowing safe insertion and removal without powering down the system. - **Plug and Play Operation:** Automatically recognized by PXI controllers, simplifying configuration and reducing setup time. - **Connector Options:** Available with SMA or SMB connectors to match system-level interface requirements. - **Compact Design:** 3U height and 100 mm × 160 mm Eurocard dimensions for efficient use of chassis space. - **High Reliability:** Designed for continuous operation in automated test environments with robust mechanical and electrical construction.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **4×1 Multiplexer Configuration:** Provides four input channels multiplexed to a single output, enabling efficient signal routing and selection in automated test setups. - **High Bandwidth Performance:** Offers a **-3 dB bandwidth of 900 MHz**, supporting high-frequency signal switching for RF and high-speed analog applications. - **Controlled Impedance:** Designed with **50 Ω characteristic impedance**, ensuring signal integrity and minimal reflection for RF and analog signal paths. - **Hot-Swappable Design:** Compliant with **PICMG 2.1 R1.0 Hot Swap** specifications, allowing safe insertion and removal of the module without powering down the PXI chassis. - **Plug and Play Operation:** Supports automatic detection and configuration within PXI systems, simplifying integration and reducing setup time. - **Connector Options:** Available with **SMA or SMB connectors**, providing flexibility for different signal interface requirements. - **Compact Dimensions:** Standard **100 × 160 mm** Eurocard size, optimized for PXI 3U slots. - **High Reliability:** Built with industrial-grade components for long-term stability and consistent performance in demanding test environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI

- **High-Density Switching:** 60-channel Scan/Multiplexer configuration for efficient signal routing in compact PXI 3U form factor. - **Form A Relays:** Utilizes Form A (normally open) electromechanical relays for reliable signal switching and isolation. - **Wide Bandwidth:** 1 MHz (-3 dB) analog bandwidth supports a broad range of signal frequencies for general-purpose switching. - **PXI/cPCI 3U Compatibility:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical standards, ensuring interoperability with modular test systems. - **Hot-Swappable Design:** Conforms to **PICMG 2.1 R1.0** hot-swap specifications, allowing insertion and removal without system power-down. - **Plug and Play Operation:** Automatic resource detection and configuration through PXI system controller for simplified setup. - **High Power Handling:** Maximum switching capacity of **30 W**, **125 VAC**, **30 VDC**, and **0.5 A**, suitable for low-to-medium power signal routing. - **Compact and Rugged Construction:** 3U PXI form factor with 160-pin 2 mm connector for secure and reliable signal connections. - **Versatile Application Range:** Ideal for automated test equipment (ATE), data acquisition systems, signal routing, and instrumentation switching.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **High-Density Switching:** 60-channel Scan/Multiplexer configuration providing extensive signal routing capability within a single 3U PXI slot. - **Form B Relay Architecture:** Utilizes Form B (normally closed) relays for enhanced reliability and signal integrity, suitable for both low-level and moderate power switching. - **PXI / CompactPCI 3U Form Factor:** Fully compliant with PXI and CompactPCI 3U mechanical and electrical specifications, ensuring compatibility with standard PXI chassis and controllers. - **Wide Bandwidth:** 1 MHz (-3 dB) analog bandwidth supports a broad range of signal frequencies, suitable for both DC and low-frequency AC applications. - **Hot-Swappable Design:** Conforms to **PICMG 2.1 R1.0** hot-swap specification, allowing safe insertion and removal without powering down the PXI chassis. - **Plug and Play Operation:** Automatic resource detection and configuration through PXI system software, simplifying integration and reducing setup time. - **High Isolation and Low Crosstalk:** Ensures signal integrity across multiple channels, critical for precision measurement and automated test systems. - **Durable Relay Design:** Mechanical relays rated for long operational life and consistent performance under repeated switching cycles. - **Compact and Modular:** Occupies a single 3U PXI slot, optimizing space utilization in dense test configurations. - **Standardized Connectivity:** Equipped with a **160-pin 2 mm connector** for secure and reliable signal interfacing.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PXI/PXIe/cPCI

- **8 Independent Power Relay Channels:** Each channel operates independently, allowing simultaneous control of multiple circuits or devices. - **Form C (SPDT) Relay Configuration:** Each relay provides both normally open (NO) and normally closed (NC) contacts, enabling versatile switching topologies. - **High Current Capacity:** Rated for **5A switching current** per channel, suitable for power-level signal routing and load control. - **High Voltage and Power Ratings:** Supports up to **250 VAC** or **30 VDC**, with a maximum switching capacity of **1250 VA (AC)** or **150 W (DC)**. - **PXI / CompactPCI 3U Form Factor:** Designed for integration into standard PXI or CompactPCI chassis, ensuring compatibility with modular instrumentation systems. - **Hot-Swappable (PICMG 2.1 R1.0 Compliant):** Supports live insertion and removal without system shutdown, minimizing downtime and improving serviceability. - **Plug-and-Play Operation:** Automatically recognized by PXI controllers, simplifying configuration and reducing setup time. - **Compact Design:** Standard **3U size (100 mm x 160 mm)** for efficient use of chassis space. - **Industrial Reliability:** Built with high-quality relays and durable PCB materials for long operational life and consistent performance. - **Flexible Application Range:** Ideal for automated test equipment (ATE), signal routing, load switching, and power control in laboratory and production environments.

Manufacturer: Adlink Technology Inc.

Category: DIO Non-Isolated PXI/PXIe/cPCI
