Startseite / Produkte / Industrial Computers / Industrial Computer / IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.

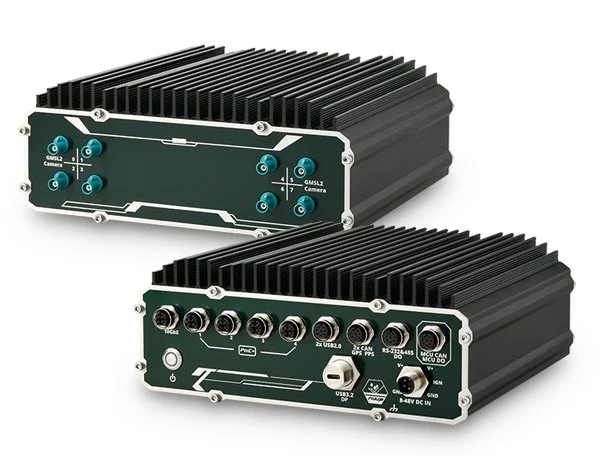

IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.
IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.

NRU-230V-AWP-JAOi

IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Der NRU-230V-AWP-JAOi ist die Industrial-Ausführung der wasserdichten Jetson-Edge-AI-Plattform. Das lüfterlose IP66-System arbeitet je nach Lastkonfiguration von -40 bis 75 °C und eignet sich damit für Fahrzeuge, Außenrobotik und raue Industrieumgebungen. Acht GMSL2-FAKRA-Ports, vier PoE+-Gigabit-Ethernet-Anschlüsse und ein 10GbE-Port unterstützen kamerabasierte KI-Anwendungen. Hinzu kommen USB-C mit 4K-DisplayPort, isolierte CAN-, RS-485-, DI- und DO-Schnittstellen sowie RS-232. NVMe, zwei SATA-Plätze und Erweiterungssockel ergänzen das System; der 8-bis-48-V-Eingang besitzt eine Zündsteuerung.
IP66 fanless computer powered by NVIDIA Jetson AGX Orin Industrial with 64GB eMMC, eight GMSL2 camera inputs, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, isolated CAN and serial I/O, NVMe and SATA expansion, and 8V to 48V DC input with ignition control. Rated from -40°C to 75°C under reduced interface load and -40°C to 60°C with full function.
  • Processor Module NVIDIA Jetson AGX Orin Industrial
  • Onboard eMMC 64 GB
  • GMSL2 Camera Ports 8 ports
  • PoE+ Gigabit Ethernet Ports 4 ports
  • PoE Power Budget 100 W
  • 10 Gigabit Ethernet Ports 1 port
  • DC Input Range 8 to 48 V DC
  • Ingress Protection IP66
  • Form Factor IP66 rugged fanless industrial computer; wall mount
  • Connector 8x FAKRA Z; 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
  • Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
  • Maximum Operating Temperature 75 °C
  • Full-Function Operating Temperature -40 to 60 °C
  • Storage Temperature -40 to 85 °C
  • Operating Temperature -40°C to 75°C without 10GbE transmission and PoE load; -40°C to 60°C with full function
  • MAXN Non-Throttling Temperature 50 °C
  • Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
  • Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
  • Resolution GMSL2 camera options up to 2880x1860 at 30 fps; DisplayPort up to 3840x2160 at 60 Hz
  • Key Features NVIDIA Jetson AGX Orin Industrial; IP66 waterproof and dustproof; -40°C cold start; fanless operation; 8x GMSL2; 4x PoE+ GbE; 1x 10GBASE-T; isolated vehicle I/O; ignition control
  • Accessories PA-160W-OW, PA-280W-CW6P-2P, AC-IMX390-H60, AC-IMX390-H120, AC-IMX390-H190, AC-ISX031-H60, AC-ISX031-H120, AC-ISX031-H190, AC-IMX490-H30, AC-IMX490-H60, AC-IMX490-H120, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cblkit-BP-NRU-230V-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM, Cbl-FAKRA-ZFM-ZFM-12M
