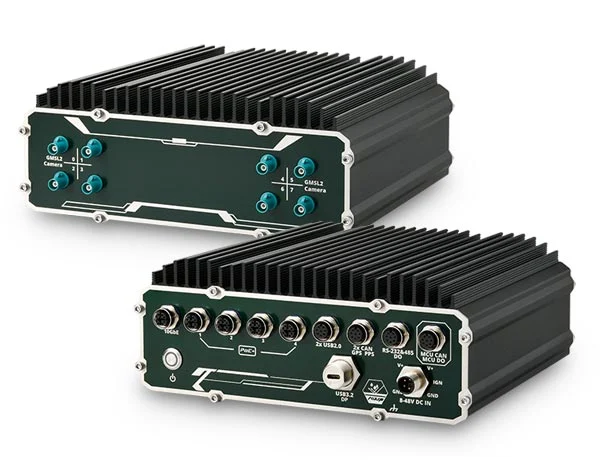

IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.
IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE. IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.

NRU-230V-AWP-JAOi

IP66 Jetson AGX Orin Industrial computer with 8x GMSL2, 4x PoE+ and 10GbE.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer
  • The NRU-230V-AWP-JAOi is the industrial version of this waterproof Jetson edge AI platform. Depending on interface load, the fanless IP66 system operates from -40°C to 75°C, making it suitable for vehicles, outdoor robotics and harsh industrial environments. Eight GMSL2 FAKRA ports, four PoE+ Gigabit Ethernet connections and one 10GbE port support camera-based AI applications. Further interfaces include USB-C with 4K DisplayPort, isolated CAN, RS-485, DI and DO, plus RS-232. NVMe, two SATA positions and expansion sockets add flexibility, while the 8V to 48V input provides ignition control.
IP66 fanless computer powered by NVIDIA Jetson AGX Orin Industrial with 64GB eMMC, eight GMSL2 camera inputs, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, isolated CAN and serial I/O, NVMe and SATA expansion, and 8V to 48V DC input with ignition control. Rated from -40°C to 75°C under reduced interface load and -40°C to 60°C with full function.
  • Processor Module NVIDIA Jetson AGX Orin Industrial
  • Onboard eMMC 64 GB
  • GMSL2 Camera Ports 8 ports
  • PoE+ Gigabit Ethernet Ports 4 ports
  • PoE Power Budget 100 W
  • 10 Gigabit Ethernet Ports 1 port
  • DC Input Range 8 to 48 V DC
  • Ingress Protection IP66
  • Form Factor IP66 rugged fanless industrial computer; wall mount

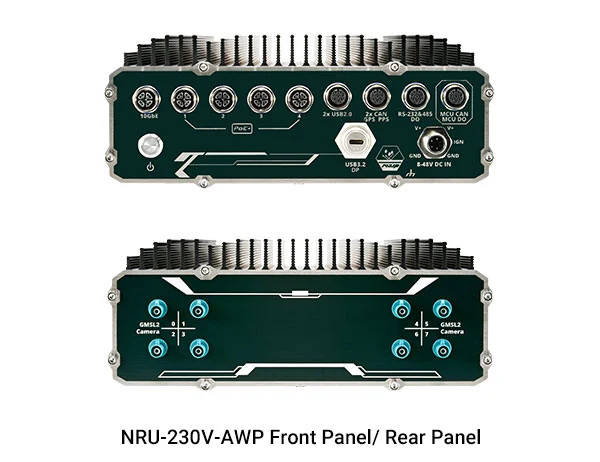

  • Connector 8x FAKRA Z; 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
  • Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
  • Maximum Operating Temperature 75 °C
  • Full-Function Operating Temperature -40 to 60 °C
  • Storage Temperature -40 to 85 °C
  • Operating Temperature -40°C to 75°C without 10GbE transmission and PoE load; -40°C to 60°C with full function
  • MAXN Non-Throttling Temperature 50 °C
  • Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
  • Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
  • Resolution GMSL2 camera options up to 2880x1860 at 30 fps; DisplayPort up to 3840x2160 at 60 Hz
  • Key Features NVIDIA Jetson AGX Orin Industrial; IP66 waterproof and dustproof; -40°C cold start; fanless operation; 8x GMSL2; 4x PoE+ GbE; 1x 10GBASE-T; isolated vehicle I/O; ignition control
  • Accessories PA-160W-OW, PA-280W-CW6P-2P, AC-IMX390-H60, AC-IMX390-H120, AC-IMX390-H190, AC-ISX031-H60, AC-ISX031-H120, AC-ISX031-H190, AC-IMX490-H30, AC-IMX490-H60, AC-IMX490-H120, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cblkit-BP-NRU-230V-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM, Cbl-FAKRA-ZFM-ZFM-12M
