Name: IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.
Brand: Neousys Technology
SKU: NRU-240S-AWP-JAOi

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.

NRU-240S-AWP-JAOi

IP66 Jetson AGX Orin Industrial computer with 4x PoE+ GbE and 1x 10GbE.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

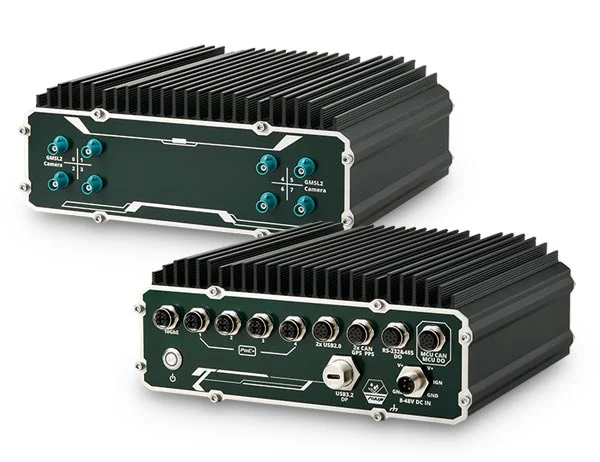

Der NRU-240S-AWP-JAOi verbindet das NVIDIA Jetson AGX Orin Industrial Modul mit einem lüfterlosen und nach IP66 geschützten Gehäuse. Je nach Lastkonfiguration reicht der Betrieb von -40 bis 75 °C, wodurch sich das System für Fahrzeuge, Außenrobotik und raue Industrieeinsätze eignet. Vier PoE+-Gigabit-Ethernet-Ports unterstützen Netzwerk- und Industriekameras; ein 10GbE-Port übernimmt schnelle Datenverbindungen. USB-C mit 4K-DisplayPort, isolierte CAN-, RS-485-, DI- und DO-Kanäle sowie RS-232 bieten umfangreiche I/O. NVMe, zwei SATA-Plätze und Mobilfunkerweiterung ergänzen den 8-bis-48-V-Eingang mit Zündsteuerung.

IP66 fanless computer powered by NVIDIA Jetson AGX Orin Industrial with 64GB eMMC, four PoE+ Gigabit Ethernet ports, one 10GBASE-T port, USB 3.2/DisplayPort, isolated CAN and serial I/O, NVMe and SATA expansion, and 8V to 48V DC input with ignition control. Rated from -40°C to 75°C under reduced interface load and -40°C to 60°C with full function; no GMSL2 ports.

Processor Module NVIDIA Jetson AGX Orin Industrial
Onboard eMMC 64 GB
GMSL2 Camera Ports 0 ports
PoE+ Gigabit Ethernet Ports 4 ports
PoE Power Budget 100 W
10 Gigabit Ethernet Ports 1 port
DC Input Range 8 to 48 V DC
Ingress Protection IP66
Form Factor IP66 rugged fanless industrial computer; wall mount

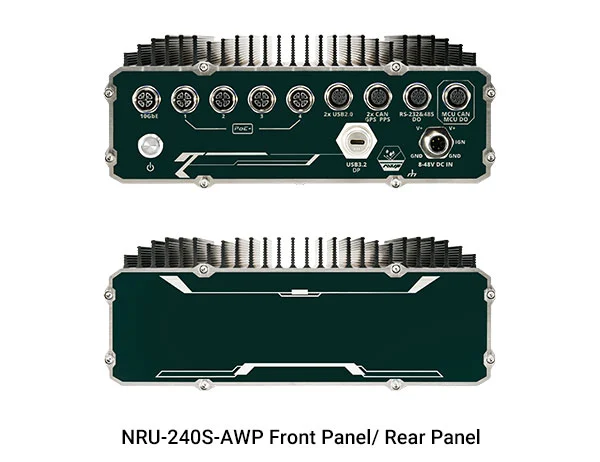

Connector 5x M12 X-coded Ethernet; M12 A-coded I/O; M12 L-coded power; waterproof USB-C
Dimensions 225 x 194 x 88.5 mm without rubber feet; 225 x 194 x 89.5 mm with rubber feet
Maximum Operating Temperature 75 °C
Full-Function Operating Temperature -40 to 60 °C
Humidity 10 to 90, non-condensing % RH
Operating Temperature -40°C to 75°C without 10GbE transmission and PoE load; -40°C to 60°C with full function
MAXN Non-Throttling Temperature 50 °C
Bus Interface PCIe Gen4 x2 NVMe; mini PCIe; USB 3.1/3.2; SATA
Digital I/O 1x isolated DI; 2x isolated DO; 2x isolated CAN 2.0; isolated RS-485; RS-232
Resolution DisplayPort up to 3840x2160 at 60 Hz
Key Features NVIDIA Jetson AGX Orin Industrial; IP66 waterproof and dustproof; -40°C cold start; fanless operation; 4x PoE+ GbE; 1x 10GBASE-T; isolated vehicle I/O; ignition control
Accessories PA-160W-OW, PA-280W-CW6P-2P, Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP, Cbl-TpCPlug-UTpCF-50CM, Cbl-M12A8M-2U2TA-180CM1, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12X8M-RJ45F-100CM

nru-240s-awp-jaoi-catalog-38cf54aa.pdf PDF Catalog
nru-240s-awp-jaoi-manual-62e09ce4.pdf Manual

PA-160W-OW - 160W AC/DC power adapter 20V/8A
PA-280W-CW6P-2P - Accessory for GT-92GC
Cblkit-FP-NRU-230V-AWP_NRU-240S-AWP - Optional accessory for compatible products
Cbl-TpCPlug-UTpCF-50CM - Optional accessory for compatible products
Cbl-M12A8M-2U2TA-180CM1 - Optional accessory for compatible products
Cbl-M12A8M-2DB9M_OW2-180CM1 - Optional accessory for compatible products
Cbl-M12X8M-RJ45F-100CM - Optional accessory for compatible products
