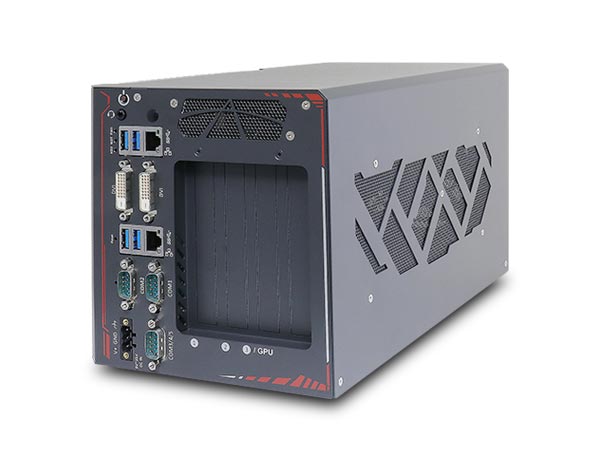

Rugged 3-slot box PC supporting Intel 9th/8th Gen CPUs and NVIDIA GPUs up to 200 W.

Nuvo-8111

Rugged 3-slot box PC supporting Intel 9th/8th Gen CPUs and NVIDIA GPUs up to 200 W.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer
Der Nuvo-8111 ist ein robuster und kosteneffizienter Industrie-PC für Edge-AI und Fabrikautomation. Sein Intel-H310-System unterstützt Intel Core-, Pentium- und Celeron-Prozessoren der 9. und 8. Generation. Ein PCIe-Gen3-x16-Steckplatz nimmt eine NVIDIA-Grafikkarte mit bis zu 200 W auf; zusätzlich stehen PCIe x4 und PCI für industrielle Erweiterungskarten bereit. Zwei GbE-, vier USB-3.1-Gen1- und fünf COM-Anschlüsse sowie zwei DVI-D-Ausgänge ermöglichen eine flexible Integration. Zwei 2,5-Zoll-SATA-Laufwerke und ein mSATA-Modul werden unterstützt. Der Betrieb ist bei -25 bis 60 °C möglich.

Rugged factory-automation AI platform with an Intel H310 chipset and socketed 9th/8th Gen Intel Core, Pentium or Celeron processor. Supports an NVIDIA GPU up to 200 W through a PCIe Gen3 x16 slot, plus PCIe Gen2 x4 and 32-bit PCI expansion. Provides two GbE ports, four external USB 3.1 Gen1 ports, five COM ports, dual DVI-D, up to 32 GB DDR4-2666, two 2.5-inch SATA drives and one full-size mSATA socket. Operates from 24 V DC at -25°C to 60°C.

Processor Support Intel 9th/8th Gen Core i7/i5/i3, Pentium and Celeron; LGA1151
Supported Core i7 Processors i7-9700TE, i7-8700, i7-8700T
Supported Core i5 Processors i5-9500TE, i5-8500, i5-8500T
Supported Core i3 Processors i3-9100TE, i3-8100, i3-8100T
Supported Pentium Processor G5400T
Supported Celeron Processor G4900T
Chipset Intel H310 platform controller hub
Maximum Memory 32 GB
Memory Type DDR4-2666 SDRAM, one SODIMM slot
Integrated Graphics Intel UHD Graphics 630
Discrete GPU Support NVIDIA RTX 3060 or RTX 3060 Ti via x16 PEG port
Maximum GPU TDP 200 W
Maximum FP32 GPU Performance 20 TFLOPS
GPU Expansion Slot 1x PCIe x16 Gen3, 16-lane
Additional PCIe Slot 1x PCIe x4 Gen2, 4-lane
PCI Slot 1x 33 MHz, 32-bit, 5 V PCI
Bus Interface 1x PCIe Gen3 x16; 1x PCIe Gen2 x4; 1x 33 MHz 32-bit 5 V PCI
Gigabit Ethernet Ports 2 ports
Ethernet Controllers Intel I219-LM; Intel I210-IT
External USB 3.1 Gen1 Ports 4 ports
USB 3.1 Data Rate 5 Gbps
Internal USB 2.0 Ports 3 ports
Video Outputs 2x DVI-D
Maximum Display Resolution 1920 x 1200 pixels
Serial Ports 5 ports
COM1 Interface Software-programmable RS-232/422/485
COM2 Interface Software-programmable RS-422/485
COM3 to COM5 Interface 3-wire RS-232
Audio Connector 1x 3.5 mm jack for mic-in and speaker-out
2.5-inch SATA Drive Capacity 2 drives
mSATA Socket 1x full-size mSATA, SATA + USB 2.0 + USIM
DC Input Voltage 24 V DC
Power Input Connector 3-pin pluggable terminal block
Width 174 mm
Depth 330 mm
Height 174 mm
Weight 4.5 kg
Mounting Option Optional wall-mount bracket
Form Factor Rugged 3-slot expansion box PC

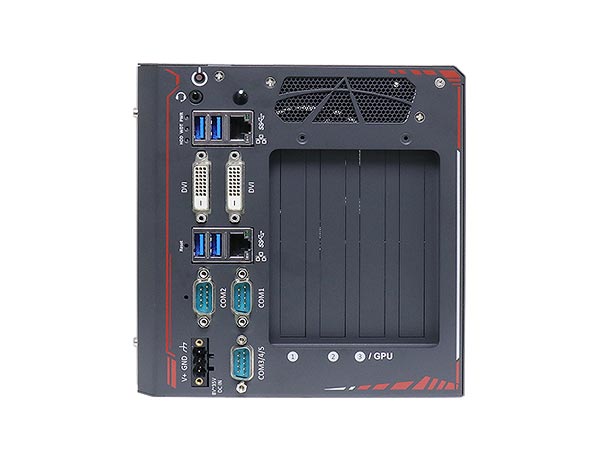

Connector 2x GbE; 4x external USB 3.1 Gen1; 5x COM; 2x DVI-D; 3.5 mm audio; 3-pin 24 V DC terminal block
Dimensions 174 mm (W) x 330 mm (D) x 174 mm (H)
Operating Temperature -25 to 60 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10 to 90, non-condensing % RH
Vibration Compliance MIL-STD-810G Method 514.6, Category 4
Shock Compliance MIL-STD-810G Method 516.6, Procedure I, Table 516.6-II
Operating Temperature -25°C to 60°C
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Recommended Power Adapter PA-280W-ET2
Wall-Mount Assembly Wmkit-H-Nuvo8111
Resolution Dual DVI-D, up to 1920 x 1200
Key Features Intel 9th/8th Gen LGA1151 processor support; NVIDIA GPU support up to 200 W TDP; PCIe Gen3 x16 GPU slot; additional PCIe Gen2 x4 and PCI slots; up to 32 GB DDR4-2666; 2x GbE; 4x USB 3.1 Gen1; 5x COM; dual DVI-D; dual 2.5-inch SATA plus mSATA; -25°C to 60°C operation
Accessories PA-280W-ET2, Wmkit-H-Nuvo8111
