Name: Rugged 3-slot box PC supporting Intel 9th/8th Gen CPUs and NVIDIA GPUs up to 200 W.
Brand: Neousys Technology
SKU: Nuvo-8111

INDUSTRIAL SOLUTION?

Discover embedded, communication and automation solutions tailored to your application.

Rugged 3-slot box PC supporting Intel 9th/8th Gen CPUs and NVIDIA GPUs up to 200 W.

Nuvo-8111

Rugged 3-slot box PC supporting Intel 9th/8th Gen CPUs and NVIDIA GPUs up to 200 W.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer
The Nuvo-8111 is a rugged, cost-effective industrial PC designed for edge AI and factory automation. Its Intel H310 platform supports 9th and 8th generation Intel Core, Pentium and Celeron processors. A PCIe Gen3 x16 slot accommodates an NVIDIA graphics card rated up to 200 W, while additional PCIe x4 and PCI slots accept industrial expansion cards. Two GbE, four USB 3.1 Gen1 and five COM ports, together with dual DVI-D outputs, provide flexible integration. Storage includes two 2.5-inch SATA drives and one mSATA module. The system operates from -25°C to 60°C.

Rugged factory-automation AI platform with an Intel H310 chipset and socketed 9th/8th Gen Intel Core, Pentium or Celeron processor. Supports an NVIDIA GPU up to 200 W through a PCIe Gen3 x16 slot, plus PCIe Gen2 x4 and 32-bit PCI expansion. Provides two GbE ports, four external USB 3.1 Gen1 ports, five COM ports, dual DVI-D, up to 32 GB DDR4-2666, two 2.5-inch SATA drives and one full-size mSATA socket. Operates from 24 V DC at -25°C to 60°C.

Processor Support Intel 9th/8th Gen Core i7/i5/i3, Pentium and Celeron; LGA1151
Supported Core i7 Processors i7-9700TE, i7-8700, i7-8700T
Supported Core i5 Processors i5-9500TE, i5-8500, i5-8500T
Supported Core i3 Processors i3-9100TE, i3-8100, i3-8100T
Supported Pentium Processor G5400T
Supported Celeron Processor G4900T
Chipset Intel H310 platform controller hub
Maximum Memory 32 GB
Memory Type DDR4-2666 SDRAM, one SODIMM slot
Integrated Graphics Intel UHD Graphics 630
Discrete GPU Support NVIDIA RTX 3060 or RTX 3060 Ti via x16 PEG port
Maximum GPU TDP 200 W
Maximum FP32 GPU Performance 20 TFLOPS
GPU Expansion Slot 1x PCIe x16 Gen3, 16-lane
Additional PCIe Slot 1x PCIe x4 Gen2, 4-lane
PCI Slot 1x 33 MHz, 32-bit, 5 V PCI
Bus Interface 1x PCIe Gen3 x16; 1x PCIe Gen2 x4; 1x 33 MHz 32-bit 5 V PCI
Gigabit Ethernet Ports 2 ports
Ethernet Controllers Intel I219-LM; Intel I210-IT
External USB 3.1 Gen1 Ports 4 ports
USB 3.1 Data Rate 5 Gbps
Internal USB 2.0 Ports 3 ports
Video Outputs 2x DVI-D
Maximum Display Resolution 1920 x 1200 pixels
Serial Ports 5 ports
COM1 Interface Software-programmable RS-232/422/485
COM2 Interface Software-programmable RS-422/485
COM3 to COM5 Interface 3-wire RS-232
Audio Connector 1x 3.5 mm jack for mic-in and speaker-out
2.5-inch SATA Drive Capacity 2 drives
mSATA Socket 1x full-size mSATA, SATA + USB 2.0 + USIM
DC Input Voltage 24 V DC
Power Input Connector 3-pin pluggable terminal block
Width 174 mm
Depth 330 mm
Height 174 mm
Weight 4.5 kg
Mounting Option Optional wall-mount bracket
Form Factor Rugged 3-slot expansion box PC

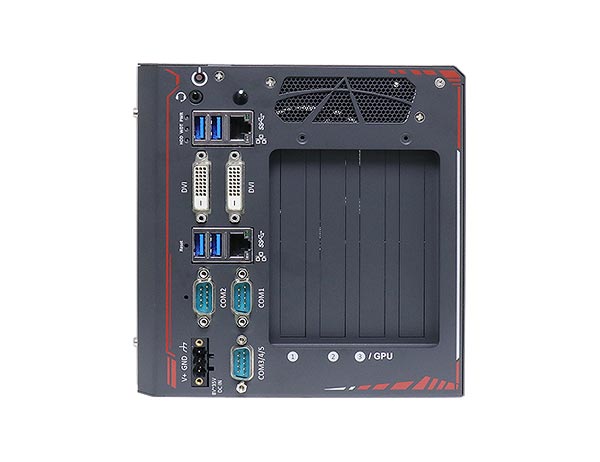

Connector 2x GbE; 4x external USB 3.1 Gen1; 5x COM; 2x DVI-D; 3.5 mm audio; 3-pin 24 V DC terminal block
Dimensions 174 mm (W) x 330 mm (D) x 174 mm (H)
Operating Temperature -25 to 60 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10 to 90, non-condensing % RH
Vibration Compliance MIL-STD-810G Method 514.6, Category 4
Shock Compliance MIL-STD-810G Method 516.6, Procedure I, Table 516.6-II
Operating Temperature -25°C to 60°C
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Recommended Power Adapter PA-280W-ET2
Wall-Mount Assembly Wmkit-H-Nuvo8111
Resolution Dual DVI-D, up to 1920 x 1200
Key Features Intel 9th/8th Gen LGA1151 processor support; NVIDIA GPU support up to 200 W TDP; PCIe Gen3 x16 GPU slot; additional PCIe Gen2 x4 and PCI slots; up to 32 GB DDR4-2666; 2x GbE; 4x USB 3.1 Gen1; 5x COM; dual DVI-D; dual 2.5-inch SATA plus mSATA; -25°C to 60°C operation
Accessories PA-280W-ET2, Wmkit-H-Nuvo8111
