Name: IP67 fanless computer with Core i3-N305, dual 2.5GbE and isolated industrial I/O.
Brand: Neousys Technology
SKU: POC-766AWP

INDUSTRIELLE LÖSUNG?

Entdecken Sie Embedded-, Kommunikations- und Automatisierungslösungen für Ihre Anwendung.

IP67 fanless computer with Core i3-N305, dual 2.5GbE and isolated industrial I/O.

POC-766AWP

IP67 fanless computer with Core i3-N305, dual 2.5GbE and isolated industrial I/O.

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Industrial Computer

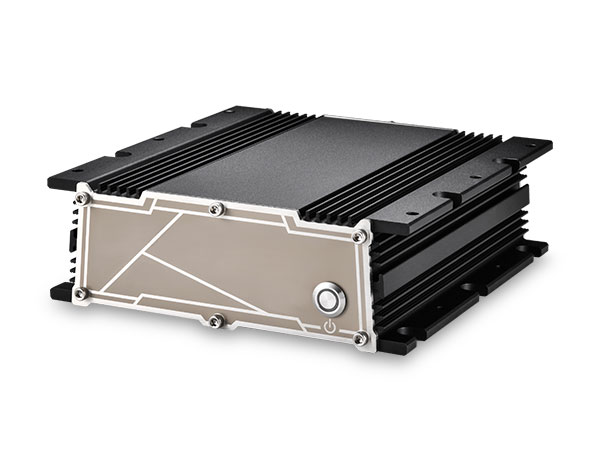

Der POC-766AWP ist ein kompakter, lüfterloser Industriecomputer für anspruchsvolle Außen- und Fahrzeugeinsätze. Sein vollständig geschlossenes IP67-Gehäuse schützt vor Wasser und Staub. Ein Intel Core i3-N305 mit acht E-Cores und DDR5-Speicher liefert die Rechenleistung. Zwei 2,5-GbE-Anschlüsse sowie isolierte RS-232-, RS-422/485-, CAN-2.0B- und Digital-I/O-Schnittstellen werden über robuste M12-Steckverbinder geführt. Hinzu kommen M.2- und Mini-PCIe-Erweiterung, ein 8–35-VDC-Eingang mit Zündsteuerung und ein Betriebstemperaturbereich von -25 bis 70 °C.

Sealed IP67 fanless embedded computer with Intel Core i3-N305 processor, up to 16 GB DDR5-4800, dual 2.5GbE, isolated RS-232 and RS-422/485, CAN 2.0B, one isolated DI and two isolated DO. Includes M.2 NVMe/SATA storage, full-size Mini-PCIe expansion, HDMI 1.4b, two internal USB 3.2 Gen2 ports and 8–35 VDC ignition-controlled input. Operates from -25°C to 70°C.

Processor Intel Alder Lake Core i3-N305, 8 cores/8 threads, 1.8/3.8 GHz, 15 W TDP
Graphics Integrated Intel UHD Graphics with 32 execution units
Memory Type DDR5-4800 SDRAM
Maximum Memory 16 GB
Trusted Platform Module Supports discrete TPM 2.0
Ethernet Ports 2x 2.5Gb Ethernet via Intel I226-IT
Ethernet Connector M12 X-coded, 8-pin
RS-232 Ports 1 isolated RS-232 port (COM1)
RS-422/485 Ports 1 isolated RS-422/485 port (COM2)
CAN Interface 1 isolated CAN 2.0B
Digital Input Channels 1 isolated DI channel
Digital Output Channels 2 isolated DO channels
Digital I/O 1-channel isolated DI; 2-channel isolated DO

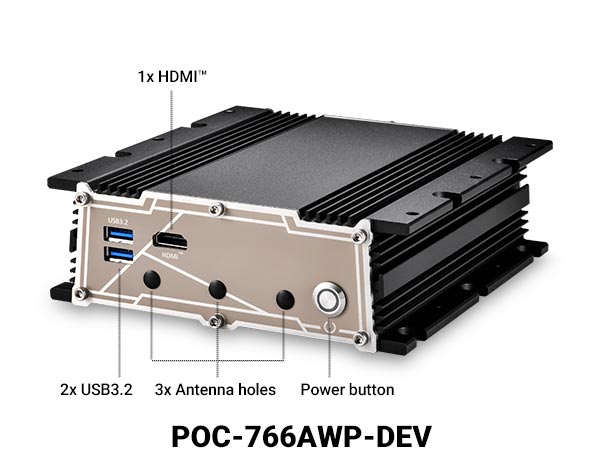

USB Ports 2x USB 3.2 Gen2 x1 Type-A, internal/rear access
Video Interface 1x HDMI 1.4b
Maximum Display Resolution 3840 x 2160 at 30 Hz
Storage Socket 1x M.2 2280 M-key for NVMe SSD; SATA signal supported
Storage Bus PCIe Gen3 x4
Mini-PCIe Slots 1 full-size Mini-PCIe socket with internal micro-SIM socket
DC Input Voltage 8–35 VDC
Ignition Power Control Supported
Dimensions 161.5 x 169 x 52.7 mm
Weight 1.8 kg
Mounting Wall mount or optional DIN-rail mount
Form Factor Compact sealed fanless embedded computer; wall or optional DIN-rail mounting

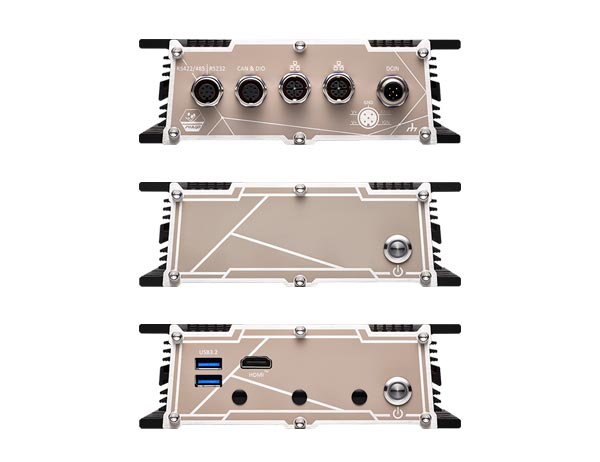

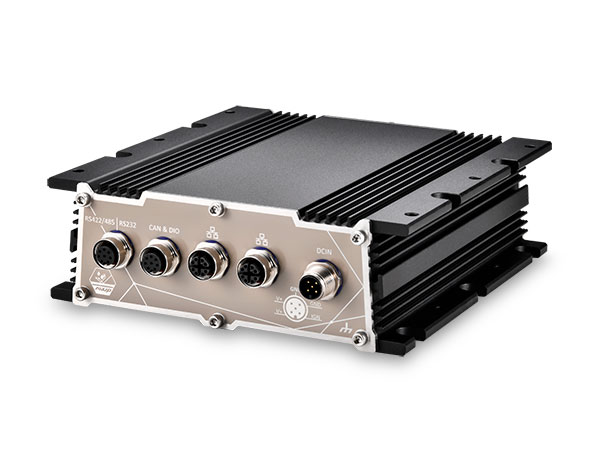

Connector 2x M12 X-coded 8-pin Ethernet; M12 A-coded 8-pin serial and CAN/DIO; M12 A-coded 5-pin power; internal HDMI and USB Type-A
Dimensions 161.5 x 169 x 52.7 mm (W x D x H)
Ingress Protection IP67
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Operating Humidity 10–90, non-condensing % RH
Vibration Standard MIL-STD-810H, Method 514.8, Category 4
Shock Standard MIL-STD-810H, Method 516.8, Procedure I
Operating Temperature -25°C to 70°C
EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
Safety Compliance UL 62368-1; IEC 62368-1
Bus Interface 1x full-size Mini-PCIe; 1x M.2 2280 M-key PCIe Gen3 x4
Resolution HDMI output up to 3840 x 2160 at 30 Hz
Key Features IP67 waterproof and dustproof enclosure; Intel Core i3-N305 with 8 E-cores; fanless operation; 2x 2.5GbE; isolated RS-232 and RS-422/485; CAN 2.0B; isolated digital I/O; 8–35 VDC ignition input; DDR5 memory; wide-temperature operation
Accessories PA-120W-OW, AccsyBx-mPCIe-bkt-POC-766AWP, DINRAIL-POC-766AWP, ThermalPad-90-POC-766AWP, Cbl-M12X8M-RJ45F-100CM, Cbl-M12A8M-2DB9M-180CM, Cbl-M12A8M-2DB9M_OW2-180CM1, Cbl-M12A5F-OW3-180CM1, Cblkit-M12-POC-766AWP
