- **128 Opto‑Isolated Inputs:** Provides 128 independent digital input channels, grouped with one positive common per 16 inputs. - **Optical Isolation:** Each input channel is isolated from the PC’s internal logic circuits via high‑speed opto‑couplers, protecting the host system from electrical noise, surges, and ground potential differences. - **Input Voltage Range:** Accepts 12 – 24 V DC (±10 %) negative‑logic signals, suitable for industrial sensors and control devices. - **Interrupt Capability:** Up to 16 input signals can be configured as interrupt sources; these are combined into a single interrupt request (IRQ) line, INTA#, for efficient event handling. - **Digital Filtering Function:** Built‑in digital filter suppresses noise and contact chattering, ensuring stable signal detection in electrically noisy environments. - **High‑Speed Response:** Typical response time of 200 µs, enabling fast signal acquisition for automation and monitoring systems. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a ×1; compatible with standard PCI Express slots on industrial PCs and workstations. - **Low‑Profile Form Factor:** Board dimensions 169.33 mm (L) × 110.18 mm (H); includes both standard and low‑profile brackets for flexible installation. - **Software Support:** - **Windows:** API‑TOOL / API‑PAC(W32) driver library (Win32 DLL) for development and runtime use. - **Linux:** Open‑source module‑style device driver and shared library. - **LabVIEW:** VI‑DAQ library for National Instruments LabVIEW, providing easy integration with data acquisition VIs. - **Compatibility:** Connector pin assignments and functional layout are fully compatible with the PCI‑bus model PI‑128L(PCI)H, simplifying migration from legacy PCI systems. - **RoHS Compliance:** Environmentally friendly, lead‑free construction meeting EU RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **32 Opto-Isolated Digital Inputs:** Provides 32 independent input channels, grouped with one positive common per 16 channels. Each input is optically isolated to protect the host system from voltage surges and ground potential differences. - **Input Voltage Range:** Accepts 12–24 VDC (±10%) negative logic signals, suitable for industrial sensors, switches, and PLC outputs. - **Interrupt Functionality:** All 32 input signals can generate interrupts. These are combined into a single interrupt request (IRQ) signal, output as INTA, simplifying system integration. - **Digital Filtering:** Built-in digital filter suppresses transient noise and contact chattering, ensuring stable signal acquisition in electrically noisy environments. - **Opto-Isolation:** Optical isolation between I/O interface and internal logic circuits prevents electrical interference and protects the PC from external surges. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1 lane configuration, ensuring high-speed data transfer and compatibility with modern PC architectures. - **Compact Low-Profile Design:** Board dimensions of 121.69 mm (L) × 110.18 mm (H) allow installation in standard or low-profile PCIe slots. A standard bracket is included. - **Software Support:** Includes license-free drivers for Windows and Linux, as well as LabVIEW VI libraries (VI-DAQ) for seamless integration with National Instruments environments. - **Compatibility:** Connector pin assignments and functional behavior are compatible with the PCI-compliant board PI-32L(PCI)H, facilitating migration from legacy PCI systems. - **RoHS Compliance:** Environmentally friendly, lead-free, and RoHS-compliant product.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **64 Opto-Isolated Digital Inputs:** Provides 64 independent input channels, each isolated via opto-couplers to protect the host PC from electrical noise and voltage surges. - **Input Voltage Range:** Accepts 12–24 VDC (±10%) negative logic signals, suitable for industrial sensors and switches. - **Common Configuration:** 16 input channels share one positive common line, simplifying wiring for grouped signal inputs. - **Interrupt Functionality:** 32 input signals can be configured as interrupt sources; all are combined into a single interrupt request (IRQ) line, designated as INTA. - **Digital Filtering:** Built-in digital filter suppresses noise and chattering, ensuring stable signal acquisition in electrically noisy environments. - **High Noise Immunity:** Opto-isolation prevents ground loops and electrical interference between field devices and the PC. - **Fast Response:** Maximum response time of 200 µs, suitable for high-speed digital monitoring. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a ×1 lane, ensuring compatibility with modern PC architectures. - **Compact Form Factor:** Low-profile PCIe card (169.33 mm × 110.18 mm) with included standard and low-profile brackets. - **Connector Type:** 96-pin half-pitch female connector for external wiring. - **Software Support:** Includes API-TOOL drivers for Windows and Linux, and VI-DAQ library for LabVIEW integration. - **Compatibility:** Functionally and electrically compatible with the legacy PCI model PI-64L(PCI)H, allowing easy migration to PCIe systems. - **RoHS Compliant:** Environmentally friendly design meeting EU RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **Opto-Isolated I/O:** 16 isolated digital inputs and 16 isolated open-collector digital outputs ensure electrical isolation between the PC and external devices, protecting against noise and voltage spikes. - **On-Board Power Supply:** Integrated 12VDC (240mA) power source for driving input circuit opto-couplers, simplifying wiring and installation. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring compatibility with modern PC architectures. - **Interrupt Support:** All 16 input channels can be configured as interrupt sources; 16 interrupt signals are combined into one interrupt request (INTA). - **Surge and Overcurrent Protection:** Output transistors include built-in Zener diodes and polyswitches for protection against voltage surges and overcurrent conditions. - **Negative Logic Operation:** Both input and output circuits operate on negative logic (current sinking type), with outputs sharing a positive common line. - **Digital Filtering:** Built-in digital filter prevents false triggering due to noise or signal chattering. - **Compact Design:** Standard PCI Express short-size board (169.33 mm × 110.18 mm) with a 37-pin D-sub female connector. - **Cross-Compatibility:** Connector pin assignments and functions are compatible with the PCI-compliant PIO-16/16B(PCI)H board, allowing easy migration from legacy PCI systems. - **Software Support:** Includes license-free drivers for Windows and Linux, and LabVIEW VI libraries (VI-DAQ) for seamless integration into data acquisition systems. - **RoHS Compliant:** Environmentally friendly, lead-free design meeting RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **Opto-Isolated I/O:** Both input and output channels are optically isolated to protect the host PC from electrical noise, surges, and ground potential differences. - **16 Digital Inputs / 16 Digital Outputs:** Provides 16 opto-isolated input channels and 16 opto-isolated open collector output channels (current sinking type, negative logic). - **Interrupt Capability:** All 16 input channels can be configured as interrupt sources. The 16 interrupt signals are combined into a single interrupt request (IRQ) line, INTA. - **Digital Filtering Function:** Built-in digital filter prevents false triggering due to noise or signal chattering, ensuring stable input signal recognition. - **Surge and Overcurrent Protection:** Each output transistor includes a Zener diode and polyswitch for protection against voltage surges and overcurrent conditions. - **High Noise Immunity:** Opto-coupler isolation and robust circuit design ensure reliable operation in electrically noisy industrial environments. - **Negative Logic Operation:** The board uses negative logic (current sinking configuration) with a positive common line shared among 16 outputs. - **Fast Response Time:** Input and output response times are within 200 microseconds, suitable for real-time control and monitoring applications. - **Compact PCI Express Form Factor:** Short-length PCIe board (121.69 mm × 110.18 mm) suitable for compact industrial PCs and embedded systems. - **Software Support:** Includes license-free drivers and APIs for Windows and Linux, plus LabVIEW VI libraries for easy integration with data acquisition systems. - **Compatibility:** Connector pin assignments and signal functions are compatible with the PCI-compliant board PIO-16/16L(PCI)H, allowing easy migration from legacy PCI systems.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **32 Opto-Isolated Digital Inputs and 32 Opto-Isolated Digital Outputs:** Provides 64 total I/O points, each isolated via opto-couplers to ensure electrical separation between the PC and external devices, minimizing noise interference and protecting the host system. - **On-board Power Supply (12VDC 240mA):** Integrated power source for driving input circuit opto-couplers, eliminating the need for an external power supply for input-side isolation circuits. - **Opto-Isolated Open Collector Outputs (Current Sinking Type):** Each output channel supports up to 35VDC and 100mA, with built-in surge and overcurrent protection (Zener diode and polyswitch). - **Interrupt Functionality:** All 32 input channels can be configured as interrupt sources. The 32 interrupt signals are combined into a single interrupt request (IRQ) line as INTA. - **Digital Filtering Function:** Built-in digital filter prevents false triggering due to noise or signal chattering, ensuring stable input signal acquisition. - **Negative Logic (Sink Current Input/Output):** The board operates on negative logic, where logical “ON” corresponds to a low voltage level, suitable for industrial control systems using sink-type logic. - **High Noise Immunity and Electrical Isolation:** Opto-coupler isolation between I/O and internal logic circuits prevents ground loops and electrical interference. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring compatibility with modern industrial PCs and embedded systems. - **Software Support:** Includes license-free driver libraries for Windows and Linux (API-TOOL / API-PAC(W32)), and VI-DAQ library for National Instruments LabVIEW integration. - **Surge and Overcurrent Protection:** Each output transistor includes a Zener diode and polyswitch for protection against voltage surges and excessive current. - **RoHS and Lead-Free Compliance:** Environmentally friendly design meeting RoHS directives and CONTEC’s Pb-free manufacturing standards.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **High‑Speed Opto‑Isolated I/O:** Equipped with high‑speed opto‑couplers providing a maximum input response time of **5 µs** and output response time within **200 µs**, enabling rapid signal acquisition and control in time‑critical industrial applications. - **32 × 32 Channel Configuration:** Provides **32 opto‑isolated digital inputs** and **32 opto‑isolated open‑collector outputs**, each group sharing a common line every 16 channels. This configuration supports flexible wiring and simplified external circuit design. - **Optical Isolation:** Complete galvanic isolation between the PC’s internal logic and external I/O circuits prevents electrical interference, ground loops, and damage from transient voltages. - **Negative Logic / Current Sinking Type:** Both input and output circuits operate on negative logic. Outputs are current‑sinking open‑collector transistors rated at **35 V DC, 50 mA per channel**. - **Interrupt Support:** All 32 input channels can generate interrupts. The 32 interrupt signals are combined into a single interrupt request line (INTA#) for efficient event handling. - **Digital Filtering:** Built‑in digital filter suppresses noise and contact chattering, ensuring stable signal detection in electrically noisy environments. - **Surge and Overcurrent Protection:** Each output transistor includes a Zener diode and polyswitch circuit to protect against voltage surges and overcurrent conditions. - **PCI Express Interface:** Compliant with **PCI Express Base Specification Rev. 1.0a ×1**, ensuring high‑speed data transfer and compatibility with modern PC architectures. - **Software Support:** Includes **Windows** and **Linux** drivers (API‑TOOL / API‑PAC(W32)) and **LabVIEW VI‑DAQ** library for seamless integration into custom applications and test environments. - **RoHS Compliant:** Manufactured in accordance with the EU RoHS directive, ensuring environmentally responsible design.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **Opto-Isolated I/O:** Both input and output channels are optically isolated to protect the host PC from electrical noise, surges, and ground potential differences. - **32 Digital Inputs / 32 Digital Outputs:** Provides 64 total I/O points (32 inputs, 32 outputs) with independent isolation and common lines per 16 channels. - **Negative Logic Configuration:** Supports current sinking (negative logic) operation. The 32 outputs share a positive common line. - **High Noise Immunity:** Opto-coupler isolation ensures stable operation in electrically noisy industrial environments. - **Interrupt Functionality:** All 32 input signals can be configured as interrupt sources. The board consolidates 32 interrupt signals into a single interrupt request (IRQ) line, INTA. - **Digital Filtering:** Built-in digital filter prevents false triggering due to noise or signal chattering, improving input reliability. - **Surge and Overcurrent Protection:** Output transistors include integrated protection circuits (Zener diode and polyswitch) to guard against voltage surges and overcurrent conditions. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1 lane, ensuring high-speed data transfer and compatibility with modern PC architectures. - **Software Support:** Includes license-free drivers and APIs for Windows and Linux, plus LabVIEW VI libraries for easy integration into measurement and control systems. - **RoHS Compliant and Lead-Free:** Environmentally friendly design meeting RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **High-Density I/O:** 64 opto-isolated digital inputs and 64 opto-isolated open-collector digital outputs on a single PCIe card. - **Optical Isolation:** Each I/O channel is isolated via opto-couplers to protect the host PC from electrical noise, surges, and ground potential differences. - **Negative Logic Operation:** Supports current sinking (negative logic) configuration; 16 output channels share a positive common line. - **Interrupt Functionality:** 16 input signals can be configured as interrupt sources, combined into one interrupt request signal (INTA). - **Digital Filtering:** Built-in digital filter prevents false triggering due to noise or signal chattering. - **Surge and Overcurrent Protection:** Output transistors include integrated Zener diodes and polyswitches for surge suppression and overcurrent protection. - **High Reliability:** Industrial-grade design ensures stable operation in electrically noisy environments. - **Software Support:** Includes license-free Windows and Linux drivers (API-TOOL), and LabVIEW VI-DAQ library for easy integration with data acquisition systems. - **RoHS Compliant:** Environmentally friendly, lead-free design. - **Compatibility:** Functionally and connector-pin compatible with the PCI-compliant model PIO-64/64L(PCI)H.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **High-Density Output:** 128 opto-isolated open-collector output channels, ideal for large-scale digital control systems. - **Opto-Isolation:** Each output channel is isolated via opto-couplers to protect the host PC from electrical noise and voltage surges. - **Negative Logic (Current Sinking Type):** Outputs are configured for current sinking operation with a negative logic scheme. - **Output Rating:** 35VDC, 100mA per channel, suitable for driving relays, lamps, and other DC loads. - **Surge and Overcurrent Protection:** Each output transistor includes a Zener diode and polyswitch for protection against voltage surges and overcurrent conditions. - **Fast Response:** Maximum response time of 200 microseconds ensures rapid signal switching for real-time control. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring compatibility with modern PC architectures. - **Compact Form Factor:** Low-profile PCI Express board (169.33 mm × 110.18 mm) with a standard bracket included for full-height slots. - **Connector Interface:** Two 100-pin 0.8 mm pitch female half-pitch connectors (HDRA-E100W1LFDT1EC-SL+ or equivalent). - **Software Support:** Includes Windows and Linux drivers, as well as LabVIEW VI libraries (VI-DAQ) for seamless integration into automation and data acquisition systems. - **RoHS Compliant:** Environmentally friendly, lead-free design meeting RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **32 Opto-Isolated Output Channels:** Provides 32 independent digital output points, grouped with one common line per 16 channels. - **Opto-Isolation:** Each output channel is optically isolated from the internal logic circuit, protecting the host PC from electrical noise and voltage surges. - **Open Collector Output (Current Sinking Type):** Supports negative logic operation, allowing flexible interfacing with external devices. - **Output Rating:** 35 VDC, 100 mA per channel. - **Built-in Protection:** Integrated Zener diode and polyswitch circuitry for surge and overcurrent protection. - **Fast Response:** Maximum response time of 200 µs ensures rapid signal switching suitable for real-time control. - **PCI Express Interface:** Compliant with PCI Express Base Specification Rev. 1.0a ×1 lane, ensuring high-speed data transfer and compatibility with modern PCs. - **Low-Profile Form Factor:** Compact board size (121.69 mm × 110.18 mm) with both standard and low-profile brackets included. - **Connector Type:** 37-pin female D-sub connector (DCLC-J37SAF-20L9E [JAE] or equivalent). - **Software Support:** Includes Windows and Linux drivers, as well as LabVIEW VI libraries for seamless integration into automation and data acquisition systems. - **Compatibility:** Functionally and connector-pin compatible with the PCI-compliant board PO-32L(PCI)H. - **RoHS Compliant:** Environmentally friendly, lead-free design meeting EU RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **64 Opto-Isolated Digital Outputs:** Provides 64 open-collector output channels, each capable of sinking up to 100 mA at 35 VDC. - **Optical Isolation:** Each output channel is optically isolated from the host system to prevent electrical interference and protect the PC from voltage surges and ground loops. - **Negative Logic (Current Sinking Type):** The outputs operate in negative logic mode, with 16 channels sharing a positive common line. - **Surge and Overcurrent Protection:** Each output transistor includes a Zener diode and polyswitch for protection against voltage surges and overcurrent conditions. - **High Noise Immunity:** Opto-isolation and robust circuit design ensure reliable operation in industrial environments with high electromagnetic interference (EMI). - **Fast Response Time:** Maximum output response time of 200 µs, suitable for most automation and control applications. - **PCI Express Interface:** Fully compliant with PCI Express Base Specification Rev. 1.0a ×1, ensuring high-speed data transfer and compatibility with modern PCs. - **Compact Board Size:** 169.33 mm (L) × 110.18 mm (H), suitable for standard or low-profile PCIe slots (standard bracket included). - **Software Support:** Includes license-free drivers for Windows and Linux, as well as LabVIEW VI libraries (VI-DAQ) for easy integration into test and measurement systems. - **RoHS Compliant:** Environmentally friendly design meeting EU RoHS directives.

Manufacturer: Contec

Category: DIO Isolated PCIe

- **PCI Express® x1 Interface:** Fully compliant with PCI Express® Base Specification, providing high‑speed serial connectivity and plug‑and‑play configuration. - **Low‑Profile Form Factor:** Compact MD1 size (119.9 mm × 68.9 mm) suitable for space‑constrained industrial PCs. - **Isolated Digital I/O:** - 16 optically isolated digital input channels - 16 optically isolated digital output channels - **High Isolation Voltage:** 2500 V RMS optical isolation between channels and host system, protecting against high‑voltage transients and ground loops. - **Wide Input Range:** Accepts 0–24 VDC non‑polarized input signals, simplifying integration with various industrial sensors and switches. - **Darlington Transistor Outputs:** Open‑collector outputs capable of sinking up to 500 mA per channel (100% duty cycle) with external supply voltage from 5 to 35 VDC. - **Interrupt Support:** Two external interrupt sources available on digital input channels 0 and 1 for event‑driven control. - **High Throughput:** Supports up to 10 kHz switching frequency for both input and output operations. - **Software & Driver Support:** - Windows 7/Vista/XP/2000/2003 Server - Linux (PCIS‑DASK/X) - DAQPilot SDK for LabVIEW™, MATLAB®, and .NET environments - **Connector Type:** One 50‑pin SCSI‑II female connector for all isolated I/O signals. - **Industrial‑Grade Design:** Rugged construction, wide operating temperature range (0–60 °C), and high humidity tolerance (5–95% non‑condensing).

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

- **PCI Express x1 Interface:** Fully compliant with PCI Express Base Specification, supporting 3.3 V signaling. - **8‑Channel SPDT (Form C) Relay Outputs:** Each relay provides normally open (NO), normally closed (NC), and common (COM) contacts for flexible switching. - **8‑Channel Optically Isolated Digital Inputs:** Non‑polarity inputs with 5000 VRMS isolation for noise‑immune signal acquisition. - **Onboard LED Indicators:** Each relay output has a dedicated LED to display its energized/de‑energized state. - **Relay Readback Function:** Software can read the actual relay output status for verification. - **Onboard Relay Driving Circuits:** Integrated driver circuitry ensures reliable relay actuation without external components. - **Non‑Latching Relays:** Ensures predictable power‑up state and safe operation. - **Low‑Pass Filtering for Inputs:** Optional RC filtering selectable via onboard jumpers for AC or DC signal conditioning. - **Compact Low‑Profile PCB:** 120 mm × 69 mm board size suitable for space‑constrained systems. - **High Isolation Voltage:** 5000 VRMS isolation between input channels and system ground. - **Wide Input Voltage Range:** Accepts 5–24 V logic‑high signals, 0–1.5 V logic‑low. - **Industrial‑Grade Reliability:** Designed for continuous operation in harsh environments (0 °C – 60 °C). - **Software Support:** Compatible with Windows and Linux drivers, LabVIEW™, MATLAB®, and ADLINK’s DAQPilot SDK. - **Expandable Family:** Functionally equivalent to PCI‑7250, LPCI‑7250, and cPCI‑7252 models for cross‑platform integration.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

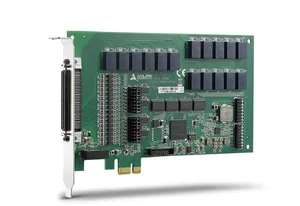

- **PCI Express x1 Interface:** Fully compliant with PCI Express x1 bus standard, supporting plug-and-play configuration. - **16 Latching Relay Outputs:** Each output is a single-pole double-throw (SPDT) Form C relay with latching capability, maintaining output state even when power is removed. - **16 Optically Isolated Digital Inputs:** Non-polar, optically isolated inputs with optional RC filtering for noise suppression. - **Relay Output Readback:** Allows software to verify the current state of each relay output. - **Change-of-State (COS) Detection:** Interrupt generation on digital input state changes for channels 0 and 1, enabling event-driven control. - **LED Indicators:** Onboard LEDs display relay status; external LED connectors are also available for remote indication. - **Board ID Function:** Hardware DIP switch allows unique identification of multiple cards in a single system. - **Power-Saving Latching Relays:** Reduces power consumption by maintaining relay state without continuous coil energization. - **High Isolation:** 1500 V RMS isolation for relay outputs and 2500 V RMS isolation for digital inputs. - **Compact Design:** Half-size PCIe form factor (175 mm x 107 mm). - **Software Support:** Compatible with ADLINK’s PCIS-DASK driver library and SDK for Windows and LabVIEW environments. - **Environmental Compliance:** Fully RoHS and WEEE compliant.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

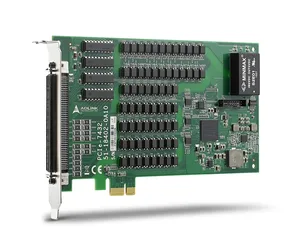

- **Bus Interface:** PCI Express x1 interface compliant with PCI Express Base Specification. - **Channel Configuration:** 32 isolated digital input (DI) channels and 32 isolated digital output (DO) channels. - **Isolation Protection:** 2500 VRMS optical isolation (tested up to 4500 VRMS). - **Input Voltage Range:** 0–24 V DC, non-polarity input design. - **Output Drive Capability:** Sink current up to 500 mA per channel at 24 V DC. - **Output Type:** Open collector Darlington transistor outputs. - **Connector Type:** 100-pin SCSI-II female connector for high-density I/O connectivity. - **Interrupt Support:** Two external interrupt sources (channels 0 and 1). - **Software Support:** Compatible with Windows 7/8.1 (x86/x64) and Linux; supports LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET. - **Utility Software:** AD-Logger for data acquisition and monitoring. - **Form Factor:** PCI Express half-length card (175 mm x 107 mm). - **Opto-22 Compatibility:** Compatible with Opto-22 standard I/O modules and terminal boards. - **High Reliability:** Designed for industrial environments with wide operating temperature range and high isolation voltage.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

- **64-Channel Total I/O Capacity:** 32 isolated digital input channels and 32 isolated digital output channels. - **High Input Voltage Range:** Accepts **12–50 V DC** non-polarity digital input signals, suitable for industrial sensors and control devices. - **High Output Drive Capability:** Each output channel can **sink up to 500 mA** at 24 V DC, supporting direct control of relays, solenoids, and actuators. - **Optical Isolation:** Provides **2500 V RMS isolation** between channels and the host system, protecting against voltage surges and ground loops. - **PCI Express Interface:** Compliant with **x1 PCIe** interface standard, ensuring high-speed data transfer and compatibility with modern PC architectures. - **Interrupt Support:** Two external interrupt sources available on digital input channels 0 and 1 for event-driven applications. - **Non-Polarity Inputs:** Simplifies wiring by allowing either polarity for input signals. - **Industrial-Grade Design:** Wide operating temperature range (0°C to 60°C) and humidity tolerance (5–95% non-condensing). - **Software Support:** Compatible with **Windows 7/8.1 (x86/x64)** and **Linux**. Supported development environments include **LabVIEW®, MATLAB®, C/C++, Visual Basic, and Visual Studio .NET**. - **Utility Software:** Bundled with **AD-Logger** for data monitoring and logging. - **Connector Type:** Single **100-pin SCSI-II female connector** for all I/O channels.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe

- **High-Density Digital I/O:** 64 optically isolated digital input channels, 64 optically isolated digital output channels, and 32 programmable TTL I/O channels. - **Optical Isolation:** 1,250 VRMS isolation between channels and system bus, ensuring protection against high-voltage transients and ground loops. - **Change of State (COS) Detection:** Programmable COS interrupt function for all digital input channels, enabling event-driven response to input state changes. - **Watchdog Timer (WDT):** 32-bit hardware watchdog timer with programmable overflow interval (100 ns to 429.496 s) for system safety monitoring. - **Digital Output Readback:** Real-time readback of output states to verify actual output conditions. - **Programmable Power-Up and Safety States:** Configurable power-up DO initial states and safety DO states for predictable startup and fault conditions. - **Hot Reset Hold Function:** Retains digital output states during system hot resets to prevent unintended output transitions. - **Board ID Function:** Hardware DIP switch for unique board identification in multi-card systems. - **High Output Drive Capability:** Each isolated output channel can sink up to 250 mA (300 mA max) at 60°C continuous duty. - **Wide Input Voltage Range:** Accepts 0–28 VDC input signals, with non-polarity input design for flexible wiring. - **Software Support:** Compatible with ADLINK’s PCIS-DASK driver library, LabVIEW® DAQ-LVIEW PnP, and DAQBench™ ActiveX controls. - **Universal PCI/PCIe Interface:** 32-bit, 3.3/5 V PCI or PCIe bus interface with plug-and-play configuration.

Manufacturer: Adlink Technology Inc.

Category: DIO Isolated PCIe
