Ethernet IO
Network Ethernet IO is a system that allows remote IO devices to be connected to a network. It provides a secure and reliable connection to data and other IO devices, allowing for efficient and reliable communication between devices. It is a great solution for connecting multiple devices in different locations.
Subcategories
Products
EDAM-9015
Ethernet 10/100TX 7*RTD Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, 7 channel differential RTD input (2-/3-/4-wires), Pt100/Pt1000/Balco 500/NI RTD, isolation voltage 2kV, 16-Bit 10 samples/s, accuracy 0,05% or better, +10..30VDC ~2,2W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Analog
EDAM-9017
Ethernet 10/100TX 8*AD differential 2*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, 8 channel AD differential bipolar input (±0,015/0,5/5,0/10V and 0/4..20mA by jumper), 16-Bit 10 samples/s, accuracy 0,05% or better, +10..30VDC ~2,2W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Analog
EDAM-9050
Ethernet 10/100TX 12*DI or 12*Counter and 6*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9050A
Ethernet 10/100TX 12*DI dry contact and 6*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9050AB
Ethernet 10/100TX 12*DI wet contact and 6*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9051
Ethernet 10/100TX 12*DI dry contact 2*DO 2*counter Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, 2*counter 32bit 0,3..4500Hz isolated, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9051A
Ethernet 10/100TX 12*DI dry contact 2*DO 2*counter Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, 2*counter 32bit 0,3..4500Hz isolated, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9051AB
Ethernet 10/100TX 12*DI dry contact 2*DO common source or ground 2*counter Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, 2*counter 32bit 0,3..4500Hz isolated, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9052
Ethernet 10/100TX 8*DI dry contact and 8*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9052A
Ethernet 10/100TX 8*DI dry contact and 8*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9052AB
Ethernet 10/100TX 8*DI and 8*DO Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9053A
Ethernet 10/100TX 8*DI dry or wet contact and 4*DO open collector NPN Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9060A
Ethernet 10/100TX 5*DI and 3*DO Relay Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9063A
Ethernet 10/100TX 7*DI and 3*DO Relay Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital
EDAM-9064A
Ethernet 10/100TX 5*DI and 4*DO Relay Modbus module, standard Modbus RTU protocol, protocols Modbus/TCP TCP/IP UDP ICMP ARP, user friendly status LEDs Power and Ethernet link, each DI channel supports up to 1kHz 32bit counter, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: Modbus Digital

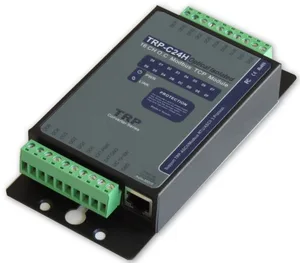

TRP-C24H
- **16 Isolated Digital Output Channels:** Each channel provides open collector output up to **+30V, 100mA** per channel. - **High Isolation Protection:** 3750 Vrms isolation between channels and logic circuitry ensures electrical safety and noise immunity. - **Multi-Protocol Support:** Automatically detects and supports **TRP-ASCII**, **Modbus RTU**, and **Modbus ASCII** protocols. - **Ethernet Connectivity:** Integrated **RJ45 Ethernet interface** with **Auto-MDIX** for automatic crossover detection and correction. - **Web-Based Configuration:** Built-in web server allows configuration and I/O monitoring via browser on PC, tablet, or smartphone. - **Virtual COM Mode:** Enables serial-over-Ethernet communication for legacy applications. - **Pair Mode Functionality:** Can be paired directly with **TRP-C26H** (16-channel digital input module) for remote I/O mirroring without software or drivers. - **Watchdog and Heartbeat Functions:** Hardware watchdog prevents system lock-up; heartbeat packets maintain reliable TCP connections. - **Multiple TCP Connections:** Supports up to **16 simultaneous TCP client connections**. - **Flexible Power Input:** Accepts **DC +10 V to +30 V** via screw terminal or DC jack (5.5 × 2.1 mm). - **LED Indicators:** Power, Link, and 16 channel-specific LEDs for real-time status monitoring. - **Firmware Upgradable:** Supports firmware updates via the Internet. - **Factory Reset Button:** External push button for restoring default configuration. - **Auto-Reconnection:** Automatically reconnects after power or Ethernet failure. - **Compact Industrial Design:** Rugged enclosure suitable for DIN-rail or panel mounting.
Manufacturer: Trycom
Category: Modbus Digital

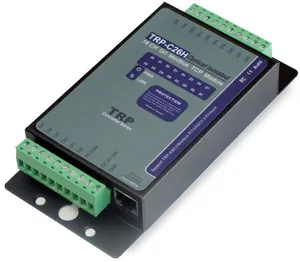

TRP-C26H
- **16 optically isolated digital input channels** with individual counters (0–65535). - **Wide input voltage range:** accepts logic signals from ±0 to 30 V DC. - **High isolation protection:** 3750 Vrms optical isolation between channels and logic circuitry. - **Multi-protocol support:** automatically detects and operates with TRP-ASCII, Modbus RTU, or Modbus ASCII. - **Ethernet-based communication:** Modbus TCP/IP interface via RJ45 connector. - **Supports up to 16 simultaneous TCP connections** for multi-host environments. - **Built-in web server:** allows configuration, monitoring, and firmware updates via standard web browsers. - **Virtual-COM mode:** enables legacy serial applications to communicate over Ethernet. - **Pair mode operation:** directly links with TRP-C24H for remote digital I/O mirroring without PC or software. - **Watchdog and voltage monitoring:** ensures stable operation and automatic recovery after power or network failure. - **Heartbeat function:** transmits periodic keep-alive packets every 5 seconds to maintain reliable connections. - **Auto-MDIX Ethernet port:** supports automatic crossover detection for flexible cabling. - **Dual power input options:** screw terminal or DC jack (10–30 V DC). - **DIN-rail and panel mounting support** for industrial installation. - **LED indicators:** Power, Link, and 16 channel status LEDs for real-time diagnostics. - **Factory reset button:** restores default configuration parameters. - **Firmware upgradeable via Internet** for long-term maintainability.
Manufacturer: Trycom
Category: Modbus Digital

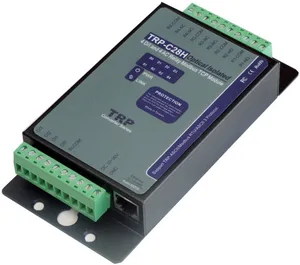

TRP-C28H
- **4 Isolated Digital Inputs and 4 AC Relay Outputs:** Provides four optically isolated digital input channels (±0–30V DC) and four relay outputs rated up to 5A/250V AC. - **Multi-Protocol Support:** Automatically detects and supports **TRP-ASCII**, **Modbus RTU**, and **Modbus ASCII** communication protocols for flexible integration. - **Ethernet Connectivity:** Equipped with an **RJ45 Ethernet interface** supporting **Modbus TCP/IP** and **Virtual-COM** operation modes. - **Pair Mode Operation:** Enables direct remote control between two TRP-C28H modules without PC or software intervention. - **Web-Based Configuration:** Built-in web server allows configuration and monitoring via any web browser on PC, tablet, or smartphone. - **High Isolation and Reliability:** Optical isolation of **3750 Vrms** on digital inputs and **4000V surge strength** on relays ensures robust operation in harsh industrial environments. - **Watchdog and Heartbeat Functions:** Built-in watchdog prevents system hang-ups; heartbeat function maintains reliable TCP communication by sending periodic keep-alive signals. - **Flexible Power Input:** Accepts **DC +10V to +30V** via screw terminal or DC jack (5.5×2.1 mm). - **Auto-MDIX Ethernet Port:** Supports automatic crossover detection and correction for simplified network cabling. - **LED Indicators:** Power, link, and individual I/O channel status LEDs provide clear visual feedback. - **DIN-Rail and Panel Mounting:** Supports both mounting options for versatile installation in control cabinets or panels. - **Firmware Upgradeable:** Firmware can be updated via the Internet or Trycom Device Manager utility.
Manufacturer: Trycom
Category: Modbus Digital
EDAM-9061A
Ethernet 10/100TX 6*DI and 6*Relay Modbus module, standard Modbus RTU protocol, protocols modbus TCP/ TCP/IP UDP / ICMP / ARP, user friendly status LEDs power USB and Ethernet link, DI counter input 32bit 500Hz, Relay (form A) contact rating 0,6A/125VAC 2A/30VDC, each channel supports 500Hz pulse output, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: PoE Modbus Digital
EDAM-9066A
Ethernet 10/100TX 6*DI and 6*Relay Modbus module, standard Modbus RTU protocol, protocols modbus TCP/ TCP/IP UDP / ICMP / ARP, user friendly status LEDs power USB and Ethernet link, DI counter input 32bit 500Hz, Relay (form A) contact rating 5A@250VAC 5A@30VDC, each channel supports 500Hz pulse output, +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: PoE Modbus Digital
EDAM-9461
Ethernet 10/100TX 6*DI and 6*Relay PoE Modbus module, standard Modbus RTU protocol, protocols modbus TCP/ TCP/IP UDP / ICMP / ARP, user friendly status LEDs power USB and Ethernet link, DI counter input 32bit 500Hz, Relay (form A) contact rating 0,6A/125VAC 2A/30VDC, each channel supports 500Hz pulse output, PoE or +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: PoE Modbus Digital
EDAM-9466
Ethernet 10/100TX 6*DI and 6*Relay PoE Modbus module, standard Modbus RTU protocol, protocols modbus TCP/ TCP/IP UDP / ICMP / ARP, user friendly status LEDs power USB and Ethernet link, DI counter input 32bit 500Hz, Relay (form A) contact rating 5A@250VAC 5A@30VDC, each channel supports 500Hz pulse output, PoE or +10..30VDC ~2,0W, DIN-Rail or wall mount, dimensions 122*71,6*25mm, InLog
Manufacturer: inLog
Category: PoE Modbus Digital
