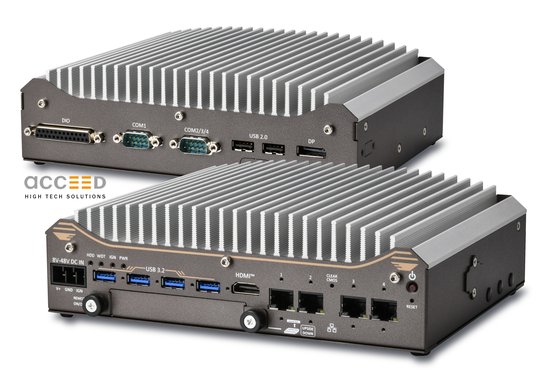

Nuvo-11531: Edge PC operates efficiently within the OT network

Industrial edge computing is increasingly evolving from a data collector into an autonomous decision-maker. Requirements are changing in OT (Operational Technology) networks. The focus is on deterministic communication, a minimal footprint in the control cabinet, AI performance and energy efficiency. This is where Acceed’s new Nuvo-11531 sets new standards. The book-sized computer combines an exceptionally small, fanless housing with the latest Intel Ultra 200S processors, positioning itself between traditional industrial PLCs and GPU vision computers, but with remarkable I/O density.

Measuring 212 × 165 × 63 millimetres, the Nuvo-11531 is barely larger than an industrial PLC module; yet, despite being passively cooled, it is designed for ambient temperatures ranging from −25 to +60 °C. According to Intel, the available processors in the Ultra-200S series (35 and 65 watts TDP) achieve around 120% of the performance of their predecessors whilst consuming 20% less power. Thanks to the integrated NPU (Neural Processing Unit) and GPU, up to 36 TOPS are achieved. This allows, for example, optical error detection or deep learning pipelines to be executed efficiently without dedicated accelerators. For many smart factory scenarios, this is a cost-effective alternative to actively cooled GPU computers.

An internal M.2 slot with PCIe Gen 4 x4 NVMe connectivity is provided for the operating system. Data is stored on a 2.5-inch SSD that can be swapped from the front panel. Internal expansion is possible via mPCIe slots and an M.2 E-Key, for example for 5G or CAN bus modules, which are of interest for vehicles and robotic systems. Those wishing to connect additional external PCIe devices, industrial 10-GigE vision interfaces or compact edge GPUs should opt for the Nuvo-11588 variant with a SAS (Serial Attached SCSI) port. This brings the compact controller closer to the performance levels of dedicated vision workstations, whilst remaining fanless. Four 2.5 GbE ports, optionally with PoE+ up to 30 W, allow the direct operation of high-performance industrial cameras or LiDAR sensors. The four USB ports (3.2) with screw locks and the wide supply voltage range (8 to 48 volts) underscore that the device is not designed for air-conditioned IT rooms, but for vibration, dust and durable vehicle electrical systems.

All in all, the Nuvo-11531 is no benchmark wonder, but rather a functional edge device for environments where network security, temperature and robustness are more important than maximum FP16 performance figures. Anyone looking to bring AI-powered vision analytics into OT networks will find this a system that prioritises engineering realities over marketing slides – particularly interesting for integrators who need to deploy AI in the control cabinet rather than the server room.

In addition to the new Nuvo-11531 and Nuvo-11588, Acceed offers a wide range of other industrial computers and AI edge systems. As a distributor specialising in embedded industrial IT, machine vision hardware and industrial data communication, Acceed (www.acceed.com) is your point of contact for everything from product selection and system integration to pre-configured delivery, including large quantities and complex projects involving customised adaptations and high demands on robustness and long-term availability.
