AHM-6153 - Aplex

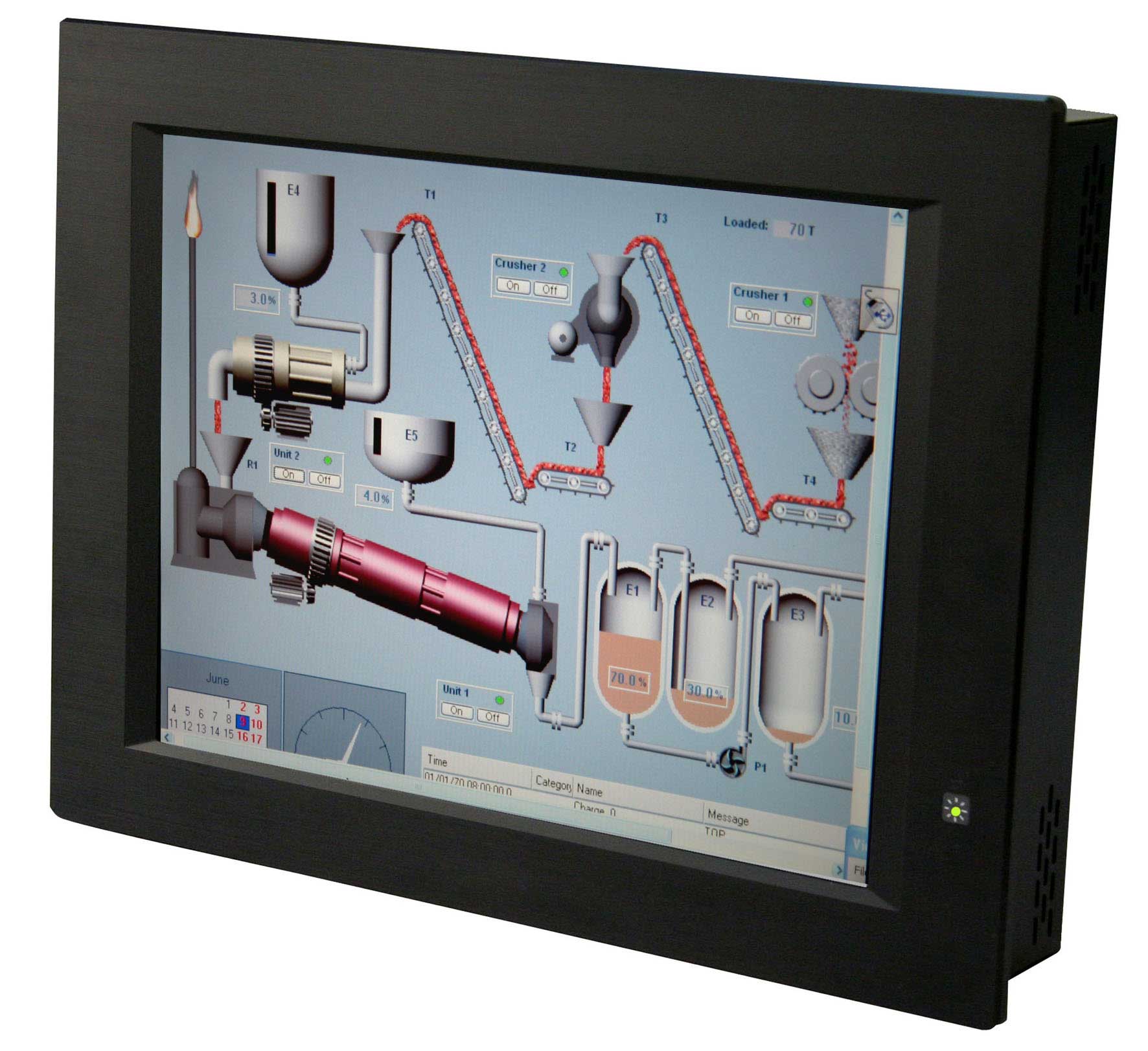

15" XVGA fanless panel PC LX800

Industrial Computers, Embedded Systems, and HMI are key components of industrial automation that provide a platform for data acquisition, control, and monitoring. Industrial Computers provide an industrial-grade computing platform for data acquisition, control, and monitoring. Embedded Systems are specialized computers designed for specific tasks and can be used in a variety of industrial applications. HMI (Human Machine Interface) provides a user interface for interacting with the system and allows for remote monitoring and control..


  • 15" XGA 1024*768 fanless panel PC LX800
  • 1*200pin DDR 256MB SDRAM up to 1GB
  • space for 2,5"HDD and 1*CF slot

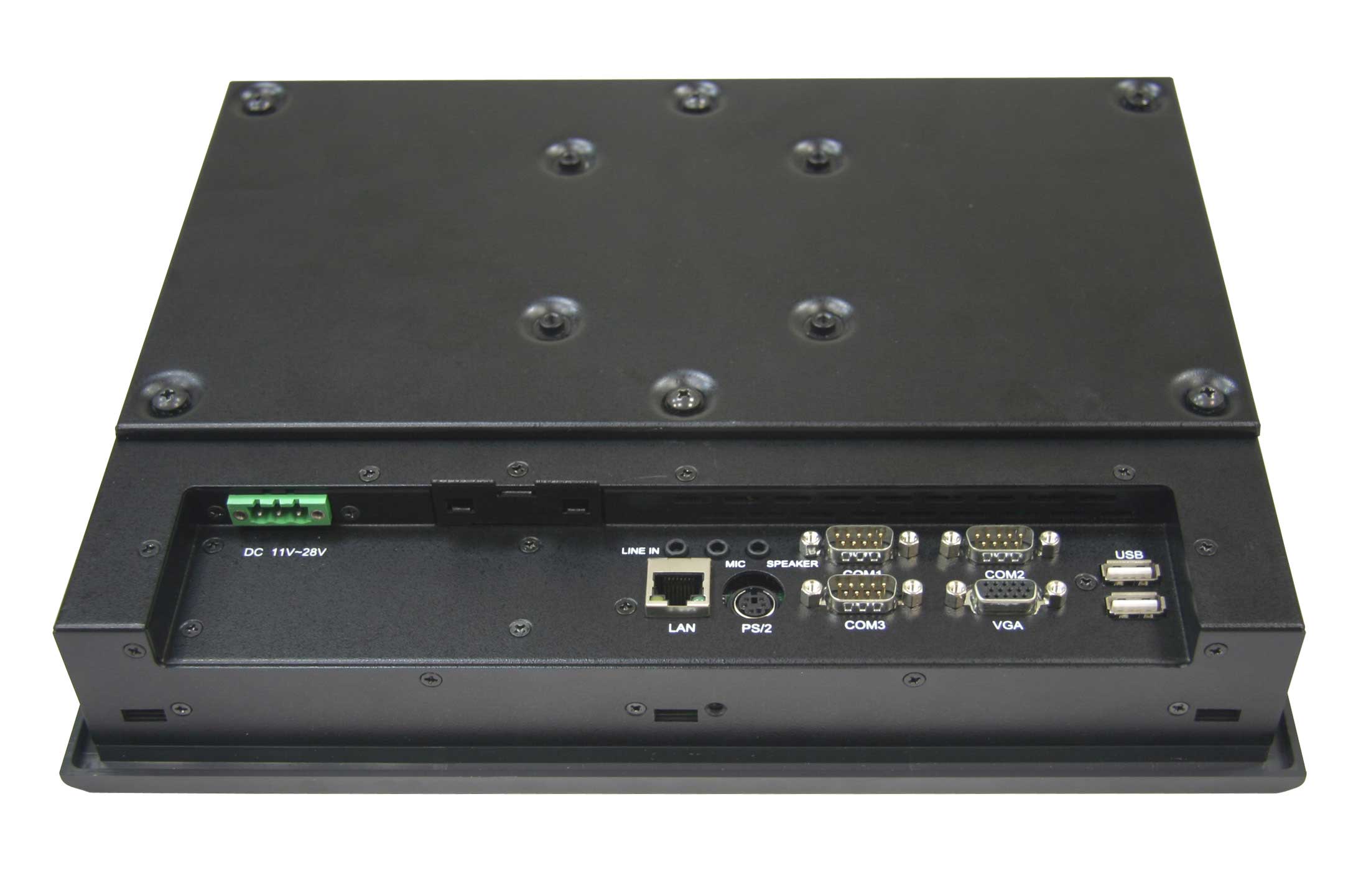

  • 3*RS232 1*RS232/422/485 1*10/100LAN 2*USB2.0 1*parallel
  • SVGA 800*600 400cd/qm 130┬░ 40.000hrs
  • with resistive touch
  • black alloy bezel with metal housing
  • VESA 75
  • supply voltage 11..28VDC
  • cut out 392*292mm
  • 409*309*69mm
  • ~7,18kg
  • Aplex


  • Width: 409 mm
  • Height: 309 mm
  • Depth: 69 mm
  • Net weight: 7.18 kg
  • Weight: 7.18kg
  • Manufacturer: Aplex
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 4100 000

Data Sheets
