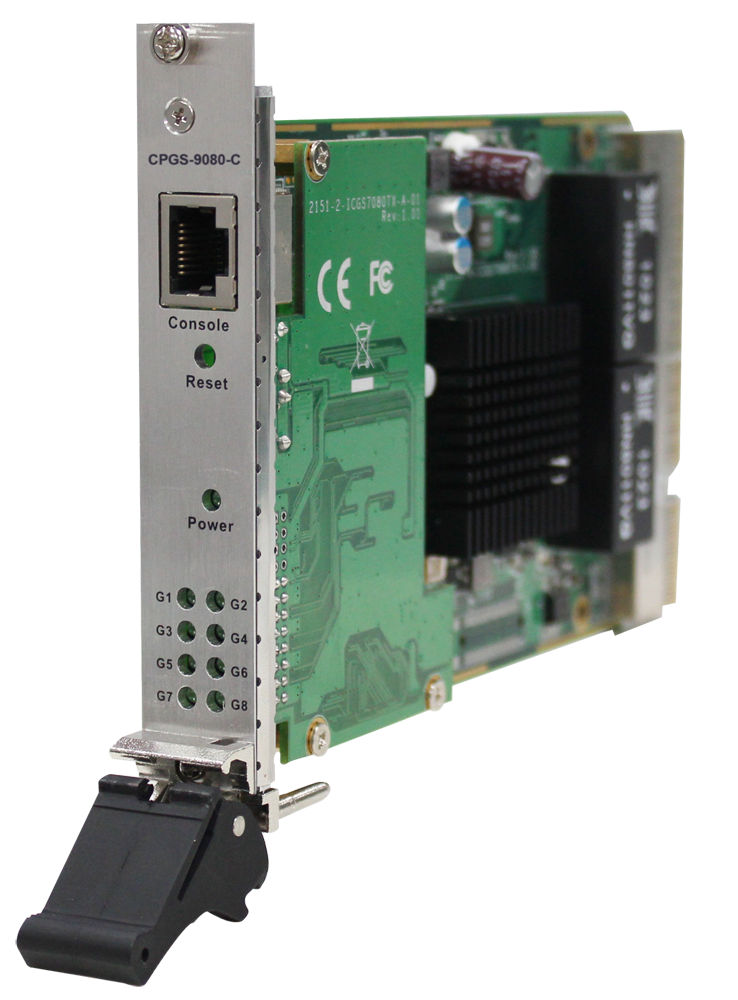

cPGS-9080-C - Oring

cPCI 3U Industrial Managed 8*1000TX Switch Card EN50155

Network industrial Ethernet lite-managed switches are a type of switch card that provide basic network management capabilities. They are designed for use in industrial applications, such as factory automation and process control, where reliability and cost-effectiveness are of paramount importance. They provide a cost-effective solution for connecting multiple devices in a network and can be used to create a secure, reliable, and efficient network..
530,00 €
incl. VAT 630,70 €


  • CompactPCI 3U 8*1000TX Managed Switch Card
  • ethernet ports via backplane
  • EN50155 compliant
  • Modbus TCP support
  • RS232 console port
  • fast redundant Ethernet ring (recovery time less than 30ms over 250 units)
  • 9k6 jumbo frame support
  • cPCI 3U 4HP form factor with hot-swap support
  • CompactPCI bus powered ~6W with overload protection
  • -extended 40..70°C operating temperature
  • Oring


  • Width: 160 mm
  • Height: 100 mm
  • Manufacturer: Oring
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8517 6200 900
