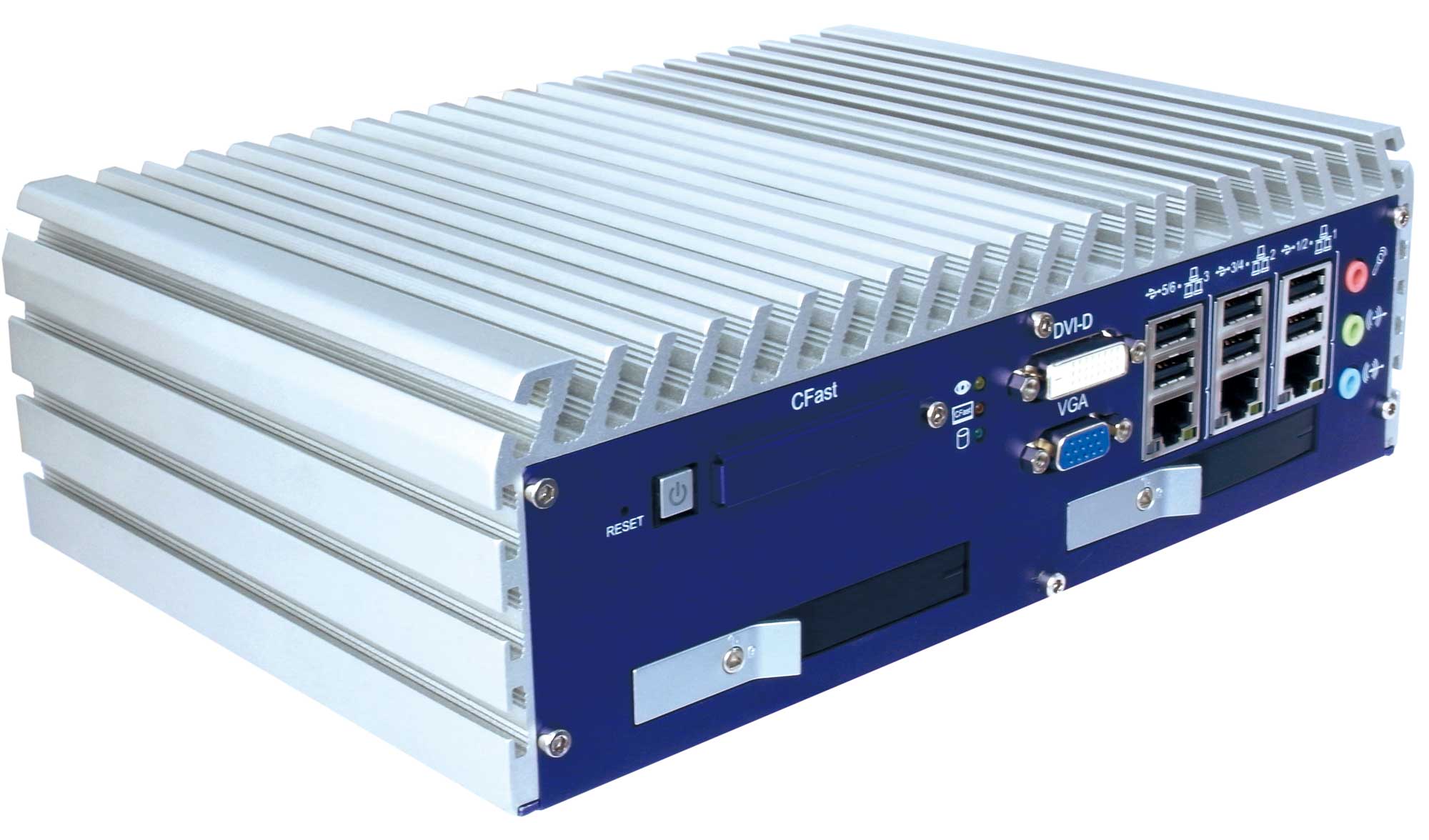

ECS-5600-3R - Vecow Co., Ltd

Core i7/i5/i3 Fanless Barebone System 3*GbE 2*HDD Bay

We provide a wide range of industrial computers and embedded systems, from Core i7/i5/i3 Embedded to the Nuvo-2000-Series and others. Our products are designed to meet the needs of the most demanding applications, offering reliable performance and robustness. We also offer a variety of customization options to meet your specific requirements..

Description

  • Core i7/i5/i3 fanless barebone system QM67
  • up to 16GB DDR3 SODIMM (2 slots)
  • 2* front removable 2,5" SATA III HDD/SSD bay with key lock
  • 3* Intel 82574L GbE ports
  • dual display VGA+DVI-D/HDMI with Intel GMA HD 3000 graphics
  • 2* Mini-PCIe expansion slots with SIM card socket
  • 6* USB 2.0 ports
  • 2* eSATA
  • 1* external CFast slot (hot swap)
  • 3*RS232 and 1*RS232/422/485 ports
  • rugged -25°..+70°C fanless operation
  • watchdog timer
  • power supply 6..36 VDC built in (AC/DC adapter optional)
  • 260*175*78mm
  • 2,8kg
  • Vecow

Details

  • Width: 260 mm
  • Height: 175 mm
  • Depth: 78 mm
  • Net weight: 2.8 kg
  • Weight: 2.8kg
  • Manufacturer: Vecow Co., Ltd
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000

Data Sheets

Manuals

Accessories

  • ECS-PWA90W
    90W AC/DC Power Adapter for ECS-Systems
