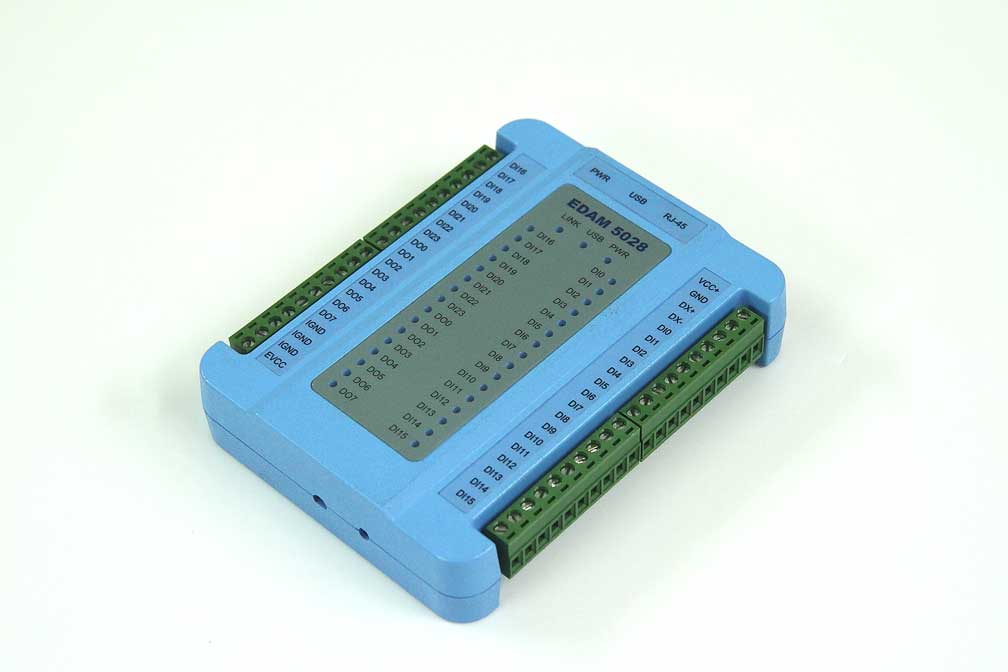

EDAM-5028 - inLog

Ethernet/USB/RS232/485 Isolated 24*DI 8*DO Modbus Module

This network allows for the remote control and monitoring of IO devices using Ethernet / USB / RS485 / RS232 Modbus IO. It provides a reliable and secure connection between the IO devices and the remote user, allowing for real-time data access and control. This network is ideal for applications that require remote access to IO devices, such as industrial automation, process control, and monitoring..
252,00 €
incl. VAT 299,88 €

Description

  • Multi interface Ethernet / USB 2.0 / RS232 / RS485 photo-isolated 24*DI and 8*DO Modbus module
  • CAN bus optional
  • 10/100 Mbps Ethernet supports Modbus/TCP on TCP/IP and RTU or ASCII on UDP/IP
  • USB 2.0 / RS232 / RS485 support RTU and ASCII commands
  • user friendly status LEDs Power / USB / Ethernet link
  • DI / DO isolation voltage 2kV
  • USB powered (400mA max) or +10..30VDC ~1,5W
  • DIN-Rail or wall mount
  • dimensions 135*103,9*29,2mm
  • InLog

Details

  • Width: 135 mm
  • Height: 104 mm
  • Depth: 29.2 mm
  • Weight: 0.85kg
  • Form factor: DIN-Rail
  • Manufacturer: inLog
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
