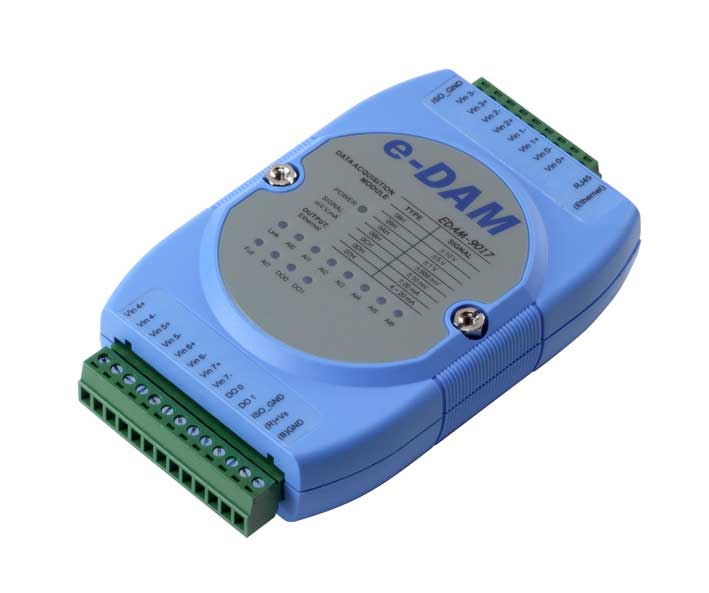

EDAM-9017 - inLog

Ethernet 8*AD In 2*DO Isolated AI Module

Network Ethernet IO is a technology that enables remote IO devices to communicate with each other using Modbus Analog protocol over an Ethernet network. It provides a reliable, cost-effective way to connect remote IO devices to a network, enabling remote monitoring and control of devices..
220,00 €
incl. VAT 261,80 €

Description

  • Ethernet 10/100TX 8*AD differential 2*DO Modbus module
  • standard Modbus RTU protocol
  • protocols Modbus/TCP TCP/IP UDP ICMP ARP
  • user friendly status LEDs Power and Ethernet link
  • 8 channel AD differential bipolar input (±0,015/0,5/5,0/10V and 0/4..20mA by jumper)
  • 16-Bit 10 samples/s
  • accuracy 0,05% or better
  • +10..30VDC ~2,2W
  • DIN-Rail or wall mount
  • dimensions 122*71,6*25mm
  • InLog

Details

  • Width: 121.95 mm
  • Height: 71.55 mm
  • Depth: 25 mm
  • Weight: 0.55kg
  • Form factor: DIN-Rail
  • Manufacturer: inLog
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
