- Single Isolated GbE LAN Port: Provides one fully isolated Gigabit Ethernet interface for secure and interference-free network communication.
- High Electrical Protection:
- EN61000-4-5 2kV Surge Protection ensures resilience against transient voltage spikes.
- 2kV HiPOT Protection for electrical isolation integrity.
- EN61000-4-2 ESD Protection: Air discharge up to 15kV and contact discharge up to 8kV.
- Flexible Mechanical Design: Includes a flexible daughter board with cable, allowing installation in various system layouts and form factors.
- Mounting Options: Available with terminal mounting holes or bracket configurations for mechanical stability and integration flexibility.
- Industrial Temperature Support:
- Standard Temperature (STD): 0°C to +70°C
- Wide Temperature (W/T): -40°C to +85°C
- Durable Interface: 30µ-inch gold-plated connector fingers for enhanced conductivity and corrosion resistance.
- Low Power Consumption: Typical power draw of 0.66W (3.3V x 200mA) ensures energy efficiency.
- Industrial-Grade Reliability: Designed and manufactured in Taiwan under Innodisk’s stringent quality control standards.
- Warranty: 3-year limited warranty.
These features make the EGPL-G101-W1-A71 ideal for industrial PCs, embedded systems, and edge computing devices requiring reliable Ethernet connectivity in harsh or space-constrained environments.
- High Electrical Protection:
- EN61000-4-5 2kV Surge Protection ensures resilience against transient voltage spikes.
- 2kV HiPOT Protection for electrical isolation integrity.
- EN61000-4-2 ESD Protection: Air discharge up to 15kV and contact discharge up to 8kV.
- Flexible Mechanical Design: Includes a flexible daughter board with cable, allowing installation in various system layouts and form factors.
- Mounting Options: Available with terminal mounting holes or bracket configurations for mechanical stability and integration flexibility.
- Industrial Temperature Support:
- Standard Temperature (STD): 0°C to +70°C
- Wide Temperature (W/T): -40°C to +85°C
- Durable Interface: 30µ-inch gold-plated connector fingers for enhanced conductivity and corrosion resistance.
- Low Power Consumption: Typical power draw of 0.66W (3.3V x 200mA) ensures energy efficiency.
- Industrial-Grade Reliability: Designed and manufactured in Taiwan under Innodisk’s stringent quality control standards.
- Warranty: 3-year limited warranty.
These features make the EGPL-G101-W1-A71 ideal for industrial PCs, embedded systems, and edge computing devices requiring reliable Ethernet connectivity in harsh or space-constrained environments.
Comprehensive Product Summary: EGPL-G101-W1-A71 – M.2 to Single Isolated GbE LAN WT Module
### 1. Product Overview
Product Name: M.2 to Single Isolated GbE LAN WT
Model Number: EGPL-G101-W1-A71
Series: EGPL-G101 Series
Article Number: EGPL-G101-W1-A71
Manufacturer: Innodisk Corporation
Product Type: M.2 to Single Isolated Gigabit Ethernet LAN Module
Country of Manufacture: Taiwan
Release Date: October 6, 2020
The Innodisk EGPL-G101-W1-A71 is a compact, high-reliability M.2 2280 B-M key module that provides a single isolated Gigabit Ethernet (GbE) LAN interface through an M.2 slot. Designed for industrial and embedded applications, it delivers robust network connectivity with electrical isolation, surge protection, and wide temperature tolerance. The module is part of Innodisk’s industrial-grade networking expansion solutions, engineered for environments requiring stable, isolated Ethernet communication in compact computing systems.
### 2. Key Features
- Single Isolated GbE LAN Port: Provides one fully isolated Gigabit Ethernet interface for secure and interference-free network communication.
- High Electrical Protection:
- EN61000-4-5 2kV Surge Protection ensures resilience against transient voltage spikes.
- 2kV HiPOT Protection for electrical isolation integrity.
- EN61000-4-2 ESD Protection: Air discharge up to 15kV and contact discharge up to 8kV.
- Flexible Mechanical Design: Includes a flexible daughter board with cable, allowing installation in various system layouts and form factors.
- Mounting Options: Available with terminal mounting holes or bracket configurations for mechanical stability and integration flexibility.
- Industrial Temperature Support:
- Standard Temperature (STD): 0°C to +70°C
- Wide Temperature (W/T): -40°C to +85°C
- Durable Interface: 30µ-inch gold-plated connector fingers for enhanced conductivity and corrosion resistance.
- Low Power Consumption: Typical power draw of 0.66W (3.3V x 200mA) ensures energy efficiency.
- Industrial-Grade Reliability: Designed and manufactured in Taiwan under Innodisk’s stringent quality control standards.
- Warranty: 3-year limited warranty.
These features make the EGPL-G101-W1-A71 ideal for industrial PCs, embedded systems, and edge computing devices requiring reliable Ethernet connectivity in harsh or space-constrained environments.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Form Factor | M.2 2280 B-M key |
| Input Interface | PCI Express 2.1 x1 |
| Output Interface | Single Gigabit Ethernet (GbE) LAN |
| Output Connector | RJ45 x 1 |
| Power Consumption (TDP) | 0.66W (3.3V x 200mA) |
| Dimensions (W x L x H) | 22 mm x 80 mm x 9.3 mm |
| Operating Temperature | Standard: 0°C to +70°C; Wide Temp: -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration Resistance | 5G @ 7–2000 Hz |
| Shock Resistance | 50G @ 0.5 ms |
| Surge Protection | EN61000-4-5 2kV |
| ESD Protection | EN61000-4-2: Air 15kV, Contact 8kV |
| HiPOT Protection | 2kV isolation |
| Connector Plating | 30µ-inch gold finger |
| Compliance Standards | IEC 60950-1:2005 + A1:2009 + A2:2013 |
| Driver Support | Windows XP (32-bit), 7/8/8.1/10 (32/64-bit); Linux kernel 2.4, 2.6.x, 3.x |
| Manufacturing Origin | Taiwan |
| Warranty | 3 years |
### 4. Functionality
The EGPL-G101-W1-A71 functions as a network interface expansion module that converts an M.2 PCIe slot into a single isolated Gigabit Ethernet port. It enables systems without native LAN interfaces—or those requiring additional isolated network ports—to connect to wired Ethernet networks securely and reliably.
Operational Principle:
- The module interfaces with the host system via the M.2 B-M key PCIe 2.1 x1 interface.
- It translates PCIe signals into Ethernet communication through an onboard controller.
- The RJ45 connector on the daughter board provides the physical Ethernet interface.
- Electrical isolation and surge protection circuits safeguard both the host and network equipment from electrical disturbances.
Use Cases and Applications:
- Industrial PCs and Automation Systems: Adds isolated Ethernet connectivity for control networks and field devices.
- Embedded Systems and Edge Devices: Provides reliable LAN access in compact computing platforms.
- IoT Gateways and Network Appliances: Enhances connectivity options for data aggregation and communication.
- Medical and Laboratory Equipment: Ensures safe, isolated data transmission in sensitive environments.
- Transportation and Defense Systems: Suitable for rugged applications requiring vibration and shock resistance.
Compatibility:
- Compatible with systems supporting M.2 2280 B-M key PCIe x1 interface.
- Supports major operating systems including Windows XP through Windows 10 and Linux kernels 2.4 to 3.x.
- Drivers are available for download from the MyInnodisk support portal.
### 5. Components & Accessories
Included Components:
- EGPL-G101-W1-A71 M.2 module (main board)
- Flexible daughter board with RJ45 connector and cable
- Mounting hardware (varies by model configuration)
Optional Accessories and Variants:
- EGPL-G101-C1: Terminal mounting hole, Standard Temperature (0°C to +70°C)
- EGPL-G101-W1: Terminal mounting hole, Wide Temperature (-40°C to +85°C)
- EGPL-G101-C2: Bracket type, Standard Temperature (0°C to +70°C)
- EGPL-G101-W2: Bracket type, Wide Temperature (-40°C to +85°C)
Connector Details:
- RJ45 Ethernet port (10/100/1000 Mbps)
- M.2 B-M key edge connector with 30µ-inch gold plating for reliable signal transmission
Optional Mounting Accessories:
- Terminal mounting holes for direct chassis integration
- Bracket for secure mechanical installation in system enclosures
### 6. Installation & Setup
System Requirements:
- Host system with an available M.2 2280 B-M key slot supporting PCIe x1 interface
- Operating system with compatible driver (Windows or Linux)
- Power supply capable of providing 3.3V at 200mA
Installation Steps:
1. Power Down the System: Ensure the host device is turned off and disconnected from power.
2. Insert the Module: Align the EGPL-G101-W1-A71 with the M.2 slot and insert it at a 30° angle, then secure it with a screw.
3. Connect the Daughter Board: Attach the flexible cable from the main module to the RJ45 daughter board.
4. Mount the Daughter Board: Use the terminal holes or bracket to secure the RJ45 board to the chassis or panel.
5. Power On and Install Drivers: Boot the system and install the appropriate driver from the MyInnodisk website.
6. Verify Operation: Confirm that the Ethernet interface is recognized by the operating system and network connectivity is established.
Configuration:
- Standard network configuration through OS network settings.
- Supports auto-negotiation for 10/100/1000 Mbps speeds.
- Compatible with standard Ethernet protocols (IEEE 802.3).
### 7. Performance & Capabilities
Network Performance:
- Supports full-duplex Gigabit Ethernet (1 Gbps) operation.
- Auto-negotiation for 10/100/1000 Mbps link speeds.
- Low latency and high throughput suitable for industrial data communication.
Power Efficiency:
- Typical power consumption of only 0.66W, minimizing thermal load and energy usage.
Environmental Robustness:
- Operates reliably under vibration (5G) and shock (50G) conditions.
- Wide temperature range (-40°C to +85°C for W/T models) ensures performance in extreme environments.
Electrical Isolation:
- 2kV HiPOT isolation prevents ground loops and electrical interference.
- Surge and ESD protection enhance durability and system safety.
Limitations:
- Single LAN port (no multi-port expansion).
- Requires compatible M.2 PCIe interface (not SATA-based).
- Driver installation required for full functionality on some OS versions.
### 8. Standards & Compliance
The EGPL-G101-W1-A71 adheres to multiple international standards for safety, electromagnetic compatibility, and environmental resilience:
- Safety Compliance:
- IEC 60950-1:2005 + A1:2009 + A2:2013 (Information Technology Equipment Safety)
- Electromagnetic and Electrical Protection:
- EN61000-4-2: Electrostatic Discharge (ESD) – Air 15kV, Contact 8kV
- EN61000-4-5: Surge Immunity – 2kV
- Isolation Testing:
- 2kV HiPOT verified
- Environmental Testing:
- Vibration: 5G @ 7–2000Hz
- Shock: 50G @ 0.5ms
- Manufacturing Standards:
- Industrial-grade production and quality assurance in Taiwan
- RoHS and REACH Compliance:
- Manufactured in accordance with environmental and material safety regulations (implied by industrial design standards)
These certifications ensure that the module meets the stringent requirements of industrial and embedded system integrators.
### 9. Additional Information
Warranty and Support:
- Warranty Period: 3 years from the date of purchase.
- Support Channels:
- Global Headquarters (Taiwan):
5F., No.237, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan
Tel: +886-2-7703-3000
Email: sales@innodisk.com
- Regional Offices:
- USA: usasales@innodisk.com | +1-510-770-9421
- Europe: eusales@innodisk.com | +31-040-3045-400
- Japan: jpsales@innodisk.com | +81-3-6667-0161
- China: sales_cn@innodisk.com | +86-755-2167-3689
Maintenance:
- No regular maintenance required beyond standard system cleaning.
- Ensure connectors remain free of dust and debris.
- Periodically check cable integrity and mounting stability.
Firmware and Driver Updates:
- Drivers and firmware updates available via MyInnodisk online portal.
- Supports continuous compatibility with new OS versions and kernel updates.
Product Lifecycle and Availability:
- Long-term availability guaranteed for industrial customers.
- Backward compatibility maintained across EGPL-G101 series variants.
Ordering Information:
- EGPL-G101-C1: Terminal mounting hole, Standard Temp.
- EGPL-G101-W1: Terminal mounting hole, Wide Temp.
- EGPL-G101-C2: Bracket, Standard Temp.
- EGPL-G101-W2: Bracket, Wide Temp.
Manufacturer Website: [www.innodisk.com](http://www.innodisk.com)
### Summary
The Innodisk EGPL-G101-W1-A71 is a high-performance, industrial-grade M.2 to Single Isolated Gigabit Ethernet LAN module designed for embedded and rugged computing environments. With its compact M.2 2280 form factor, robust electrical isolation, and wide temperature tolerance, it provides a reliable solution for adding Ethernet connectivity to systems where space, durability, and electrical safety are critical. Its compliance with international safety and EMC standards, combined with low power consumption and flexible installation options, makes it a versatile choice for industrial automation, IoT, and embedded networking applications.
© 2020 Innodisk Corporation. All rights reserved. Specifications subject to change without prior notice.
### 1. Product Overview
Product Name: M.2 to Single Isolated GbE LAN WT
Model Number: EGPL-G101-W1-A71
Series: EGPL-G101 Series
Article Number: EGPL-G101-W1-A71
Manufacturer: Innodisk Corporation
Product Type: M.2 to Single Isolated Gigabit Ethernet LAN Module
Country of Manufacture: Taiwan
Release Date: October 6, 2020
The Innodisk EGPL-G101-W1-A71 is a compact, high-reliability M.2 2280 B-M key module that provides a single isolated Gigabit Ethernet (GbE) LAN interface through an M.2 slot. Designed for industrial and embedded applications, it delivers robust network connectivity with electrical isolation, surge protection, and wide temperature tolerance. The module is part of Innodisk’s industrial-grade networking expansion solutions, engineered for environments requiring stable, isolated Ethernet communication in compact computing systems.
### 2. Key Features
- Single Isolated GbE LAN Port: Provides one fully isolated Gigabit Ethernet interface for secure and interference-free network communication.
- High Electrical Protection:
- EN61000-4-5 2kV Surge Protection ensures resilience against transient voltage spikes.
- 2kV HiPOT Protection for electrical isolation integrity.
- EN61000-4-2 ESD Protection: Air discharge up to 15kV and contact discharge up to 8kV.
- Flexible Mechanical Design: Includes a flexible daughter board with cable, allowing installation in various system layouts and form factors.
- Mounting Options: Available with terminal mounting holes or bracket configurations for mechanical stability and integration flexibility.
- Industrial Temperature Support:
- Standard Temperature (STD): 0°C to +70°C
- Wide Temperature (W/T): -40°C to +85°C
- Durable Interface: 30µ-inch gold-plated connector fingers for enhanced conductivity and corrosion resistance.
- Low Power Consumption: Typical power draw of 0.66W (3.3V x 200mA) ensures energy efficiency.
- Industrial-Grade Reliability: Designed and manufactured in Taiwan under Innodisk’s stringent quality control standards.
- Warranty: 3-year limited warranty.
These features make the EGPL-G101-W1-A71 ideal for industrial PCs, embedded systems, and edge computing devices requiring reliable Ethernet connectivity in harsh or space-constrained environments.
### 3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Form Factor | M.2 2280 B-M key |
| Input Interface | PCI Express 2.1 x1 |
| Output Interface | Single Gigabit Ethernet (GbE) LAN |
| Output Connector | RJ45 x 1 |
| Power Consumption (TDP) | 0.66W (3.3V x 200mA) |
| Dimensions (W x L x H) | 22 mm x 80 mm x 9.3 mm |
| Operating Temperature | Standard: 0°C to +70°C; Wide Temp: -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Vibration Resistance | 5G @ 7–2000 Hz |
| Shock Resistance | 50G @ 0.5 ms |
| Surge Protection | EN61000-4-5 2kV |
| ESD Protection | EN61000-4-2: Air 15kV, Contact 8kV |
| HiPOT Protection | 2kV isolation |
| Connector Plating | 30µ-inch gold finger |
| Compliance Standards | IEC 60950-1:2005 + A1:2009 + A2:2013 |
| Driver Support | Windows XP (32-bit), 7/8/8.1/10 (32/64-bit); Linux kernel 2.4, 2.6.x, 3.x |
| Manufacturing Origin | Taiwan |
| Warranty | 3 years |
### 4. Functionality
The EGPL-G101-W1-A71 functions as a network interface expansion module that converts an M.2 PCIe slot into a single isolated Gigabit Ethernet port. It enables systems without native LAN interfaces—or those requiring additional isolated network ports—to connect to wired Ethernet networks securely and reliably.
Operational Principle:
- The module interfaces with the host system via the M.2 B-M key PCIe 2.1 x1 interface.
- It translates PCIe signals into Ethernet communication through an onboard controller.
- The RJ45 connector on the daughter board provides the physical Ethernet interface.
- Electrical isolation and surge protection circuits safeguard both the host and network equipment from electrical disturbances.
Use Cases and Applications:
- Industrial PCs and Automation Systems: Adds isolated Ethernet connectivity for control networks and field devices.
- Embedded Systems and Edge Devices: Provides reliable LAN access in compact computing platforms.
- IoT Gateways and Network Appliances: Enhances connectivity options for data aggregation and communication.
- Medical and Laboratory Equipment: Ensures safe, isolated data transmission in sensitive environments.
- Transportation and Defense Systems: Suitable for rugged applications requiring vibration and shock resistance.
Compatibility:
- Compatible with systems supporting M.2 2280 B-M key PCIe x1 interface.
- Supports major operating systems including Windows XP through Windows 10 and Linux kernels 2.4 to 3.x.
- Drivers are available for download from the MyInnodisk support portal.
### 5. Components & Accessories
Included Components:

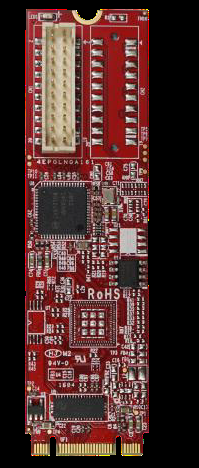

- EGPL-G101-W1-A71 M.2 module (main board)
- Flexible daughter board with RJ45 connector and cable
- Mounting hardware (varies by model configuration)
Optional Accessories and Variants:
- EGPL-G101-C1: Terminal mounting hole, Standard Temperature (0°C to +70°C)
- EGPL-G101-W1: Terminal mounting hole, Wide Temperature (-40°C to +85°C)
- EGPL-G101-C2: Bracket type, Standard Temperature (0°C to +70°C)
- EGPL-G101-W2: Bracket type, Wide Temperature (-40°C to +85°C)
Connector Details:
- RJ45 Ethernet port (10/100/1000 Mbps)
- M.2 B-M key edge connector with 30µ-inch gold plating for reliable signal transmission
Optional Mounting Accessories:
- Terminal mounting holes for direct chassis integration
- Bracket for secure mechanical installation in system enclosures
### 6. Installation & Setup
System Requirements:
- Host system with an available M.2 2280 B-M key slot supporting PCIe x1 interface
- Operating system with compatible driver (Windows or Linux)
- Power supply capable of providing 3.3V at 200mA
Installation Steps:
1. Power Down the System: Ensure the host device is turned off and disconnected from power.
2. Insert the Module: Align the EGPL-G101-W1-A71 with the M.2 slot and insert it at a 30° angle, then secure it with a screw.
3. Connect the Daughter Board: Attach the flexible cable from the main module to the RJ45 daughter board.
4. Mount the Daughter Board: Use the terminal holes or bracket to secure the RJ45 board to the chassis or panel.
5. Power On and Install Drivers: Boot the system and install the appropriate driver from the MyInnodisk website.
6. Verify Operation: Confirm that the Ethernet interface is recognized by the operating system and network connectivity is established.
Configuration:
- Standard network configuration through OS network settings.
- Supports auto-negotiation for 10/100/1000 Mbps speeds.
- Compatible with standard Ethernet protocols (IEEE 802.3).
### 7. Performance & Capabilities
Network Performance:
- Supports full-duplex Gigabit Ethernet (1 Gbps) operation.
- Auto-negotiation for 10/100/1000 Mbps link speeds.
- Low latency and high throughput suitable for industrial data communication.
Power Efficiency:
- Typical power consumption of only 0.66W, minimizing thermal load and energy usage.
Environmental Robustness:
- Operates reliably under vibration (5G) and shock (50G) conditions.
- Wide temperature range (-40°C to +85°C for W/T models) ensures performance in extreme environments.
Electrical Isolation:
- 2kV HiPOT isolation prevents ground loops and electrical interference.
- Surge and ESD protection enhance durability and system safety.
Limitations:
- Single LAN port (no multi-port expansion).
- Requires compatible M.2 PCIe interface (not SATA-based).
- Driver installation required for full functionality on some OS versions.
### 8. Standards & Compliance
The EGPL-G101-W1-A71 adheres to multiple international standards for safety, electromagnetic compatibility, and environmental resilience:
- Safety Compliance:
- IEC 60950-1:2005 + A1:2009 + A2:2013 (Information Technology Equipment Safety)
- Electromagnetic and Electrical Protection:
- EN61000-4-2: Electrostatic Discharge (ESD) – Air 15kV, Contact 8kV
- EN61000-4-5: Surge Immunity – 2kV
- Isolation Testing:
- 2kV HiPOT verified
- Environmental Testing:
- Vibration: 5G @ 7–2000Hz
- Shock: 50G @ 0.5ms
- Manufacturing Standards:
- Industrial-grade production and quality assurance in Taiwan
- RoHS and REACH Compliance:
- Manufactured in accordance with environmental and material safety regulations (implied by industrial design standards)
These certifications ensure that the module meets the stringent requirements of industrial and embedded system integrators.
### 9. Additional Information
Warranty and Support:
- Warranty Period: 3 years from the date of purchase.
- Support Channels:
- Global Headquarters (Taiwan):
5F., No.237, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan
Tel: +886-2-7703-3000
Email: sales@innodisk.com
- Regional Offices:
- USA: usasales@innodisk.com | +1-510-770-9421
- Europe: eusales@innodisk.com | +31-040-3045-400
- Japan: jpsales@innodisk.com | +81-3-6667-0161
- China: sales_cn@innodisk.com | +86-755-2167-3689
Maintenance:
- No regular maintenance required beyond standard system cleaning.
- Ensure connectors remain free of dust and debris.
- Periodically check cable integrity and mounting stability.
Firmware and Driver Updates:
- Drivers and firmware updates available via MyInnodisk online portal.
- Supports continuous compatibility with new OS versions and kernel updates.
Product Lifecycle and Availability:
- Long-term availability guaranteed for industrial customers.
- Backward compatibility maintained across EGPL-G101 series variants.
Ordering Information:
- EGPL-G101-C1: Terminal mounting hole, Standard Temp.
- EGPL-G101-W1: Terminal mounting hole, Wide Temp.
- EGPL-G101-C2: Bracket, Standard Temp.
- EGPL-G101-W2: Bracket, Wide Temp.
Manufacturer Website: [www.innodisk.com](http://www.innodisk.com)
### Summary
The Innodisk EGPL-G101-W1-A71 is a high-performance, industrial-grade M.2 to Single Isolated Gigabit Ethernet LAN module designed for embedded and rugged computing environments. With its compact M.2 2280 form factor, robust electrical isolation, and wide temperature tolerance, it provides a reliable solution for adding Ethernet connectivity to systems where space, durability, and electrical safety are critical. Its compliance with international safety and EMC standards, combined with low power consumption and flexible installation options, makes it a versatile choice for industrial automation, IoT, and embedded networking applications.
© 2020 Innodisk Corporation. All rights reserved. Specifications subject to change without prior notice.
-
EGPL-G101_Datasheet.pdf
PDF Catalog
No accessories available.
