- **Optimized for EMPV-1201:** Engineered to provide seamless connectivity and full signal compatibility with the EMPV-1201 unit. - **High-Definition Multimedia Interface (HDMI):** Supports uncompressed digital video and multi-channel audio transmission through a single cable. - **High Bandwidth Capability:** Designed to handle high data transfer rates required for HD and Full HD video signals, as well as advanced audio formats. - **Digital Signal Integrity:** Shielded construction minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable signal quality. - **Plug-and-Play Operation:** No additional configuration required; automatically recognized by compatible devices. - **Durable Construction:** Built with high-quality materials for long-term reliability and consistent performance. - **Gold-Plated Connectors (typical for HDMI accessories):** Provides corrosion resistance and improved conductivity for stable signal transmission. - **Backward Compatibility:** Compatible with earlier HDMI versions and devices supporting standard HDMI interfaces. - **Compact and Flexible Design:** Facilitates easy routing and installation in confined spaces or integrated system setups.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Purpose-Built for EMPV-1201:** Designed to provide a direct, plug-and-play connection between the EMPV-1201 display unit and its associated video output device. - **Digital Video Interface (DVI):** Supports high-resolution digital video transmission with minimal signal loss, ensuring crisp image quality and accurate color reproduction. - **High Signal Integrity:** Features precision-molded connectors and multi-layer shielding to minimize electromagnetic interference (EMI) and radio frequency interference (RFI). - **Durable Construction:** Built with industrial-grade materials suitable for continuous operation in demanding environments. - **Secure Connection:** Equipped with screw-lock DVI connectors to ensure a stable and vibration-resistant connection. - **Compatibility:** Fully compliant with DVI-D (Digital Visual Interface – Digital) standards, ensuring interoperability with a wide range of DVI-equipped devices. - **Optimized Length and Gauge:** Cable length and conductor gauge are optimized for the EMPV-1201’s signal requirements, balancing flexibility and signal performance. - **Plug-and-Play Operation:** No additional drivers or configuration required; the cable functions as a direct digital link. - **RoHS-Compliant Materials:** Constructed using environmentally responsible materials that meet Restriction of Hazardous Substances (RoHS) directives.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual VGA Configuration:** Supports two VGA (Video Graphics Array) connections, allowing either dual-display output or dual-input configurations depending on the EMPV-1201 system setup. - **Optimized for EMPV-1201:** Designed to integrate seamlessly with the EMPV-1201 visual processing or projection unit, ensuring full compatibility and optimal signal performance. - **High-Quality Signal Transmission:** Utilizes shielded coaxial conductors to minimize electromagnetic interference (EMI) and radio frequency interference (RFI), maintaining crisp analog video quality. - **Durable Construction:** Built with robust connectors and reinforced strain relief to withstand frequent connection cycles and mechanical stress in professional installations. - **Plug-and-Play Operation:** No additional drivers or software required; the cable functions as a direct analog video link between source and display. - **Versatile Application:** Suitable for use in control rooms, classrooms, conference centers, and industrial display systems where dual VGA connectivity is required. - **Color-Coded Connectors:** Typically features blue 15-pin D-sub connectors for easy identification and standardized VGA compatibility. - **Signal Integrity:** Supports standard VGA resolutions up to 1920×1080 (Full HD) depending on cable length and source device output capability.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Purpose‑Built for EGPV‑1101:** Specifically designed to interface with Innodisk’s EGPV‑1101 M.2 display output module, ensuring perfect electrical and mechanical compatibility. - **High‑Definition Video Support:** Enables HDMI 1.4 compliant output, supporting resolutions up to 4K UHD (3840 × 2160 @ 30 p). - **Industrial‑Grade Reliability:** Manufactured to meet industrial environmental standards, ensuring stable operation in extended temperature and vibration conditions when paired with the EGPV‑1101 module. - **Compact 30 cm Length:** Optimized for embedded and system‑integrated applications where short, shielded connections minimize signal loss and electromagnetic interference. - **Gold‑Plated Contacts:** Ensures superior conductivity and corrosion resistance, maintaining consistent signal quality over time. - **Plug‑and‑Play Integration:** No additional configuration required; connects directly to the EGPV‑1101’s 20‑pin HDMI output header. - **Durable Construction:** Designed for repeated insertions and removals, suitable for development, testing, and production environments. - **Compatibility with HDMI and DVI‑D Modules:** Can be used with EGPV‑1101‑C1/W1 (HDMI/DVI‑D) and EGPV‑1101‑C3/W3 (HDMI module with cable) configurations.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Optimized for EGPV-1101 Modules:** Specifically designed to interface with Innodisk’s EGPV-1101 M.2 to HDMI/DVI-D or LVDS display modules. - **High-Quality DVI-D Signal Transmission:** Ensures stable, high-fidelity digital video output up to Full HD (1920×1080 @ 60Hz). - **Industrial-Grade Reliability:** Built to meet the environmental and mechanical standards of industrial applications. - **Durable Construction:** Features robust connectors and shielding to minimize signal interference and mechanical wear. - **Compatibility with Multiple EGPV-1101 Variants:** Supports both standard temperature (C-series) and wide temperature (W-series) models. - **Plug-and-Play Integration:** Designed for seamless connection without additional configuration when used with compatible modules. - **Optional Accessory in Product Line:** Offered as a standalone accessory or bundled with EGPV-1101-C4/W4 configurations. - **Compact and Flexible Design:** 30 cm cable length provides flexibility for system integration in confined spaces.

Manufacturer: Innodisk

Category: mPCIe Modules

CF to SATA Module

Manufacturer: Innodisk

Category: mPCIe Modules

- **SATA III Compliant:** Fully compliant with the SATA Revision 3.0 specification, supporting data transfer rates up to 6.0 Gb/s. - **SATA to mSATA Pass-Through Design:** Provides a transparent interface conversion without signal translation, ensuring minimal latency and full compatibility between SATA and mSATA devices. - **Industrial Temperature Range:** Operates reliably in extreme environmental conditions from **-40°C to +85°C**, suitable for ruggedized and mission-critical applications. - **High Durability and Reliability:** Engineered for industrial use with enhanced mechanical stability, vibration resistance, and shock tolerance. - **Compact 2.5-inch Form Factor:** Designed to fit standard 2.5-inch drive bays, allowing easy integration into existing systems. - **Long Product Lifecycle:** Manufactured by Innodisk, a leading provider of industrial storage solutions, ensuring long-term availability and consistent quality. - **3-Year Warranty:** Backed by a comprehensive manufacturer warranty for extended reliability assurance. - **Industrial-Grade Manufacturing:** Produced in Innodisk’s Taiwan facility under strict quality control standards.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual SATA III Port Multiplier Support:** The module supports conversion from a single SATA interface to two SATA III (6 Gb/s) ports, allowing simultaneous operation of two mSATA drives. - **Hardware RAID 0/1 Functionality:** Integrated hardware RAID controller supports RAID 0 (striping) for performance or RAID 1 (mirroring) for redundancy, without requiring host-based RAID software. - **Industrial-Grade Design:** Built and manufactured in Taiwan by Innodisk, the E2SS-32R1-C1-A71 is designed for industrial reliability, ensuring stable operation in demanding environments. - **LED Pin Header Interface:** Provides pin headers for Access and Error LED indicators, allowing external monitoring of drive activity and fault conditions. - **Compact 2.5-Inch Form Factor:** The module fits standard 2.5-inch drive bays, making it compatible with a wide range of industrial PCs, embedded systems, and servers. - **Three-Year Warranty:** Backed by a 3-year manufacturer warranty, ensuring long-term reliability and support. - **Ease of Integration:** Designed for plug-and-play installation with standard SATA connectors and minimal configuration requirements. - **High-Speed SATA III Interface:** Supports SATA III 6 Gb/s data transfer rates, backward compatible with SATA II and SATA I interfaces. - **Industrial Manufacturing Standards:** Produced under strict quality control in Innodisk’s Taiwan facility, ensuring consistent performance and durability.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual M.2 SATA Interface:** Supports two M.2 Key-B SATA SSDs (2242, 2260, or 2280 form factors). - **SATA III Compatibility:** Fully compliant with SATA III (6Gb/s) interface standards for both input and output. - **Hardware RAID Support:** Integrated hardware RAID controller supporting RAID 0 (striping) and RAID 1 (mirroring) configurations. - **Port Multiplier Functionality:** Supports SATA Port Multiplier mode for independent access to both M.2 drives. - **Industrial Design:** Built with high-quality components and robust PCB design for industrial reliability and long-term operation. - **LED Pin Header:** Dedicated pin header for Access and Error LED indicators, allowing external monitoring of drive status. - **Compact 2.5” Form Factor:** Designed to fit standard 2.5-inch drive bays, enabling easy integration into existing systems. - **Low Power Consumption:** Typical power draw of 4W (5V x 800mA), optimized for embedded and industrial systems. - **Wide Temperature Range:** Operational temperature from 0°C to +70°C; storage temperature from -55°C to +95°C. - **High Shock and Vibration Resistance:** Rated for 5G vibration (7–2000Hz) and 50G shock (0.5ms), suitable for rugged environments. - **Reset Function:** Integrated tactile switch (SW1) for hardware reset and RAID reinitialization. - **3-Year Warranty:** Backed by Innodisk’s standard industrial warranty for reliability and support. - **Made in Taiwan:** Manufactured under strict quality control in Innodisk’s Taiwan facilities.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Multi-Protocol Serial Support:** Provides four independent serial ports configurable via software for RS-232, RS-422, or RS-485 communication modes. - **PCI Express 2.0 Compliance:** Fully compliant with PCIe 2.0 x1 interface, ensuring high-speed data throughput and compatibility with modern embedded systems. - **High Data Rate Capability:** Supports serial data rates from 4,800 bps up to 3 Mbps (RS-232 up to 921.6 Kbps), suitable for a wide range of industrial communication protocols. - **16C550 Compatible UART:** Incorporates 16C550-compatible UART controllers with 256-byte FIFO buffers for efficient data handling and reduced CPU overhead. - **Flexible Connector Orientation:** Available in two mechanical configurations—vertical (EGP2-X401-W1) and horizontal (EGP2-X401-W2)—to accommodate different system layouts. - **Full RS-232 Functionality:** Supports all standard RS-232 control signals through DB9 connectors, ensuring compatibility with legacy and modern serial devices. - **Hardware Termination Control:** DIP switch selectable termination resistors for RS-422/485 modes, allowing optimized signal integrity in various network topologies. - **Industrial-Grade Design:** Built for harsh environments with an operating temperature range of -40°C to +85°C and compliance with industrial vibration and shock standards. - **Enhanced ESD Protection:** Meets EN61000-4-2 standards with ±15kV air and ±8kV contact electrostatic discharge protection. - **Durable Gold-Plated Contacts:** 30 micro-inch gold finger plating ensures long-term reliability and corrosion resistance. - **Long-Term Reliability:** Backed by a 3-year manufacturer warranty and designed, manufactured, and tested in Taiwan under strict quality control.

Manufacturer: Innodisk

Category: mPCIe Modules

M.2 to Four RS232/422/485, horizontal connector, Innodisk

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Intel Movidius Myriad X Integration:** The EGPA-I201-C1-A71 supports two Intel® Movidius™ Myriad X VPUs, providing powerful parallel AI inference capabilities for edge applications. - **M.2 2280 B+M Key Interface:** Designed in the M.2 2280 form factor, the module connects via a PCI Express 2.0 x1 interface, ensuring compatibility with a wide range of embedded and industrial motherboards. - **Low Power Design:** With a total thermal design power (TDP) of only 8W, the module delivers high computational performance while maintaining energy efficiency, making it ideal for fanless or thermally constrained systems. - **AI Framework Support:** Compatible with major deep learning frameworks including TensorFlow, Caffe, and MXNet, enabling flexible deployment of pre-trained models and custom AI workloads. - **Intel OpenVINO™ Toolkit Support:** Fully compatible with Intel’s OpenVINO™ toolkit, allowing developers to optimize and deploy deep learning inference across heterogeneous computing environments. - **Thermal Management Options:** Available in configurations with or without a heatsink, providing flexibility for different thermal and spatial requirements. - **Regulatory Compliance:** Certified for CE and FCC Class A standards, ensuring electromagnetic compatibility and safety compliance for industrial and commercial use. - **Durable Construction:** Features a 30µ” gold-plated connector (golden finger) for enhanced durability and reliable signal integrity over extended operational lifetimes. - **Warranty:** Backed by a 3-year limited warranty from Innodisk, ensuring long-term reliability and support.

Manufacturer: Innodisk

Category: mPCIe Modules

- **PCI Express 1.1 Compliance:** Ensures compatibility with standard M.2 B-M key slots supporting PCIe 1.1 interface. - **CAN Bus 2.0B Support:** Fully compliant with ISO 11898-1 and backward compatible with CAN 2.0A, enabling seamless integration with existing CAN networks. - **Wide Baud Rate Range:** Supports configurable baud rates of 10K, 20K, 50K, 100K, 250K, 500K, 800K, and 1000Kbps, allowing flexible deployment across various industrial communication speeds. - **Electrical Isolation:** Provides galvanic isolation between the CAN transceiver and host system, enhancing protection against voltage surges and ground loops. - **2.5kV HiPOT Protection:** High isolation voltage ensures safety and signal integrity in electrically noisy environments. - **ESD Protection:** Compliant with EN61000-4-2 standards, offering ±15kV air discharge and ±8kV contact discharge protection. - **Termination Resistor Control:** Onboard slide switch allows enabling or disabling of the 120Ω termination resistor for flexible network configuration. - **Industrial Temperature Range:** Operates reliably from -40°C to +85°C, suitable for rugged and outdoor applications. - **Durable Gold Finger Contacts:** 30 micro-inch gold plating ensures long-term reliability and corrosion resistance. - **Linux SocketCAN Support:** Native compatibility with Linux SocketCAN framework for easy integration into open-source and industrial Linux systems. - **Windows Compatibility:** Supports Windows 7, 8/8.1, and 10 (32/64-bit) with downloadable drivers and APIs from the MyInnodisk portal. - **Compact M.2 2242 Form Factor:** Space-efficient design ideal for embedded systems, industrial PCs, and compact controllers. - **Industrial Design and Manufacturing:** Designed and produced by Innodisk in Taiwan, ensuring high quality and consistency. - **3-Year Warranty:** Backed by Innodisk’s industrial-grade warranty for long-term reliability.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Isolated CANbus 2.0B Channels:** Provides two independent, galvanically isolated CANbus 2.0B interfaces for reliable communication in noisy industrial environments. - **Backward Compatibility:** Fully backward compatible with CANbus 2.0A, ensuring interoperability with legacy systems. - **Flexible Form Factor:** Available in both M.2 2260 and 2280 B-M key configurations, allowing integration into a wide range of embedded platforms. - **High-Speed Communication:** Supports baud rates of 100K, 125K, 250K, 500K (default), 800K, and 1000Kbps, enabling flexible network configurations. - **High Message Throughput:** Capable of receiving up to 6000 CAN messages per second, ensuring efficient data handling in real-time applications. - **Persistent Configuration:** Retains configuration settings after hardware reboot, minimizing downtime and simplifying system recovery. - **Advanced Filtering:** Supports CAN message acceptance filters for selective message processing and reduced CPU load. - **Listen-Only Mode:** Enables passive monitoring of CAN traffic without affecting bus communication. - **Linux SocketCAN Support:** Includes additional driver support for Linux SocketCAN, enhancing integration with open-source and industrial Linux systems. - **Optional Protocol Support:** Compatible with high-layer CAN protocols such as SAE J1939 and CANopen (available in specific model variants). - **Configurable Termination:** Onboard termination resistor can be enabled or disabled via jumper settings. - **Industrial-Grade Protection:** - Surge protection compliant with EN61000-4-5 (2.5kV) - ESD protection compliant with EN61000-4-2 (Air: 15kV, Contact: 8kV) - HiPOT isolation up to 2.5kV - **Durable Construction:** 30µ” gold-plated connector fingers for enhanced durability and signal integrity. - **Wide Temperature Range:** Operates reliably from -40°C to +85°C, suitable for extreme industrial conditions. - **Long-Term Reliability:** Backed by a 3-year manufacturer warranty. - **Industrial Design:** Designed and manufactured in Taiwan with strict quality control for embedded and industrial applications.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Isolated CANbus 2.0B Interfaces:** Provides two independent, galvanically isolated CAN channels for reliable communication and noise immunity. - **Backward Compatibility:** Fully compatible with CAN 2.0A and 2.0B standards, ensuring interoperability with legacy systems. - **Flexible Form Factor:** Supports both M.2 2260 and 2280 B-M key configurations, allowing integration into a wide range of embedded platforms. - **High-Speed Communication:** Supports baud rates of 100, 125, 250, 500 (default), 800, and 1000 Kbps. - **High Message Throughput:** Capable of receiving up to 6000 CAN messages per second, ensuring efficient data handling in high-traffic networks. - **Persistent Configuration:** Retains configuration settings after hardware reboot, minimizing downtime and reconfiguration effort. - **Listen-Only Mode:** Enables passive monitoring of CAN traffic without affecting bus communication. - **Software Support:** Includes driver support for Windows, Linux (SocketCAN), and QNX operating systems. - **Optional Protocol Support:** Available variants support SAE J1939 and CANopen high-layer protocols for specialized industrial and automotive applications. - **Hardware Protection:** - 2.5kV HiPOT isolation protection - EN61000-4-5 2.5kV surge protection - EN61000-4-2 ESD protection (Air: 15kV, Contact: 8kV) - **Termination Control:** Onboard jumper allows enabling or disabling of termination resistors for flexible network configuration. - **Industrial-Grade Design:** Operates in extreme environments from -40°C to +85°C, with vibration and shock resistance. - **Durable Construction:** 30 micro-inch gold-plated connector fingers ensure long-term reliability and signal integrity. - **Warranty:** 3-year limited manufacturer warranty.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Isolated CANbus Channels:** Provides two independent, galvanically isolated CANbus 2.0B interfaces for reliable communication and noise immunity in harsh environments. - **Protocol Support:** Fully supports CANbus 2.0B and backward compatible with CAN 2.0A. The W3 variant specifically supports the SAE J1939 high-layer protocol, commonly used in heavy-duty vehicle and industrial applications. - **Flexible Form Factor:** Available in M.2 2260 and 2280 B-M key configurations, allowing integration into a wide range of embedded systems and industrial PCs. - **High Data Throughput:** Capable of receiving up to 6000 CAN messages per second, ensuring efficient data handling in high-traffic networks. - **Configurable Baud Rates:** Supports multiple baud rates—100K, 125K, 250K, 500K (default), 800K, and 1000Kbps—providing flexibility for various network configurations. - **Persistent Configuration:** Retains configuration settings after hardware reboot, minimizing setup time and ensuring consistent operation. - **Listen-Only Mode:** Enables passive monitoring of CAN traffic without affecting bus communication, ideal for diagnostics and network analysis. - **Software Support:** Includes driver support for Windows, Linux (SocketCAN), and QNX operating systems. Additional driver support for Linux SocketCAN enhances integration with open-source and industrial software stacks. - **Electrical Protection:** - 2.5kV HiPOT isolation protection - EN61000-4-5 2.5kV surge protection - EN61000-4-2 ESD protection (Air: 15kV, Contact: 8kV) - **Termination Control:** Onboard jumper allows enabling or disabling of the termination resistor for flexible network topology configuration. - **Industrial Durability:** Designed for operation in extreme environments with a wide temperature range (-40°C to +85°C) and high resistance to vibration and shock. - **High-Quality Construction:** Features 30 micro-inch gold-plated connector fingers for enhanced durability and signal integrity. - **Warranty:** 3-year limited warranty from Innodisk.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Isolated CANbus Channels:** Provides two independent, galvanically isolated CANbus 2.0B interfaces for reliable communication in electrically noisy environments. - **Protocol Support:** Fully supports **SAE J1939** protocol, widely used in heavy-duty vehicle and industrial automation networks. - **Backward Compatibility:** Compatible with **CAN 2.0A** and **CAN 2.0B** standards, ensuring interoperability with legacy systems. - **Flexible Form Factor:** Available in **M.2 2260** and **M.2 2280** B-M key configurations; the W4 model uses the 2280 form factor. - **High Data Throughput:** Capable of receiving up to **6000 CAN messages per second**, ensuring efficient data handling in high-traffic networks. - **Configurable Baud Rates:** Supports multiple baud rates—**100K, 125K, 250K, 500K (default), 800K, and 1000Kbps**—for flexible integration into various CAN networks. - **Persistent Configuration:** Retains configuration settings after hardware reboot, minimizing downtime and reconfiguration effort. - **Listen-Only Mode:** Enables passive monitoring of CAN traffic without affecting bus communication, ideal for diagnostics and analysis. - **Software Support:** Includes driver support for **Windows**, **Linux (SocketCAN)**, and **QNX** operating systems. - **Enhanced Protection:** - **2.5kV HiPOT isolation** between CAN channels and system interface. - **Surge protection** compliant with **EN61000-4-5 (2.5kV)**. - **ESD protection** compliant with **EN61000-4-2 (Air: 15kV, Contact: 8kV)**. - **Termination Control:** Onboard jumper allows enabling or disabling of the CANbus termination resistor. - **Industrial Durability:** - Operating temperature range: **-40°C to +85°C**. - Storage temperature range: **-55°C to +95°C**. - Vibration resistance: **5G @ 7–2000Hz**. - Shock resistance: **50G @ 0.5ms**. - **High-Quality Construction:** Features **30µ” gold-plated connector fingers** for superior conductivity and durability. - **Warranty:** Backed by a **3-year manufacturer warranty**. - **Manufactured in Taiwan** under strict quality control standards.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Dual Isolated CANbus Channels:** Provides two independent, galvanically isolated CANbus 2.0B interfaces for enhanced communication reliability and noise immunity. - **Protocol Support:** Fully supports CAN 2.0B and backward compatible with CAN 2.0A. Optional high-layer protocol support includes **SAE J1939** and **CANopen** (this model supports CANopen). - **Flexible Form Factor:** Available in both **M.2 2260** and **M.2 2280** B-M key configurations, allowing compatibility with a wide range of embedded platforms. - **High-Speed Communication:** Supports baud rates of **100K, 125K, 250K, 500K (default), 800K, and 1000Kbps**, enabling flexible integration into various CAN network topologies. - **High Throughput:** Capable of receiving up to **6000 CAN messages per second**, ensuring efficient data handling in demanding real-time applications. - **Persistent Configuration:** Retains configuration settings after hardware reboot, minimizing downtime and simplifying system recovery. - **Listen-Only Mode:** Allows passive monitoring of CAN traffic without affecting bus communication, ideal for diagnostics and network analysis. - **Software Support:** Includes driver support for **Windows**, **Linux (SocketCAN)**, and **QNX** operating systems. - **Enhanced Protection:** - **2.5kV HiPOT isolation** between CAN channels and system interface. - **EN61000-4-5 2.5kV surge protection** for transient voltage suppression. - **EN61000-4-2 ESD protection:** Air discharge ±15kV, contact discharge ±8kV. - **Industrial-Grade Design:** Operates reliably in extreme temperature ranges from **-40°C to +85°C**, with vibration and shock resistance suitable for rugged environments. - **Termination Control:** Onboard jumper allows enabling or disabling of CAN termination resistors for flexible network configuration. - **Durable Construction:** Features **30µ” gold-plated connector fingers** for improved conductivity and corrosion resistance. - **Warranty:** Backed by a **3-year manufacturer warranty**.

Manufacturer: Innodisk

Category: mPCIe Modules

M.2 2280 to dual isolated CANbus CANopen

Manufacturer: Innodisk

Category: mPCIe Modules

- **Four Isolated CAN Channels:** Provides four independent and galvanically isolated CAN 2.0B interfaces for robust communication and noise immunity. - **M.2 2280 B-M Form Factor:** Compact design suitable for embedded and industrial systems with M.2 slots. - **PCI Express 1.1 Interface:** Ensures high-speed data transfer and compatibility with modern embedded platforms. - **CAN 2.0B Compatibility:** Fully compliant with ISO 11898-1 and backward compatible with CAN 2.0A. - **Wide Baud Rate Support:** Configurable baud rates of 10K, 20K, 50K, 100K, 250K, 500K, 800K, and 1000Kbps. - **Software Support:** Compatible with Linux SocketCAN and Windows operating systems (Windows 7/8/8.1/10, 32/64-bit). - **High Isolation Protection:** 2.5kV HiPOT isolation ensures electrical separation between CAN channels and system bus. - **ESD Protection:** Compliant with EN61000-4-2 standards (Air: ±15kV, Contact: ±8kV). - **Termination Resistor Control:** Onboard slide switch allows enabling or disabling of 120Ω termination resistors per channel. - **Industrial Temperature Range:** Operates reliably from -40°C to +85°C, suitable for harsh environments. - **Durable Construction:** 30µ” gold-plated connector fingers for enhanced durability and signal integrity. - **Low Power Consumption:** Maximum power draw of 4.3W at 3.3V (1310mA). - **Compliance and Safety:** Meets IEC 60950-1:2005 + A1:2009 + A2:2013 safety standards. - **Warranty:** 3-year limited warranty from Innodisk.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Single Isolated GbE LAN Port:** Provides one fully isolated Gigabit Ethernet interface for secure and interference-free network communication. - **High Electrical Protection:** - **Surge Protection:** Complies with **EN61000-4-5**, offering **2kV surge protection**. - **HiPOT Protection:** Rated for **2kV isolation** between network and system interfaces. - **ESD Protection:** Meets **EN61000-4-2** standards with **Air Discharge: 15kV** and **Contact Discharge: 8kV**. - **Flexible Mechanical Design:** Includes a **flexible daughter board with cable**, allowing installation in various system configurations and enclosures. - **Mounting Options:** Available with **optional terminal mounting holes** or **bracket configurations** for mechanical adaptability. - **Industrial Temperature Range:** Supports **standard (0°C ~ +70°C)** and **wide (-40°C ~ +85°C)** temperature ranges for harsh environments. - **Durable Connector Interface:** Features **30µ-inch gold-plated contacts** on the M.2 connector for enhanced conductivity and corrosion resistance. - **Low Power Consumption:** Typical power draw of **0.66W (3.3V x 200mA)** ensures energy-efficient operation. - **Industrial-Grade Manufacturing:** Designed and produced in **Innodisk’s Taiwan facility**, ensuring high quality and reliability. - **Warranty:** Backed by a **3-year limited warranty**.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Single Isolated GbE LAN Port:** Provides one fully isolated Gigabit Ethernet interface, ensuring electrical separation between the host system and the network for enhanced safety and signal integrity. - **High Electrical Protection:** - **Surge Protection:** Complies with EN61000-4-5, offering 2kV surge protection. - **HiPOT Protection:** 2kV isolation withstand voltage. - **ESD Protection:** Meets EN61000-4-2 standards with Air Discharge up to 15kV and Contact Discharge up to 8kV. - **Flexible Mechanical Design:** Includes a flexible daughter board connected via cable, allowing versatile placement within system enclosures. Optional terminal mounting holes or bracket configurations support various mechanical integration needs. - **Industrial-Grade Durability:** Designed for industrial environments with vibration resistance up to 5G (7–2000Hz) and shock tolerance up to 50G (0.5ms). - **Temperature Range Options:** - **Standard Temperature (C2 models):** 0°C to +70°C - **Wide Temperature (W2 models):** -40°C to +85°C - **High-Quality Connector Interface:** 30µ-inch gold-plated M.2 connector fingers ensure long-term durability and reliable signal transmission. - **Low Power Consumption:** Typical power draw of 0.66W (3.3V x 200mA), optimized for embedded and low-power systems. - **Industrial Manufacturing Quality:** Designed and manufactured in Taiwan by Innodisk, ensuring consistent quality control and adherence to industrial standards. - **Warranty:** Backed by a 3-year limited warranty.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Single Isolated GbE LAN Port:** Provides one fully isolated Gigabit Ethernet interface for secure and interference-free network communication. - **High Electrical Protection:** - **EN61000-4-5 2kV Surge Protection** ensures resilience against transient voltage spikes. - **2kV HiPOT Protection** for electrical isolation integrity. - **EN61000-4-2 ESD Protection:** Air discharge up to 15kV and contact discharge up to 8kV. - **Flexible Mechanical Design:** Includes a **flexible daughter board with cable**, allowing installation in various system layouts and form factors. - **Mounting Options:** Available with **terminal mounting holes** or **bracket configurations** for mechanical stability and integration flexibility. - **Industrial Temperature Support:** - **Standard Temperature (STD):** 0°C to +70°C - **Wide Temperature (W/T):** -40°C to +85°C - **Durable Interface:** 30µ-inch gold-plated connector fingers for enhanced conductivity and corrosion resistance. - **Low Power Consumption:** Typical power draw of **0.66W (3.3V x 200mA)** ensures energy efficiency. - **Industrial-Grade Reliability:** Designed and manufactured in Taiwan under Innodisk’s stringent quality control standards. - **Warranty:** 3-year limited warranty. These features make the EGPL-G101-W1-A71 ideal for industrial PCs, embedded systems, and edge computing devices requiring reliable Ethernet connectivity in harsh or space-constrained environments.

Manufacturer: Innodisk

Category: mPCIe Modules

- **Single Isolated GbE LAN Port:** Provides one fully isolated Gigabit Ethernet interface for secure and stable network communication. - **High Electrical Protection:** - **Surge Protection:** Complies with EN61000-4-5, offering 2kV surge protection. - **HiPOT Protection:** 2kV isolation ensures electrical safety and system integrity. - **ESD Protection:** Meets EN61000-4-2 standards with Air Discharge up to 15kV and Contact Discharge up to 8kV. - **Flexible Mechanical Design:** - Includes a flexible daughter board connected via cable for versatile system integration. - Optional terminal mounting hole or bracket configuration for different chassis layouts. - **Industrial-Grade Durability:** - Designed for harsh environments with optional wide temperature support (-40°C to +85°C). - 30µ” gold-plated connector fingers for enhanced durability and signal integrity. - **Low Power Consumption:** Typical TDP of 0.66W (3.3V x 200mA), ideal for energy-efficient embedded systems. - **Compliance and Safety:** Certified to IEC 60950-1:2005 + A1:2009 + A2:2013 for electrical safety. - **Long-Term Reliability:** Backed by a 3-year manufacturer warranty. - **Industrial Design and Manufacturing:** Developed and produced by Innodisk in Taiwan, ensuring consistent quality and performance.

Manufacturer: Innodisk

Category: mPCIe Modules

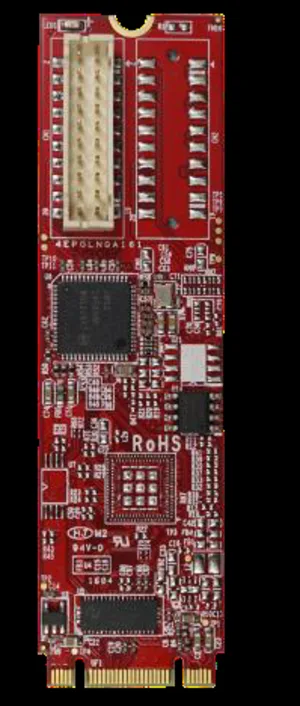

M.2 to Single Isolated GbE LAN, 22mm*80mm*9,3mm, Innodisk

Manufacturer: Innodisk

Category: mPCIe Modules
