F641 - Rayon

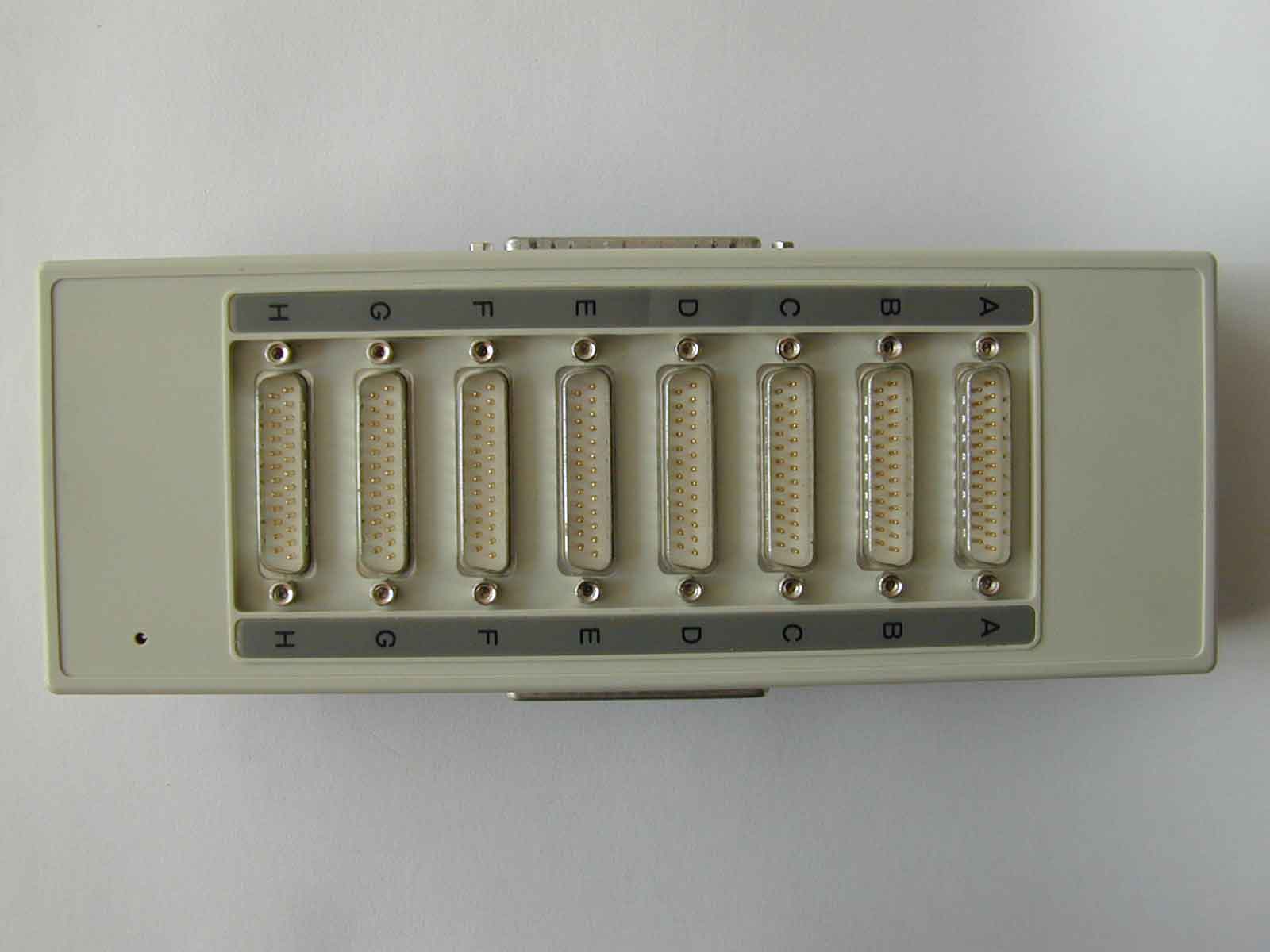

8-port RS232 connector box

PC Add-On Cards are used to enhance the capabilities of a PC. These cards are available in different types such as Communication Cards (RS232, RS485, IEEE, PCI max 128 Serial), PCIe / PCI max 128 Serial and more. They provide high-speed data transfer, enhanced communication, and improved performance. These cards are ideal for industrial, commercial, and home applications..

Description

  • 8-port RS232 connector box with 8 built in FIFO type communication 16C554 controller
  • up to 230,4kBd
  • up to 8 boxes
  • IRQ line from box to card
  • connector DB37f in and DB37m out to next (optional) box
  • 231*89mm
  • Rayon

Details

  • Width: 121 mm
  • Height: 102 mm
  • Form factor: extern
  • Manufacturer: Rayon
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Manuals

Accessories

  • IOP3927F
    UPCI 8..64-port 3,3/5V 16MB 133MHz RISC max 230kBd CPU Card
  • P1688U

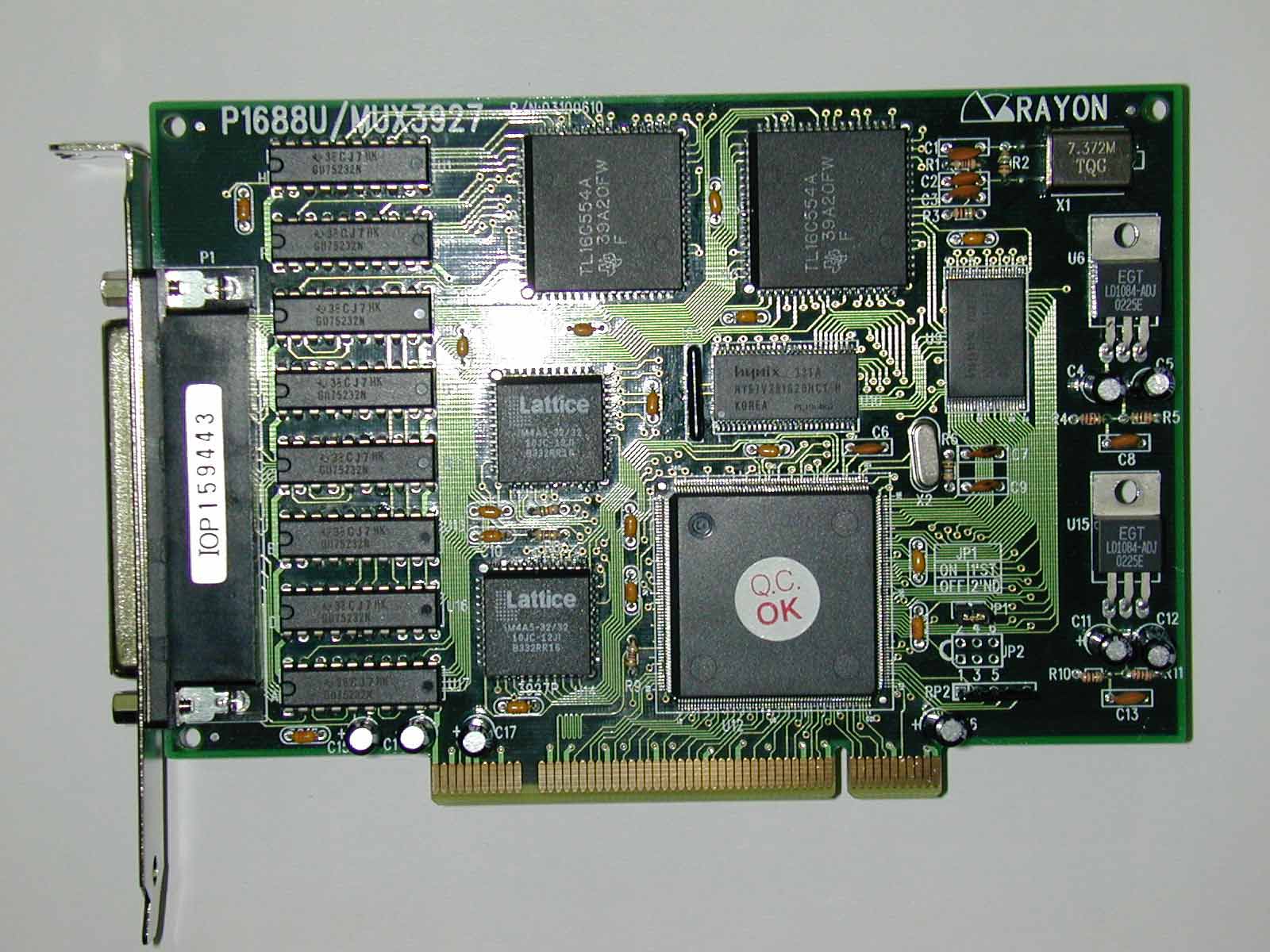

    UPCI 8-port 3,3/5V 16MB 133MHz RISC max 230kBd CPU Card
  • A640
    Cable DB37m to DB37f, 0,7m
