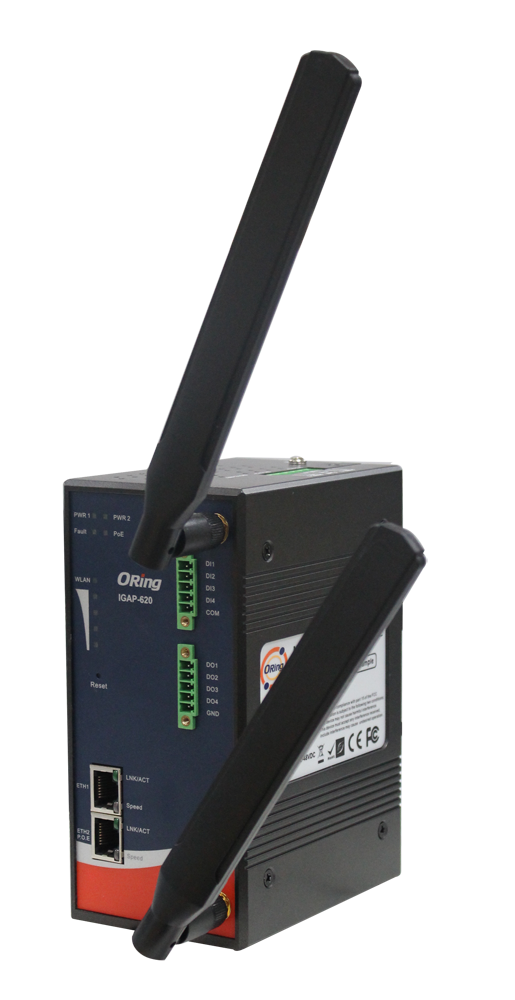

IGAP-620

WLAN 802.11a/b/g/n to 2*GbE Access Point

Wireless communication solutions through Industrial Wireless Ethernet Access Points (LAN AP).

Description

  • Industrial Point WLAN 802.11a/b/g/n to 2* 10/100/1000TX
  • up to 300Mbps link speed
  • AP/Bridge/Repeater/AP-Client mode
  • wireless load balancing
  • X-Roaming < 60ms
  • WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication
  • dual redundant Ethernet ports with Daisy Chain Switch mode
  • secured management via HTTPS
  • event warning by Syslog/Email/SNMP Trap/Relay/Beeper
  • DIN rail metal case 74,3*109,2*153,6mm
  • RP-SMA female antenna connectors
  • -10..60° operating temperature
  • -40..85° storage temperature
  • dual redundant power input 8.5W@12..48VDC (PoE)
  • ~800gr
  • Oring

Details

  • Width: 52 mm
  • Height: 106 mm
  • Depth: 144 mm
  • Net weight: 0,8 kg
  • Weight: 1.85kg
  • Form factor: Box
  • Manufacturer: Oring
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8517 6200 900
