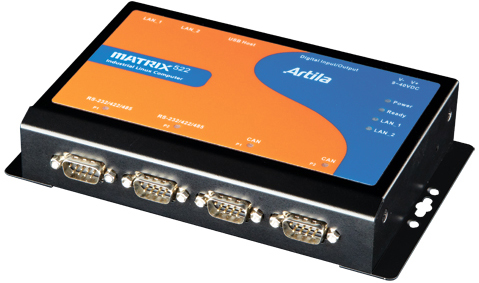

Matrix-522T - Artila
ARM-9 400MHz Web Server 2*LAN 2*CAN 2*USB 21*GPIO ext. Temp.
ARM-based Embedded Linux / WinCE box computer and intelligent IoT gateways.
Description
- ARM-9 ATMEL AT91SAM9G20
- 400MHz based Industrial Linux Computer
- web server Linux 2.6.29 pre-built
- RAM 64MB and NAND Flash Memory 128MB
- data flash 2MB for system backup
- 2 CAN Bus 2.0 compliant ports
- 2 high speed ports RS232/422/485 selectable
- 2 additional USB 2.0 12Mbps host ports
- 2*LAN 10/100 Ethernet port
- 21 programmable GP IO channels
- SSL and SSH 1.0/2.0 etc.
- upward compatible to Matrix-500 but without SD memory card socket
- fanless DIN rail mountable case
- all flash based architecture 16/32/64MB Linux kernel 2.6.x
- GNU C/C++ tool chain for Linux/Windows environment
- WinCE support
- JAVA accelerator
- 9..40VDC
- 190mA@12VDC 2,3W
- wide temp -20..80°C operation temperature range
- 160*104*32mm
- ~440gr
- Artila
Details
- Width: 160 mm
- Height: 104 mm
- Depth: 32 mm
- Net weight: 0,44 kg
- Weight: 0.95kg
- Manufacturer: Artila
- Country of Origin: Taiwan R.O.C.
- Customs code: 8471 5000 000
Data Sheets
Manuals
-
matrix-522_user_guide.pdf -
cygwin-installation-guide.pdf -
matrix-500-internal-connector.pdf -
matrix-500-enable-serial-console.pdf -
matrix-enable-serial-console2.pdf -
enable-serial-console3.pdf -
loaderhowto.pdf -
gdbserver_how_to.pdf
Downloads
- drv_w31: manager_206.jar
- drv_w31: arm-linux-332tar.gz
- drv_w31: arm-linux-cygwin-05152006.rar
- drv_w31: cygwin.zip
- drv_w31: matrix-500-example.zip
- drv_w31: matrix500.h
Accessories
-
DK-35A
DIN rail mounting kit (2pcs, 4 screws) -
CB-RJ45F9-150
Data Cable DB9f Matrix-5xx series -
CB-RJ2Con-100
Console Cable Matrix-5xx series
