Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs.
Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs. Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs. Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs. Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs. Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs.

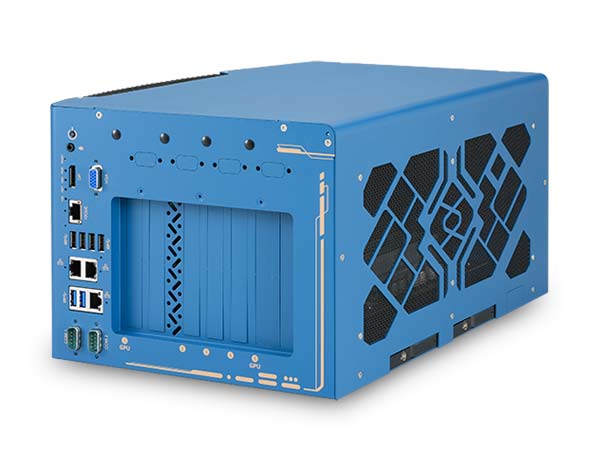

Nuvo-10208GC

Rugged edge AI computer for dual 350W NVIDIA RTX GPUs and Intel 14th Gen Core CPUs.
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer
  • The Nuvo-10208GC is a rugged industrial edge AI platform designed for two NVIDIA RTX graphics cards rated at up to 350W each. It supports Intel 14th, 13th and 12th Gen Core processors and up to 128GB of DDR5-4800 memory. Two PCIe Gen4 slots accommodate the GPUs, while three additional PCIe Gen3 slots provide expansion. Dual 2.5GbE, GbE, optional 10GBASE-T, six USB 3.2 Gen2 ports, NVMe storage and RAID-capable SATA trays deliver flexible connectivity. An 8–48V DC input, ignition control and patented retention brackets support demanding in-vehicle and industrial deployments.
Industrial-grade edge AI platform with an LGA1700 Intel 14th/13th/12th Gen Core processor, Intel R680E chipset, up to 128GB DDR5-4800 ECC/non-ECC memory and support for two NVIDIA RTX series 350W GPUs. Expansion includes two PCIe Gen4 x16 slots with eight lanes and three PCIe Gen3 x8 slots with four lanes. It provides 2x 2.5GbE, 1x GbE, optional 10GBASE-T, 6x USB 3.2 Gen2, dual SATA trays with RAID 0/1, M.2 NVMe storage and 8–48V DC input.
  • Supported Processor Generations Intel Core 14th, 13th and 12th Gen
  • Processor Socket LGA1700
  • Processor TDP 35 or 65 W
  • Maximum CPU Core Count 24 cores
  • Maximum CPU Thread Count 32 threads
  • Chipset Intel R680E Platform Controller Hub
  • Intel AMT Intel vPro/AMT 16.0
  • Maximum Memory 128 GB
  • Memory Type ECC/non-ECC DDR5-4800 SDRAM
  • Memory Slots 2 SODIMM
  • Maximum GPU Count 2 cards
  • Maximum GPU Card Power 350 W per GPU
  • Supported GPU Examples NVIDIA RTX Pro 4500, 5000 and 6000 Max-Q
  • Maximum FP32 GPU Performance 200 TFLOPS
  • GPU PCIe Slots 2x PCIe x16 Gen4, 8-lane
  • Additional PCIe Slots 3x PCIe x8 Gen3, 4-lane
  • Mini PCIe Sockets 2x full-size mini PCI Express with internal SIM sockets
  • M.2 B-Key Socket 1x M.2 2242/3052 B key with internal SIM sockets
  • Bus Interface 2x PCIe x16 Gen4 (8-lane); 3x PCIe x8 Gen3 (4-lane); 2x full-size mini-PCIe; M.2 B key
  • Ethernet Ports 2x 2.5GbE and 1x GbE
  • Optional Ethernet Port 1x 10GBASE-T with 5G, 2.5G and 1G support
  • USB 3.2 Ports 6x USB 3.2 Gen2x1 10 Gbps
  • Internal USB Port 1x USB 2.0 for dongle use
  • Serial Ports 2x software-programmable RS-232/422/485
  • VGA Output Resolution 1920 x 1200 pixels
  • DisplayPort Output Resolution 4096 x 2304 pixels
  • SATA Drive Trays 2x hot-swappable 2.5-inch HDD/SSD trays
  • SATA RAID Support RAID 0/1
  • Internal NVMe Socket 1x M.2 2280 M key, PCIe Gen4 x4
  • Optional Removable NVMe Tray 1x M.2 2280 M key, PCIe Gen4 x4
  • DC Input Voltage 8–48 V DC
  • Ignition Control Supported

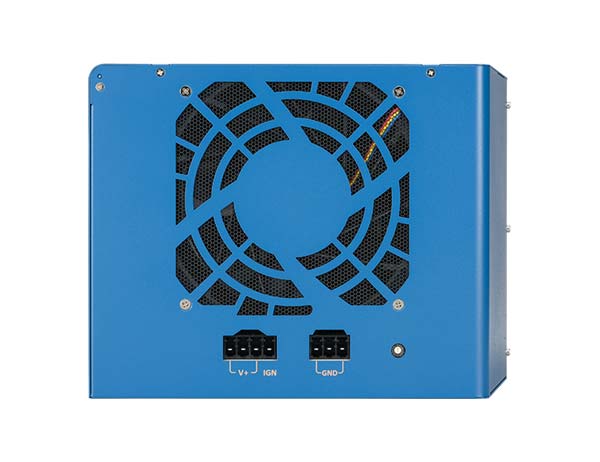

  • Power Input Connector 3-pin + 4-pin pluggable terminal block
  • Dimensions 268 x 400 x 196 mm
  • Weight 6.5 kg
  • Mounting Wall-mount with damping brackets
  • Form Factor Rugged wall-mount embedded computer

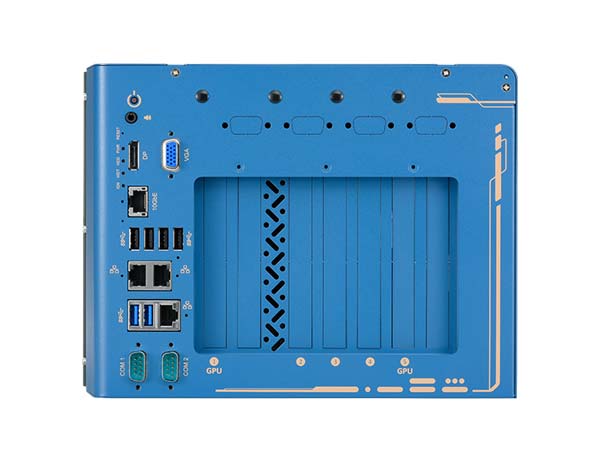

  • Connector 3-pin + 4-pin pluggable terminal block; 3x Ethernet; optional 10GBASE-T; 6x USB 3.2 Gen2; 2x COM; VGA; DisplayPort; 3.5 mm audio
  • Dimensions 268 x 400 x 196 mm (W x D x H)
  • Operating Temperature -25 to 60 with 35W CPU; up to 60 with 65W CPU and optional fan kit; up to 50 without fan kit °C
  • Storage Temperature -40 to 85 °C
  • Humidity 10–90, non-condensing % RH
  • Vibration Standard MIL-STD-810H Method 514.8, Category 4
  • Shock Standard MIL-STD-810H Method 516.8, Procedure I
  • Operating Temperature -25°C to 60°C with 35W CPU; -25°C to 60°C with 65W CPU and optional fan kit; -25°C to 50°C without optional fan kit
  • EMC Compliance CE/FCC Class A; EN 55032 and EN 55035
  • GPU Retention Patented GPU locking brackets
  • Damping Bracket Patented in-vehicle damping bracket
  • Key Features Dual NVIDIA RTX 350W GPU support; Intel 14th/13th/12th Gen Core CPUs; up to 128GB DDR5-4800; patented GPU locking mechanism; three additional PCIe slots; optional 10GBASE-T; RAID 0/1 SATA storage; 8–48V DC input with ignition control; rugged -25°C operation
  • TPM Support dTPM 2.0
  • Optional Fan Assembly AccsyBx-FAN-Nuvo10208GC
  • Optional GPU Bracket Kit AccsyBx-Cardholder-10208GC-xx
  • Optional NVMe Tray TY-NVMe-Nuvo10208GC
  • Optional AC/DC Adapter PA-600W-ENC
  • Resolution VGA up to 1920 x 1200; DisplayPort up to 4096 x 2304
  • Accessories AccsyBx-FAN-Nuvo10208GC, AccsyBx-Cardholder-10208GC-xx, TY-NVMe-Nuvo10208GC, PA-600W-ENC
