Rugged Intel Core Ultra 200S edge AI computer supporting NVIDIA GPUs up to 150W.

Nuvo-11160GC

Rugged Intel Core Ultra 200S edge AI computer supporting NVIDIA GPUs up to 150W.

Request a quote

Manufacturer Neousys Technology
Category: Industrial Computer

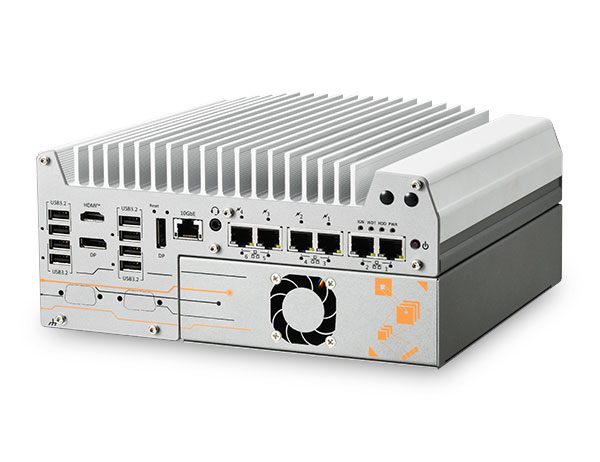

The Nuvo-11160GC is a rugged edge AI platform for stationary and mobile applications. It supports 35W or 65W Intel Core Ultra 200S processors and NVIDIA RTX graphics cards up to 150W. Five 2.5GbE ports, one GbE port, eight USB 3.2 Gen2 connections, and four isolated digital inputs and outputs each simplify the integration of cameras, sensors and control devices. Up to 128 GB DDR5, PCIe Gen5 x4 NVMe, two SATA ports with RAID 0/1 and the MezIO interface enable flexible configurations. The compact computer accepts 8 to 48V DC input and is designed for operation from -25 to 60°C.

Rugged edge AI platform with Intel Core Ultra 200S LGA1851 processor support, Intel Q870E chipset, up to 128 GB DDR5-6400, integrated NPU and a PCIe Gen4 x16 cassette for NVIDIA GPU cards up to 150W. Provides five 2.5GbE and one GbE port, eight USB 3.2 Gen2 ports, 4-channel isolated DI and DO, four serial ports, dual SATA with RAID 0/1, PCIe Gen5 x4 NVMe and MezIO expansion. Operates from 8 to 48V DC.

Supported Processor Family Intel Core Ultra 200 series, LGA1851, 35W and 65W TDP
Chipset Intel Q870E Platform Controller Hub
Maximum Memory 128 GB
AI Engine Integrated Neural Processing Unit
Maximum GPU Power 150 W
Maximum GPU Card Size 178 x 128, dual-slot mm
Ethernet Ports 5x 2.5GbE and 1x GbE
USB 3.2 Gen2 Ports 8 ports
Isolated Digital I/O Channels 4 DI and 4 DO channels
Digital I/O 4-channel isolated DI; 4-channel isolated DO
SATA Storage Interfaces 2 internal SATA ports for 2.5-inch HDD/SSD; RAID 0/1
NVMe Interface 1x M.2 2280 M key, PCIe Gen5 x4
DC Input Voltage 8 to 48 V DC
Dimensions 240 x 225 x 111 mm
Weight 3.89 kg
Form Factor Compact rugged embedded computer, wall-mountable

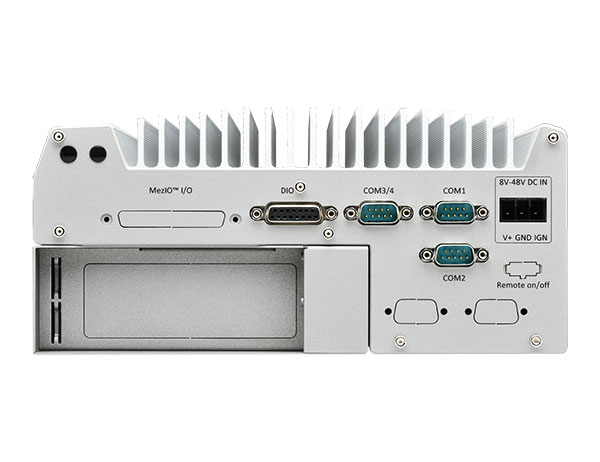

Connector 5x 2.5GbE; 1x GbE; 8x USB 3.2 Gen2 Type-A; HDMI; 2x DisplayPort; 4x COM; 3.5 mm audio; 3-pin DC terminal block
Dimensions 240 x 225 x 111 mm (W x D x H)
Operating Temperature -25 to 60 with 35W CPU and 150W GPU; -25 to 50 with 65W CPU and 150W GPU °C
Storage Temperature -40 to 85 °C
Humidity 10 to 90, non-condensing %
Operating Temperature -25°C to 60°C with 35W CPU and 150W GPU; -25°C to 50°C with 65W CPU and 150W GPU
Bus Interface PCIe x16 Gen4 (16 lanes); 2x full-size mini PCIe; MezIO expansion; M.2 PCIe Gen5 x4
Resolution HDMI: up to 3840 x 2160; 2x DisplayPort: up to 4096 x 2304
Key Features Intel Core Ultra 200S support; NVIDIA RTX GPU support up to 150W; up to 128 GB DDR5-6400; integrated NPU; 5x 2.5GbE plus 1x GbE; 8x USB 3.2 Gen2; isolated DIO; MezIO expansion; 8 to 48V DC input; rugged wide-temperature design
Accessories Dmpbr-Nuvo9160, AccsyBx-Cardholder-9160GC-xx, Cbl-W212F-W210F-23CM, PA-600W-ENC, MezIO-C180, MezIO-C181, MezIO-D220, MezIO-D230, MezIO-D330, MezIO-V20-EP, MezIO-U4, MezIO-G4
