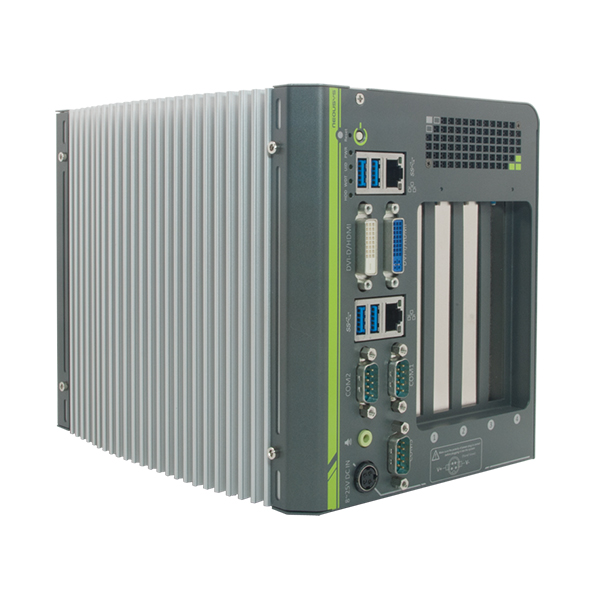

Nuvo-4022-i7QC - Neousys

Core i7-3610QE Fanless System HM76 2*PCIe 2*PCI

Powerful box PCs with fanless design and small footprint. Versatile applications in industrial automation as well as test and measurement technology are made possible by PCI / PCIe expansion slots as well as communication interfaces and graphic outputs. Perfect for your application with customized components like CPU, RAM, SSD, HDD, PCIe etc. that we supply, install and test..

Description

  • Intel Core i7-3610QE Ivy Bridge fanless system with Intel HM76 chipset
  • 1* PCIe x16 (8 lanes
  • 48W power budget) 1* PCIe x4 and 2* PCI expansion slots
  • up to 16GB DDR3 SODIMM (2 slots)

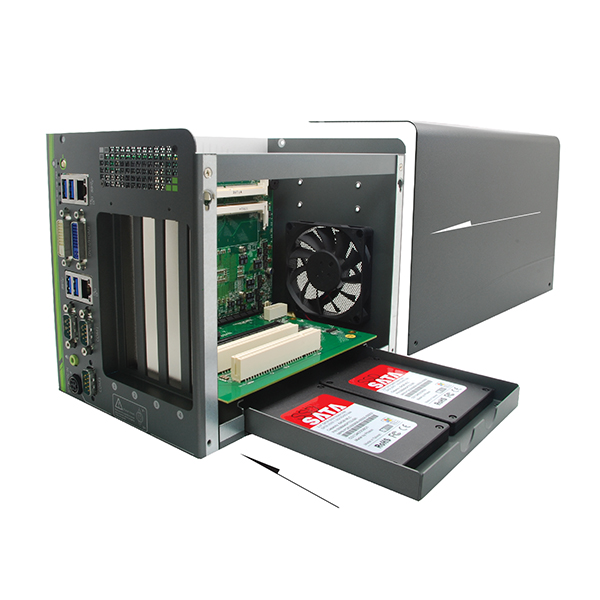

  • 2* 2,5" SATA III HDD/SSD
  • 2* Intel I210 GbE ports
  • 8* isolated DIO (optional)

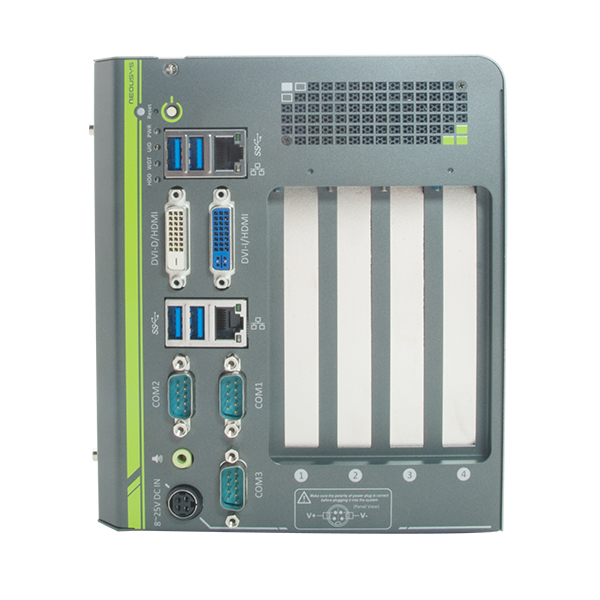

  • Intel HD Graphics 4000 with 1* DVI-I (resolution 1920*1080) and 1*DVI-D (resolution 1920*1080) ports supporting triple independent display output
  • 4* USB 3.0 and 2* internal (10pin header) USB 2.0 ports
  • 1* external CFast slot
  • 2* RS232/422/485 (software-programmable) and 1* RS232 ports
  • 1* Speaker out
  • operating temperature -25°...+60°C @100% CPU load
  • vibration resistance up to 5Grms (5-500Hz 3 axes with SSD according to IEC60068-2-64)
  • shock resistance up to 50Grms (half-sine 11ms duration with SSD according to IEC60068-2-27)
  • 80mm fan for additional heat dissipation (optional)
  • power supply 8..25 VDC built in (power consumption 67W without add-on cards
  • 120W and 160W AC/DC adapter optional)
  • 164*225*180mm wall-mount case (DIN-Rail mounting clip optional)
  • 4,0kg (including 2.5" HDD and 1* DDR3 SODIMM RAM)
  • Neousys

Details

  • Width: 164 mm
  • Height: 225 mm
  • Depth: 180 mm
  • Net weight: 4 kg
  • Weight: 4.5kg
  • Manufacturer: Neousys
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000

Data Sheets

Manuals

Accessories

  • Nuvo-PA-160W
    160W AC/DC Power Adapter for Nuvo-1300af/3005 PoE models
  • Nuvo-PA-120W
    120W AC/DC Power Adapter for Nuvo-3000 series
