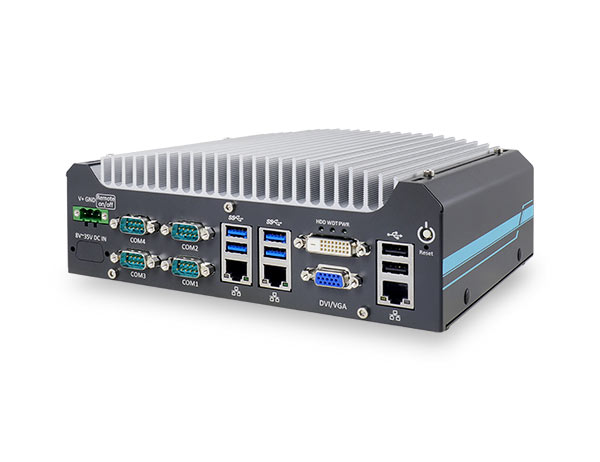

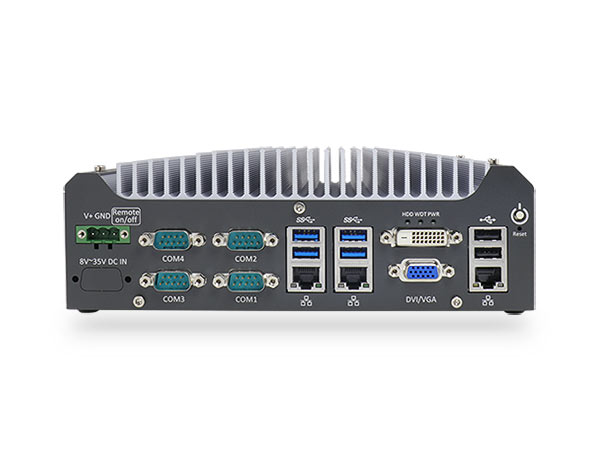

Nuvo-5501
Nuvo-5501

Nuvo-5501 - Neousys

Core i3/i5/i7 H110 Fanless System 3*GbE 6*USB 1*VGA 1*DVI-D

The Nuvo-5000-Series is a line of industrial computers and embedded systems that are powered by Intel Core i7/i5/i3 Embedded processors. They offer high performance, reliability and low power consumption, making them ideal for a variety of industrial and embedded applications. These computers are designed to provide maximum performance while minimizing size and weight. They are also designed to withstand harsh environments and are suitable for a variety of industrial and embedded applications..

Description

  • Intel Core 6th-Gen i3/i5/i7 LGA1151 CPU Skylake fanless barbone system with Intel H110 chipset
  • 1* miniPCIe
  • up to 16GB DDR4 SODIMM (1 slot)
  • 1* port 2,5" or 3,5'' SATA III HDD/SSD
  • 1* mSATA
  • 1* Intel I219-LM and 2* Intel I210-IT GbE ports
  • Intel HD Graphics 530/510 with 1* DVI-D & 1* VGA
  • 4* USB 3.0 & 2*USB2.0
  • 2* RS232/422/485 (software-programmable) and 2* RS232 ports
  • operating temperature -25°...+70°C
  • vibration resistance up to 5Grms (5-500Hz 3 axes with SSD according to IEC60068-2-64)
  • shock resistance up to 50Grms (half-sine 11ms duration with SSD according to IEC60068-2-27)
  • power input 8~35 VDC (120W AC/DC adapter optional PA-120W-OW)
  • 173*221*76mm
  • 2.8kg
  • Neousys

Details

  • Width: 173 mm
  • Height: 221 mm
  • Depth: 76.2 mm
  • Net weight: 2.8 kg
  • Weight: 3.3kg
  • Manufacturer: Neousys
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000
