Comprehensive Product Summary – OPM-15 Open Frame LCD Monitor
### 1. Product Overview
Product Name: OPM-15
Model: OPM-15 (also available as OPM-15T with touchscreen option)
Series: Open Frame LCD Display Series
Article Number: OPM-15
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)

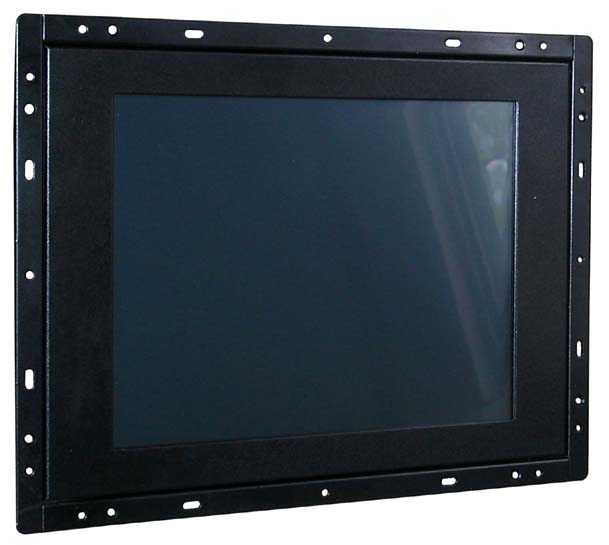

The Acceed OPM-15 is a 15.1-inch open frame LCD monitor designed for industrial, commercial, and embedded display applications. It combines a robust steel chassis with a high-quality TFT active matrix panel, offering reliable performance and flexible integration options. The OPM-15 is engineered for environments requiring durable construction, stable image quality, and versatile mounting configurations. The model OPM-15T adds a resistive touchscreen interface for interactive control applications.
### 2. Key Features
- Open Frame Design: The OPM-15 features an open frame structure with a strengthened glass front, allowing seamless integration into kiosks, control panels, and industrial enclosures.
- Heavy-Duty Construction: Built with a steel chassis for durability and stability, suitable for continuous operation in demanding environments.
- Mounting Flexibility: Supports panel mounting and VESA 75/100 mm standard screw holes for versatile installation options.
- Display Quality: 15-inch TFT active matrix LCD with XGA resolution (1024 × 768 pixels), providing sharp and clear image reproduction.
- Brightness and Contrast: 250 cd/m² luminance and 500:1 contrast ratio ensure good visibility under various lighting conditions.
- Color Depth: Supports up to 16 million colors for accurate and vibrant image rendering.
- Input Options: Standard VGA (15-pin D-Sub) input; optional AV input for composite video sources.
- Integrated Audio: Two internal 2 W speakers for basic audio output.
- On-Screen Display (OSD): Rear-panel controls for brightness, contrast, horizontal/vertical position, color adjustment, phase, clock, and management settings.
- Touchscreen Option (OPM-15T): Analog resistive touchscreen with RS-232 or USB interface, offering high durability and continuous resolution.
- Power Supply: External 36 W DC 12 V power adapter included.
- Operating System Compatibility: Compatible with MS-DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, and Windows XP.
- Reliability: Backlight MTBF of 50,000 hours ensures long-term operation with minimal maintenance.
- Environmental Resilience: Designed to operate in a wide temperature range and withstand vibration and shock conditions typical of industrial environments.
### 3. Technical Specifications
Display Panel:
- Type: 15" TFT Active Matrix LCD
- Resolution: 1024 × 768 (XGA)
- Pixel Pitch: 0.297 × 0.297 mm
- Brightness: 250 cd/m²
- Contrast Ratio: 500:1
- Response Time: 25 ms
- Maximum Colors: 16 million
- Viewing Angle: Horizontal ±65°, Vertical +45° / -55°
- Backlight Lifetime (MTBF): 50,000 hours
Mechanical & Physical:
- Construction: Heavy-duty steel chassis with open frame front
- Mounting: Panel mount and VESA 75/100 mm standard holes
- Dimensions (W × H × D): 378.1 × 295 × 50 mm
- Approximate Display Area: 15.1 inches diagonal
- Weight: Not specified (typical for this class: ~3–4 kg)
Electrical:
- Power Input: 12 V DC
- Power Consumption: 36 W (typical)
- Power Adapter: External 36 W DC 12 V adapter included
Connectivity:
- Video Input: VGA (15-pin D-Sub)
- Optional Input: AV (composite video)
- Audio: 2 × 2 W internal speakers
- Touchscreen Interface (OPM-15T): RS-232 or USB (optional)
Environmental Conditions:
- Operating Temperature: 0°C to +45°C
- Storage Temperature: -20°C to +60°C
- Storage Humidity: 10% to 95% @ 40°C, non-condensing
- Vibration Resistance: 10–150 Hz, 0.15 mm amplitude, 10 cycles, 1G
- Shock Resistance: 30 G peak acceleration (11 ms duration)
### 4. Functionality
The OPM-15 operates as a standalone open frame display unit designed for integration into custom housings, kiosks, or industrial control systems. The open frame structure allows the display to be mounted behind a front panel or enclosure window, providing flexibility for OEMs and system integrators.
Display Operation:
The monitor receives analog video signals via the VGA (DB15) connector. The internal controller processes the signal and drives the TFT LCD panel to display images at up to 1024 × 768 resolution. The OSD (On-Screen Display) menu, accessible via rear-panel buttons, allows users to adjust brightness, contrast, color balance, and image positioning.
Touchscreen Functionality (OPM-15T):
The optional analog resistive touchscreen enables direct user interaction. It detects pressure from a finger, stylus, or gloved hand, making it suitable for industrial and public environments. The touchscreen controller connects via RS-232 or USB and supports standard Windows operating systems through dedicated drivers.
Use Cases and Applications:
- Industrial control panels and automation systems
- Kiosk and point-of-sale (POS) terminals
- Digital signage and information displays
- Embedded systems and OEM integration
- Transportation and logistics terminals
- Medical and laboratory equipment interfaces
- Machine vision and monitoring systems
Compatibility:
The OPM-15 supports legacy and modern operating systems, including MS-DOS and Windows XP, ensuring compatibility with a wide range of industrial PCs and embedded controllers.
### 5. Components & Accessories
Included Items:
- OPM-15 open frame LCD monitor
- External 36 W DC 12 V power adapter
- VGA signal cable (typical inclusion; confirm with supplier)
- User manual and installation guide
Optional Add-ons:
- Resistive touchscreen (model OPM-15T)
- Touchscreen controller (RS-232 or USB interface)
- AV input module for composite video sources
- Mounting brackets or panel mounting kits
- Extended power cables or industrial-grade adapters
Connectors:
- VGA input: 15-pin D-Sub (female)
- AV input (optional): RCA or similar composite connector
- Power input: DC barrel jack (12 V)
- Audio output: Internal speakers (2 × 2 W)
- Touchscreen interface (optional): RS-232 or USB
### 6. Installation & Setup
Mounting Options:
The OPM-15 is designed for flexible installation in both industrial and commercial environments. It can be mounted using:
- Panel Mounting: The open frame structure allows flush integration into control panels or kiosks.
- VESA Mounting: Standard 75 mm and 100 mm VESA mounting holes enable attachment to brackets, arms, or enclosures.
Installation Requirements:
- Power Source: 12 V DC regulated supply (36 W minimum)
- Signal Source: VGA-compatible video output
- Operating Environment: Temperature 0–45°C, humidity <95% non-condensing
Setup Procedure:
1. Secure the monitor using panel or VESA mounting points.
2. Connect the VGA cable to the host system’s video output.
3. Connect the DC power adapter to the monitor’s power input.
4. Power on the system and adjust display parameters using the OSD controls.
5. (For OPM-15T) Connect the touchscreen interface (RS-232 or USB) and install the appropriate driver software.
Configuration:
The OSD menu provides control over brightness, contrast, horizontal and vertical position, color temperature, phase, and clock settings. Users can fine-tune the display for optimal image quality depending on the application environment.
### 7. Performance & Capabilities
Display Performance:
The OPM-15 delivers stable and consistent image quality with a 250 cd/m² brightness level and 500:1 contrast ratio, suitable for indoor and semi-industrial lighting conditions. The 25 ms response time ensures smooth video playback and responsive display updates for control interfaces.
Color and Clarity:
With support for up to 16 million colors, the monitor provides accurate color reproduction, essential for graphical interfaces and visualization tasks.
Viewing Angles:
The wide horizontal viewing angle of ±65° and vertical range of +45°/-55° allow flexible positioning without significant color or contrast degradation.
Reliability and Longevity:
The backlight MTBF of 50,000 hours ensures extended operational life, minimizing downtime and maintenance costs. The robust steel chassis and shock/vibration resistance make it suitable for continuous operation in industrial environments.
Touchscreen Performance (OPM-15T):
The analog resistive touchscreen offers continuous resolution and high durability, rated for up to 100 million touches. With a light transmission rate of ≥79%, it maintains good display visibility while providing reliable input detection. Power consumption is minimal (<5 V @ 100 mA), making it efficient for embedded systems.
Limitations:
- The display uses an analog VGA interface, which may limit compatibility with purely digital video sources without adapters.
- Brightness (250 cd/m²) is optimized for indoor use; outdoor readability may be limited under direct sunlight.
- The operating temperature range (0–45°C) may require environmental control in extreme conditions.
### 8. Standards & Compliance
Mounting Standards:
- VESA 75 mm and 100 mm mounting hole patterns
Electrical and Safety Compliance:
While specific certifications are not listed, Acceed GmbH products typically comply with CE and RoHS directives for electronic equipment sold in the European Union. The OPM-15 is designed to meet industrial-grade reliability and safety standards.
Environmental Compliance:
- RoHS-compliant materials (lead-free construction)
- Designed for non-condensing humidity environments
- Shock and vibration tested to industrial specifications
Software Compatibility:
- Supported Operating Systems: MS-DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, Windows XP
- Touchscreen Driver Support (OPM-15T): Windows 98/NT/2000/ME/XP
### 9. Additional Information
Ordering Information:
- OPM-15: 15" TFT LCD monitor with external 36 W DC 12 V power adapter
- OPM-15T: 15" TFT LCD monitor with resistive touchscreen and external 36 W DC 12 V power adapter
Warranty:
Standard manufacturer warranty (typically 12–24 months; confirm with Acceed GmbH). Covers defects in materials and workmanship under normal operating conditions.
Support and Maintenance:
Acceed GmbH provides technical support, documentation, and driver downloads through its website. Preventive maintenance includes periodic cleaning of the display surface and ensuring adequate ventilation for heat dissipation.
Software and Firmware Updates:
The OPM-15 does not require firmware updates for standard operation. Touchscreen drivers and configuration utilities are available for supported operating systems.
Service Life and Reliability:
- Backlight MTBF: 50,000 hours
- Touchscreen lifetime (OPM-15T): 100 million actuations
- Designed for continuous 24/7 operation in industrial environments
Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19
40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
### Summary
The Acceed OPM-15 is a robust, industrial-grade 15.1-inch open frame LCD monitor engineered for embedded and OEM applications. Its combination of a durable steel chassis, high-quality TFT display, and flexible mounting options makes it ideal for integration into kiosks, control systems, and industrial automation interfaces. The optional OPM-15T variant adds a resistive touchscreen for interactive applications, maintaining the same mechanical and electrical reliability.
With a 1024 × 768 XGA resolution, 250 cd/m² brightness, and 500:1 contrast ratio, the OPM-15 delivers clear and stable image performance. The monitor’s compatibility with legacy Windows operating systems and its analog VGA input make it suitable for integration with a wide range of industrial PCs and embedded controllers. Its long backlight life, vibration and shock resistance, and extended environmental tolerance ensure dependable operation in demanding conditions.
Overall, the OPM-15 series represents a reliable, versatile, and cost-effective display solution for industrial and commercial integration projects requiring long-term stability, flexible installation, and consistent visual performance.
### 1. Product Overview
Product Name: OPM-15
Model: OPM-15 (also available as OPM-15T with touchscreen option)
Series: Open Frame LCD Display Series
Article Number: OPM-15
Manufacturer: Acceed GmbH
Manufacturer Address: Arnoldstr. 19, 40479 Düsseldorf, Germany
Manufacturer Website: [www.acceed.com](https://www.acceed.com)
The Acceed OPM-15 is a 15.1-inch open frame LCD monitor designed for industrial, commercial, and embedded display applications. It combines a robust steel chassis with a high-quality TFT active matrix panel, offering reliable performance and flexible integration options. The OPM-15 is engineered for environments requiring durable construction, stable image quality, and versatile mounting configurations. The model OPM-15T adds a resistive touchscreen interface for interactive control applications.
### 2. Key Features
- Open Frame Design: The OPM-15 features an open frame structure with a strengthened glass front, allowing seamless integration into kiosks, control panels, and industrial enclosures.
- Heavy-Duty Construction: Built with a steel chassis for durability and stability, suitable for continuous operation in demanding environments.
- Mounting Flexibility: Supports panel mounting and VESA 75/100 mm standard screw holes for versatile installation options.
- Display Quality: 15-inch TFT active matrix LCD with XGA resolution (1024 × 768 pixels), providing sharp and clear image reproduction.
- Brightness and Contrast: 250 cd/m² luminance and 500:1 contrast ratio ensure good visibility under various lighting conditions.
- Color Depth: Supports up to 16 million colors for accurate and vibrant image rendering.
- Input Options: Standard VGA (15-pin D-Sub) input; optional AV input for composite video sources.
- Integrated Audio: Two internal 2 W speakers for basic audio output.
- On-Screen Display (OSD): Rear-panel controls for brightness, contrast, horizontal/vertical position, color adjustment, phase, clock, and management settings.
- Touchscreen Option (OPM-15T): Analog resistive touchscreen with RS-232 or USB interface, offering high durability and continuous resolution.
- Power Supply: External 36 W DC 12 V power adapter included.
- Operating System Compatibility: Compatible with MS-DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, and Windows XP.
- Reliability: Backlight MTBF of 50,000 hours ensures long-term operation with minimal maintenance.
- Environmental Resilience: Designed to operate in a wide temperature range and withstand vibration and shock conditions typical of industrial environments.
### 3. Technical Specifications
Display Panel:
- Type: 15" TFT Active Matrix LCD
- Resolution: 1024 × 768 (XGA)
- Pixel Pitch: 0.297 × 0.297 mm
- Brightness: 250 cd/m²
- Contrast Ratio: 500:1
- Response Time: 25 ms
- Maximum Colors: 16 million
- Viewing Angle: Horizontal ±65°, Vertical +45° / -55°
- Backlight Lifetime (MTBF): 50,000 hours
Mechanical & Physical:
- Construction: Heavy-duty steel chassis with open frame front
- Mounting: Panel mount and VESA 75/100 mm standard holes
- Dimensions (W × H × D): 378.1 × 295 × 50 mm
- Approximate Display Area: 15.1 inches diagonal
- Weight: Not specified (typical for this class: ~3–4 kg)
Electrical:
- Power Input: 12 V DC
- Power Consumption: 36 W (typical)
- Power Adapter: External 36 W DC 12 V adapter included
Connectivity:
- Video Input: VGA (15-pin D-Sub)
- Optional Input: AV (composite video)
- Audio: 2 × 2 W internal speakers
- Touchscreen Interface (OPM-15T): RS-232 or USB (optional)
Environmental Conditions:
- Operating Temperature: 0°C to +45°C
- Storage Temperature: -20°C to +60°C
- Storage Humidity: 10% to 95% @ 40°C, non-condensing
- Vibration Resistance: 10–150 Hz, 0.15 mm amplitude, 10 cycles, 1G
- Shock Resistance: 30 G peak acceleration (11 ms duration)
### 4. Functionality
The OPM-15 operates as a standalone open frame display unit designed for integration into custom housings, kiosks, or industrial control systems. The open frame structure allows the display to be mounted behind a front panel or enclosure window, providing flexibility for OEMs and system integrators.
Display Operation:
The monitor receives analog video signals via the VGA (DB15) connector. The internal controller processes the signal and drives the TFT LCD panel to display images at up to 1024 × 768 resolution. The OSD (On-Screen Display) menu, accessible via rear-panel buttons, allows users to adjust brightness, contrast, color balance, and image positioning.
Touchscreen Functionality (OPM-15T):
The optional analog resistive touchscreen enables direct user interaction. It detects pressure from a finger, stylus, or gloved hand, making it suitable for industrial and public environments. The touchscreen controller connects via RS-232 or USB and supports standard Windows operating systems through dedicated drivers.
Use Cases and Applications:
- Industrial control panels and automation systems
- Kiosk and point-of-sale (POS) terminals
- Digital signage and information displays
- Embedded systems and OEM integration
- Transportation and logistics terminals
- Medical and laboratory equipment interfaces
- Machine vision and monitoring systems
Compatibility:
The OPM-15 supports legacy and modern operating systems, including MS-DOS and Windows XP, ensuring compatibility with a wide range of industrial PCs and embedded controllers.
### 5. Components & Accessories
Included Items:
- OPM-15 open frame LCD monitor
- External 36 W DC 12 V power adapter
- VGA signal cable (typical inclusion; confirm with supplier)
- User manual and installation guide
Optional Add-ons:
- Resistive touchscreen (model OPM-15T)
- Touchscreen controller (RS-232 or USB interface)
- AV input module for composite video sources
- Mounting brackets or panel mounting kits
- Extended power cables or industrial-grade adapters
Connectors:
- VGA input: 15-pin D-Sub (female)
- AV input (optional): RCA or similar composite connector
- Power input: DC barrel jack (12 V)
- Audio output: Internal speakers (2 × 2 W)
- Touchscreen interface (optional): RS-232 or USB
### 6. Installation & Setup
Mounting Options:
The OPM-15 is designed for flexible installation in both industrial and commercial environments. It can be mounted using:
- Panel Mounting: The open frame structure allows flush integration into control panels or kiosks.
- VESA Mounting: Standard 75 mm and 100 mm VESA mounting holes enable attachment to brackets, arms, or enclosures.
Installation Requirements:
- Power Source: 12 V DC regulated supply (36 W minimum)
- Signal Source: VGA-compatible video output
- Operating Environment: Temperature 0–45°C, humidity <95% non-condensing
Setup Procedure:
1. Secure the monitor using panel or VESA mounting points.
2. Connect the VGA cable to the host system’s video output.
3. Connect the DC power adapter to the monitor’s power input.
4. Power on the system and adjust display parameters using the OSD controls.
5. (For OPM-15T) Connect the touchscreen interface (RS-232 or USB) and install the appropriate driver software.
Configuration:
The OSD menu provides control over brightness, contrast, horizontal and vertical position, color temperature, phase, and clock settings. Users can fine-tune the display for optimal image quality depending on the application environment.
### 7. Performance & Capabilities
Display Performance:
The OPM-15 delivers stable and consistent image quality with a 250 cd/m² brightness level and 500:1 contrast ratio, suitable for indoor and semi-industrial lighting conditions. The 25 ms response time ensures smooth video playback and responsive display updates for control interfaces.
Color and Clarity:
With support for up to 16 million colors, the monitor provides accurate color reproduction, essential for graphical interfaces and visualization tasks.
Viewing Angles:
The wide horizontal viewing angle of ±65° and vertical range of +45°/-55° allow flexible positioning without significant color or contrast degradation.
Reliability and Longevity:
The backlight MTBF of 50,000 hours ensures extended operational life, minimizing downtime and maintenance costs. The robust steel chassis and shock/vibration resistance make it suitable for continuous operation in industrial environments.
Touchscreen Performance (OPM-15T):
The analog resistive touchscreen offers continuous resolution and high durability, rated for up to 100 million touches. With a light transmission rate of ≥79%, it maintains good display visibility while providing reliable input detection. Power consumption is minimal (<5 V @ 100 mA), making it efficient for embedded systems.
Limitations:
- The display uses an analog VGA interface, which may limit compatibility with purely digital video sources without adapters.
- Brightness (250 cd/m²) is optimized for indoor use; outdoor readability may be limited under direct sunlight.
- The operating temperature range (0–45°C) may require environmental control in extreme conditions.
### 8. Standards & Compliance
Mounting Standards:
- VESA 75 mm and 100 mm mounting hole patterns
Electrical and Safety Compliance:
While specific certifications are not listed, Acceed GmbH products typically comply with CE and RoHS directives for electronic equipment sold in the European Union. The OPM-15 is designed to meet industrial-grade reliability and safety standards.
Environmental Compliance:
- RoHS-compliant materials (lead-free construction)
- Designed for non-condensing humidity environments
- Shock and vibration tested to industrial specifications
Software Compatibility:
- Supported Operating Systems: MS-DOS, Windows 98/SE, Windows NT 4.0, Windows 2000, Windows XP
- Touchscreen Driver Support (OPM-15T): Windows 98/NT/2000/ME/XP
### 9. Additional Information
Ordering Information:
- OPM-15: 15" TFT LCD monitor with external 36 W DC 12 V power adapter
- OPM-15T: 15" TFT LCD monitor with resistive touchscreen and external 36 W DC 12 V power adapter
Warranty:
Standard manufacturer warranty (typically 12–24 months; confirm with Acceed GmbH). Covers defects in materials and workmanship under normal operating conditions.
Support and Maintenance:
Acceed GmbH provides technical support, documentation, and driver downloads through its website. Preventive maintenance includes periodic cleaning of the display surface and ensuring adequate ventilation for heat dissipation.
Software and Firmware Updates:
The OPM-15 does not require firmware updates for standard operation. Touchscreen drivers and configuration utilities are available for supported operating systems.
Service Life and Reliability:
- Backlight MTBF: 50,000 hours
- Touchscreen lifetime (OPM-15T): 100 million actuations
- Designed for continuous 24/7 operation in industrial environments
Manufacturer Contact:
Acceed GmbH
Arnoldstr. 19
40479 Düsseldorf, Germany
Website: [www.acceed.com](https://www.acceed.com)
### Summary
The Acceed OPM-15 is a robust, industrial-grade 15.1-inch open frame LCD monitor engineered for embedded and OEM applications. Its combination of a durable steel chassis, high-quality TFT display, and flexible mounting options makes it ideal for integration into kiosks, control systems, and industrial automation interfaces. The optional OPM-15T variant adds a resistive touchscreen for interactive applications, maintaining the same mechanical and electrical reliability.
With a 1024 × 768 XGA resolution, 250 cd/m² brightness, and 500:1 contrast ratio, the OPM-15 delivers clear and stable image performance. The monitor’s compatibility with legacy Windows operating systems and its analog VGA input make it suitable for integration with a wide range of industrial PCs and embedded controllers. Its long backlight life, vibration and shock resistance, and extended environmental tolerance ensure dependable operation in demanding conditions.
Overall, the OPM-15 series represents a reliable, versatile, and cost-effective display solution for industrial and commercial integration projects requiring long-term stability, flexible installation, and consistent visual performance.
-
OPM-15-data.pdf
PDF Catalog
No accessories available.
