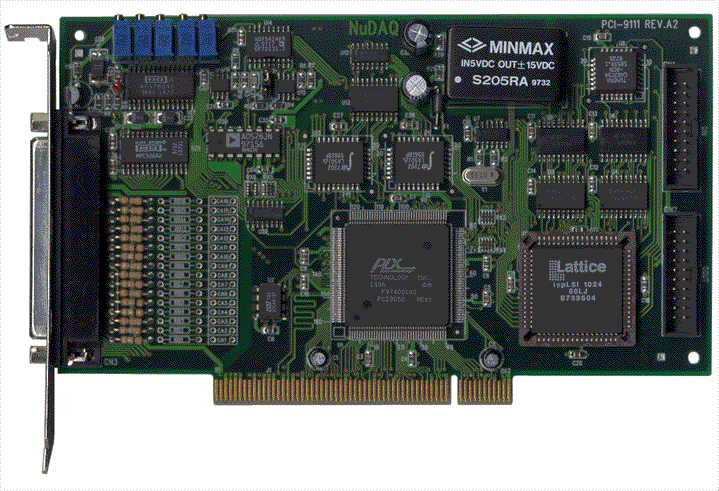

PCI-9111HR - Adlink Technology Inc.

PCI AD Card 100kS/s 16bit 16SE 1k FIFO

PC Add-On Cards provide a great way to upgrade your computer and increase its capabilities. A/D Cards are one type of add-on card that can be used to convert analog signals into digital signals. A/D Cards High Resolution are specialized cards that offer higher resolution than standard A/D cards. A/D High Resolution PCI cards are designed to fit into a PCI slot, making them ideal for use in a desktop PC..
605,00 €
incl. VAT 719,95 €


  • PCI bus AD card 100kS/s 1kFIFO 16bit 16SE with B.B.ADS7805 IRQ A-D/±0,625/1,25/2,5/5/10V
  • dual IRQ by EOC or ext. trigger input
  • 1k FIFO
  • with DC/DC converter
  • 1*DA 12 bit ±10/0-10V (jumper selectable) 30µs AD DAC7541
  • 16/16 TTL DIO
  • Timer 8253/8254 3 16 bit 2MHz base
  • plug and play
  • 37 f D-type +2*20pin
  • typical 570mA
  • 170*107mm
  • Adlink


  • Width: 170 mm
  • Height: 107 mm
  • Weight: 1.1kg
  • Manufacturer: Adlink Technology Inc.
  • Part number: 91-12251-1040
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
