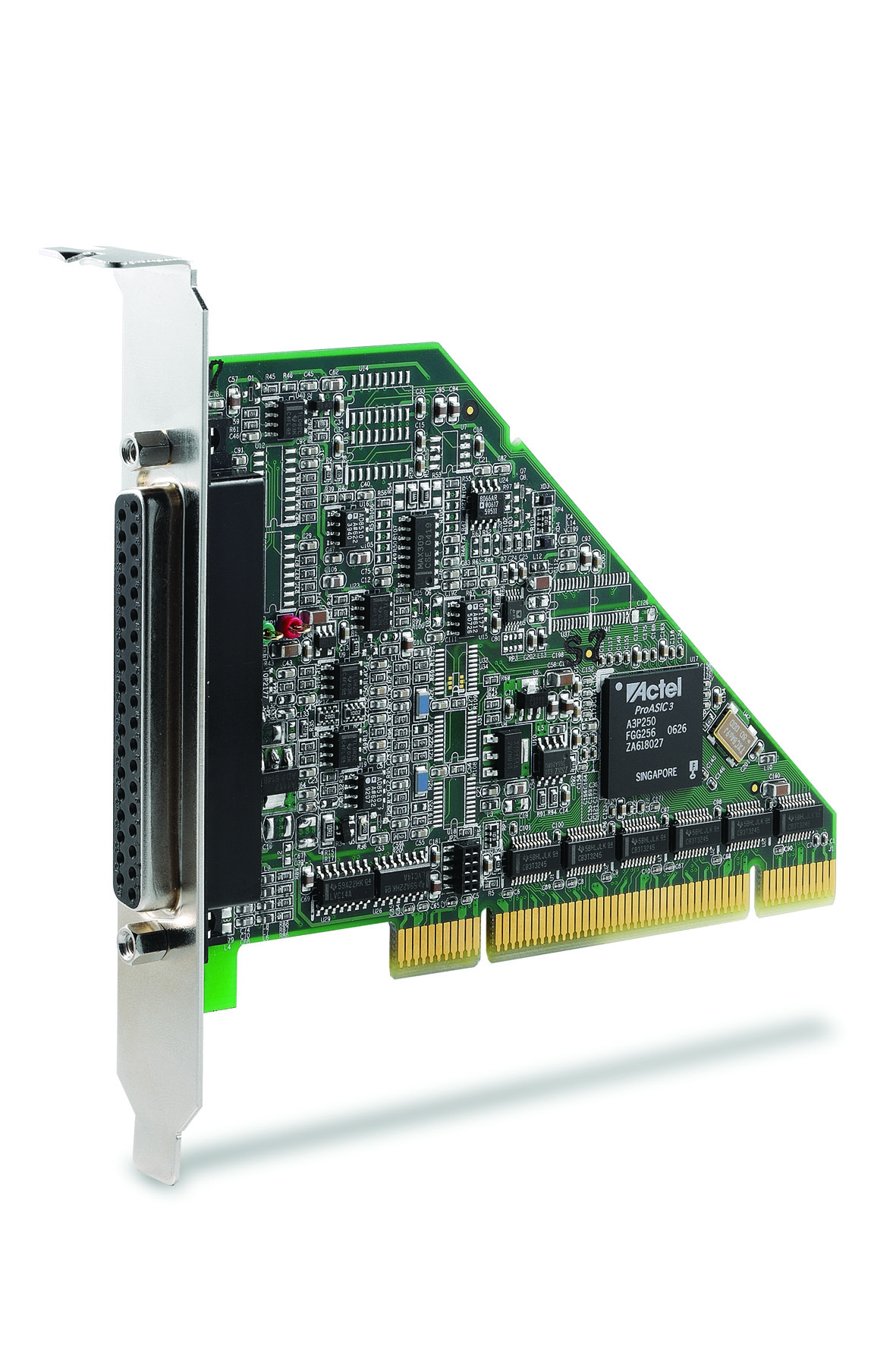

PCI-9221 - Adlink Technology Inc.

PCI AD Card 250kS/s 16bit 2DA with motion control

A/D General Purpose PCI cards are PC add-on cards that provide a general purpose analog-to-digital conversion capability. These cards can be used to convert analog signals into digital signals for use in computers, allowing for better data accuracy and more efficient data transfer. They are also used in applications such as audio and video recording, medical imaging, and industrial automation..
387,00 €
incl. VAT 460,53 €


  • PCI bus AD card 250kS/s 1kFIFO 16bit 16SE/8DI
  • programmable IO TTL IO/timer counter/ PWM and motor encoder inputs
  • IRQ A-D/±0,2/0,5/1/5V
  • with DC/DC converter
  • 2*DA 16 bit
  • 8/4 TTL DIO
  • 2*32bit 40MHz general purose timer counter
  • 2*4MHz encoder input supporting AB phase and CW/CCW
  • 2*PWM outputs
  • plug and play
  • 37 f D-type
  • 173*98mm
  • Adlink


  • Width: 173 mm
  • Height: 98 mm
  • Weight: 1kg
  • Manufacturer: Adlink Technology Inc.
  • Part number: 91-12272-0010
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Data Sheets




  • TB-9221-01
    Universal screw terminal panel for PCI-9221
  • ACLD-9881
    Panel for mounting low pass filter etc., incl. ACL-10137-1
  • ACLD-8125
    Panel with cold junction compensation
  • ACLD-9188
    Panel for mounting low pass filter etc.
  • ACLD-9137-01
    Direct 37 small screw terminal
  • ACLD-9138-01
    Panel general purpose, 2*20 small screw terminal
  • DIN-37D-01
    37pin D-type panel DIN rail w/o cable
