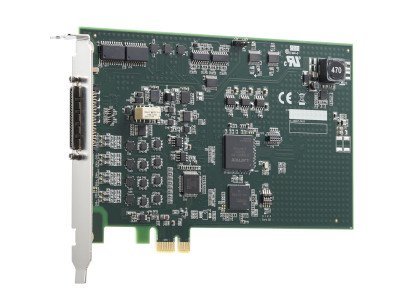

Name: PCIe 32SE/16DI AI 16bit 4MHz 4*DA
Brand: Adlink Technology Inc.
SKU: PCIe-9163
Price: 1111.00 EUR
Availability: InStock

INDUSTRIAL SOLUTION?

Discover embedded, communication and automation solutions tailored to your application.

PCIe-9163

PCIe 32SE/16DI AI 16bit 4MHz 4*DA

1111,00 EUR

including VAT 1,322.09 EUR

Manufacturer Adlink Technology Inc.
Category: A/D Intelligent PCIe
The PCIe-9163 is a multifunction PCI Express data acquisition card with expanded channel count and hybrid operation. It provides 32 single-ended or 16 differential analog input channels with 16-bit resolution and works as a multiplexer DAQ at up to 1 MS/s. Alternatively, it can operate as a 4-channel simultaneous DAQ with up to 4 MS/s. It also adds four analog outputs, 16 digital inputs and 16 digital outputs, four 32-bit timer/counter channels, and two encoder channels for compact measurement, control, and motion-related tasks.

PCIe 32SE/16DI AI 16bit 4MHz SE Scanning 1MS/s FIFO 4k, Range ±10/±5/±2,5/±1,25/±0,625/±0,3125V, 4DA 16bit ±10V 4k FIFO, 16TTL DI/DO, Timer/Counter 432bit, driver/SDK Windows 7/10/11 x86/x64 or later, Linux Driver and SDK, LabVIEW C/C++ Visual Basic Visual Studio.NET, Software Utility ACE Soft-Front Panel, LH 181,05mm * 126,72mm, 68-pin SCSI-type female connector, Adlink

Country of origin: Taiwan R.O.C.

Customs tariff number: 8473 3020 000

Bus Type PCI Express 1.0
Bus Width x1 lane
Bus Interface PCI Express 1.0 x1
Analog Input Type Scanning and simultaneous
Analog Input Channels 32 single-ended or 16 differential ch
Analog Input Resolution 16 bit
Maximum Single-Channel Sampling Rate 4 MS/s
Maximum Scanning Sampling Rate 1 MS/s
Simultaneous Sampling Mode 4-channel simultaneous DAQ
AI FIFO Buffer Size 4K samples
Input Range ±10, ±5, ±2.5, ±1.25, ±0.625, ±0.3125 V
Input Impedance 1G ohm
Input Coupling DC
Overvoltage Protection Continuous ±30 V
AI Trigger Source Software, digital, analog
AI Data Transfer Polling, DMA
SNR 80 dB
ENOB 13 bit
Analog Input 32 SE or 16 DI, 16-bit, 1 MS/s mux or 4 MS/s single-channel
Analog Output Channels 4 ch
Analog Output Resolution 16 bit
Output Range ±10 V
AO FIFO Buffer Size 4K shared samples
Output Driving Capacity ±20 mA max
Slew Rate 10 V/μs
Settling Time 2 μs
Output Coupling DC
Output Impedance <0.1 ohm
AO Trigger Source Software, digital
AO Data Transfer Polling, DMA
Analog Output 4-ch, 16-bit, ±10 V
Digital Input Channels 16 ch
Digital Output Channels 16 ch
Digital I/O Compatibility TTL
DI Input Frequency Range 0.01 to 1M Hz
DO Output Frequency Range 0.01 to 1M Hz
DI FIFO Buffer Size 1024 samples
DO FIFO Buffer Size 1024 samples
Isolation No
DI Trigger Source Software, digital
DO Trigger Source Software, digital
DI Data Transfer Polling, DMA
DO Data Transfer Polling, DMA
Digital I/O 16 DI, 16 DO
Timer/Counter Channels 4 ch
Timer/Counter Resolution 32 bit
Counter Compatibility TTL
Internal Clock 33M Hz
External Clock Maximum 8M Hz
Maximum Output Frequency Internal Clock 16.5M Hz
Maximum Output Frequency External Clock 32M Hz
Encoder Channels 2 ch
Encoder Type CW/CCW, x1 AB, x2 AB, x4 AB phase encoder
Connector 68-pin SCSI-type female
Dimensions 181.05 x 19.4 x 126.72 mm
Form Factor PCIe card
Dimensions 181.05 x 19.4 x 126.72 mm
Operating Temperature 0 to 60 °C
Storage Temperature -40 to 85 °C
Operating Temperature 0°C to 60°C
Calibration Fully automated calibration
Board ID Switch Yes
Pattern Match Function Yes
Counter/Timer 4 x 32-bit
FIFO AI 4K samples; AO 4K shared; DI 1024 samples; DO 1024 samples
DMA Yes
Key Features PCI Express x1;16-bit AI/AO;32 SE or 16 DI AI channels;1 MS/s mux AI;4 MS/s single-channel;4-ch simultaneous mode;4 AO;16 DI;16 DO;4 timer/counters;2 encoder channels;DMA
Operating System Support Windows 7/10/11 x86/x64 or later, Linux
Driver and SDK LabVIEW, C/C++, Visual Basic, Visual Studio.NET
Software Utility ACE, Soft-Front Panel
Resolution 16-bit
Sampling Rate 1 MS/s scanning; 4 MS/s single-channel; 4-ch simultaneous mode
