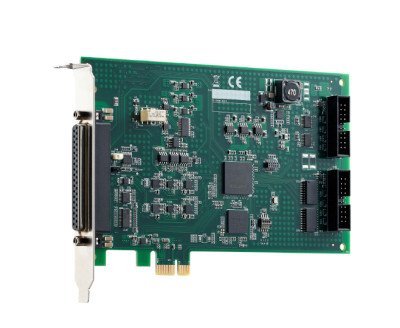

PCIe-9121

PCIe-9121 - Adlink Technology Inc.

16-ch, 14-bit, 800 kS/s

PC Add-On Cards are specialized cards that can be added to a computer to expand its capabilities. A/D Cards are used to convert analog signals into digital signals. A/D Cards Intelligent are designed to provide higher performance and accuracy. A/D Intelligent PCIe is a type of A/D Card that is designed to fit into a PCIe slot and provide high-speed data acquisition and conversion..

Description

  • PCIe bus AD card 2MS/s 14bit 4 channel simultaneous sampling
  • auto calibration/±10/5/2,5/1,25V 0-10/5/2,5/1,25V
  • 16k FIFO
  • 2*DA 12bit ±10V/0-10V 1k FIFO 1MS/s
  • 24 DIO 8255 compatible
  • 2*16bit counter
  • trigger: software
  • external analog/digital trigger
  • internal clock 40MHz or external
  • plug and play
  • 1*VHDCI 68pin connector
  • 173*108mm
  • Adlink

Details

  • Features: 4*simultaneous sampling
  • Width: 173 mm
  • Height: 108 mm
  • Weight: 1.15kg
  • Manufacturer: Adlink Technology Inc.
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
