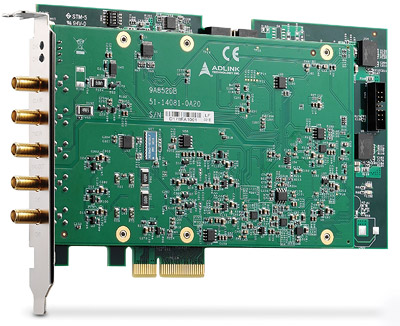

PCIe-9852

PCIe*4 AD Card 200MS/s 14bit 2*Chan 1GB onboard

Analog-to-digital converter PCI Express cards with high speed (high sampling rate).
4.450,00 €
incl. VAT 5.295,50 €

Description

  • PCIe 4*lanes AD card 200MS/s 14bit ±0,2/2/10V 2*SE channel
  • input impedance 50 Ohm and DC couple
  • data transfer rate continuously at a sustained 400MB/s
  • -3db bandwidth 100MHz
  • onboard memory 1GB RAM
  • trigger: software and external digital trigger
  • sample clock source: internal on board timebase frequency 200MHz
  • plug and play
  • 5*SMA signal for analog in external trigger and trigger out
  • 168*107mm
  • ADLink

Details

  • Width: 168 mm
  • Height: 107 mm
  • Weight: 1.5kg
  • Manufacturer: Adlink
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Data Sheets

Manuals

Accessories

  • WD-DASK
    Windows driver API for PCI/PXI-9820 and PXI-98xx Digitizer
  • SMB-BNC-1m
    SMB to BNC cable 1m (PXI-9816/26/46)
