PCIe-PoE550X - Neousys

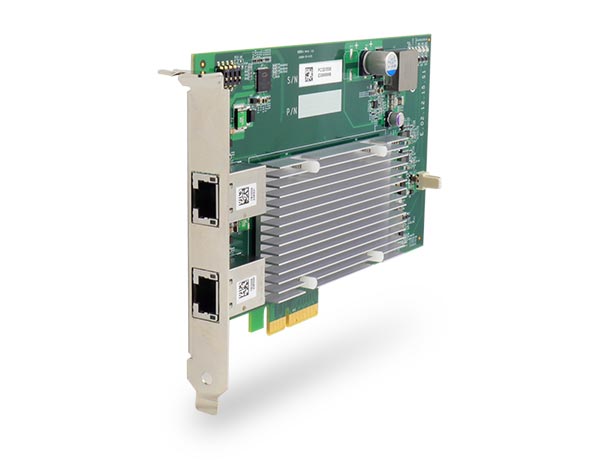

PCIe 2-Port 10GbE Network Adapter with IEEE 802.3at PoE+

PC Add-On Video Capture & Frame Grabber Cards .


  • Gen3 PCI Express x4 card with 2x 10 GbE ports and PoE+ capability
  • 2* Intel X550-AT2 10GbE ports
  • Supports 802.3at PoE+ with CAT 6a cable
  • Supports NBASE-T and 1000BASE-T with CAT-5/5e cable
  • Compliant with IEEE 802.3at to deliver 25.5W each port
  • Supports 15.5KB jumbo frame & NIC teaming & IEEE 1588
  • Power requirement 11.5W max for 2x 10GbE operation & 51W max for PoE+ devices
  • Operating temperature 0°~60°C with air flow
  • 168 x 111.2 mm
  • Neousys


  • Width: 168 mm
  • Height: 111.2 mm
  • Net weight: 0.4 kg
  • Weight: 0.8kg
  • Manufacturer: Neousys
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
