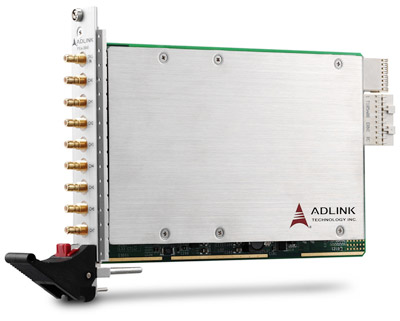

PXIe-9848 - Adlink Technology Inc.
PXIe*4 AD Card 100MS/s 14bit 8*Chan 512MB onboard
PC Add-On Cards, A/D Cards, and A/D High Speed PXI/PXIe are the perfect solutions for your data acquisition needs. Our A/D Cards offer high speed conversion with up to 16-bit resolution and up to 250 MS/s sampling rate, making them ideal for applications that require fast data acquisition. Our A/D High Speed PXI/PXIe cards offer even higher speed and resolution, with up to 32-bit resolution and up to 5 GS/s sampling rate. With these cards, you can easily expand your PC's capabilities and get the most out of your data acquisition system..
9.760,00 €
incl. VAT 11.614,40 €
incl. VAT 11.614,40 €
Description
- PXIe 4*lanes AD card 100MS/s 14bit 8*channel
- programmable voltage range ±0,2V or ±2V
- input impedance 50Ohm or 1MOhm
- 512MB onboard storage
- external trigger 5V/3,3V TTL compatible
- 160*100mm
- Adlink
Details
- Width: 160 mm
- Height: 100 mm
- Weight: 1.5kg
- Manufacturer: Adlink Technology Inc.
- Part number: 91-38003-1070
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Accessories
-
WD-DASK
Windows driver API for PCI/PXI-9820 and PXI-98xx Digitizer -
SMB-BNC-1m
SMB to BNC cable 1m (PXI-9816/26/46)
