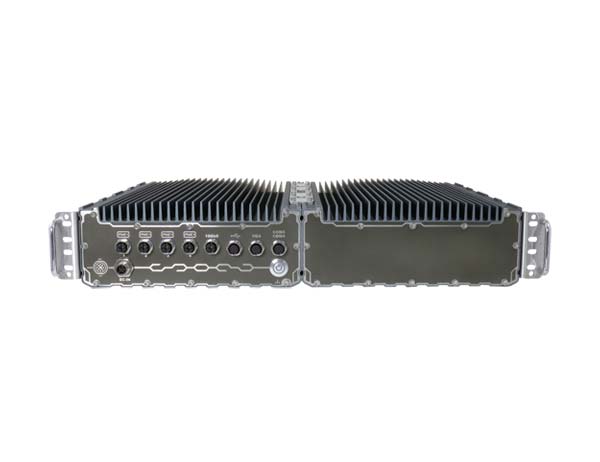

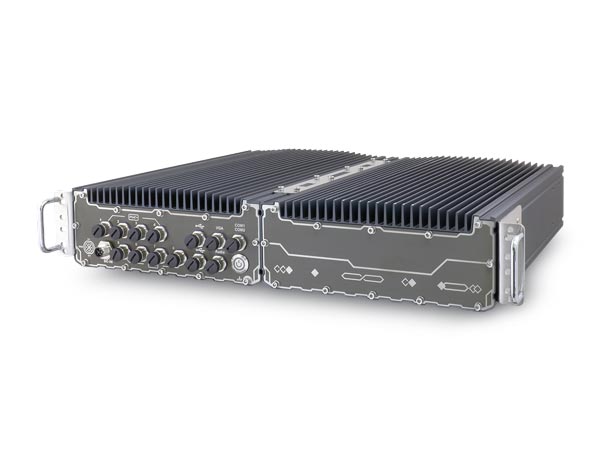

SEMIL-1728GC-ADA
IP67 fanless edge AI computer with RTX 2000 Ada and eight M12 PoE+ ports.
IP67 waterproof and dustproof fanless GPU computer with NVIDIA RTX 2000 Ada, Intel Xeon E or 9th/8th Gen Core CPU support, eight Gigabit PoE+ ports, M12 connectivity, up to 64 GB DDR4 memory, NVMe and SATA storage, 8–48 VDC input, ignition control and rack or wall mounting.
- GPU NVIDIA RTX 2000 Ada
- Gigabit PoE+ Ports 8 ports
- Ingress Protection IP67
- Supported Processor Families Intel Xeon E; 9th/8th Gen Intel Core i7/i5/i3
- Maximum System Memory 64 GB
- Storage Interfaces 2x 2.5-inch SATA with RAID 0/1; 2x mSATA; 1x M.2 2280 PCIe Gen3 x4
- DC Input Range 8–48 VDC
- Dimensions 440 x 310 x 90.5 mm
- Form Factor Fanless 2U 19-inch rack/wall-mount computer
- Connector M12 X-coded Ethernet; M12 A-coded VGA/USB/COM; M12 S-coded DC input
- Dimensions 440 x 310 x 90.5 mm
- Bus Interface 2x full-size mini PCIe; M.2 PCIe Gen3 x4
- Resolution VGA up to 1920 x 1200
- Operating Temperature -40°C to 70°C with 35 W CPU; up to 50°C with specified CPUs at 65 W mode
- Key Features IP67 waterproof and dustproof;NVIDIA RTX 2000 Ada;8x Gigabit PoE+;fanless operation;8–48 VDC input;ignition control;MIL-STD-810G;EN 50155 EMC;M12 connectors
- Accessories PA-280W-ET2, Cblkit-M12
-
semil-1728gc-ada-catalog-3f82b598ba3e.pdf PDF Catalog
- PA-280W-ET2 - 280W AC/DC power adapter 24V/11.67A 16AWG
- Cblkit-M12 - Optional accessory for compatible products
