PRODUCT SUMMARY

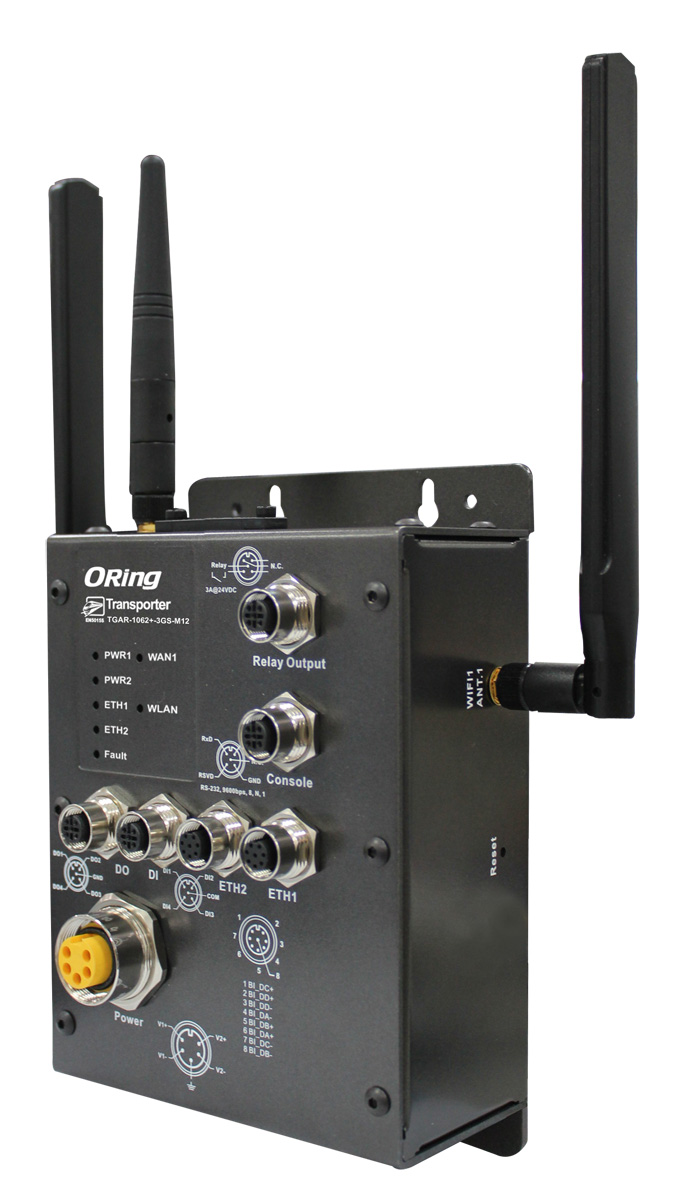

TGAR‑1062+-3GS-M12
Industrial Cellular 3G Router with 802.11 a/b/g/n, Dual 1000TX M12, PoE PD, GPS, EN50155

1. PRODUCT OVERVIEW
• Product Name: TGAR‑1062+-3GS‑M12
• Article/Model Number: TGAR‑1062+-3GS‑M12
• Series: TGAR‑1062/2062/1662+ Industrial Wireless Router Series
• Product Type: Industrial cellular/WLAN access point router
• Manufacturer: ORing Industrial Networking Corp.
• Target Use: Rolling stock, railway, industrial wireless backhaul, mobile communications
• Connectivity: 3G cellular modem, 802.11 a/b/g/n WLAN, dual Gigabit Ethernet (M12)
• Ruggedization: EN50155 certified, M12 connectors, extended temperature, IP-40 metal enclosure

2. KEY FEATURES
• Dual 10/100/1000Base‑T(X) Ethernet ports in M12 D‑coding with Auto‑MDI/MDIX
• ETH2 supports PoE PD (IEEE 802.3af compliant)
• 3G cellular modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA
• GPS positioning with external SMA antenna
• 2× external reverse‑SMA WLAN antenna connectors (2.4/5 GHz)
• IEEE 802.11 a/b/g/n WLAN up to 300 Mbps
• Supports AP, Client, WDS‑Master modes
• VPN support: OpenVPN, PPTP VPN server/client
• WAN modes: Static/Dynamic IP, PPPoE, Cellular dial‑up, Wireless WAN client
• Daisy‑chain Ethernet switching mode
• DI/DO: 4× digital inputs + 4× digital outputs (M12, D‑coding)
• Redundant power: 12–48 VDC on M23 connector
• Built‑in event warning (Syslog, Email, SNMP trap, relay output)
• RS‑232 console via M12 (115200bps, 8‑N‑1)
• Railway standard compliance: EN50155, EN61373
• Surge, ESD, EFT protection on power and Ethernet
• Alarm relay output rated 1A@24VDC
• Web‑based management via HTTP/HTTPS
• System monitoring: SNMP, traffic statistics, logs, wireless link list

3. TECHNICAL SPECIFICATIONS
Dimensions/Weight:
• 125.6(W) × 65(D) × 196.1(H) mm
• Approx. 985 g (TGAR‑1062+ variant)
Enclosure:
• Metal, IP‑40
Operating/Storage:
• Operating: -25°C to 70°C
• Storage: -40°C to 85°C
• Humidity: 5–95% non‑condensing
Power:
• Dual 12–48 VDC redundant inputs (via M23)
• Power consumption: ~9 W typical
• Overload and reverse polarity protection included
WLAN Radio:
• IEEE 802.11 a/b/g/n, DSSS/OFDM
• Frequencies:
– 2.412–2.462 GHz (FCC), 2.412–2.472 GHz (EU)
– 5.180–5.240 GHz, 5.745–5.825 GHz (FCC)
• Data Rates: up to 300 Mbps (802.11n)
• Tx Power: 12–18 dBm depending on mode
• Rx Sensitivity: down to -82 dBm
Wireless Security: WEP 64/128 bit, WPA/WPA2‑PSK, WPA/WPA2‑Enterprise, 802.1X, TKIP/AES
Ethernet:
• 2× 10/100/1000Base‑T(X), M12, 8‑pin A‑coding
Digital I/O:
• 4× DI, 4× DO, M12, isolated
Relay Output:
• 1× relay (1A@24VDC), M12 A‑coding
Console:
• RS‑232 (M12), 115200/8/N/1
Cellular:
• GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA
• Supported bands (3G model):
– GSM 850/900/1800/1900
– WCDMA/HSDPA/HSUPA 850/900/1900/2100
GPS:
• Frequency 1575.42 MHz
• SMA antenna connector

4. FUNCTIONALITY
• Works as industrial router providing routing, NAT, firewall, VPN tunneling, AP/Client WLAN, and cellular backhaul
• Modes: WAN (Dynamic/Static IP, PPPoE), Cellular modem dial‑up, Wireless WAN client
• WLAN operating modes: Access Point, Wireless Client, WDS‑Master
• Advanced wireless configuration including roaming, DTIM, RTS/Fragment thresholds, channel control
• Industrial automation integration via DI/DO and relay output
• GPS reporting via unicast/multicast to configured host
• Event management and alarms transmitted via Syslog, SNMP, email, and relay
• Remote management: SNMP, HTTPS, SSH-like secure management (via VPN tunnels)
• Supports VLAN‑like behavior via IP/DHCP configurations
• Daisy‑chain Ethernet reduces need for external switches in railway car installations
• DHCP server, DHCP forwarder, static DHCP mappings
• NAT tools including virtual servers, DMZ, UPnP, NAT‑PMP
• Firewall: IP filter, MAC filter, port management
• VPN: OpenVPN (TCP/UDP, LZO compression, certificate management), PPTP server/client
• VRRP for router redundancy (master/backup failover)
• Routing: static routing, RIP v1/v2 dynamic routing
• Full system log, diagnostics, ping tests, live traffic statistics
• Supports firmware upgrades and configuration backup/restore

5. COMPONENTS & ACCESSORIES
Included:
• TGAR‑1062+-3GS-M12 Router
• Antennas:
– 2× WLAN antennas (reverse‑SMA)
– 1× Cellular antenna (SMA)
– 1× GPS antenna (SMA)
• Wall‑mounting kit
• Allen key
• Quick Installation Guide (QIG)
• CD (drivers/manuals)
Connectors:
• M12 Ethernet (8‑pin A‑coding)
• M12 DI/DO (5‑pin A‑coding)
• M12 Relay (5‑pin A‑coding)
• M12 Console (5‑pin A‑coding)
• M23 power connector
• SMA/Reverse‑SMA for antennas

6. INSTALLATION & SETUP
Mounting:
• Wall‑mount using four screws via keyhole slots
• Leave 2 mm gap for locking slide-in mounting
Powering:
• Use M23 connector; tighten ring for secure lock
• Dual redundant power acceptable
Network Setup:
• Default IP: 192.168.10.1
• Default login: admin/admin
• Setup via web browser (IE 6.0 or later recommended)
Safety Notes:
• Avoid circuit overload, ensure adequate airflow, avoid hazardous mechanical loading
• Grounding required per EMI best practices
• Separate power and signal wiring paths per installation guidelines
Wiring:
• Ethernet cables (CAT3–CAT5e UTP) for 1000Base‑T(X), max 100 m
• DI/DO, power, relay must use correct M12/M23 connectors
Reset:
• Press reset button until power LED flashes to restore factory defaults

7. PERFORMANCE & CAPABILITIES
• WLAN throughput: up to 300 Mbps
• Cellular performance: dependent on 3G network (HSDPA/HSUPA speeds)
• Fast failover modes via VRRP or WAN backup to cellular
• Redundant power failover <10ms
• High EMI resilience (EN61000‑4‑2/3/4/5/6)
• Suitable for high‑vibration railway applications (EN61373)
• Environmental tolerance supports mobile/vehicle installation challenges
• PoE PD on ETH2 enables powering without dedicated DC feed
• Efficient for remote rolling stock applications such as passenger Wi‑Fi, telemetry, CCTV backhaul

8. STANDARDS & COMPLIANCE
Railway:
• EN50155 (EN50121‑3‑2, EN55011, EN50121‑4)
• EN61373 (shock/vibration)
Electrical/EMC:
• FCC Part 15 Class A
• CISPR EN55022 Class A
• EN61000‑4‑2/3/4/5/6/8/11
Safety:
• EN60950‑1
Environmental:
• IEC60068‑2-1 (cooling), -2 (dry heat), -27 (shock), -32 (free fall), -6 (vibration)

9. ADDITIONAL INFORMATION
Warranty:
• 5 years standard ORing industrial warranty
Support:
• Technical support email: support@oring-networking.com
• Firmware upgrades available on ORing website
Maintenance:
• Periodic inspection of connectors and antennas recommended
• Configuration backups encouraged before firmware updates
Software Updates:
• Supports configuration save/restore, TFTP restore
• Regular firmware updates improve reliability and feature set

---
