Comprehensive Product Summary: ORing TGAR-1062-4G-M12 Industrial Cellular Router
### 1. Product Overview

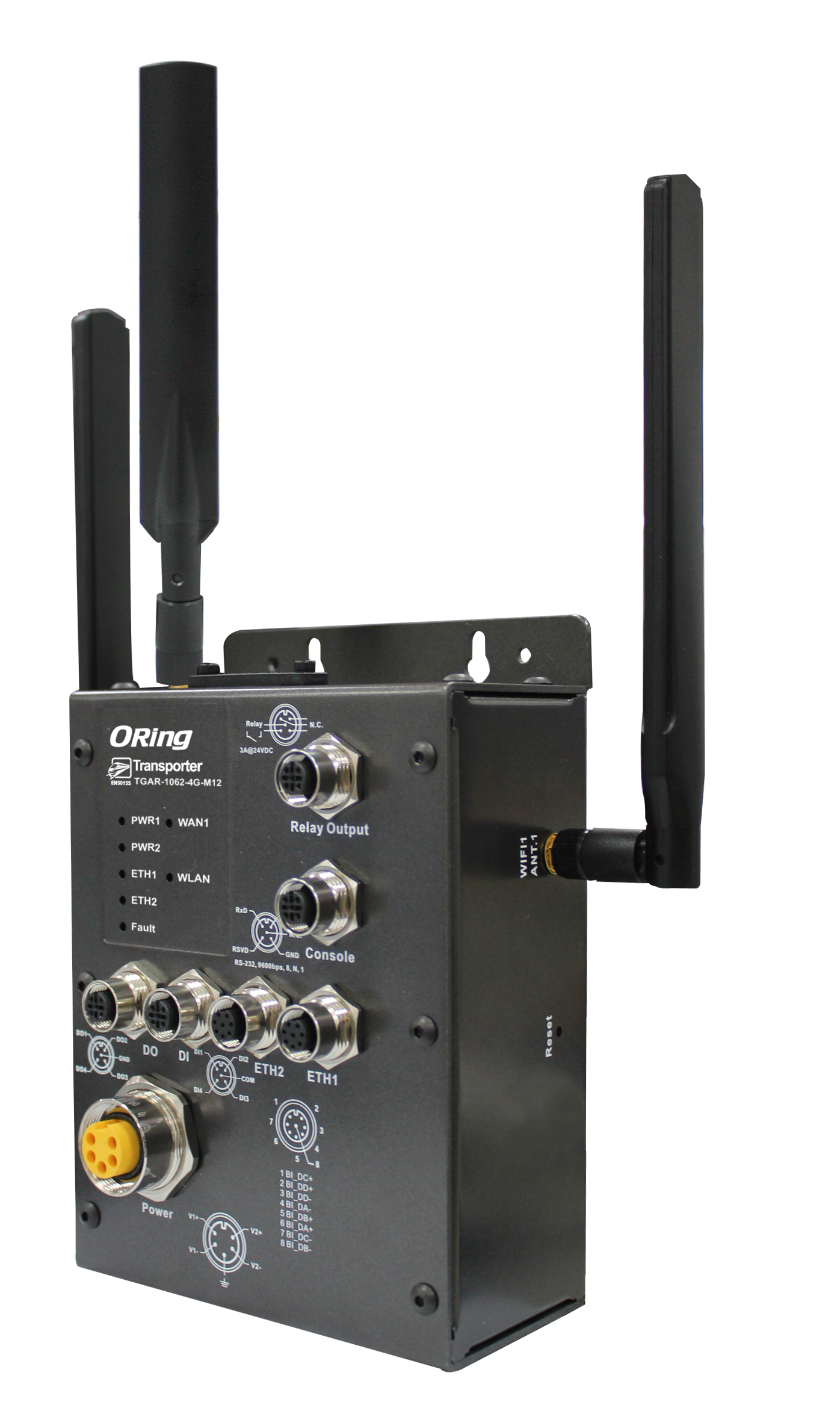

Product Name: TGAR-1062-4G-M12
Article Number: TGAR-1062-4G-M12
Series: TGAR-1062/2062/1662 Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Cellular 4G Router with IEEE 802.11a/b/g/n Wi-Fi and dual Gigabit Ethernet M12 ports
Compliance: EN50155 Railway Standard
The ORing TGAR-1062-4G-M12 is a ruggedized industrial-grade cellular router designed for railway and transportation applications. It integrates 4G LTE cellular connectivity, dual-band Wi-Fi (2.4GHz/5GHz), and dual 10/100/1000Base-T(X) Ethernet ports with M12 connectors. The device is engineered to meet EN50155 standards for rolling stock environments, ensuring high reliability under vibration, shock, and temperature extremes. It supports redundant power inputs, PoE functionality, and advanced network management features including VPN, NAT, firewall, and event notification systems.
### 2. Key Features
- Industrial 4G LTE Router: Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE cellular standards for global connectivity.
- Wi-Fi Access Point: IEEE 802.11a/b/g/n compliant, dual-band operation (2.4GHz and 5GHz) with up to 300 Mbps throughput.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) M12 D-coded ports with auto MDI/MDIX and PoE (IEEE 802.3af) support on ETH2.
- EN50155 Certified: Fully compliant with railway system standards for vibration, shock, and temperature resilience.
- Redundant Power Inputs: Dual 12–48 VDC inputs via M23 connector with overload and reverse polarity protection.
- Rugged Design: IP40-rated metal enclosure, wall-mountable, designed for harsh industrial environments.
- Advanced Security: WPA/WPA2, 802.1X authentication, TKIP/AES encryption, VPN (OpenVPN, PPTP), and firewall protection.
- Event Notification: Supports Syslog, SNMP trap, e-mail alerts, and relay output for fault indication.
- Comprehensive Management: Web-based GUI, HTTPS management, SNMP, and ORing Open-Vision utility compatibility.
- GPS Functionality: Integrated GPS receiver (1575.42 MHz) for location tracking and data reporting.
- Wide Operating Range: Operates from -25°C to +70°C with humidity tolerance of 5–95% non-condensing.
### 3. Technical Specifications
Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in)
Weight: Approx. 968 g
Enclosure: IP40-rated metal housing
Mounting: Wall-mount or DIN-rail compatible
Power Supply:
- Dual redundant 12–48 VDC inputs (24 VDC typical) via M23 5-pin connector
- Power consumption: 9.5 W (typical)
- Overload and reverse polarity protection
Ethernet Interface:
- 2 × 10/100/1000Base-T(X) M12 D-coded ports
- Auto MDI/MDIX, PoE PD on ETH2 (IEEE 802.3af compliant)
- Daisy-chain capable for switch port reduction
Wireless LAN:
- IEEE 802.11a/b/g/n compliant
- Frequency bands:
- FCC: 2.412–2.462 GHz, 5.180–5.240 GHz, 5.745–5.825 GHz
- ETSI: 2.412–2.472 GHz, 5.180–5.240 GHz
- Modulation: DSSS, OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Data rates: up to 300 Mbps (802.11n)
- Transmit power:
- 802.11b: 18 dBm ±1.5 dBm
- 802.11g: 15 dBm ±1.5 dBm
- 802.11n HT40: 12 dBm ±1.5 dBm
- Receiver sensitivity:
- 802.11b: -82 dBm @11 Mbps
- 802.11g: -68 dBm @54 Mbps
- 802.11n HT40: -60 dBm @300 Mbps
- Security: WEP (64/128-bit), WPA/WPA2, WPA-PSK, 802.1X, TKIP/AES
Cellular Interface:
- Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE
- Frequency bands:
- US: LTE 700/1700/2100 MHz; UMTS 800/850/1900/2100 MHz; GSM 850/900/1800/1900 MHz
- EU: LTE 800/900/1800/2100/2600 MHz; UMTS 900/2100 MHz; GSM 900/1800/1900 MHz
- Antenna connectors: 1 × SMA female (cellular), 2 × reverse SMA (Wi-Fi), 1 × SMA (GPS)
- SIM slots: 1 × SIM card slot
Digital I/O and Relay:
- 4 × Digital Inputs, 4 × Digital Outputs (M12 5-pin A-coded)
- Relay output: 1A @ 24VDC (M12 A-coded 5-pin)
Console Port:
- RS-232 (M12 5-pin A-coded), 115200 bps, 8N1
Environmental:
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
### 4. Functionality
The TGAR-1062-4G-M12 functions as a multi-interface industrial router combining cellular, Wi-Fi, and Ethernet connectivity. It supports three routing modes:
- Dynamic/Static IP Routing
- PPPoE Authentication
- Cellular Modem Dial-up
The router can operate as an access point, wireless client, or bridge, enabling flexible deployment in transportation networks, remote monitoring, and mobile communication systems. It supports VPN tunneling (OpenVPN, PPTP) for secure remote access and NAT/firewall for network segmentation. The integrated GPS module provides real-time location data for fleet management or asset tracking.
Use Cases:
- Railway and rolling stock communication systems
- Industrial automation and SCADA networks
- Remote monitoring and telemetry
- Mobile broadband access for vehicles
- Redundant WAN connectivity in harsh environments
Compatibility:
- IEEE 802.3af PoE devices
- Standard M12 connectors for industrial Ethernet
- ORing Open-Vision management software
### 5. Components & Accessories
Included Items:
- TGAR-1062-4G-M12 router unit
- Quick Installation Guide (QIG)
- Allen key
- Mounting screws and wall-mount kit
- Power connector (M23 5-pin female)
- Antennas:
- 2 × Wi-Fi reverse SMA antennas
- 1 × 4G LTE SMA antenna
- 1 × GPS SMA antenna
Optional Accessories:
- DIN-rail mounting kit
- External RF cables and high-gain antennas
- PoE injector (IEEE 802.3af compliant)
Connectors:
- M12 D-coded for Ethernet
- M12 A-coded for DI/DO and relay
- M23 for power input
- SMA/Reverse SMA for antennas
### 6. Installation & Setup
Mounting Options:
- Wall-mount: Four keyhole slots for secure attachment
- DIN-rail: Optional mounting bracket
Installation Steps:
1. Position the router vertically on the wall or DIN rail.
2. Secure with four screws, leaving 2 mm clearance for sliding.
3. Connect power via M23 connector (12–48 VDC).
4. Attach Ethernet cables to M12 ports.
5. Connect antennas to SMA connectors.
6. Insert SIM card into the slot on the top panel.
7. Power on and verify LED indicators.
Configuration:
- Default IP: 192.168.10.1
- Default credentials: admin / admin
- Access via web browser (HTTP/HTTPS)
- Supports configuration backup, firmware upgrade, and factory reset via reset button.
LED Indicators:
- PWR1/PWR2: Green (power active)
- ETH1/ETH2: Green (link/activity)
- WLAN: Green (Wi-Fi active)
- WAN: Green (cellular connected)
- Fault: Red (error or disconnection)
### 7. Performance & Capabilities
Network Throughput:
- Wi-Fi: up to 300 Mbps (802.11n)
- Ethernet: 1 Gbps per port
- Cellular: LTE up to 100 Mbps (downlink), 50 Mbps (uplink)
VPN Support:
- OpenVPN (UDP/TCP, port 1194)
- PPTP VPN (server/client mode)
- LZO compression, certificate-based authentication
Firewall & NAT:
- IP and MAC filtering
- Virtual server, DMZ, UPnP, NAT-PMP
- DHCP server/relay with static IP mapping
Redundancy & Reliability:
- Dual power inputs for failover
- VRRP protocol for router redundancy
- Recovery time <10 ms in redundant mode
Event & Monitoring:
- Syslog, SNMP trap, e-mail alerts
- Relay output for fault signaling
- GPS data transmission via UDP unicast/multicast
Limitations:
- IP40 enclosure (not waterproof)
- Indoor or sheltered outdoor use recommended
- Requires external antennas for optimal cellular/Wi-Fi performance
### 8. Standards & Compliance
Electrical & Safety:
- EN60950-1 (Safety)
- EN61000-4-2/3/4/5/6/8/11 (EMC Immunity)
- FCC Part 15 Class A, CISPR EN55022 Class A
Railway & Industrial:
- EN50155 (Railway applications – Electronic equipment)
- EN50121-3-2, EN50121-4 (Railway EMC)
- EN61373 (Shock and vibration)
- IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60068-2-32 (Free fall)
Environmental:
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
Wireless Compliance:
- FCC (US) and ETSI (EU) frequency regulations
- Industry Canada ICES-003 Class B
- RF exposure compliant (minimum 20 cm separation)
### 9. Additional Information
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Support:
- Technical support: support@oring-networking.com
- Sales inquiries: sales@oring-networking.com
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Maintenance:
- Periodic firmware updates available via ORing website.
- Configuration backup and restore supported via web interface.
- Replace antennas or power cables only with ORing-approved accessories.
Firmware & Software:
- Web-based management (HTTP/HTTPS)
- SNMP v1/v2c agent
- ORing Open-Vision centralized management utility
- Supports firmware upgrade via web or TFTP
Safety Notes:
- Ensure proper grounding to minimize EMI.
- Maintain adequate airflow and avoid mechanical stress.
- Disconnect power before wiring or maintenance.
### Summary
The ORing TGAR-1062-4G-M12 is a robust, railway-certified industrial router that combines 4G LTE cellular connectivity, dual-band Wi-Fi, and dual Gigabit Ethernet M12 interfaces in a compact IP40 enclosure. Designed for mission-critical applications in transportation, automation, and remote monitoring, it offers redundant power, PoE support, VPN security, and comprehensive management capabilities. With EN50155 compliance and a wide operating temperature range, it ensures reliable performance in demanding environments such as rolling stock, vehicles, and industrial control systems.
Its combination of cellular, wireless, and wired networking, along with advanced redundancy and security features, makes it a versatile solution for industrial IoT and mobile communication infrastructures.
### 1. Product Overview
Product Name: TGAR-1062-4G-M12
Article Number: TGAR-1062-4G-M12
Series: TGAR-1062/2062/1662 Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Cellular 4G Router with IEEE 802.11a/b/g/n Wi-Fi and dual Gigabit Ethernet M12 ports
Compliance: EN50155 Railway Standard
The ORing TGAR-1062-4G-M12 is a ruggedized industrial-grade cellular router designed for railway and transportation applications. It integrates 4G LTE cellular connectivity, dual-band Wi-Fi (2.4GHz/5GHz), and dual 10/100/1000Base-T(X) Ethernet ports with M12 connectors. The device is engineered to meet EN50155 standards for rolling stock environments, ensuring high reliability under vibration, shock, and temperature extremes. It supports redundant power inputs, PoE functionality, and advanced network management features including VPN, NAT, firewall, and event notification systems.
### 2. Key Features
- Industrial 4G LTE Router: Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE cellular standards for global connectivity.
- Wi-Fi Access Point: IEEE 802.11a/b/g/n compliant, dual-band operation (2.4GHz and 5GHz) with up to 300 Mbps throughput.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) M12 D-coded ports with auto MDI/MDIX and PoE (IEEE 802.3af) support on ETH2.
- EN50155 Certified: Fully compliant with railway system standards for vibration, shock, and temperature resilience.
- Redundant Power Inputs: Dual 12–48 VDC inputs via M23 connector with overload and reverse polarity protection.
- Rugged Design: IP40-rated metal enclosure, wall-mountable, designed for harsh industrial environments.
- Advanced Security: WPA/WPA2, 802.1X authentication, TKIP/AES encryption, VPN (OpenVPN, PPTP), and firewall protection.
- Event Notification: Supports Syslog, SNMP trap, e-mail alerts, and relay output for fault indication.
- Comprehensive Management: Web-based GUI, HTTPS management, SNMP, and ORing Open-Vision utility compatibility.
- GPS Functionality: Integrated GPS receiver (1575.42 MHz) for location tracking and data reporting.
- Wide Operating Range: Operates from -25°C to +70°C with humidity tolerance of 5–95% non-condensing.
### 3. Technical Specifications
Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in)
Weight: Approx. 968 g
Enclosure: IP40-rated metal housing
Mounting: Wall-mount or DIN-rail compatible
Power Supply:
- Dual redundant 12–48 VDC inputs (24 VDC typical) via M23 5-pin connector
- Power consumption: 9.5 W (typical)
- Overload and reverse polarity protection
Ethernet Interface:
- 2 × 10/100/1000Base-T(X) M12 D-coded ports
- Auto MDI/MDIX, PoE PD on ETH2 (IEEE 802.3af compliant)
- Daisy-chain capable for switch port reduction
Wireless LAN:
- IEEE 802.11a/b/g/n compliant
- Frequency bands:
- FCC: 2.412–2.462 GHz, 5.180–5.240 GHz, 5.745–5.825 GHz
- ETSI: 2.412–2.472 GHz, 5.180–5.240 GHz
- Modulation: DSSS, OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Data rates: up to 300 Mbps (802.11n)
- Transmit power:
- 802.11b: 18 dBm ±1.5 dBm
- 802.11g: 15 dBm ±1.5 dBm
- 802.11n HT40: 12 dBm ±1.5 dBm
- Receiver sensitivity:
- 802.11b: -82 dBm @11 Mbps
- 802.11g: -68 dBm @54 Mbps
- 802.11n HT40: -60 dBm @300 Mbps
- Security: WEP (64/128-bit), WPA/WPA2, WPA-PSK, 802.1X, TKIP/AES
Cellular Interface:
- Standards: GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/LTE
- Frequency bands:
- US: LTE 700/1700/2100 MHz; UMTS 800/850/1900/2100 MHz; GSM 850/900/1800/1900 MHz
- EU: LTE 800/900/1800/2100/2600 MHz; UMTS 900/2100 MHz; GSM 900/1800/1900 MHz
- Antenna connectors: 1 × SMA female (cellular), 2 × reverse SMA (Wi-Fi), 1 × SMA (GPS)
- SIM slots: 1 × SIM card slot
Digital I/O and Relay:
- 4 × Digital Inputs, 4 × Digital Outputs (M12 5-pin A-coded)
- Relay output: 1A @ 24VDC (M12 A-coded 5-pin)
Console Port:
- RS-232 (M12 5-pin A-coded), 115200 bps, 8N1
Environmental:
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
### 4. Functionality
The TGAR-1062-4G-M12 functions as a multi-interface industrial router combining cellular, Wi-Fi, and Ethernet connectivity. It supports three routing modes:
- Dynamic/Static IP Routing
- PPPoE Authentication
- Cellular Modem Dial-up
The router can operate as an access point, wireless client, or bridge, enabling flexible deployment in transportation networks, remote monitoring, and mobile communication systems. It supports VPN tunneling (OpenVPN, PPTP) for secure remote access and NAT/firewall for network segmentation. The integrated GPS module provides real-time location data for fleet management or asset tracking.
Use Cases:
- Railway and rolling stock communication systems
- Industrial automation and SCADA networks
- Remote monitoring and telemetry
- Mobile broadband access for vehicles
- Redundant WAN connectivity in harsh environments
Compatibility:
- IEEE 802.3af PoE devices
- Standard M12 connectors for industrial Ethernet
- ORing Open-Vision management software
### 5. Components & Accessories
Included Items:
- TGAR-1062-4G-M12 router unit
- Quick Installation Guide (QIG)
- Allen key
- Mounting screws and wall-mount kit
- Power connector (M23 5-pin female)
- Antennas:
- 2 × Wi-Fi reverse SMA antennas
- 1 × 4G LTE SMA antenna
- 1 × GPS SMA antenna
Optional Accessories:
- DIN-rail mounting kit
- External RF cables and high-gain antennas
- PoE injector (IEEE 802.3af compliant)
Connectors:
- M12 D-coded for Ethernet
- M12 A-coded for DI/DO and relay
- M23 for power input
- SMA/Reverse SMA for antennas
### 6. Installation & Setup
Mounting Options:
- Wall-mount: Four keyhole slots for secure attachment
- DIN-rail: Optional mounting bracket
Installation Steps:
1. Position the router vertically on the wall or DIN rail.
2. Secure with four screws, leaving 2 mm clearance for sliding.
3. Connect power via M23 connector (12–48 VDC).
4. Attach Ethernet cables to M12 ports.
5. Connect antennas to SMA connectors.
6. Insert SIM card into the slot on the top panel.
7. Power on and verify LED indicators.
Configuration:
- Default IP: 192.168.10.1
- Default credentials: admin / admin
- Access via web browser (HTTP/HTTPS)
- Supports configuration backup, firmware upgrade, and factory reset via reset button.
LED Indicators:
- PWR1/PWR2: Green (power active)
- ETH1/ETH2: Green (link/activity)
- WLAN: Green (Wi-Fi active)
- WAN: Green (cellular connected)
- Fault: Red (error or disconnection)
### 7. Performance & Capabilities
Network Throughput:
- Wi-Fi: up to 300 Mbps (802.11n)
- Ethernet: 1 Gbps per port
- Cellular: LTE up to 100 Mbps (downlink), 50 Mbps (uplink)
VPN Support:
- OpenVPN (UDP/TCP, port 1194)
- PPTP VPN (server/client mode)
- LZO compression, certificate-based authentication
Firewall & NAT:
- IP and MAC filtering
- Virtual server, DMZ, UPnP, NAT-PMP
- DHCP server/relay with static IP mapping
Redundancy & Reliability:
- Dual power inputs for failover
- VRRP protocol for router redundancy
- Recovery time <10 ms in redundant mode
Event & Monitoring:
- Syslog, SNMP trap, e-mail alerts
- Relay output for fault signaling
- GPS data transmission via UDP unicast/multicast
Limitations:
- IP40 enclosure (not waterproof)
- Indoor or sheltered outdoor use recommended
- Requires external antennas for optimal cellular/Wi-Fi performance
### 8. Standards & Compliance
Electrical & Safety:
- EN60950-1 (Safety)
- EN61000-4-2/3/4/5/6/8/11 (EMC Immunity)
- FCC Part 15 Class A, CISPR EN55022 Class A
Railway & Industrial:
- EN50155 (Railway applications – Electronic equipment)
- EN50121-3-2, EN50121-4 (Railway EMC)
- EN61373 (Shock and vibration)
- IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60068-2-32 (Free fall)
Environmental:
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
Wireless Compliance:
- FCC (US) and ETSI (EU) frequency regulations
- Industry Canada ICES-003 Class B
- RF exposure compliant (minimum 20 cm separation)
### 9. Additional Information
Warranty: 5 years limited warranty covering defects in materials and workmanship.
Support:
- Technical support: support@oring-networking.com
- Sales inquiries: sales@oring-networking.com
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Maintenance:
- Periodic firmware updates available via ORing website.
- Configuration backup and restore supported via web interface.
- Replace antennas or power cables only with ORing-approved accessories.
Firmware & Software:
- Web-based management (HTTP/HTTPS)
- SNMP v1/v2c agent
- ORing Open-Vision centralized management utility
- Supports firmware upgrade via web or TFTP
Safety Notes:
- Ensure proper grounding to minimize EMI.
- Maintain adequate airflow and avoid mechanical stress.
- Disconnect power before wiring or maintenance.
### Summary
The ORing TGAR-1062-4G-M12 is a robust, railway-certified industrial router that combines 4G LTE cellular connectivity, dual-band Wi-Fi, and dual Gigabit Ethernet M12 interfaces in a compact IP40 enclosure. Designed for mission-critical applications in transportation, automation, and remote monitoring, it offers redundant power, PoE support, VPN security, and comprehensive management capabilities. With EN50155 compliance and a wide operating temperature range, it ensures reliable performance in demanding environments such as rolling stock, vehicles, and industrial control systems.
Its combination of cellular, wireless, and wired networking, along with advanced redundancy and security features, makes it a versatile solution for industrial IoT and mobile communication infrastructures.
-
DataSheet_TGAR-1062+-4GS-M12_v1.1.pdf
PDF Catalog
-
TGAR+GPS series QIG_1.0.pdf
Manual
No accessories available.
