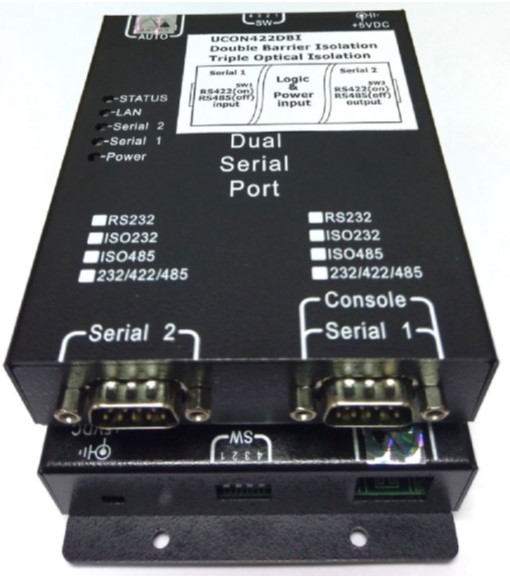

UCON422DBI - Rayon
RS-422 / RS-485 to RS-422 / RS-485 double barrier Isolator
This product is a collection of PC add-on cards, communication cards, and converters that provide reliable serial data communication. The cards include RS232, RS485, IEEE, and USB cards, as well as converters for RS232, RS485, RS422, TTY20mA, and Serial Data Logger applications. These cards and converters are designed for reliable, high speed data communication and data logging, making them ideal for industrial, commercial, and medical applications..
66,00 €
incl. VAT 78,54 €
incl. VAT 78,54 €
Description
- 1* RS-422 / RS-485 input to 1* RS-422 / RS-485 output
- input to output double barrier isolation
- RS-422 to RS-422 Repeater or RS-485 to RS-485 Bridge or RS-422 to RS-485 Converter
- data transmission indicated by LEDs
- easy to set as full-duplex RS-422 or half-duplex RS-485 interface via DIP switch
- 2* male DB9 connector
- power requirement 5VDC / typical 300mA
- operating temperature 0°C to 55°C
- 92*118*27mm
- Rayon
Details
- Width: 84 mm
- Height: 150 mm
- Depth: 25 mm
- Weight: 1.9kg
- Form factor: Box
- Manufacturer: Rayon
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
