ULOG301-I - Rayon

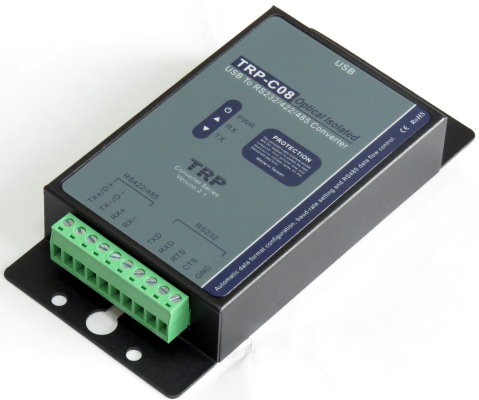

USB Monitor Box 1*RS232/422/485 to Isolated 1*RS485/422

This product is a set of PC Add-On Cards that provide communication with a variety of devices. It includes RS232, RS485, IEEE, Converter USB, RS232, RS485, RS422, TTY20mA, and USB RS232 Converter. These cards allow for easy communication between PCs and devices with different communication protocols. They are ideal for industrial applications and provide reliable and secure communication..

Description

  • 2 monitored port via USB 2.0 with 1*RS232/422/485 to 1*RS422/485 isolated external monitor module in metal case
  • for monitor box or monitor or backup in one module
  • MOS chip MCS7840
  • FIFO 512Byte per serial port
  • connector: male DB9 (RS232side) and plug-in screw terminal block (RS485 side) and USB B-type connector
  • LED control per channel
  • power requirement 200mA USB bus powered
  • 150*84*25mm
  • Rayon

Details

  • Width: 92 mm
  • Height: 118 mm
  • Depth: 27 mm
  • Manufacturer: Rayon
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000

Data Sheets

Manuals

Downloads

Accessories

  • R804S
    Cable DB62m to 8*DB9m 0,30m
  • TB485
    DB9 Female to RS485 terminal screw block kit
