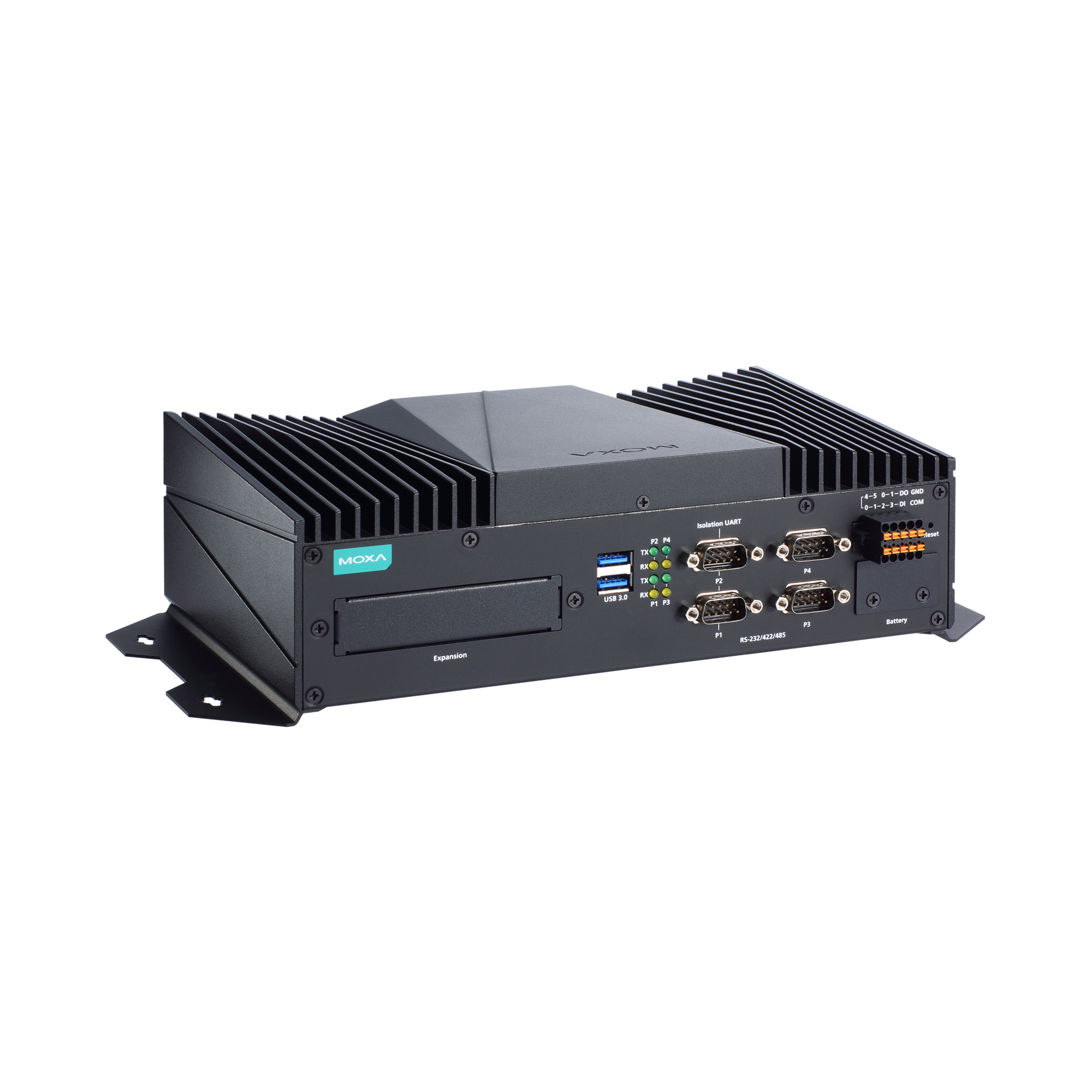

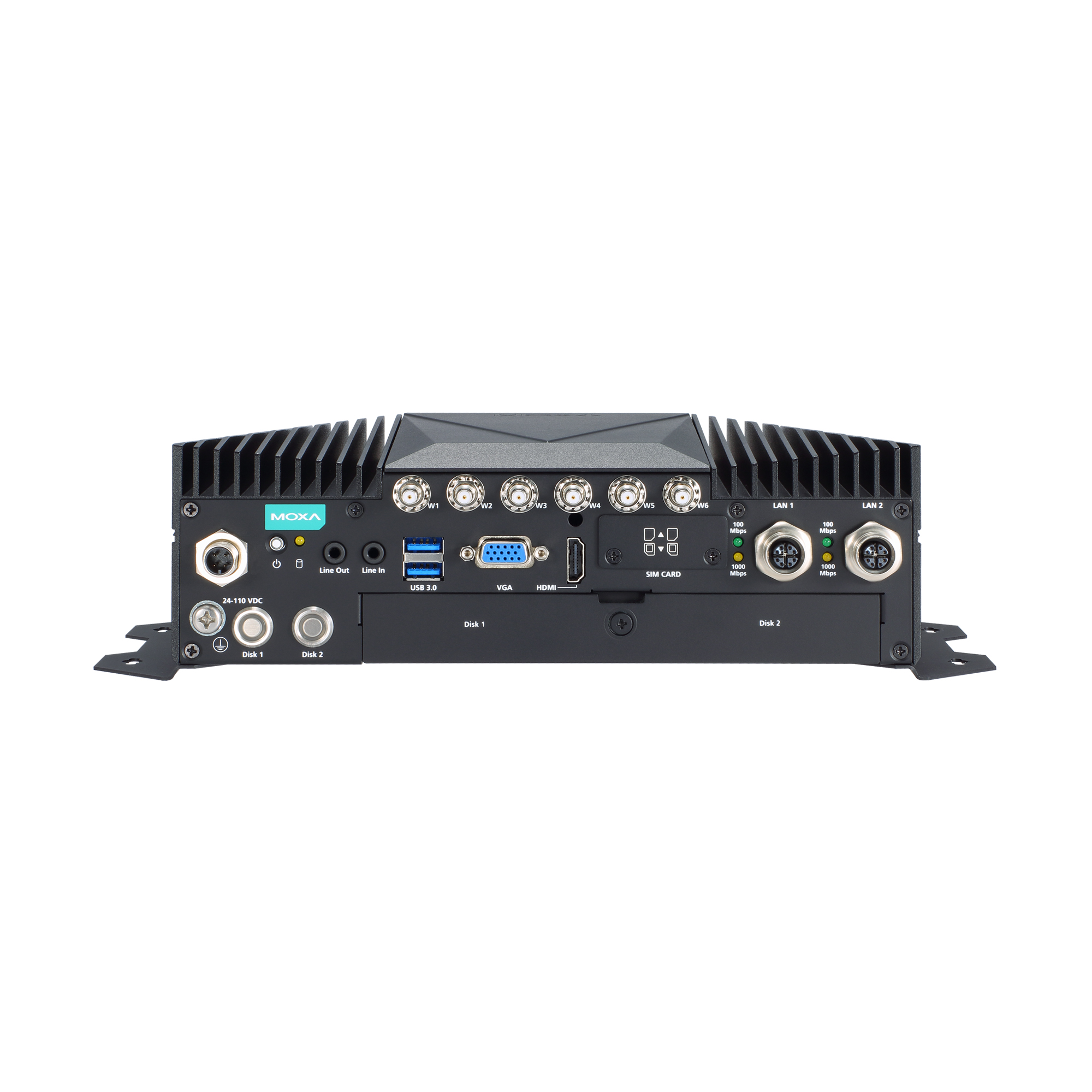

Comprehensive Product Summary: Moxa V2406C Series Intel® 7th Gen Core™ Railway Computer
### 1. Product Overview
Product Name: V2406C Series
Model Variants: V2406C-KL1-T, V2406C-KL3-T, V2406C-KL5-T, V2406C-KL7-T, V2406C-KL1-CT-T, V2406C-KL7-CT-T
Series: V2406 Series Embedded Railway Computers
Article Number: V2406C Series
Manufacturer: Moxa Inc.
Product Type: Intel® 7th Generation Core™ CPU-based embedded railway computer designed for rolling stock and wayside applications.
Primary Function: High-performance network video recorder and computing platform for railway systems, supporting dual displays, wide temperature operation, and EN 50155 compliance.
### 2. Key Features
- High-Performance Processing:
Equipped with Intel® 7th Gen Core™ i7/i5/i3 or Intel® Celeron® 3965U processors, offering up to 32 GB DDR4 memory for demanding onboard computing and video recording tasks.
- Dual Hot-Swappable Storage:
Two 2.5-inch SATA HDD/SSD trays support hot swapping for easy maintenance and storage expansion.
- Display Capabilities:
Supports dual independent displays via VGA and HDMI interfaces, with HDMI supporting 4K resolution output.
- Robust Connectivity:
Two M12 X-coded Gigabit Ethernet ports ensure reliable, vibration-resistant network connections.
Four RS-232/422/485 serial ports (software selectable), six digital inputs, two digital outputs, and four USB 3.0 ports provide extensive I/O flexibility.
- Wireless Expansion:
Two mini PCIe slots and four SIM card slots enable redundant LTE/Wi-Fi connectivity for train-to-ground (T2G) communication.
- Rugged Design:
Aluminum housing with IP20 rating, conformal-coated PCB (optional), and compliance with IEC 61373 for shock and vibration resistance.
- Wide Temperature Range:
Operational temperature from -40°C to +70°C, suitable for harsh railway environments.
- Power Isolation and Flexibility:
Wide-range 24 to 110 VDC power input via M12 A-coded connector with isolation protection.
- Standards Compliance:
Fully compliant with EN 50155:2017, EN 50121-4, EN 50121-3-2, and EN 45545-2 fire protection standards.
### 3. Technical Specifications
Processor Options:
- V2406C-KL1-T: Intel® Celeron® 3965U (2M Cache, 2.2 GHz)
- V2406C-KL3-T: Intel® Core™ i3-7100U (3M Cache, 2.4 GHz)
- V2406C-KL5-T: Intel® Core™ i5-7300U (3M Cache, 2.6 GHz)
- V2406C-KL7-T: Intel® Core™ i7-7600U (4M Cache, 2.8 GHz)
Memory:
- 2 x DDR4 SODIMM slots, up to 32 GB total capacity.
Storage:
- 2 x 2.5-inch SATA HDD/SSD hot-swappable trays
- 1 x internal mSATA slot
Graphics:
- Integrated Intel® HD Graphics 620
- VGA (15-pin D-sub, female)
- HDMI (Type A, 4K support)
Networking:
- 2 x 10/100/1000 Mbps M12 X-coded Ethernet ports (auto-sensing)
Serial Communication:
- 4 x RS-232/422/485 ports (DB9 male, software selectable)
- Baud rate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, XON/XOFF, ADDC® for RS-485
- Parity: None, Even, Odd, Space, Mark
- Stop bits: 1, 1.5, 2
Digital I/O:
- 6 x Digital Inputs (3kV isolation, wet/dry contact)
- 2 x Digital Outputs (sink type, 24–30 VDC, 200 mA per channel)
Audio:
- Line-in and Line-out (3.5 mm phone jacks)
USB:
- 4 x USB 3.0 Type-A ports
Power:
- Input Voltage: 24 to 110 VDC
- Connector: M12 A-coded male
- Max Power Consumption: 70 W
Physical Characteristics:
- Housing: Aluminum
- IP Rating: IP20
- Dimensions: 250 × 75 × 150 mm (9.84 × 2.95 × 5.91 in)
- Weight: 2.7 kg (5.95 lb)
- Mounting: Wall mount (standard)
Environmental:
- Operating Temperature: -40 to 70°C
- Storage Temperature: -40 to 85°C
- Humidity: 5–95% RH (non-condensing)
### 4. Functionality
Operation Overview:
The V2406C Series functions as a rugged embedded computer and network video recorder for railway applications. It integrates data acquisition, video recording, and communication functions in a single platform.
Use Cases:
- Rolling stock onboard control and monitoring
- Train-to-ground communication systems
- Wayside data collection and video surveillance
- Industrial automation and transportation control
Compatibility:
- Operating Systems:
- Linux Debian 9 “Stretch”
- Windows 10 IoT Enterprise 2019 LTSC (64-bit)
Wireless Communication:
- 2 x mini PCIe slots for LTE/Wi-Fi modules
- 4 x SIM card slots for redundancy
- Preinstalled QMA cables for reduced RF leakage
Display and Control:
- Dual independent display support for operator panels and diagnostics
- LED indicators for power, LAN, serial, and storage status
### 5. Components & Accessories
Included in Package:
- 1 x V2406C Series computer
- 2 x HDD/SSD trays
- 1 x HDMI cable clamp
- 1 x wall-mounting kit
- 1 x Quick Installation Guide
- 1 x Warranty card
Optional Accessories:
- Power Cords:
- PWC-C7US-2B-183 (US), PWC-C7EU-2B-183 (EU), PWC-C7UK-2B-183 (UK), PWC-C7AU-2B-183 (AU), PWC-C7CN-2B-183 (CN)
- Battery Kit: RTC lithium battery with connector
- Cables:
- CBL-M12(FF5P)/Open-100 (M12 to 5-pin power cable, IP67)
- CBL-M12XMM8PRJ45-BK-100-IP67 (M12 to RJ45 Cat5E Ethernet cable)
- Power Adapter: PWR-24270-DT-S1 (90–264 VAC input, 24 VDC output, 2.5 A)
- Connectors: M12X-8PMM-IP67 (8-pin male X-coded Ethernet connector)
- Wireless Modules:
- V2400-WLAN22-AC (Wi-Fi mini card)
- V2400-LTECat4-NA (Sierra WP7610 LTE Cat 4, North America)
- V2400-LTECat4-EMEA (Sierra WP7607 LTE Cat 4, EMEA)
- Security Module: TPM 2.0 (SLB9665XT2.0)
### 6. Installation & Setup
Mounting:
- Wall-mounting brackets included; requires M3×5L screws (torque 4.5 kgf-cm).
- Install in restricted access areas by qualified personnel only.
Power Connection:
- M12 A-coded connector (24–110 VDC input).
- Grounding required for surge protection.
Storage Installation:
- Two front-accessible hot-swappable trays for 2.5” SATA drives.
- LED indicators show drive activity and presence.
Display Connection:
- VGA and HDMI ports on front panel; use certified HDMI cables for 4K output.
Serial & USB Ports:
- 4 x DB9 serial ports (rear panel)
- 4 x USB 3.0 ports (2 front, 2 rear)
Digital I/O Wiring:
- 10-pin Euroblock terminal for DI/DO connections.
- Supports both wet and dry contact sensors.
Battery Replacement:
- 3V/195 mAh lithium battery accessible from front panel.
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7-7600U dual-core 2.8 GHz CPU
- Memory Bandwidth: DDR4 up to 2133 MHz
- Storage: Dual SATA III interface with hot-swap capability
- Graphics: 4K HDMI output for high-resolution video
- Networking: Dual Gigabit Ethernet with M12 connectors for vibration resistance
- Wireless: Redundant LTE/Wi-Fi via dual mini PCIe slots
- Reliability: MTBF of 394,260 hours (Telcordia standard)
- Power Efficiency: Max 70 W consumption
- Environmental Tolerance: Operates reliably in -40°C to +70°C environments
Limitations:
- IP20 rating (not waterproof)
- Requires external power adapter for AC operation
- Limited to two Ethernet ports (expandable via USB or PCIe)
### 8. Standards & Compliance
Railway Standards:
- EN 50155:2017 (Railway applications – Electronic equipment used on rolling stock)
- EN 50121-4, EN 50121-3-2 (EMC for railway applications)
- IEC 61373 (Shock and vibration)
- EN 45545-2 (Fire protection)
Electrical & Safety:
- EN 62368-1, IEC 62368-1, UL 62368-1 (Safety standards for IT equipment)
EMC & EMI:
- CISPR 32, FCC Part 15B Class A
- EN 55032/35 (EMC emissions and immunity)
Environmental & Green Compliance:
- RoHS, CRoHS, WEEE (environmental directives)
Immunity Tests:
- IEC 61000-4-2 (ESD: 6 kV contact, 8 kV air)
- IEC 61000-4-3 (RS: 20 V/m, 80 MHz–1 GHz)
- IEC 61000-4-4 (EFT: 2 kV power/signal)
- IEC 61000-4-5 (Surge: 2 kV)
- IEC 61000-4-6 (CS: 10 V)
- IEC 61000-4-8 (PFMF)
### 9. Additional Information
Warranty:
- 3-year standard warranty
- Extended warranty options available via Moxa support
Support & Maintenance:
- Global technical support via Moxa regional offices
- Online resources: [www.moxa.com/support](https://www.moxa.com/support)
Software Support:
- Preinstalled Linux Debian 9 or Windows 10 IoT Enterprise
- Moxa utilities for DIO, UART, SIM, and watchdog control
- Moxa cellular management tools for LTE configuration
- Moxa Disk Hot Swap utility for Windows systems
- Moxa IO Control API for custom application integration
System Recovery & Backup:
- USB-based recovery environment for OS restoration
- Supports system image backup and restore via WinPE or Linux tools
Maintenance:
- Hot-swappable drives simplify field service
- Conformal coating option for high-humidity environments
- Replaceable RTC battery and modular wireless cards
Mean Time Between Failures (MTBF):
- 394,260 hours (Telcordia standard)
Product Lifecycle & Updates:
- Firmware and driver updates available through Moxa’s website
- Regular OS image updates for security and performance
### Summary
The Moxa V2406C Series is a rugged, high-performance embedded computer platform engineered for railway and industrial applications requiring reliability, connectivity, and environmental resilience. Powered by Intel® 7th Gen Core™ processors, it supports dual 4K displays, redundant wireless communication, and extensive I/O interfaces. Its compliance with EN 50155 and related railway standards ensures dependable operation under vibration, shock, and temperature extremes. With modular storage, wide power input, and comprehensive software support for Linux and Windows, the V2406C Series provides a robust foundation for intelligent transportation, video surveillance, and control systems in modern rail networks.
### 1. Product Overview
Product Name: V2406C Series
Model Variants: V2406C-KL1-T, V2406C-KL3-T, V2406C-KL5-T, V2406C-KL7-T, V2406C-KL1-CT-T, V2406C-KL7-CT-T
Series: V2406 Series Embedded Railway Computers
Article Number: V2406C Series
Manufacturer: Moxa Inc.
Product Type: Intel® 7th Generation Core™ CPU-based embedded railway computer designed for rolling stock and wayside applications.
Primary Function: High-performance network video recorder and computing platform for railway systems, supporting dual displays, wide temperature operation, and EN 50155 compliance.
### 2. Key Features
- High-Performance Processing:
Equipped with Intel® 7th Gen Core™ i7/i5/i3 or Intel® Celeron® 3965U processors, offering up to 32 GB DDR4 memory for demanding onboard computing and video recording tasks.
- Dual Hot-Swappable Storage:
Two 2.5-inch SATA HDD/SSD trays support hot swapping for easy maintenance and storage expansion.
- Display Capabilities:
Supports dual independent displays via VGA and HDMI interfaces, with HDMI supporting 4K resolution output.
- Robust Connectivity:
Two M12 X-coded Gigabit Ethernet ports ensure reliable, vibration-resistant network connections.
Four RS-232/422/485 serial ports (software selectable), six digital inputs, two digital outputs, and four USB 3.0 ports provide extensive I/O flexibility.
- Wireless Expansion:
Two mini PCIe slots and four SIM card slots enable redundant LTE/Wi-Fi connectivity for train-to-ground (T2G) communication.
- Rugged Design:
Aluminum housing with IP20 rating, conformal-coated PCB (optional), and compliance with IEC 61373 for shock and vibration resistance.
- Wide Temperature Range:
Operational temperature from -40°C to +70°C, suitable for harsh railway environments.
- Power Isolation and Flexibility:
Wide-range 24 to 110 VDC power input via M12 A-coded connector with isolation protection.
- Standards Compliance:
Fully compliant with EN 50155:2017, EN 50121-4, EN 50121-3-2, and EN 45545-2 fire protection standards.
### 3. Technical Specifications
Processor Options:
- V2406C-KL1-T: Intel® Celeron® 3965U (2M Cache, 2.2 GHz)
- V2406C-KL3-T: Intel® Core™ i3-7100U (3M Cache, 2.4 GHz)
- V2406C-KL5-T: Intel® Core™ i5-7300U (3M Cache, 2.6 GHz)
- V2406C-KL7-T: Intel® Core™ i7-7600U (4M Cache, 2.8 GHz)
Memory:
- 2 x DDR4 SODIMM slots, up to 32 GB total capacity.
Storage:
- 2 x 2.5-inch SATA HDD/SSD hot-swappable trays
- 1 x internal mSATA slot
Graphics:
- Integrated Intel® HD Graphics 620
- VGA (15-pin D-sub, female)
- HDMI (Type A, 4K support)
Networking:
- 2 x 10/100/1000 Mbps M12 X-coded Ethernet ports (auto-sensing)
Serial Communication:
- 4 x RS-232/422/485 ports (DB9 male, software selectable)
- Baud rate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, XON/XOFF, ADDC® for RS-485
- Parity: None, Even, Odd, Space, Mark
- Stop bits: 1, 1.5, 2
Digital I/O:
- 6 x Digital Inputs (3kV isolation, wet/dry contact)
- 2 x Digital Outputs (sink type, 24–30 VDC, 200 mA per channel)
Audio:
- Line-in and Line-out (3.5 mm phone jacks)
USB:
- 4 x USB 3.0 Type-A ports
Power:
- Input Voltage: 24 to 110 VDC
- Connector: M12 A-coded male
- Max Power Consumption: 70 W
Physical Characteristics:
- Housing: Aluminum
- IP Rating: IP20
- Dimensions: 250 × 75 × 150 mm (9.84 × 2.95 × 5.91 in)
- Weight: 2.7 kg (5.95 lb)
- Mounting: Wall mount (standard)
Environmental:
- Operating Temperature: -40 to 70°C
- Storage Temperature: -40 to 85°C
- Humidity: 5–95% RH (non-condensing)
### 4. Functionality
Operation Overview:
The V2406C Series functions as a rugged embedded computer and network video recorder for railway applications. It integrates data acquisition, video recording, and communication functions in a single platform.
Use Cases:
- Rolling stock onboard control and monitoring
- Train-to-ground communication systems
- Wayside data collection and video surveillance
- Industrial automation and transportation control
Compatibility:
- Operating Systems:
- Linux Debian 9 “Stretch”
- Windows 10 IoT Enterprise 2019 LTSC (64-bit)
Wireless Communication:
- 2 x mini PCIe slots for LTE/Wi-Fi modules
- 4 x SIM card slots for redundancy
- Preinstalled QMA cables for reduced RF leakage
Display and Control:
- Dual independent display support for operator panels and diagnostics
- LED indicators for power, LAN, serial, and storage status
### 5. Components & Accessories
Included in Package:
- 1 x V2406C Series computer
- 2 x HDD/SSD trays
- 1 x HDMI cable clamp
- 1 x wall-mounting kit
- 1 x Quick Installation Guide
- 1 x Warranty card
Optional Accessories:
- Power Cords:
- PWC-C7US-2B-183 (US), PWC-C7EU-2B-183 (EU), PWC-C7UK-2B-183 (UK), PWC-C7AU-2B-183 (AU), PWC-C7CN-2B-183 (CN)
- Battery Kit: RTC lithium battery with connector
- Cables:
- CBL-M12(FF5P)/Open-100 (M12 to 5-pin power cable, IP67)
- CBL-M12XMM8PRJ45-BK-100-IP67 (M12 to RJ45 Cat5E Ethernet cable)
- Power Adapter: PWR-24270-DT-S1 (90–264 VAC input, 24 VDC output, 2.5 A)
- Connectors: M12X-8PMM-IP67 (8-pin male X-coded Ethernet connector)
- Wireless Modules:
- V2400-WLAN22-AC (Wi-Fi mini card)
- V2400-LTECat4-NA (Sierra WP7610 LTE Cat 4, North America)
- V2400-LTECat4-EMEA (Sierra WP7607 LTE Cat 4, EMEA)
- Security Module: TPM 2.0 (SLB9665XT2.0)
### 6. Installation & Setup
Mounting:
- Wall-mounting brackets included; requires M3×5L screws (torque 4.5 kgf-cm).
- Install in restricted access areas by qualified personnel only.
Power Connection:
- M12 A-coded connector (24–110 VDC input).
- Grounding required for surge protection.
Storage Installation:
- Two front-accessible hot-swappable trays for 2.5” SATA drives.
- LED indicators show drive activity and presence.
Display Connection:
- VGA and HDMI ports on front panel; use certified HDMI cables for 4K output.
Serial & USB Ports:
- 4 x DB9 serial ports (rear panel)
- 4 x USB 3.0 ports (2 front, 2 rear)
Digital I/O Wiring:
- 10-pin Euroblock terminal for DI/DO connections.
- Supports both wet and dry contact sensors.
Battery Replacement:
- 3V/195 mAh lithium battery accessible from front panel.
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7-7600U dual-core 2.8 GHz CPU
- Memory Bandwidth: DDR4 up to 2133 MHz
- Storage: Dual SATA III interface with hot-swap capability
- Graphics: 4K HDMI output for high-resolution video
- Networking: Dual Gigabit Ethernet with M12 connectors for vibration resistance
- Wireless: Redundant LTE/Wi-Fi via dual mini PCIe slots
- Reliability: MTBF of 394,260 hours (Telcordia standard)
- Power Efficiency: Max 70 W consumption
- Environmental Tolerance: Operates reliably in -40°C to +70°C environments
Limitations:
- IP20 rating (not waterproof)
- Requires external power adapter for AC operation
- Limited to two Ethernet ports (expandable via USB or PCIe)
### 8. Standards & Compliance
Railway Standards:
- EN 50155:2017 (Railway applications – Electronic equipment used on rolling stock)
- EN 50121-4, EN 50121-3-2 (EMC for railway applications)
- IEC 61373 (Shock and vibration)
- EN 45545-2 (Fire protection)
Electrical & Safety:
- EN 62368-1, IEC 62368-1, UL 62368-1 (Safety standards for IT equipment)
EMC & EMI:
- CISPR 32, FCC Part 15B Class A
- EN 55032/35 (EMC emissions and immunity)
Environmental & Green Compliance:
- RoHS, CRoHS, WEEE (environmental directives)
Immunity Tests:
- IEC 61000-4-2 (ESD: 6 kV contact, 8 kV air)
- IEC 61000-4-3 (RS: 20 V/m, 80 MHz–1 GHz)
- IEC 61000-4-4 (EFT: 2 kV power/signal)
- IEC 61000-4-5 (Surge: 2 kV)
- IEC 61000-4-6 (CS: 10 V)
- IEC 61000-4-8 (PFMF)
### 9. Additional Information
Warranty:
- 3-year standard warranty
- Extended warranty options available via Moxa support
Support & Maintenance:
- Global technical support via Moxa regional offices
- Online resources: [www.moxa.com/support](https://www.moxa.com/support)
Software Support:
- Preinstalled Linux Debian 9 or Windows 10 IoT Enterprise
- Moxa utilities for DIO, UART, SIM, and watchdog control
- Moxa cellular management tools for LTE configuration
- Moxa Disk Hot Swap utility for Windows systems
- Moxa IO Control API for custom application integration
System Recovery & Backup:
- USB-based recovery environment for OS restoration
- Supports system image backup and restore via WinPE or Linux tools
Maintenance:
- Hot-swappable drives simplify field service
- Conformal coating option for high-humidity environments
- Replaceable RTC battery and modular wireless cards
Mean Time Between Failures (MTBF):
- 394,260 hours (Telcordia standard)
Product Lifecycle & Updates:
- Firmware and driver updates available through Moxa’s website
- Regular OS image updates for security and performance
### Summary
The Moxa V2406C Series is a rugged, high-performance embedded computer platform engineered for railway and industrial applications requiring reliability, connectivity, and environmental resilience. Powered by Intel® 7th Gen Core™ processors, it supports dual 4K displays, redundant wireless communication, and extensive I/O interfaces. Its compliance with EN 50155 and related railway standards ensures dependable operation under vibration, shock, and temperature extremes. With modular storage, wide power input, and comprehensive software support for Linux and Windows, the V2406C Series provides a robust foundation for intelligent transportation, video surveillance, and control systems in modern rail networks.
-
moxa-v2406c-series-datasheet-v1.1.pdf
PDF Catalog
No accessories available.
