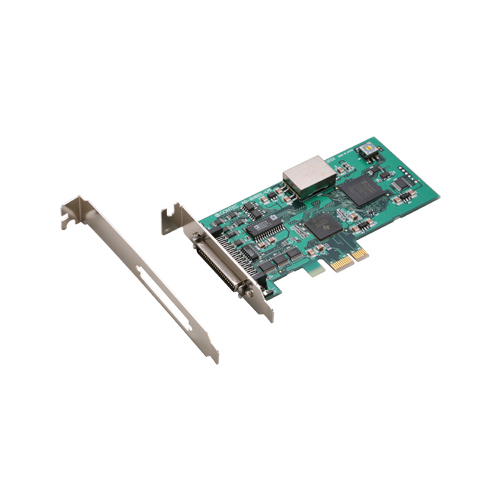

AIO-160802L-LPE - Contec

PCIe Low Profile AD 100kS/s 16bit 8 CH 2*DA 4*DI 4*DO 1*Cnt

A/D General Purpose PCIe cards are PC Add-On Cards that allow the user to capture and convert analog signals into digital signals. These cards are ideal for general purpose applications such as data acquisition, audio/video capture, and machine control. These cards are easy to install and provide a reliable and cost-effective solution for a wide range of applications..
390,00 €
incl. VAT 464,10 €


  • Low Profile PCI Express bus AD card
  • 100kS/s 16bit 8 channels
  • analog non-isolated inputs bipolar ±10V - absolute maximum ±20V
  • buffer 1k word
  • 2 channels anaolg isolated outputs 16bit bipolar ±10V
  • LVTTL digital non-isolated I/O 4* DI + 4*DO
  • 32bit counter maximal response frequency 10MHz
  • 50pin connector 3M 10250-52A2JL
  • Windows and Linux driver software
  • C-LOGGER/LabView/MATLAB support
  • operating condition 0-50°C 10-90%RH


  • Width: 122 mm
  • Height: 88 mm
  • Weight: 0.8kg
  • Manufacturer: Contec
  • Country of Origin: Japan
  • Customs code: 8473 3020 000

Data Sheets
