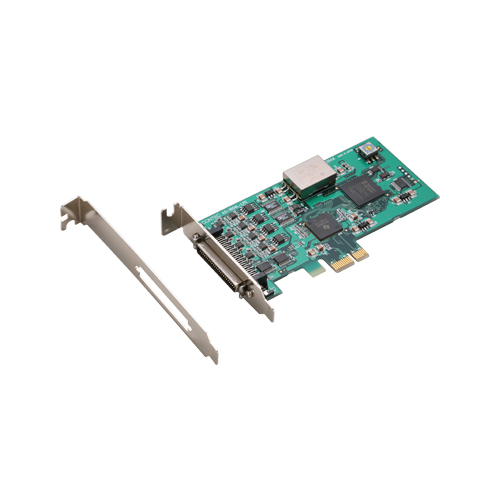

AO-1604L-LPE - Contec

PCIe Low Profile DA 100kS/s 16 Bit 4 CH + 4*DI + 4*DO + Cou

PC Add-On Cards are expansion cards that can be added to a computer to provide additional capabilities. D/A Cards are digital-to-analog cards that convert digital signals into analog signals for use with analog devices. D/A Cards General Purpose are cards that are designed for general purpose applications, such as audio, video, and communications. D/A General Purpose PCIe cards are high-speed cards that offer a range of features, including multiple channels and adjustable sample rate..
440,00 €
incl. VAT 523,60 €


  • Low Profile PCI Express bus DA card
  • 100kS/s 16bit 4 channels
  • analog non-isolated outputs bipolar ±10V
  • absolute maximum output current ±3mA
  • buffer 1k word
  • TTL digital non-isolated I/O 4* DI + 4*DO
  • 32bit counter maximal response frequency 10MHz
  • 50pin connector 3M 10250-52A2JL
  • Windows and Linux driver software
  • LabView/MATLAB support
  • operating condition 0-50°C 10-90%RH


  • Width: 121.69 mm
  • Height: 67.9 mm
  • Weight: 0.9kg
  • Manufacturer: Contec
  • Country of Origin: Japan
  • Customs code: 8473 3020 000

Data Sheets
