Comprehensive Product Summary – ORing IGAR-1662+-3G Industrial Dual RF Wireless Router

---

### 1. Product Overview

Product Name: IGAR-1662+-3G
Model: IGAR-1662+-3G (available in US and EU variants)
Series: IGAR Industrial Wireless AP Router Series
Article Number: IGAR-1662+-3G
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 3F., No.542-2, JhongJheng Rd., Sindian District, New Taipei City 23148, Taiwan (R.O.C.)
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Contact: support@oring-networking.com
Sales Contact: sales@oring-networking.com

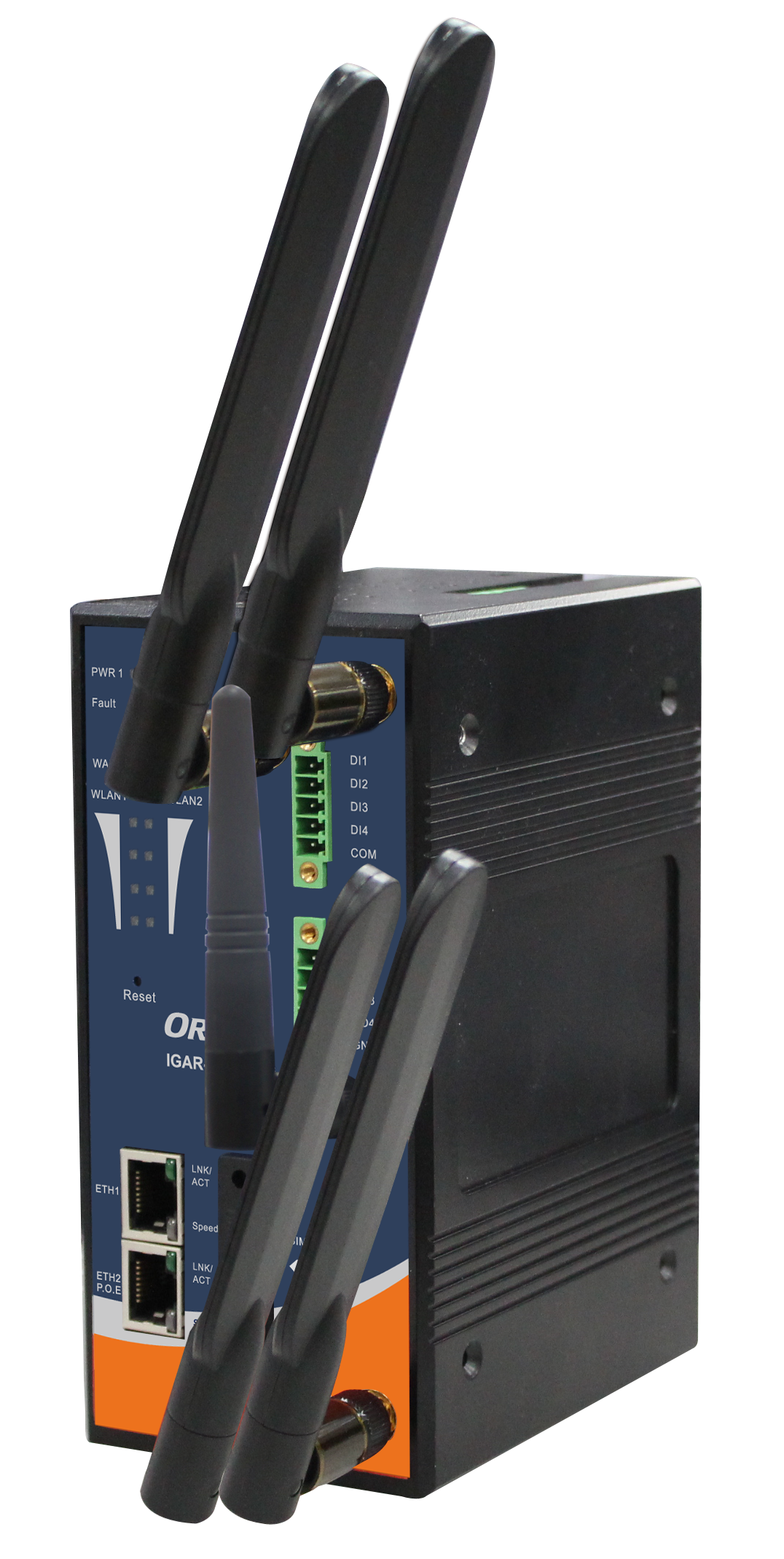

The ORing IGAR-1662+-3G is an industrial-grade IEEE 802.11 a/b/g/n dual RF access point router with integrated 3G cellular connectivity and dual Gigabit Ethernet ports. Designed for harsh industrial environments, it provides robust wireless and cellular communication capabilities for mission-critical applications requiring high reliability, redundancy, and secure remote access.

---

### 2. Key Features

- Dual RF IEEE 802.11 a/b/g/n Wireless Interface: Supports simultaneous 2.4 GHz and 5 GHz operation with dual antennas for extended coverage and throughput up to 300 Mbps.
- Integrated 3G Cellular Modem: Supports GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA standards for mobile WAN connectivity.
- Dual Gigabit Ethernet Ports: Two 10/100/1000Base-T(X) RJ-45 ports with auto MDI/MDI-X for LAN/WAN connections.
- PoE PD Support: ETH2 (WAN port) is compliant with IEEE 802.3af Power Device specification, allowing power input via PoE.
- Redundant Power Inputs: Dual 12–48 VDC inputs on a 6-pin terminal block with reverse polarity protection.
- Industrial Design: IP-30 metal enclosure, DIN-rail and wall-mountable, designed for -10°C to +60°C operation.
- Advanced Security: Supports WEP, WPA/WPA2 (TKIP/AES), WPA-PSK, 802.1X authentication, MAC/IP filtering, and firewall protection.
- VPN Support: Integrated OpenVPN and PPTP VPN for secure remote access and site-to-site tunneling.
- Comprehensive Management: Web-based GUI (HTTP/HTTPS), SNMP v1/v2, Syslog, Email alerts, and relay output for event notifications.
- High Reliability: Supports STP (802.1D) for wireless redundancy, VRRP, and dynamic/static routing (RIPv1/v2).
- Event Notification: Configurable via Syslog, Email, SNMP Trap, Relay output, and beeper.
- Warranty: 5-year limited warranty.

---

### 3. Technical Specifications

LAN Interface:
- 2 × 10/100/1000Base-T(X) RJ-45 ports, Auto MDI/MDI-X
- Supported Protocols: IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SNMPv1/v2, Trap, Private MIB

Cellular Interface:
- Standards: GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA
- Frequency Bands:
- US Model: LTE 700/1700/2100 MHz; UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ 800/850/1900/2100 MHz; GSM/GPRS/EDGE 850/900/1800/1900 MHz
- EU Model: LTE 800/900/1800/2100/2600 MHz; UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+ 900/2100 MHz; GSM/GPRS/EDGE 900/1800/1900 MHz
- SIM Card Slot: 1 × standard SIM slot
- Antenna Connectors: SMA female for cellular, reverse SMA for Wi-Fi

WLAN Interface:
- Operating Modes: AP / Client / Bridge / AP-Client
- Frequency Bands:
- 2.4 GHz: 2.412–2.472 GHz (13 channels, ETSI) / 2.412–2.462 GHz (11 channels, FCC)
- 5 GHz: 5.180–5.240 GHz & 5.745–5.825 GHz (FCC); 5.180–5.240 GHz (ETSI)
- Modulation:
- IEEE 802.11b: CCK/DQPSK/DBPSK
- IEEE 802.11a/g: OFDM
- IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
- Data Rates:
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: 20 MHz BW up to 130 Mbps; 40 MHz BW up to 270 Mbps
- Transmit Power:
- 802.11a: 12 dBm ±1.5 dBm @54 Mbps
- 802.11b: 17 dBm ±1.5 dBm @11 Mbps
- 802.11g: 16 dBm ±1.5 dBm @54 Mbps
- 802.11n HT20: 15 dBm ±1.5 dBm @MCS7
- 802.11n HT40: 14 dBm ±1.5 dBm @MCS7
- Receiver Sensitivity:
- 802.11a/g: -76 dBm ±2 dBm @54 Mbps
- 802.11b: -85 dBm ±2 dBm @11 Mbps
- 802.11n HT20: -75 dBm ±2 dBm @MCS7
- 802.11n HT40: -72 dBm ±2 dBm @MCS7
- Antennas: 2 × 2 dBi antennas (2.4 GHz and 5 GHz)

Power Requirements:
- Input Voltage: Dual 12–48 VDC
- Power Consumption: 11 W typical
- Reverse Polarity Protection: Present
- PoE PD: IEEE 802.3af compliant (ETH2 port)

Environmental:
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% non-condensing

Mechanical:
- Dimensions: 74.3 (W) × 109.2 (D) × 153.6 (H) mm
- Weight: ~800 g
- Enclosure: IP-30 rated metal housing
- Mounting: DIN-rail and wall-mount options

Regulatory Approvals:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
- Shock: IEC60068-2-27
- Vibration: IEC60068-2-6
- Free Fall: IEC60068-2-32
- Safety: EN60950-1

---

### 4. Functionality

The IGAR-1662+-3G functions as a dual-band wireless access point and router with integrated 3G cellular WAN capability. It supports multiple WAN connection types including Dynamic/Static IP, PPPoE, 3G modem dial-up, and wireless client mode. The router can automatically switch to cellular backup when the primary WAN link fails, ensuring continuous connectivity.

Use Cases:
- Industrial automation and SCADA systems
- Remote monitoring and control over cellular networks
- Transportation and mobile fleet connectivity
- Redundant WAN access for critical infrastructure
- Secure VPN-based remote access for field engineers

Compatibility:
Compatible with standard Ethernet devices, industrial switches, and wireless clients supporting IEEE 802.11 a/b/g/n. Supports integration with ORing’s IPS series PoE switches for power delivery.

---

### 5. Components & Accessories

Included Items:
- IGAR-1662+-3G main unit
- 2 × Wi-Fi antennas (reverse SMA)
- 1 × Cellular antenna (SMA)
- 6-pin terminal block for power input
- 5-pin terminal blocks for DI/DO
- DIN-rail mounting kit
- Wall-mount bracket and screws
- Quick Installation Guide and CD

Optional Accessories:
- External high-gain antennas
- PoE Ethernet switch (ORing IPS series)
- Industrial-grade power supply (12–48 VDC)

Connectors:
- 2 × RJ-45 (10/100/1000Base-T(X))
- 1 × SIM card slot
- 2 × Reverse SMA (Wi-Fi)
- 1 × SMA (Cellular)
- 6-pin terminal block (power input)
- 5-pin terminal blocks (4×DI, 4×DO)

---

### 6. Installation & Setup

Mounting Options:
- DIN-Rail Installation: Attach the integrated DIN-rail clip to the rail and press until it clicks.
- Wall Mounting: Remove the DIN-rail clip, attach the wall-mount bracket using six screws, and secure to the wall.

Powering the Device:
- Connect 12–48 VDC to the terminal block (V+, V–).
- Alternatively, power via PoE on ETH2 (WAN port).

Initial Configuration:
1. Connect a PC to ETH1 (LAN port).
2. Access the web interface at `http://192.168.10.1` (default credentials: admin/admin).
3. Configure WAN type (Dynamic IP, PPPoE, or 3G).
4. Set wireless SSID, channel, and encryption (WEP/WPA/WPA2).
5. Save and reboot to apply settings.

Management Interfaces:
- Web GUI (HTTP/HTTPS)
- SNMP v1/v2
- Syslog and Email alerts
- CLI via Telnet (for advanced routing configuration)

---

### 7. Performance & Capabilities

- Wireless Throughput: Up to 300 Mbps (802.11n, 40 MHz channel width)
- Ethernet Speed: 10/100/1000 Mbps auto-negotiation
- Cellular Data Rate: Up to HSDPA 7.2 Mbps / HSUPA 5.76 Mbps (3G)
- VPN Performance: Supports OpenVPN and PPTP tunnels with encryption and compression
- Routing: Dynamic (RIPv1/v2) and static routing supported
- Firewall: Stateful packet inspection, IP/MAC filtering, DoS protection
- NAT Features: Virtual Server, DMZ, Port Triggering, UPnP, NAT-PMP
- QoS: Prioritization of traffic for critical applications
- Reliability: Dual power inputs, fault relay output, and watchdog timer

Limitations:
- 3G cellular speed limited by network coverage and signal quality.
- 5 GHz operation restricted to indoor use (per FCC).

---

### 8. Standards & Compliance

Wireless Standards: IEEE 802.11 a/b/g/n
Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af (PoE PD)
Safety & EMC: EN60950-1, FCC Part 15 Class A, EN55022 Class A
Environmental Standards: IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60068-2-32 (Free Fall)
RF Compliance:
- FCC and Industry Canada certified
- CE/ETSI compliant for EU models
- RF exposure compliant (minimum 20 cm separation required)

---

### 9. Additional Information

Warranty:
5-year limited warranty covering defects in materials and workmanship. Excludes misuse, unauthorized modifications, or improper installation.

Maintenance & Support:
- Firmware upgrades available via web interface.
- Configuration backup and restore supported.
- Technical support via email and online resources.

Firmware Management:
- Upgrade through web GUI (HTTP/HTTPS).
- Configuration export/import for rapid deployment.
- Factory reset option for recovery.

Event & Monitoring Tools:
- Syslog server integration
- SNMP traps (up to 4 servers)
- Email notifications (SMTP configuration)
- Relay output for external alarms

Environmental Reliability:
- Designed for continuous operation in industrial environments.
- IP-30 enclosure provides protection against dust and mechanical impact.
- Tested for vibration, shock, and temperature extremes.

---

### Summary

The ORing IGAR-1662+-3G is a high-performance industrial wireless and cellular router engineered for demanding applications requiring dual-band Wi-Fi, 3G WAN connectivity, and robust network security. Its dual RF design enables simultaneous 2.4 GHz and 5 GHz operation, while redundant power inputs and PoE support ensure uninterrupted service. With comprehensive VPN, firewall, and management capabilities, the IGAR-1662+-3G is ideal for industrial automation, transportation, and remote monitoring systems where reliability, security, and flexibility are paramount.

---
