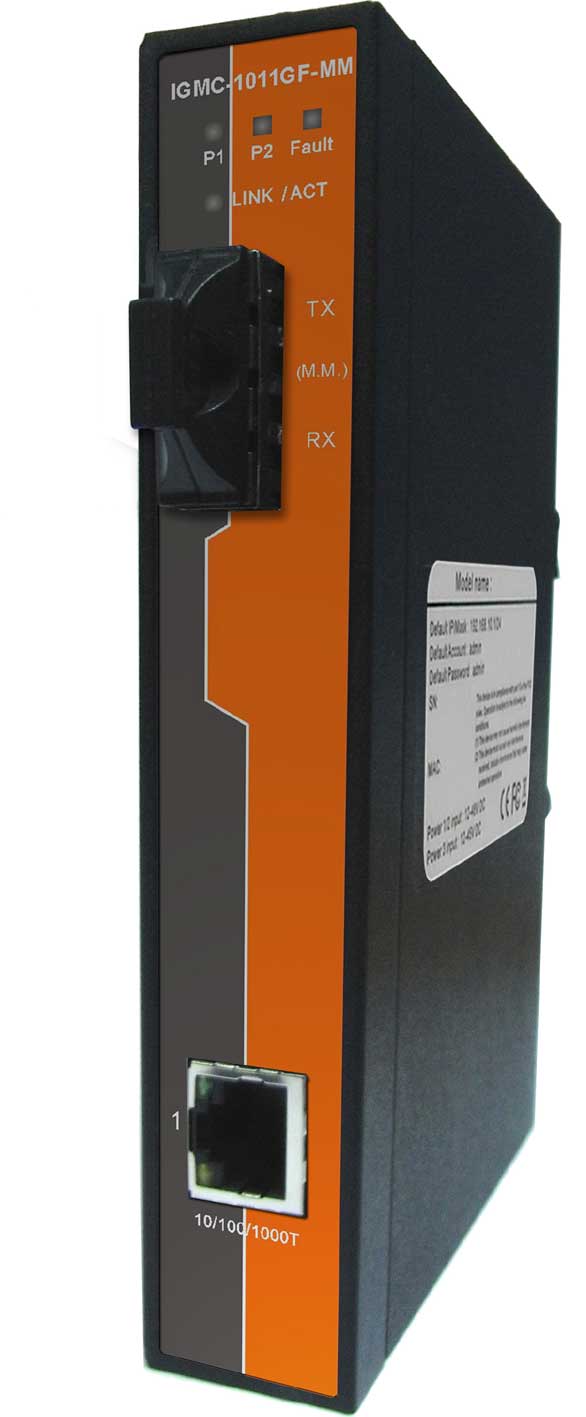

IGMC-1011GF-MM-SC - Oring

Media Converter 1000TX to 1000FX Multi Mode SC

Industrial Fiber Media Converters for connecting copper to fiber optics (FO).
145,00 €
incl. VAT 172,55 €

Description

  • Gigabit 10/100/1000Base TX Ethernet to 1000Base FX Fiber SC media converter
  • Single Mode 9/125µm up to 40km
  • serial port RJ45
  • Alarm Relay out configurable
  • 12..48VDC in
  • dual power input
  • DIN rail mountable
  • operating temperature -40°..+70°C
  • 33*144,5*95mm
  • ~400gr
  • ~3,5W
  • Oring

Details

  • Width: 33 mm
  • Height: 95 mm
  • Depth: 144.5 mm
  • Net weight: 0,4 kg
  • Weight: 1.1kg
  • Manufacturer: Oring
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8517 6200 900

Data Sheets

Manuals
