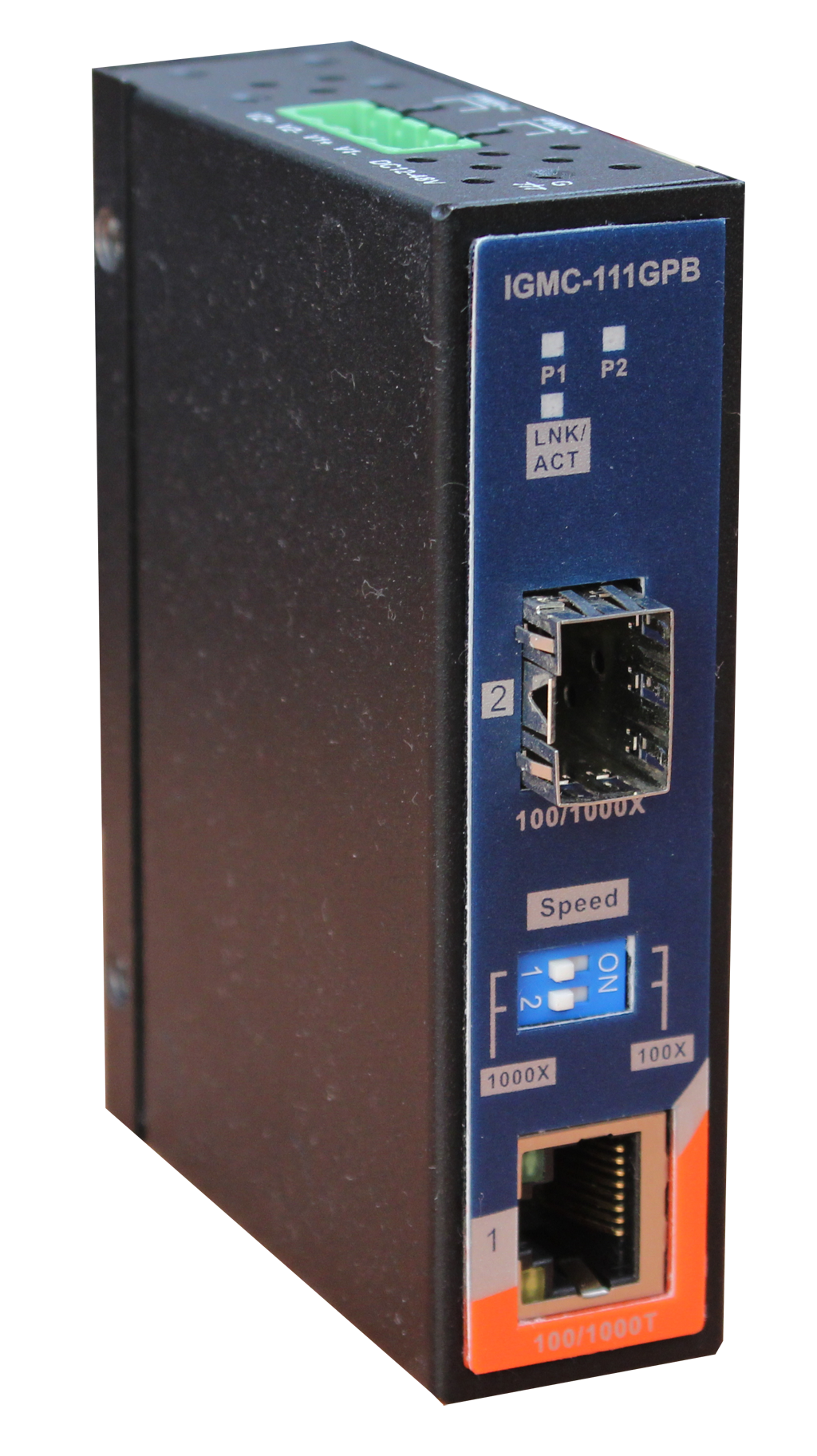

IGMC-111GPB - Oring

Media Converter 1000TX to 1000SFP Mini Type

Industrial Fiber Media Converters for connecting copper to fiber optics (FO).
140,00 €
incl. VAT 166,60 €

Description

  • Gigabit 10/100/1000 Base TX Ethernet to 1000FX SFP converter
  • Multi Mode 50/125µm up to 2km Single Mode 9/125µm up to 120km
  • serial port RJ45
  • Alarm Relay out configurable
  • 12..48VDC in
  • dual power input
  • DIN rail mountable
  • extended -40°..+70°C
  • 33*144,5*95mm
  • ~380gr
  • ~3,5W
  • Oring

Details

  • Width: 33 mm
  • Height: 95 mm
  • Depth: 144.5 mm
  • Net weight: 0,38 kg
  • Weight: 0.9kg
  • Manufacturer: Oring
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8517 6200 900

Data Sheets

Manuals
