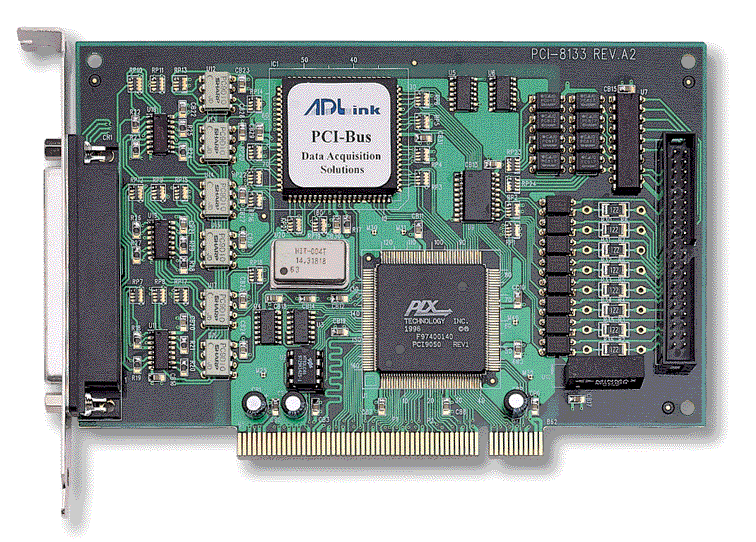

PCI-8133

PCI-8133 - Adlink Technology Inc.

PCI 3 channels encoder motion Card

This is a set of PC add-on cards for motion control and EtherCAT PCI applications. The set includes DIO cards, motion control plug-in cards, and motion control/EtherCAT PCI cards. The cards are designed to provide reliable and precise motion control for a wide range of applications. They offer a variety of features including high speed data transfer, motion control, and EtherCAT support. They are easy to install and configure, making them an ideal choice for motion control applications..

Description

  • PCI bus 3 quadruple AB phase encoder counters with 3rd order digital filter and 3*12bit PWM waveform generator card
  • 8/8 isolated DIO
  • base frequency 10MHz
  • 1*37pin D-type and 1*40pin flat cable connector
  • 162*105mm
  • Adlink

Details

  • Connectors: DB37m,40pin
  • Width: 162 mm
  • Height: 105 mm
  • Weight: 0.9kg
  • Manufacturer: Adlink Technology Inc.
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8473 3020 000
