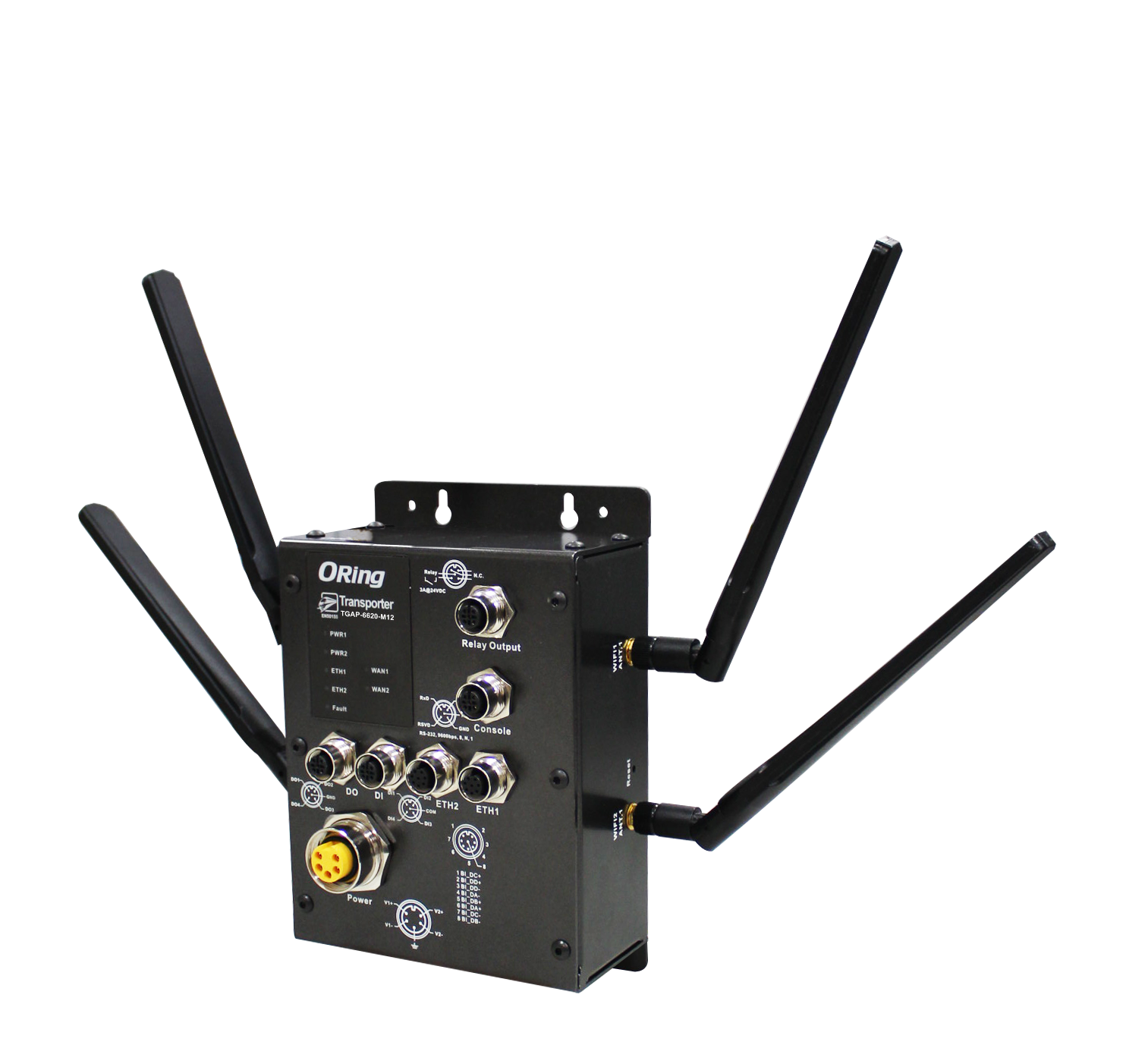

Comprehensive Product Summary – TGAP‑820+‑M12 Industrial Wireless Access Point
### 1. Product Overview
Product Name: TGAP‑820+‑M12
Article Number: TGAP‑820+‑M12
Series: TGAP‑620(+)/6620(+)/820(+)-M12 Industrial Wireless Access Point Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Dual‑RF Wireless Access Point with M12 connectors and PoE PD support
Compliance: EN50155 certified for railway and rolling‑stock applications
The TGAP‑820+‑M12 is a ruggedized, dual‑radio IEEE 802.11 a/b/g/n/ac industrial wireless access point designed for mission‑critical environments such as railway, transportation, and heavy industrial networks. It provides two Gigabit Ethernet ports with M12 connectors, supports Power‑over‑Ethernet (PoE PD) on one port, and offers redundant DC power inputs via an M23 connector. The unit is housed in a robust IP40‑rated metal enclosure and is engineered to withstand vibration, shock, and wide temperature variations.
### 2. Key Features
- Dual‑RF IEEE 802.11 a/b/g/n/ac Wireless Modules: Supports simultaneous 2.4 GHz and 5 GHz operation for high‑throughput, interference‑resilient connectivity.
- High‑Speed Wireless Performance: Up to 300 Mbps per radio (802.11n) and enhanced throughput under 802.11ac.
- Industrial‑Grade Design: EN50155 and EN50121‑4 compliant for railway and rolling‑stock environments; IEC60068‑2‑6/27/32 tested for vibration, shock, and free‑fall resistance.
- Rugged Connectivity: Two 10/100/1000 Base‑T(X) Ethernet ports with M12 A‑coded connectors ensure secure, vibration‑proof connections.
- PoE PD Support: 1 kV isolation for PoE PD at ETH2 port, compliant with IEEE 802.3af.
- Redundant Power Inputs: Dual 12–48 V DC inputs via M23 connector for power reliability.
- Flexible Mounting: DIN‑rail or wall‑mount installation options.
- Comprehensive Security: WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP/AES encryption, and SSID broadcast control.
- Multiple Operating Modes: AP, Client, Bridge, and AP‑Client modes for flexible network topologies.
- Advanced Management: Web‑based GUI, HTTPS, SNMP, RADIUS, and ORing Open‑Vision utility support.
- Event Notification: Syslog, e‑mail, SNMP traps, and relay output for fault and event reporting.
- Wide Temperature Range: ‑25 °C to 70 °C operation, ‑40 °C to 85 °C storage.
- Long‑Term Reliability: 5‑year manufacturer warranty.
### 3. Technical Specifications
Physical Characteristics
- Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in.)
- Weight: ~985 g
- Enclosure: Metal, IP40 protection rating
- Mounting: Wall‑mount or DIN‑rail
Power
- Input Voltage: Dual 12–48 V DC via M23 5‑pin connector
- Power Consumption: Approx. 8.5 W typical
- PoE PD: IEEE 802.3af compliant on ETH2 port with 1 kV isolation
- Relay Output: 1 A @ 24 V DC (M12 5‑pin A‑coded)
Ethernet Interface
- Ports: 2 × 10/100/1000 Base‑T(X) M12 8‑pin A‑coded, Auto MDI/MDIX
- Cable Support:
- 10Base‑T: Cat 3/4/5 UTP, 100 m
- 100Base‑TX: Cat 5 UTP, 100 m
- 1000Base‑T: Cat 5/5e UTP, 100 m
Wireless Interface
- Standards: IEEE 802.11 a/b/g/n/ac
- Frequency Bands:
- 2.4 GHz (2.412–2.472 GHz, 13 channels EU / 11 channels US)
- 5 GHz (5.180–5.240 GHz EU; 5.180–5.240 GHz & 5.745–5.825 GHz US)
- Modulation: DSSS, OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: up to 300 Mbps
- Transmit Power:
- 802.11a: 12 dBm ± 1.5 dBm
- 802.11b: 18 dBm ± 1.5 dBm
- 802.11g: 15 dBm ± 1.5 dBm
- 802.11n HT20: 13 dBm ± 1.5 dBm @ 150 Mbps
- 802.11n HT40: 12 dBm ± 1.5 dBm @ 300 Mbps
- Receiver Sensitivity:
- 802.11a/g: ‑68 dBm @ 54 Mbps
- 802.11b: ‑82 dBm @ 11 Mbps
- 802.11n HT20: ‑64 dBm @ 150 Mbps
- 802.11n HT40: ‑60 dBm @ 300 Mbps
- Antenna Connectors: 2 × external reverse‑SMA (2.4/5 GHz)
- Radio Type: Dual‑RF, DSSS/OFDM
Environmental Conditions
- Operating Temperature: ‑25 °C to 70 °C (‑13 °F to 158 °F)
- Storage Temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing
### 4. Functionality
The TGAP‑820+‑M12 functions as a high‑performance industrial wireless access point capable of operating in multiple modes:
- Access Point (AP): Acts as a central hub for wireless clients.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Provides LAN‑to‑LAN bridging between two APs using WDS.
- AP‑Client Mode: Enables transparent connectivity for multiple stations behind the AP.
Use Cases:
- Rolling stock and railway carriages (EN50155 compliance)
- Industrial automation and SCADA systems
- Transportation and logistics networks
- Outdoor or mobile wireless backhaul links
Compatibility:
Supports standard Ethernet devices (PCs, PLCs, routers, switches) and interoperates with IEEE 802.11 a/b/g/n/ac wireless clients.
Management Interfaces:
- Web browser (HTTP/HTTPS)
- ORing Open‑Vision Windows utility
- SNMP v1/v2c
- Console (RS‑232 M12 5‑pin, 115200 bps, 8‑N‑1)
### 5. Components & Accessories
Included Items:
- TGAP‑820+‑M12 main unit
- 2 × 2.4/5 GHz reverse‑SMA antennas
- Wall‑mount kit
- Quick Installation Guide (QIG)
- Product CD (manuals and utilities)
Optional Accessories:
- DIN‑rail mounting kit
- M12 Ethernet cables (A‑coded 8‑pin)
- M23 power cable assemblies
- External high‑gain antennas or RF extension cables
Connectors:
- Ethernet: M12 8‑pin A‑coded
- Power: M23 5‑pin female
- Relay/DI/DO: M12 5‑pin A‑coded
- Console: M12 5‑pin A‑coded RS‑232
### 6. Installation & Setup
Mounting Options:
- Wall Mount: Four keyhole slots for screw mounting; leave ~2 mm clearance for sliding fit.
- DIN‑Rail: Optional bracket for panel or cabinet installation.
Power Connection:
1. Connect dual DC power inputs (12–48 V DC) via M23 5‑pin connector.
2. Tighten the outer ring for a secure, vibration‑resistant fit.
3. Alternatively, power via PoE PD on ETH2 port.
Grounding:
Connect the grounding pin on the power connector to a proper earth ground to minimize EMI.
Network Configuration:
- Default IP: 192.168.10.1
- Default credentials: admin / admin
- Access via web browser or Open‑Vision utility.
Reset Procedure:
Press and hold the reset button until the power LED flashes to restore factory defaults.
LED Indicators:
- PWR1/PWR2: Green – DC power active
- ETH1/ETH2: Green – Link / Blinking – Activity
- WLAN: Green – Active / Blinking – Data transmission
- Fault: Red – Power or link failure
### 7. Performance & Capabilities
- Wireless Throughput: Up to 300 Mbps per radio (802.11n); enhanced under 802.11ac.
- Ethernet Throughput: Full‑duplex Gigabit on both M12 ports.
- Latency: Optimized for industrial real‑time communication.
- Power Efficiency: Typical consumption ≈ 8.5 W.
- Reliability: Dual power redundancy and fault relay ensure continuous operation.
- Limitations: IP40 enclosure suitable for indoor or protected outdoor environments; not waterproof without additional housing.
### 8. Standards & Compliance
Electrical & Safety:
- EN60950‑1 (Safety of IT Equipment)
- IEC60068‑2‑6 (Vibration)
- IEC60068‑2‑27 (Shock)
- IEC60068‑2‑32 (Free Fall)
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR 22 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Railway Standards: EN50155 (EN50121‑3‑2, EN50121‑4, EN55011)
Environmental:
- Operating temperature –25 °C to 70 °C
- Storage –40 °C to 85 °C
- Humidity 5–95 % non‑condensing
Wireless Regulatory:
- FCC Part 15 Subpart B and C
- Industry Canada RSS‑210 compliance
- CE (ETSI EN 300 328, EN 301 893)
- RF exposure compliant; minimum 20 cm separation required
### 9. Additional Information
Warranty:
5‑year limited warranty covering defects in materials and workmanship.
Maintenance:
- Periodic inspection of connectors and grounding recommended.
- Firmware updates available via ORing website; upgrade through web interface.
- Avoid operating in sealed enclosures without adequate ventilation.
Support & Contact:
ORing Industrial Networking Corp.
3F., No. 542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](https://www.oring-networking.com)
E‑mail: support@oring‑networking.com
Firmware & Software:
- Managed via web GUI or Open‑Vision utility.
- Supports HTTPS, SNMP, RADIUS, DHCP, STP/RSTP, and Syslog.
- Configurable event warnings via e‑mail, SNMP traps, or relay output.
Summary:
The ORing TGAP‑820+‑M12 is a robust, EN50155‑certified industrial wireless access point engineered for high‑reliability applications in transportation and harsh industrial environments. With dual‑band 802.11 a/b/g/n/ac radios, dual Gigabit M12 Ethernet ports, PoE PD capability, and redundant DC power inputs, it delivers secure, high‑speed wireless connectivity under demanding conditions. Its comprehensive management suite, advanced security protocols, and rugged mechanical design make it an ideal solution for railway, vehicle, and factory automation networks requiring uninterrupted, high‑performance wireless communication.
### 1. Product Overview
Product Name: TGAP‑820+‑M12
Article Number: TGAP‑820+‑M12
Series: TGAP‑620(+)/6620(+)/820(+)-M12 Industrial Wireless Access Point Series
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Dual‑RF Wireless Access Point with M12 connectors and PoE PD support
Compliance: EN50155 certified for railway and rolling‑stock applications
The TGAP‑820+‑M12 is a ruggedized, dual‑radio IEEE 802.11 a/b/g/n/ac industrial wireless access point designed for mission‑critical environments such as railway, transportation, and heavy industrial networks. It provides two Gigabit Ethernet ports with M12 connectors, supports Power‑over‑Ethernet (PoE PD) on one port, and offers redundant DC power inputs via an M23 connector. The unit is housed in a robust IP40‑rated metal enclosure and is engineered to withstand vibration, shock, and wide temperature variations.
### 2. Key Features
- Dual‑RF IEEE 802.11 a/b/g/n/ac Wireless Modules: Supports simultaneous 2.4 GHz and 5 GHz operation for high‑throughput, interference‑resilient connectivity.
- High‑Speed Wireless Performance: Up to 300 Mbps per radio (802.11n) and enhanced throughput under 802.11ac.
- Industrial‑Grade Design: EN50155 and EN50121‑4 compliant for railway and rolling‑stock environments; IEC60068‑2‑6/27/32 tested for vibration, shock, and free‑fall resistance.
- Rugged Connectivity: Two 10/100/1000 Base‑T(X) Ethernet ports with M12 A‑coded connectors ensure secure, vibration‑proof connections.
- PoE PD Support: 1 kV isolation for PoE PD at ETH2 port, compliant with IEEE 802.3af.
- Redundant Power Inputs: Dual 12–48 V DC inputs via M23 connector for power reliability.
- Flexible Mounting: DIN‑rail or wall‑mount installation options.
- Comprehensive Security: WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP/AES encryption, and SSID broadcast control.
- Multiple Operating Modes: AP, Client, Bridge, and AP‑Client modes for flexible network topologies.
- Advanced Management: Web‑based GUI, HTTPS, SNMP, RADIUS, and ORing Open‑Vision utility support.
- Event Notification: Syslog, e‑mail, SNMP traps, and relay output for fault and event reporting.
- Wide Temperature Range: ‑25 °C to 70 °C operation, ‑40 °C to 85 °C storage.
- Long‑Term Reliability: 5‑year manufacturer warranty.
### 3. Technical Specifications
Physical Characteristics
- Dimensions: 125.6 (W) × 65 (D) × 196.1 (H) mm (4.94 × 2.55 × 7.72 in.)
- Weight: ~985 g
- Enclosure: Metal, IP40 protection rating
- Mounting: Wall‑mount or DIN‑rail
Power
- Input Voltage: Dual 12–48 V DC via M23 5‑pin connector
- Power Consumption: Approx. 8.5 W typical
- PoE PD: IEEE 802.3af compliant on ETH2 port with 1 kV isolation
- Relay Output: 1 A @ 24 V DC (M12 5‑pin A‑coded)
Ethernet Interface
- Ports: 2 × 10/100/1000 Base‑T(X) M12 8‑pin A‑coded, Auto MDI/MDIX
- Cable Support:
- 10Base‑T: Cat 3/4/5 UTP, 100 m
- 100Base‑TX: Cat 5 UTP, 100 m
- 1000Base‑T: Cat 5/5e UTP, 100 m
Wireless Interface
- Standards: IEEE 802.11 a/b/g/n/ac
- Frequency Bands:
- 2.4 GHz (2.412–2.472 GHz, 13 channels EU / 11 channels US)
- 5 GHz (5.180–5.240 GHz EU; 5.180–5.240 GHz & 5.745–5.825 GHz US)
- Modulation: DSSS, OFDM (BPSK, QPSK, 16QAM, 64QAM)
- Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11a/g: 6–54 Mbps
- 802.11n: up to 300 Mbps
- Transmit Power:
- 802.11a: 12 dBm ± 1.5 dBm
- 802.11b: 18 dBm ± 1.5 dBm
- 802.11g: 15 dBm ± 1.5 dBm
- 802.11n HT20: 13 dBm ± 1.5 dBm @ 150 Mbps
- 802.11n HT40: 12 dBm ± 1.5 dBm @ 300 Mbps
- Receiver Sensitivity:
- 802.11a/g: ‑68 dBm @ 54 Mbps
- 802.11b: ‑82 dBm @ 11 Mbps
- 802.11n HT20: ‑64 dBm @ 150 Mbps
- 802.11n HT40: ‑60 dBm @ 300 Mbps
- Antenna Connectors: 2 × external reverse‑SMA (2.4/5 GHz)
- Radio Type: Dual‑RF, DSSS/OFDM
Environmental Conditions
- Operating Temperature: ‑25 °C to 70 °C (‑13 °F to 158 °F)
- Storage Temperature: ‑40 °C to 85 °C (‑40 °F to 185 °F)
- Humidity: 5 % to 95 % non‑condensing
### 4. Functionality
The TGAP‑820+‑M12 functions as a high‑performance industrial wireless access point capable of operating in multiple modes:
- Access Point (AP): Acts as a central hub for wireless clients.
- Client Mode: Connects wired devices to a wireless network.
- Bridge Mode: Provides LAN‑to‑LAN bridging between two APs using WDS.
- AP‑Client Mode: Enables transparent connectivity for multiple stations behind the AP.
Use Cases:
- Rolling stock and railway carriages (EN50155 compliance)
- Industrial automation and SCADA systems
- Transportation and logistics networks
- Outdoor or mobile wireless backhaul links
Compatibility:
Supports standard Ethernet devices (PCs, PLCs, routers, switches) and interoperates with IEEE 802.11 a/b/g/n/ac wireless clients.
Management Interfaces:
- Web browser (HTTP/HTTPS)
- ORing Open‑Vision Windows utility
- SNMP v1/v2c
- Console (RS‑232 M12 5‑pin, 115200 bps, 8‑N‑1)
### 5. Components & Accessories
Included Items:
- TGAP‑820+‑M12 main unit
- 2 × 2.4/5 GHz reverse‑SMA antennas
- Wall‑mount kit
- Quick Installation Guide (QIG)
- Product CD (manuals and utilities)
Optional Accessories:
- DIN‑rail mounting kit
- M12 Ethernet cables (A‑coded 8‑pin)
- M23 power cable assemblies
- External high‑gain antennas or RF extension cables
Connectors:
- Ethernet: M12 8‑pin A‑coded
- Power: M23 5‑pin female
- Relay/DI/DO: M12 5‑pin A‑coded
- Console: M12 5‑pin A‑coded RS‑232
### 6. Installation & Setup
Mounting Options:
- Wall Mount: Four keyhole slots for screw mounting; leave ~2 mm clearance for sliding fit.
- DIN‑Rail: Optional bracket for panel or cabinet installation.
Power Connection:
1. Connect dual DC power inputs (12–48 V DC) via M23 5‑pin connector.
2. Tighten the outer ring for a secure, vibration‑resistant fit.
3. Alternatively, power via PoE PD on ETH2 port.
Grounding:
Connect the grounding pin on the power connector to a proper earth ground to minimize EMI.
Network Configuration:
- Default IP: 192.168.10.1
- Default credentials: admin / admin
- Access via web browser or Open‑Vision utility.
Reset Procedure:
Press and hold the reset button until the power LED flashes to restore factory defaults.
LED Indicators:
- PWR1/PWR2: Green – DC power active
- ETH1/ETH2: Green – Link / Blinking – Activity
- WLAN: Green – Active / Blinking – Data transmission
- Fault: Red – Power or link failure
### 7. Performance & Capabilities
- Wireless Throughput: Up to 300 Mbps per radio (802.11n); enhanced under 802.11ac.
- Ethernet Throughput: Full‑duplex Gigabit on both M12 ports.
- Latency: Optimized for industrial real‑time communication.
- Power Efficiency: Typical consumption ≈ 8.5 W.
- Reliability: Dual power redundancy and fault relay ensure continuous operation.
- Limitations: IP40 enclosure suitable for indoor or protected outdoor environments; not waterproof without additional housing.
### 8. Standards & Compliance
Electrical & Safety:
- EN60950‑1 (Safety of IT Equipment)
- IEC60068‑2‑6 (Vibration)
- IEC60068‑2‑27 (Shock)
- IEC60068‑2‑32 (Free Fall)
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15 Class A, CISPR 22 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), ‑4‑3 (RS), ‑4‑4 (EFT), ‑4‑5 (Surge), ‑4‑6 (CS), ‑4‑8, ‑4‑11
- Railway Standards: EN50155 (EN50121‑3‑2, EN50121‑4, EN55011)
Environmental:
- Operating temperature –25 °C to 70 °C
- Storage –40 °C to 85 °C
- Humidity 5–95 % non‑condensing
Wireless Regulatory:
- FCC Part 15 Subpart B and C
- Industry Canada RSS‑210 compliance
- CE (ETSI EN 300 328, EN 301 893)
- RF exposure compliant; minimum 20 cm separation required
### 9. Additional Information
Warranty:
5‑year limited warranty covering defects in materials and workmanship.
Maintenance:
- Periodic inspection of connectors and grounding recommended.
- Firmware updates available via ORing website; upgrade through web interface.
- Avoid operating in sealed enclosures without adequate ventilation.
Support & Contact:
ORing Industrial Networking Corp.
3F., No. 542‑2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan
Tel: +886‑2‑2218‑1066 Fax: +886‑2‑2218‑1014
Website: [www.oring‑networking.com](https://www.oring-networking.com)
E‑mail: support@oring‑networking.com
Firmware & Software:
- Managed via web GUI or Open‑Vision utility.
- Supports HTTPS, SNMP, RADIUS, DHCP, STP/RSTP, and Syslog.
- Configurable event warnings via e‑mail, SNMP traps, or relay output.
Summary:
The ORing TGAP‑820+‑M12 is a robust, EN50155‑certified industrial wireless access point engineered for high‑reliability applications in transportation and harsh industrial environments. With dual‑band 802.11 a/b/g/n/ac radios, dual Gigabit M12 Ethernet ports, PoE PD capability, and redundant DC power inputs, it delivers secure, high‑speed wireless connectivity under demanding conditions. Its comprehensive management suite, advanced security protocols, and rugged mechanical design make it an ideal solution for railway, vehicle, and factory automation networks requiring uninterrupted, high‑performance wireless communication.
-
-M12.webp)
DataSheet_TGAP-820(+)-M12.pdf
PDF Catalog
No accessories available.
