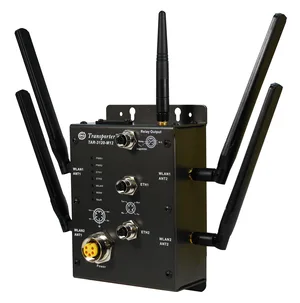

Industrial EN50155 Dual-RF IEEE 802.11 a/b/g, and IEEE 802.11 b/g wireless access point, with 2*10/100TX on M12 connector, DIN rail or wall mount, metal case IP40, 125*65*196,mm, -20..70° operating temperature, -20..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~1015gr, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial EN50155 Dual-RF IEEE 802.11 a/b/g/n, and IEEE 802.11 b/g wireless access point, with 2*10/100TX on M12 connector, DIN rail or wall mount, metal case IP40, 125*65*196,mm, -20..70° operating temperature, -20..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~1015gr, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

• Industrial‑grade router with EN50155 compliance for rolling‑stock use • Integrated HSUPA cellular modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA • IEEE 802.11b/g WLAN interface with link speeds up to 54 Mbps • Dual 10/100Base‑T(X) Ethernet ports on M12 (D‑coding), auto‑MDI/MDI‑X • Redundant dual 12–48 VDC power inputs using an M23 connector • Robust IP40 metal casing, DIN‑rail or wall‑mount options • Secure wireless access with WEP, WPA, WPA2, WPA‑PSK/WPA2‑PSK, 802.1X, RADIUS, TKIP, AES • Integrated VPN support: OpenVPN (server & client), PPTP (server & client) • Firewall functions: IP filtering, MAC filtering, NAT, DMZ, port triggering, virtual servers, UPnP • Event notification: Email, Syslog, SNMP Trap, fault relay, beeper • HTTPS secure management, intuitive web GUI • Cellular failover option for WAN redundancy • M12/A‑coding relay output (3 A @ 24 VDC) • Auto MDI/MDI‑X, DHCP server/relay, DDNS support • Compliant with EMI/EMS, vibration, shock, and safety standards

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **EN50155 Compliance:** Fully compliant with EN50155 and EN50121-3-2 standards for railway and rolling stock applications, ensuring resistance to vibration, shock, and temperature extremes. - **Dual RF Wireless Interfaces:** Supports IEEE 802.11a/b/g and IEEE 802.11b/g standards, enabling simultaneous dual-band operation (2.4 GHz and 5 GHz). - **Integrated Cellular Modem:** Built-in HSUPA modem supporting GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA standards with SIM card slot for WAN connectivity. - **High-Speed Wireless Connectivity:** WLAN interface supports data rates up to 54 Mbps for both 2.4 GHz and 5 GHz bands. - **Advanced Security:** Supports WEP (64/128-bit), WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), and 802.1X/RADIUS authentication. - **VPN Support:** Integrated VPN functionality including OpenVPN (server/client) and PPTP VPN for secure remote access and site-to-site tunneling. - **Multiple WAN Options:** Supports Dynamic/Static IP, PPPoE, 3G/HSUPA modem dial-up, and wireless client WAN modes. - **Redundant Power Inputs:** Dual 12–48 VDC inputs via M23 connector with reverse polarity protection and overload current protection. - **Industrial-Grade Design:** IP40-rated metal enclosure, DIN-rail or wall-mountable, designed for -20°C to +70°C operation. - **Event Notification:** Supports Syslog, SNMP Trap, Email alerts, and relay output for fault indication. - **Management & Configuration:** Web-based management (HTTP/HTTPS), SNMP v1/v2, SSH, and Syslog support. - **Firewall & NAT Features:** Includes IP/MAC filtering, port forwarding, DMZ, UPnP, and NAT-PMP. - **Daisy Chain Support:** Dual Ethernet ports can operate in switch mode to reduce external switch usage. - **Firmware Upgrade & Configuration Backup:** Supports firmware updates, configuration save/restore, and factory reset.

Manufacturer: Oring

Category: Railway EN50155 Access Point

• Four isolated serial ports supporting RS‑422 and RS‑485 (2‑wire and 4‑wire) communication. • One 10/100Base‑T(X) Ethernet port using M12 (D‑coding) for secure, vibration‑resistant industrial connections. • Complies with EN50155 for railway applications and EN50121‑3‑2 for EMC railway standards. • Designed for mission‑critical environments requiring redundant communication paths and serial device integration. • Supports up to five simultaneous host connections via Virtual COM, TCP Server, or TCP Client modes. • Security features include HTTPS, SSH, SSL data encryption, IP access control, and secure password protection. • Robust NAT-pass-through function enabling remote management even behind NAT routers. • Dual redundant 12–48 VDC input power via M12 connector with overload protection. • Rugged IP40 metal enclosure suited for harsh, dusty, or electrically noisy environments. • Wide operating temperature range: -40°C to 70°C; storage −40°C to 85°C. • Configurable through DS‑Tool (Windows utility), web interface (HTTPS), or SSH/Telnet console. • DIN rail or wall mounting for flexible industrial deployment. • Event notification via SNMP trap, Syslog, Email, alarm relay, and beeper. • Supports protocols ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP v1/v2c, HTTPS, SMTP, DDNS, PPPoE.

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial wireless access point EN50155 RF IEEE 802.11 a/b/g/n, 2*1000/100/10TX on M12 connector, 1kV isolation for PoE PD at ETH2 port, DIN rail or wall mount, metal case IP40, -20..70° operating temperature, -20..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~960gr, 125*65*196mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial wireless access point EN50155 RF IEEE 802.11 a/b/g/n, 2*1000/100/10TX on M12 connector, DIN rail or wall mount, metal case IP40, -20..70° operating temperature, -20..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~955gr, 125*65*196mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **Dual Wireless Modules:** Two independent 802.11 a/b/g/n radios supporting simultaneous 2.4 GHz and 5 GHz operation. - **High‑Speed Connectivity:** Wireless throughput up to 300 Mbps per radio using IEEE 802.11n MIMO technology. - **Industrial‑Grade Design:** EN50155‑certified for railway and rolling stock use; resistant to vibration, shock, and temperature extremes. - **Rugged Connectors:** M12 A‑coded connectors for Ethernet, DI/DO, relay, and console; M23 connector for dual DC power input. - **Flexible Operation Modes:** Supports AP, Client, Bridge, and AP‑Client modes; dual AP/dual client operation for redundant or segmented networks. - **Secure Communication:** WEP (64/128‑bit), WPA/WPA2 (AES/TKIP), WPA‑PSK (256‑bit), and 802.1X authentication. - **Management Interfaces:** Web‑based GUI, HTTPS, SNMP, RADIUS, and ORing’s Open‑Vision Windows utility. - **Event Notification:** Syslog, e‑mail alerts, SNMP traps, and relay output for fault indication. - **Redundant Power Inputs:** Dual 12–48 V DC inputs via M23 connector for high reliability. - **PoE Support:** ETH2 port supports IEEE 802.3af PoE PD with 1 kV isolation (TGAP‑6620⁺‑M12 only). - **Environmental Protection:** IP40 metal enclosure, DIN‑rail or wall‑mountable, designed for ‑25 °C to 70 °C operation. - **Comprehensive LED Indicators:** Power, Ethernet link/activity, WLAN link/activity, and fault relay status LEDs.

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **Dual-RF IEEE 802.11 a/b/g/n Wireless Modules:** Supports simultaneous dual-band operation for high throughput and redundancy. - **Industrial-Grade Design:** EN50155-certified for railway and rolling stock applications, resistant to vibration, shock, and temperature extremes. - **Dual Gigabit Ethernet Ports:** Two 10/100/1000Base-T(X) M12 ports with auto MDI/MDIX support, enabling daisy-chain topology to minimize cabling. - **Power over Ethernet (PoE PD):** ETH2 port supports IEEE 802.3af PoE PD with 1kV isolation. - **Flexible Power Input:** Dual redundant 12–48 VDC inputs via M23 5-pin connector. - **Rugged Enclosure:** IP40-rated metal housing for industrial environments. - **Wide Temperature Range:** Operating from -25°C to +70°C, storage from -40°C to +85°C. - **Multiple Operating Modes:** AP, Client, Bridge, and AP-Client modes for versatile deployment. - **Advanced Security:** WEP, WPA/WPA2, WPA-PSK, 802.1X authentication, TKIP/AES encryption, and MAC filtering. - **Comprehensive Management:** Web-based GUI, Windows utility (Open-Vision), SNMP, Syslog, and HTTPS support. - **Event Notification:** Supports Syslog, email alerts, SNMP traps, and relay output for fault indication. - **High-Speed Wireless Connectivity:** Up to 300 Mbps per radio module. - **Long-Term Reliability:** 5-year manufacturer warranty.

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **Dual‑RF IEEE 802.11 a/b/g/n/ac Wireless Modules:** Supports simultaneous 2.4 GHz and 5 GHz operation for high‑throughput, interference‑resilient connectivity. - **High‑Speed Wireless Performance:** Up to 300 Mbps per radio (802.11n) and enhanced throughput under 802.11ac. - **Industrial‑Grade Design:** EN50155 and EN50121‑4 compliant for railway and rolling‑stock environments; IEC60068‑2‑6/27/32 tested for vibration, shock, and free‑fall resistance. - **Rugged Connectivity:** Two 10/100/1000 Base‑T(X) Ethernet ports with M12 A‑coded connectors ensure secure, vibration‑proof connections. - **PoE PD Support:** 1 kV isolation for PoE PD at ETH2 port, compliant with IEEE 802.3af. - **Redundant Power Inputs:** Dual 12–48 V DC inputs via M23 connector for power reliability. - **Flexible Mounting:** DIN‑rail or wall‑mount installation options. - **Comprehensive Security:** WEP (64/128‑bit), WPA/WPA2, WPA‑PSK (256‑bit), 802.1X authentication, TKIP/AES encryption, and SSID broadcast control. - **Multiple Operating Modes:** AP, Client, Bridge, and AP‑Client modes for flexible network topologies. - **Advanced Management:** Web‑based GUI, HTTPS, SNMP, RADIUS, and ORing Open‑Vision utility support. - **Event Notification:** Syslog, e‑mail, SNMP traps, and relay output for fault and event reporting. - **Wide Temperature Range:** ‑25 °C to 70 °C operation, ‑40 °C to 85 °C storage. - **Long‑Term Reliability:** 5‑year manufacturer warranty.

Manufacturer: Oring

Category: Railway EN50155 Access Point

• Designed for railway/rolling‑stock environments with full EN50155 compliance • Dual 10/100/1000Base‑T(X) Ethernet ports using rugged M12 A‑coded connectors • IEEE 802.11 a/b/g/n/ac wireless interface supporting up to 300 Mbps throughput • Secure redundant power input (dual 12–48 VDC) via M23 5‑pin connector • Daisy‑chain Ethernet topology supported • Multiple wireless modes: AP, Client, AP‑Client, Bridge, WDS • Supports MAC filtering, HTTPS management, SNMP, RADIUS, and full wireless encryption (WEP, WPA, WPA2, WPA‑PSK, 802.1X) • Industrial‑grade metal enclosure with IP40 rating, vibration‑ and shock‑resistant • Operational temperature range of –20 to 70 °C (or –25 to 70 °C based on series specifications) • Management via Windows Open‑Vision utility, web browser, or console port • 2.4 GHz and 5 GHz RF support, external reverse‑SMA antenna connectors • Robust notification system with relay output, Syslog, email, and SNMP trap support • DIN‑rail or wall mounting options • Designed for continuous operation in harsh electrical environments with full EMI/EMS compliance.

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial waterproof wireless access point EN50155 RF IEEE 802.11 a/b/g/n, 2*1000/100/10TX on RJ45 connector, 1kV isolation for PoE PD at ETH2 port, DIN rail or wall mount, metal case IP67, -20..70° operating temperature, -40..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~3.900gr, 310*310*87mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **Industrial‑grade wireless connectivity:** Supports IEEE 802.11 a/b/g/n standards with data rates up to 300 Mbps. - **Rugged design:** IP67 waterproof metal enclosure, EN50155 and EN50121‑3‑2 compliant for railway and transportation use. - **High reliability:** M12 connectors for Ethernet and power ensure secure, vibration‑proof connections. - **Flexible power options:** Dual 12–48 V DC inputs via M12 5‑pin connector; PoE PD (Power Device) compliant with IEEE 802.3af, 1 kV isolation. - **Versatile operation modes:** Configurable as Access Point (AP), Client, Bridge, or AP‑Client. - **Advanced wireless security:** Supports WEP (64/128‑bit), WPA/WPA2‑Personal and Enterprise, 802.1X authentication, TKIP/AES encryption, and MAC/IP/Port filtering. - **Management and monitoring:** Web‑based GUI, HTTPS secure management, SNMP, Syslog, e‑mail alerts, and ORing’s Open‑Vision Windows utility. - **High environmental tolerance:** Operating temperature −25 °C to 70 °C, storage −40 °C to 85 °C, humidity 5–95 % non‑condensing. - **Mounting flexibility:** Wall or pole mounting with included hardware. - **Long‑distance wireless capability:** External N‑type antenna connectors for 2.4 GHz and 5 GHz bands.

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial waterproof wireless access point EN50155 RF IEEE 802.11 a/b/g/n, 2*1000/100/10TX on RJ45 connector, 1kV isolation for PoE PD at ETH2 port, DIN rail or wall mount, metal case IP67, -25..70° operating temperature, -40..85° storage temperature, dual input 12..48V DC on M23 connector ~11W, ~3.980gr, 310*310*87mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial waterproof wireless access point EN50155 Dual-RF IEEE 802.11 a/b/g/n, 1*1000/100/10TX on M12 connector, 1kV isolation for PoE PD at ETH2 port, DIN rail or wall mount, metal case IP67, -20..70° operating temperature, -40..85° storage temperature, dual input 12..48V DC on M23 connector ~8,3W, ~3.980gr, 310*310*87mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

• Industrial-grade PoE injector with 30 W maximum output. • Single 10/100Base‑T(X) Ethernet input and PoE output using M12 4‑pin D-coded connectors. • Fully compliant with IEEE 802.3af and IEEE 802.3at PoE standards. • Intelligent PoE detection function ensures power is only provided to compliant PD devices, protecting non‑PoE equipment from damage. • Designed for railway and vehicle systems with complete EN50155 compliance. • Durable IP40-rated enclosure suitable for industrial environments. • Wide input voltage range: 50–57 VDC (standard model), 12–57 VDC (TINJ‑101‑M12‑24V). • High immunity to shock, vibration, ESD, and electromagnetic disturbances. • Extended operating temperature range: –25°C to 75°C. • Storage temperature range: –40°C to 85°C. • Designed for wall mounting; includes keyhole mounting slots for easy installation. • LED indicators for power and PoE status (green power LED, blue PoE LED). • Supports Cat 3/4/5/5e UTP cables for 10BASE‑TX/100BASE‑TX connections up to 100 meters. • Equipped with alarm LED and system log output options for monitoring. • Surge-protected power input rated at 2000 VDC; Ethernet ports offer 4 kV ESD protection. • Lightweight industrial design optimized for rolling stock vibration resistance.

Manufacturer: Oring

Category: Railway EN50155 Access Point

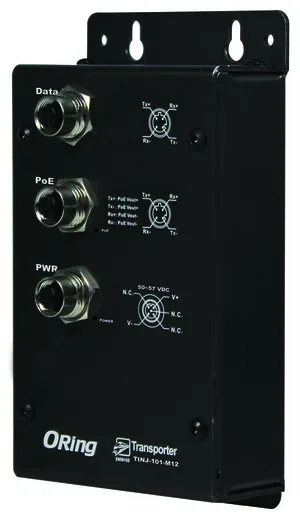

Industrial Injector 30W 1*100/10TX M12 connector, Railway system standard EN50155, alarm LED e-mail warning system log output, wall mounting ready, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 24VDC (12..50VDC), extended -25°..70°C operating temperature, ~gr, 89*40*178mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial Injector 30W 1*1000/100/10TX M12 connector, Railway system standard EN50155, alarm LED e-mail warning system log output, wall mounting ready, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 50..57VDC, extended -25°..70°C operating temperature, ~385gr, 89*40*178mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial Injector 30W 1*1000/100/10TX M12 connector, Railway system standard EN50155, alarm LED e-mail warning system log output, wall mounting ready, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 24VDC (12..50VDC), extended -25°..70°C operating temperature, ~446gr, 89*40*178mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

Industrial PoE 12 V Splitter 25W 1*10/100/1000TX M12 connector, Railway system standard EN50155, DIN-rail mounting, ESD 4kV DC Ethernet ports, surge 2000VDC power, DC power input 36..57VDC, extended -25°..75°C operating temperature, 385gr, 89*40*178mm, Oring

Manufacturer: Oring

Category: Railway EN50155 Access Point

- **Industrial PoE Splitter (25W):** Converts PoE input power into a regulated 24V DC output, supporting up to 25 watts of power for connected devices. - **Gigabit Ethernet Support:** Equipped with one 10/100/1000Base-T(X) M12 connector for high-speed data transmission. - **EN50155 Certified:** Fully compliant with railway system standards, ensuring vibration, shock, and temperature resilience suitable for rolling stock and vehicle applications. - **M12 D-coded Connectors:** Secure, vibration-resistant connectors ideal for mobile and industrial environments. - **Wide Input Voltage Range:** Accepts 36–57V DC input, compatible with IEEE 802.3af/at PoE standards. - **High Electrical Protection:** - ESD protection up to 4kV DC on Ethernet ports. - Surge protection up to 2000V DC on power lines. - Short-circuit and overload protection integrated. - **Extended Operating Temperature:** Designed for operation in extreme conditions, from -25°C to +75°C. - **DIN-Rail Mounting:** Supports DIN-rail installation for industrial control cabinets or enclosures. - **Status Indication:** LED indicators for power and PoE status, including alarm and system log output for monitoring. - **Compact and Lightweight:** 385 grams with a compact footprint (89 × 40 × 178 mm). - **High Reliability:** Designed for continuous operation in mission-critical environments with a 5-year warranty.

Manufacturer: Oring

Category: Railway EN50155 Access Point
